Memory Seats

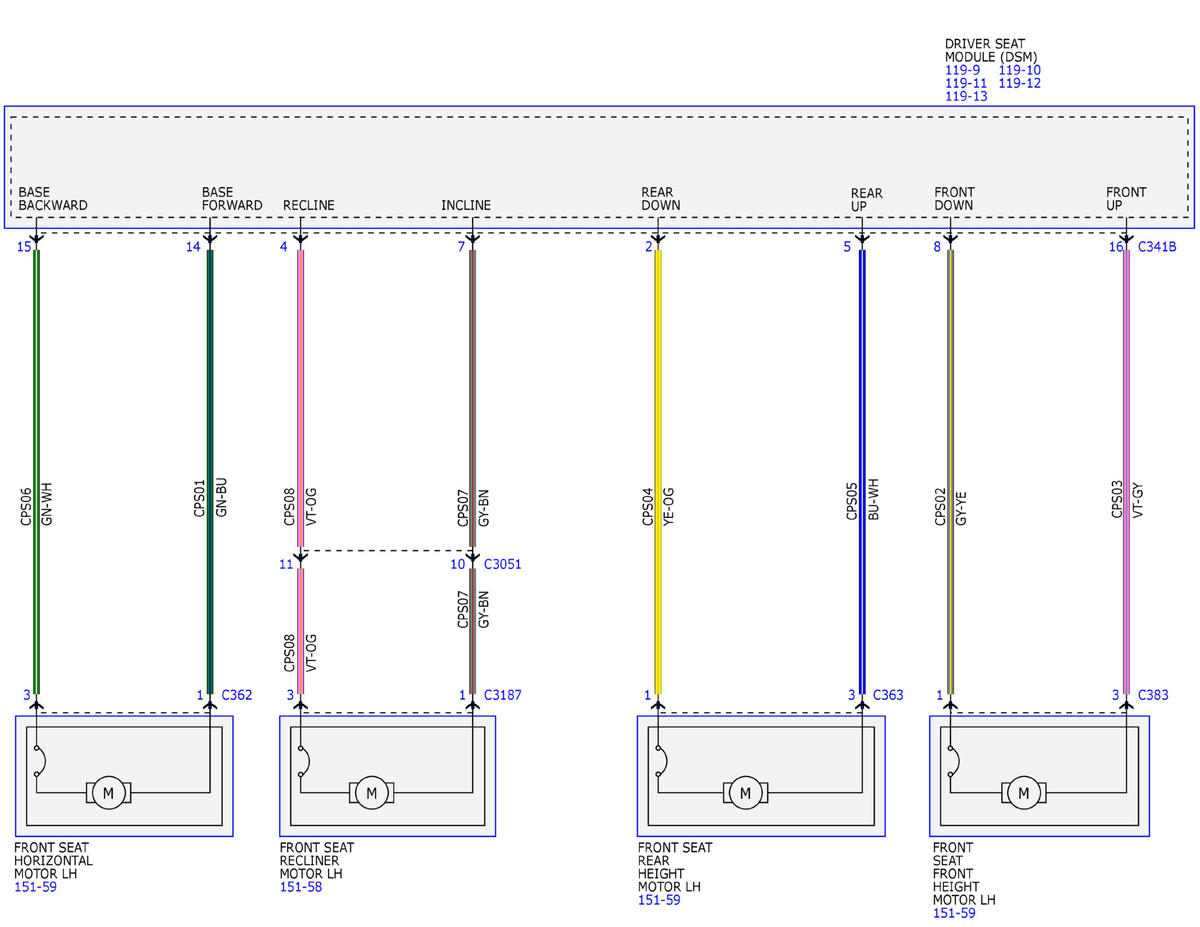

Fig 1: Memory Seats System Wiring Diagrams (1 Of 4)

Courtesy of FORD MOTOR COMPANY

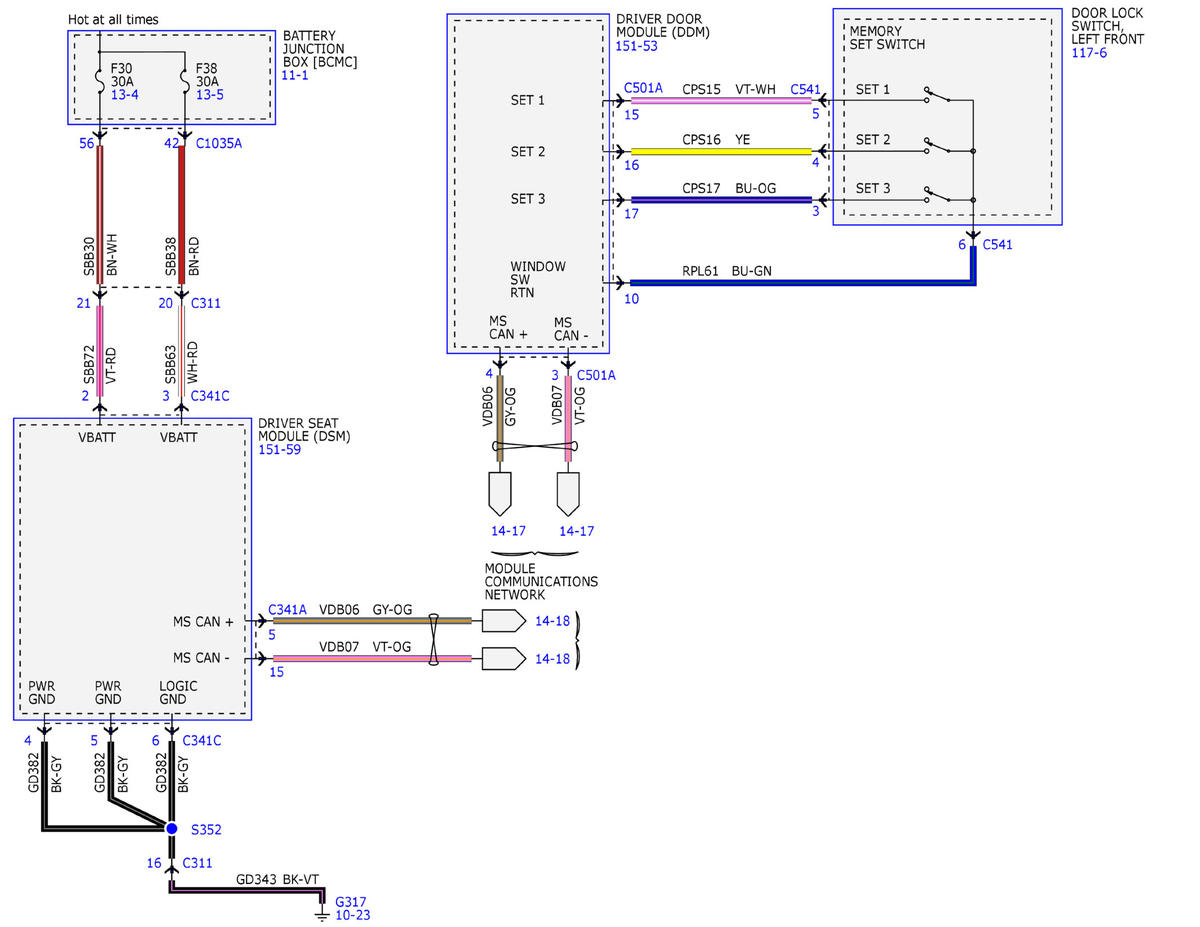

Fig 2: Memory Seats System Wiring Diagrams (2 Of 4)

Courtesy of FORD MOTOR COMPANY

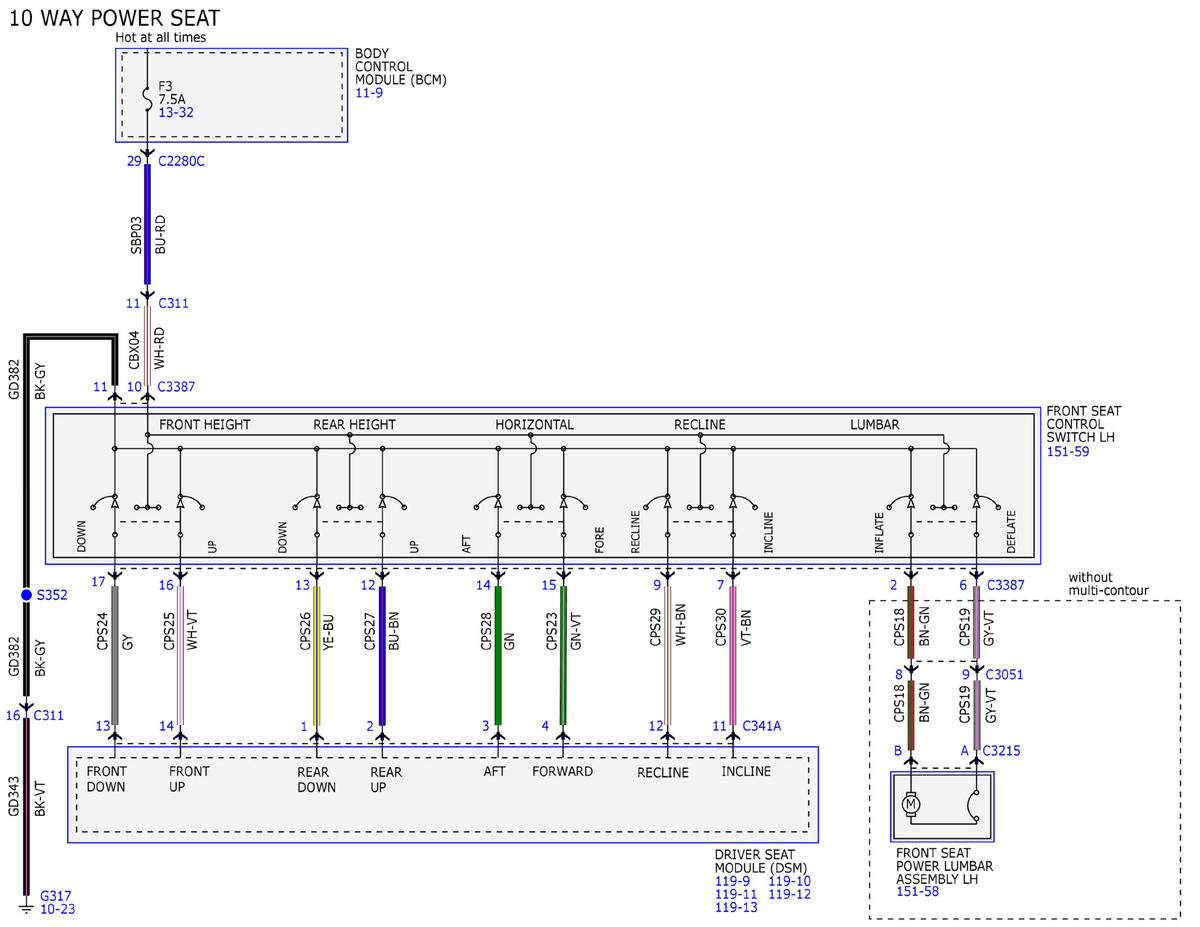

Fig 3: Memory Seats System Wiring Diagrams (3 Of 4)

Courtesy of FORD MOTOR COMPANY

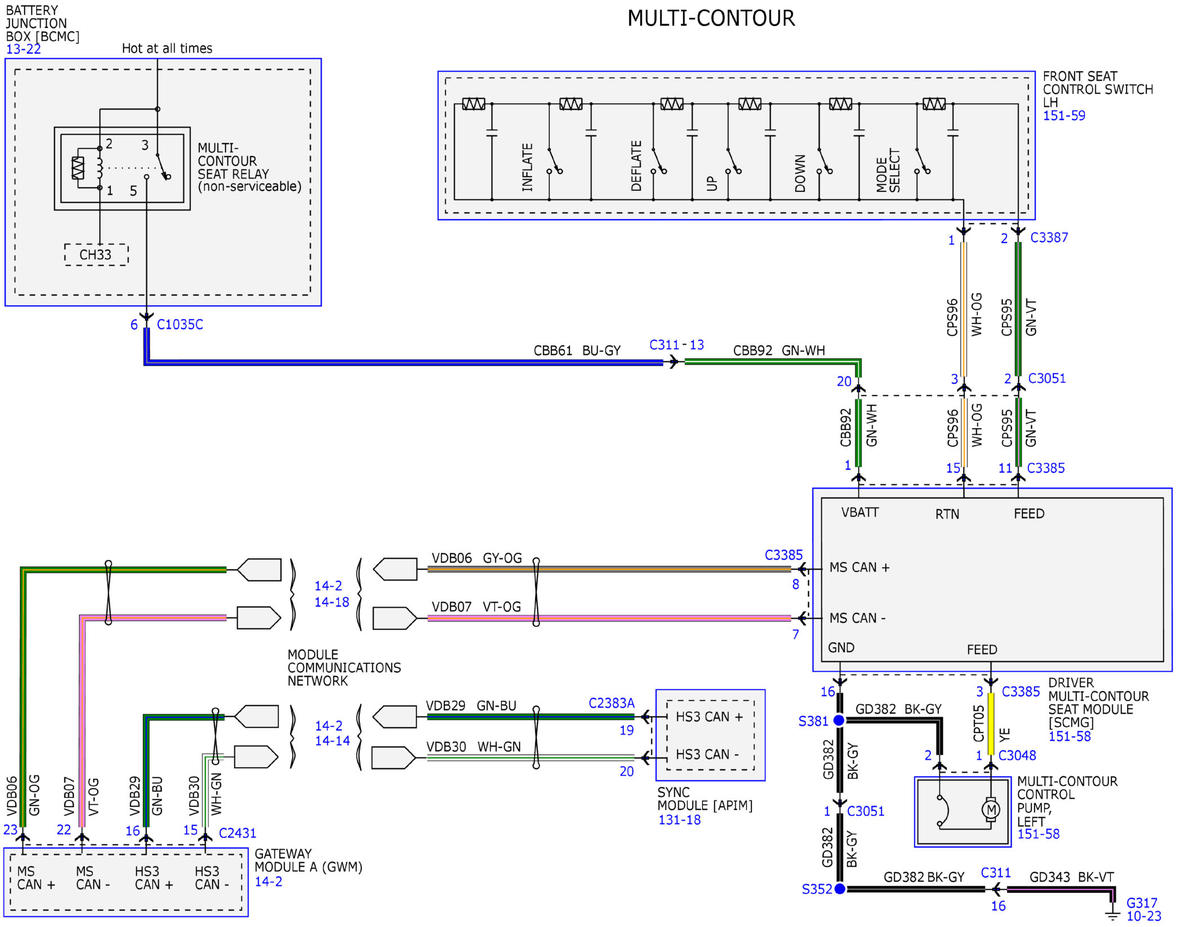

Fig 4: Memory Seats System Wiring Diagrams (4 Of 4)

Courtesy of FORD MOTOR COMPANY
