Power Liftgate

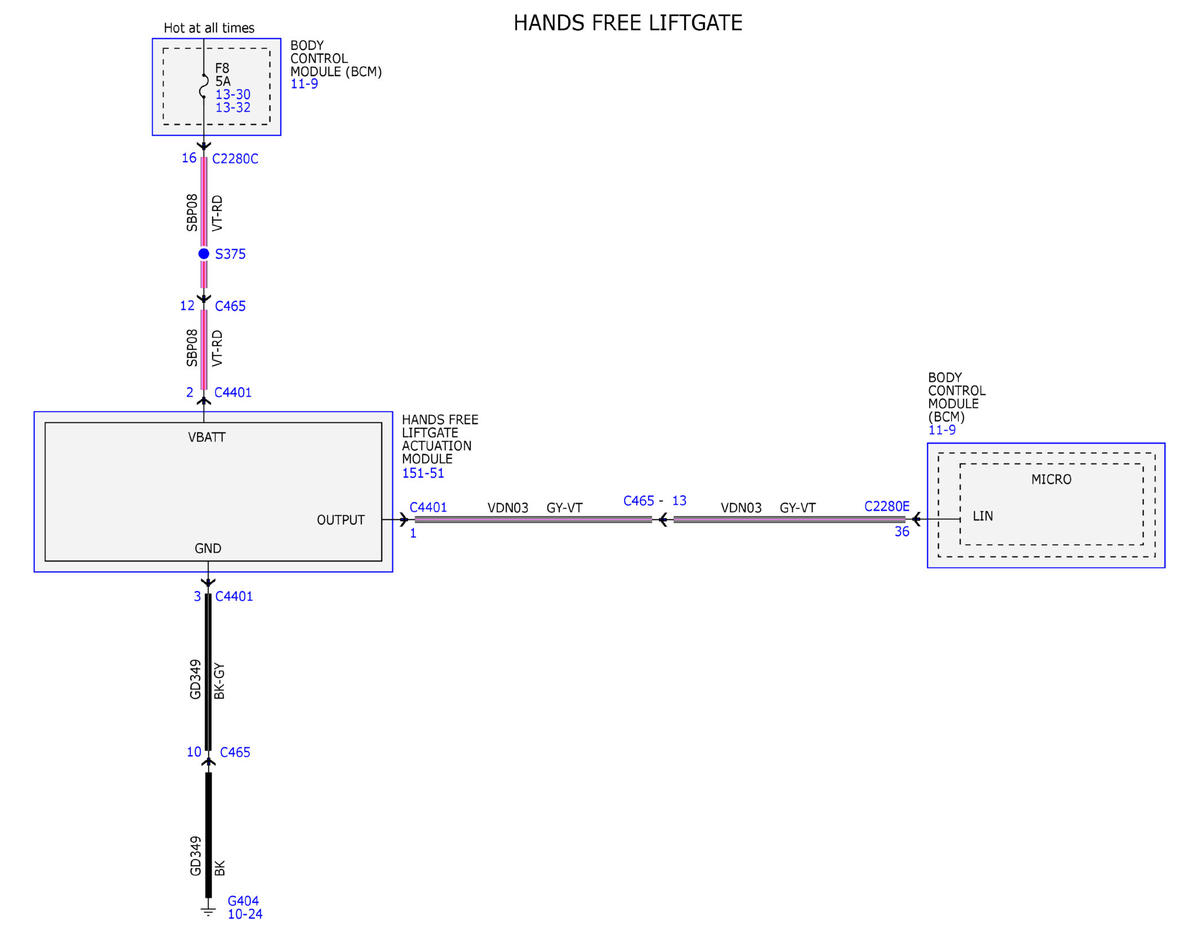

Fig 1: Power Liftgate System Wiring Diagrams (1 Of 5)

Courtesy of FORD MOTOR COMPANY

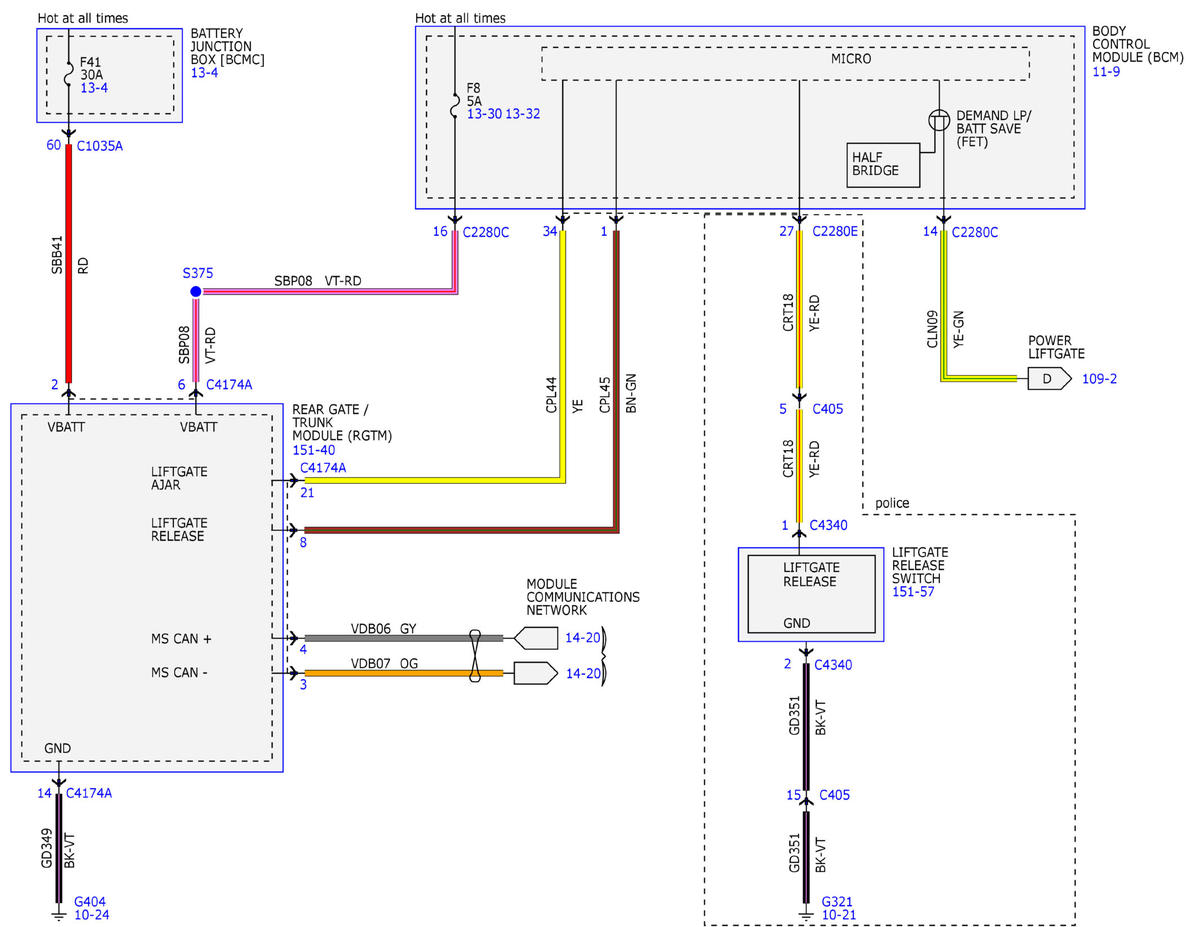

Fig 2: Power Liftgate System Wiring Diagrams (2 Of 5)

Courtesy of FORD MOTOR COMPANY

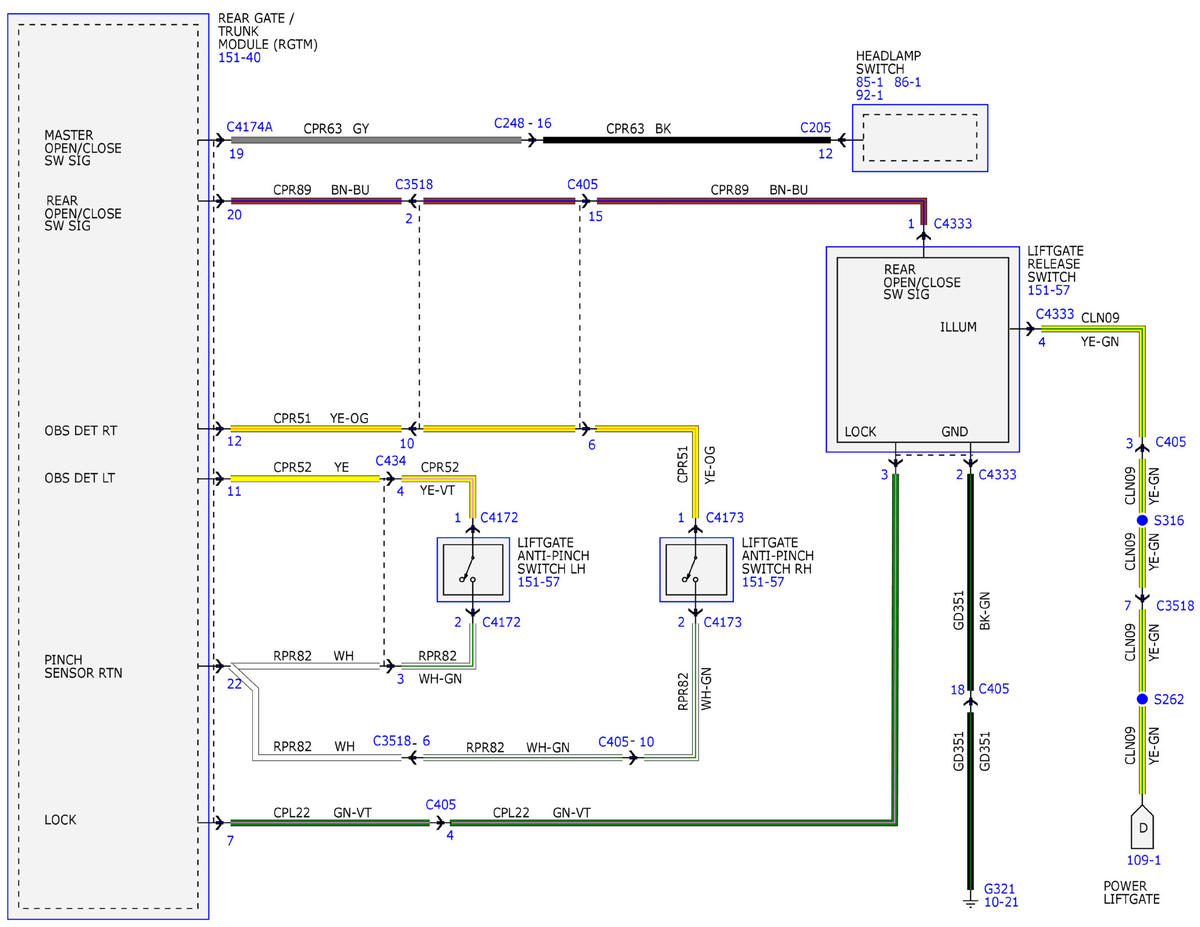

Fig 3: Power Liftgate System Wiring Diagrams (3 Of 5)

Courtesy of FORD MOTOR COMPANY

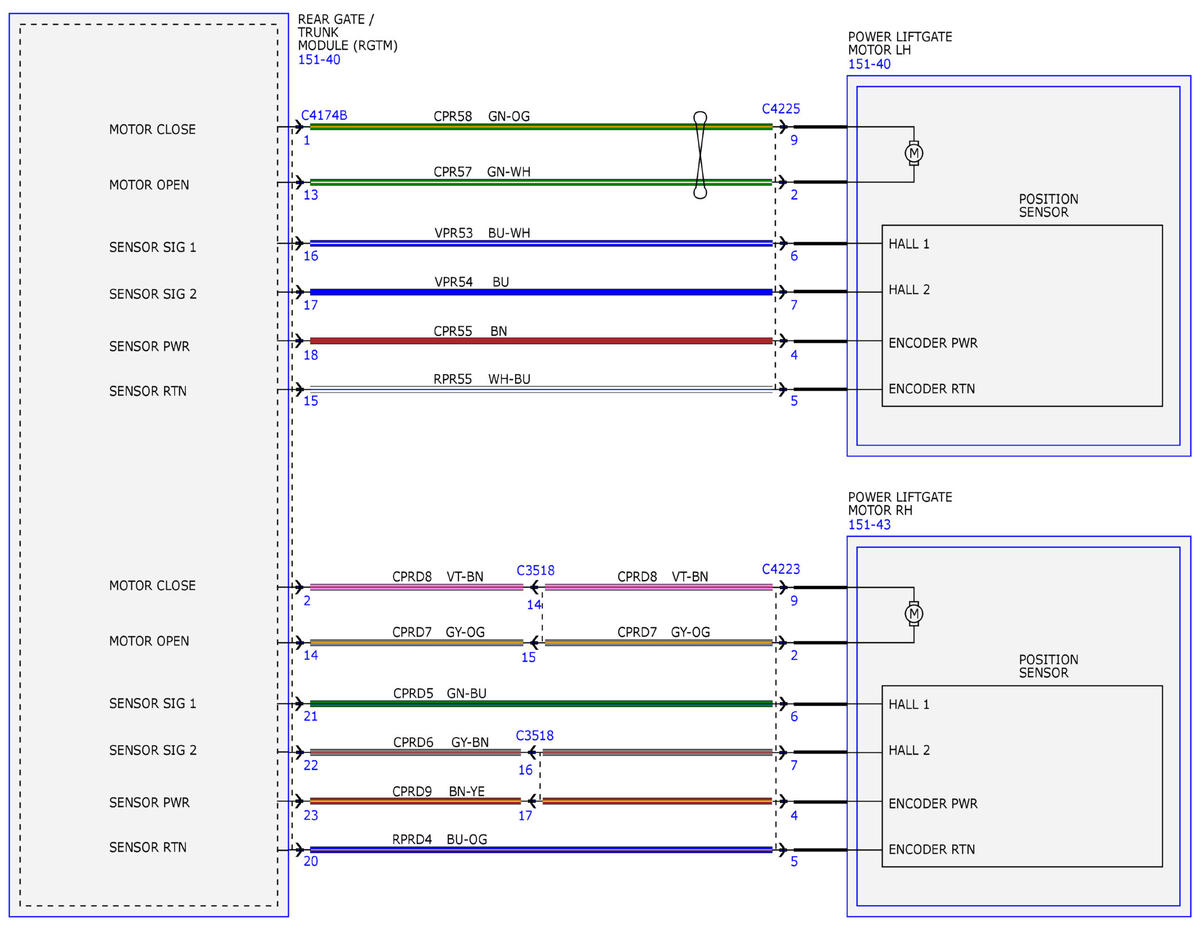

Fig 4: Power Liftgate System Wiring Diagrams (4 Of 5)

Courtesy of FORD MOTOR COMPANY

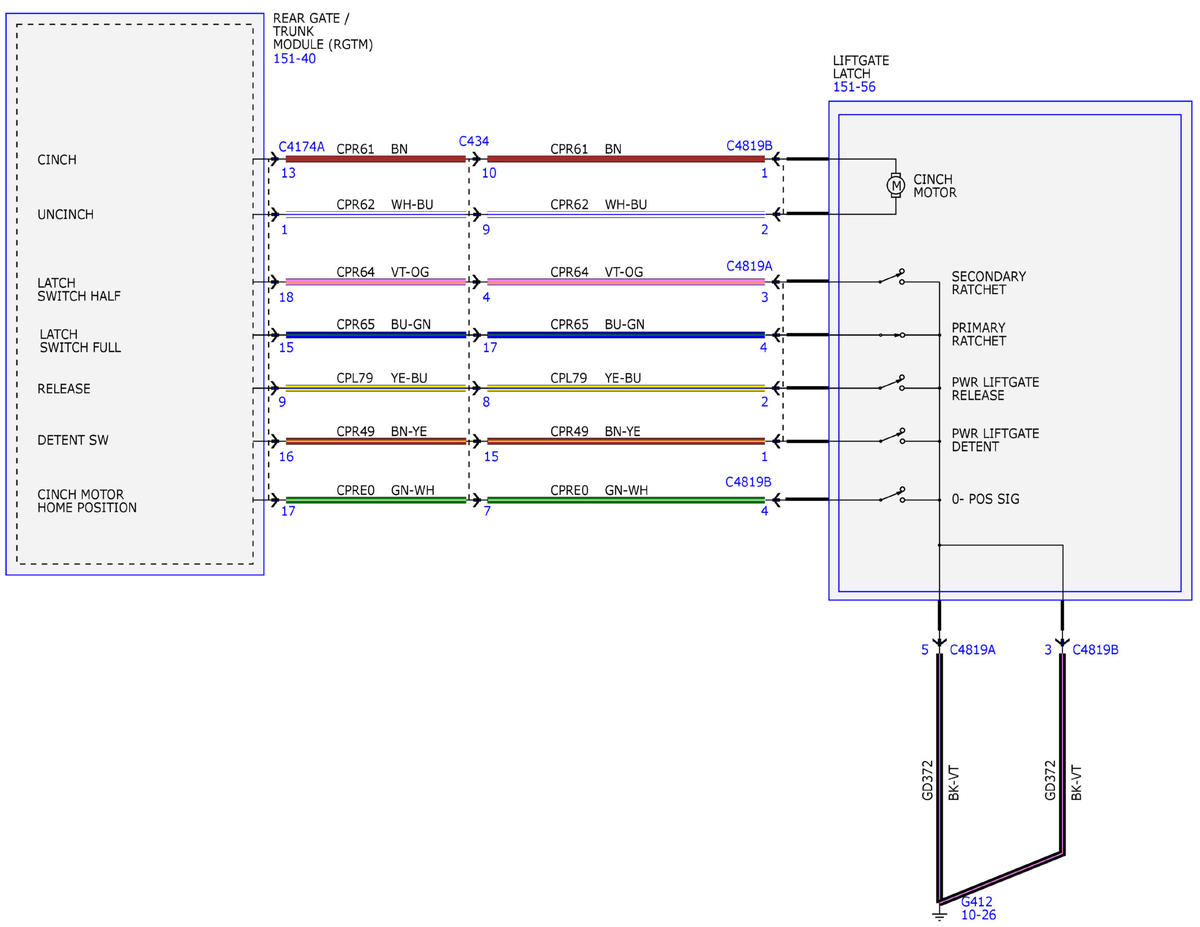

Fig 5: Power Liftgate System Wiring Diagrams (5 Of 5)

Courtesy of FORD MOTOR COMPANY
