Power Windows

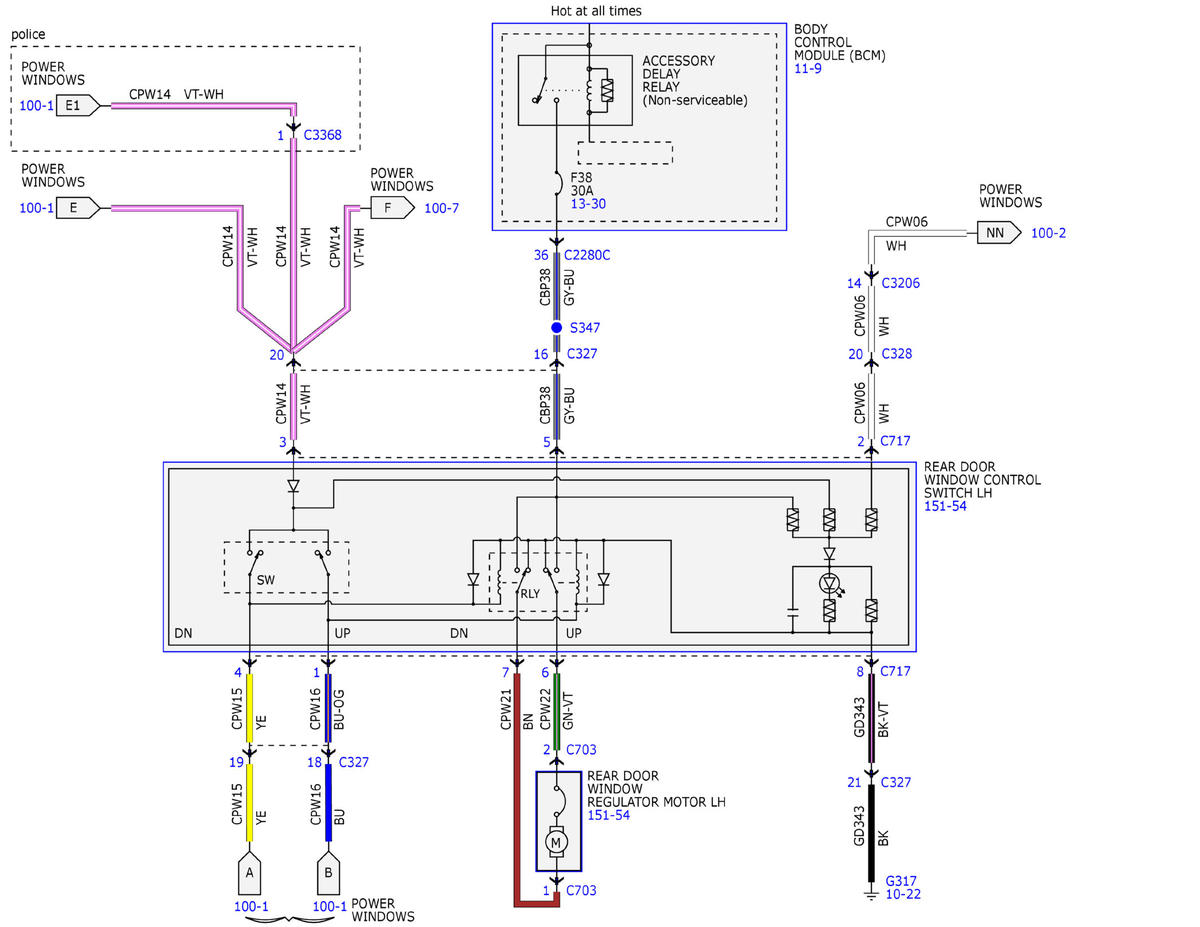

Fig 1: Power Windows System Wiring Diagrams (1 Of 7)

Courtesy of FORD MOTOR COMPANY

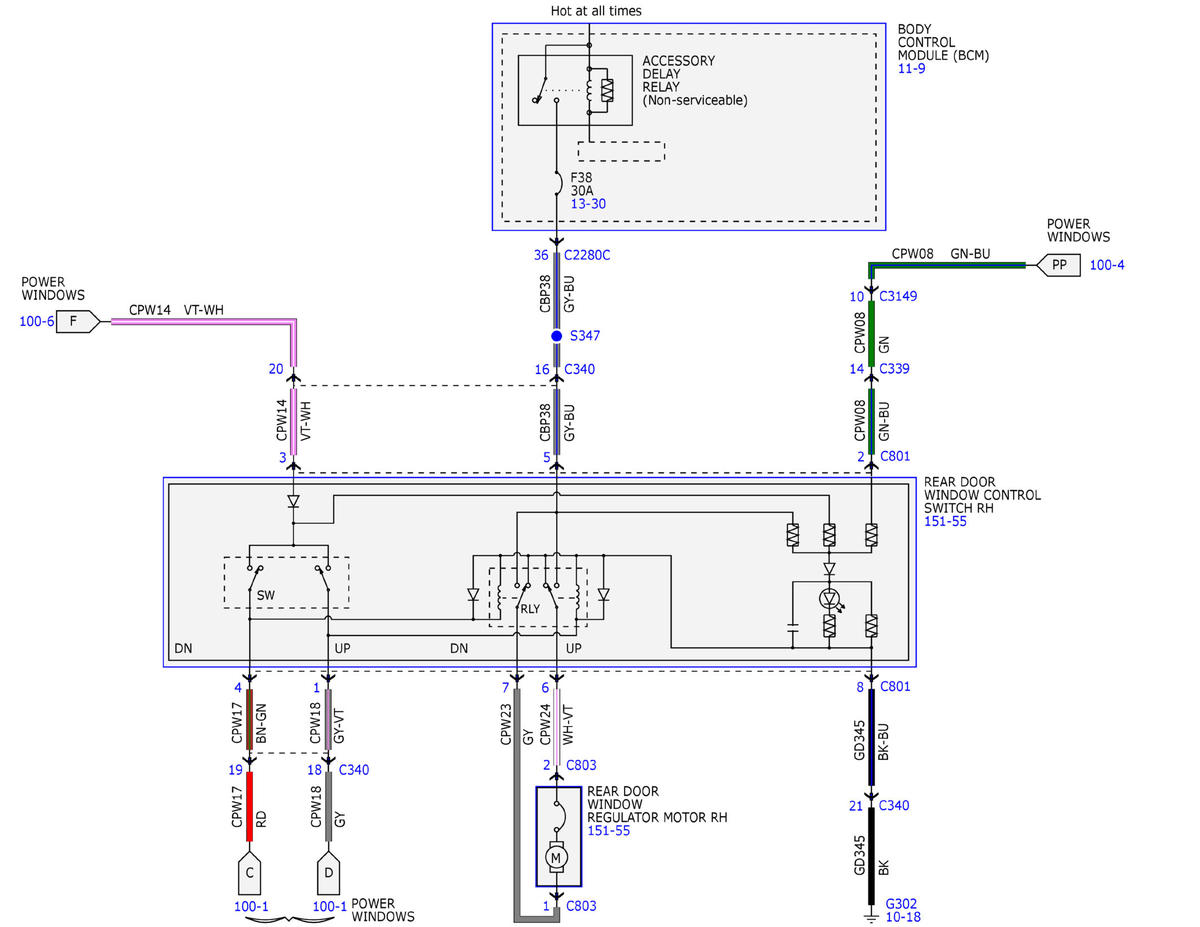

Fig 2: Power Windows System Wiring Diagrams (2 Of 7)

Courtesy of FORD MOTOR COMPANY

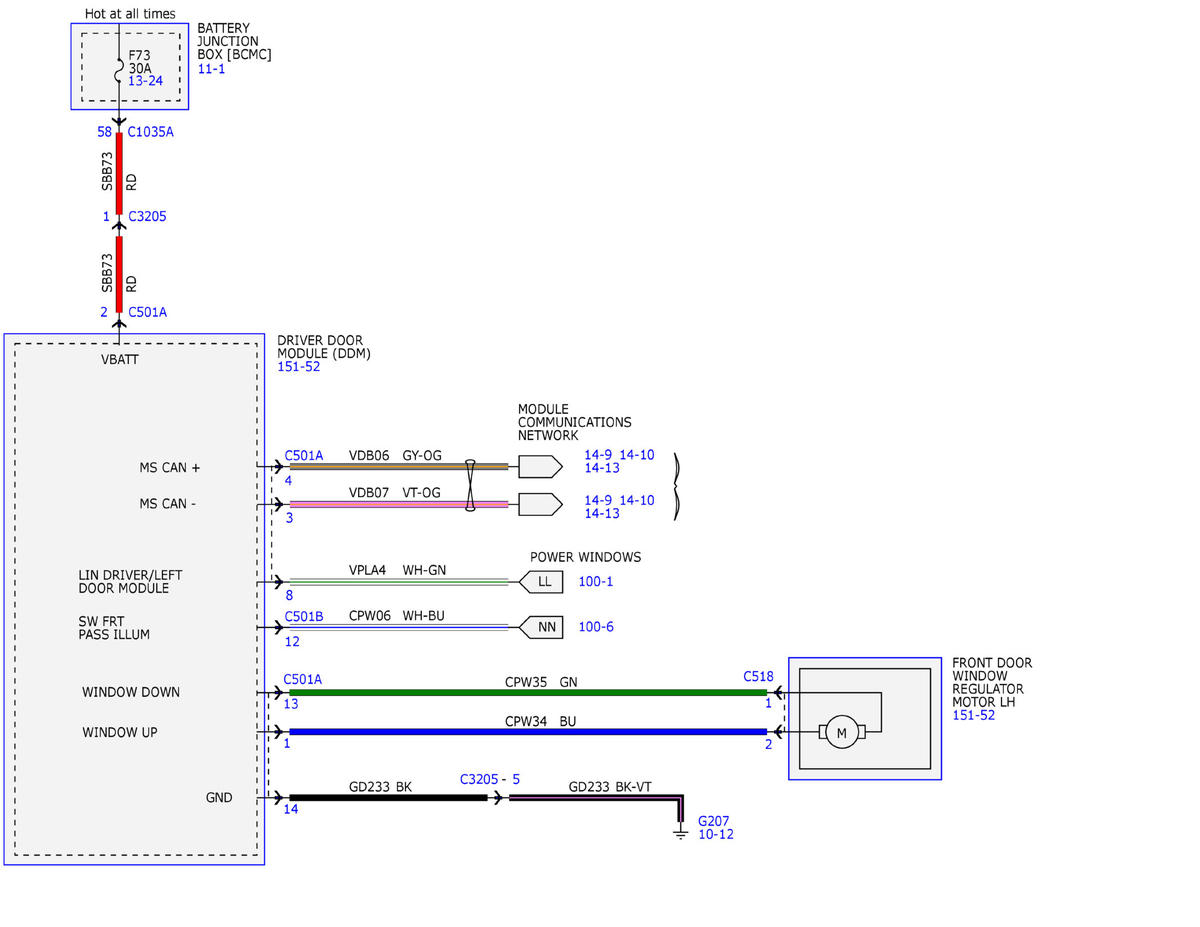

Fig 3: Power Windows System Wiring Diagrams (3 Of 7)

Courtesy of FORD MOTOR COMPANY

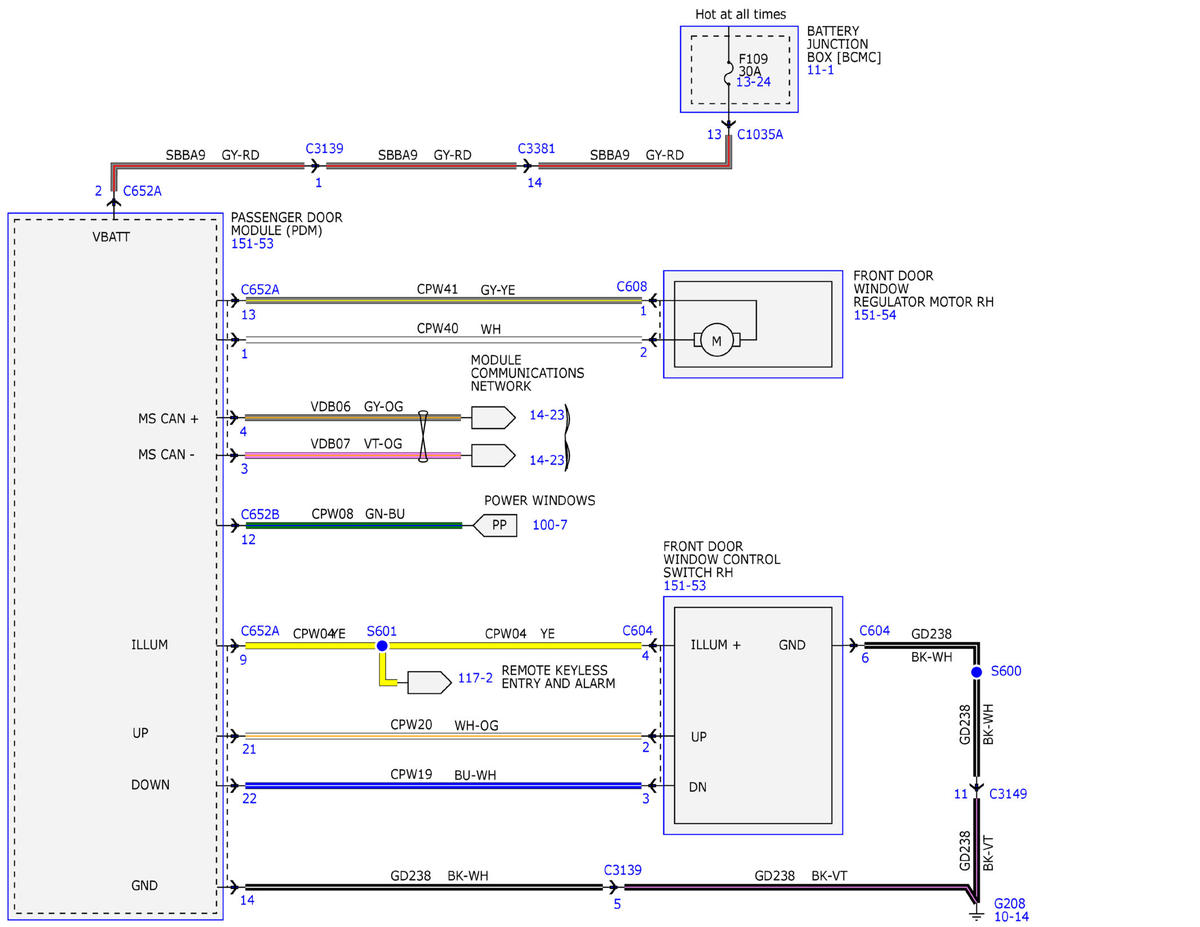

Fig 4: Power Windows System Wiring Diagrams (4 Of 7)

Courtesy of FORD MOTOR COMPANY

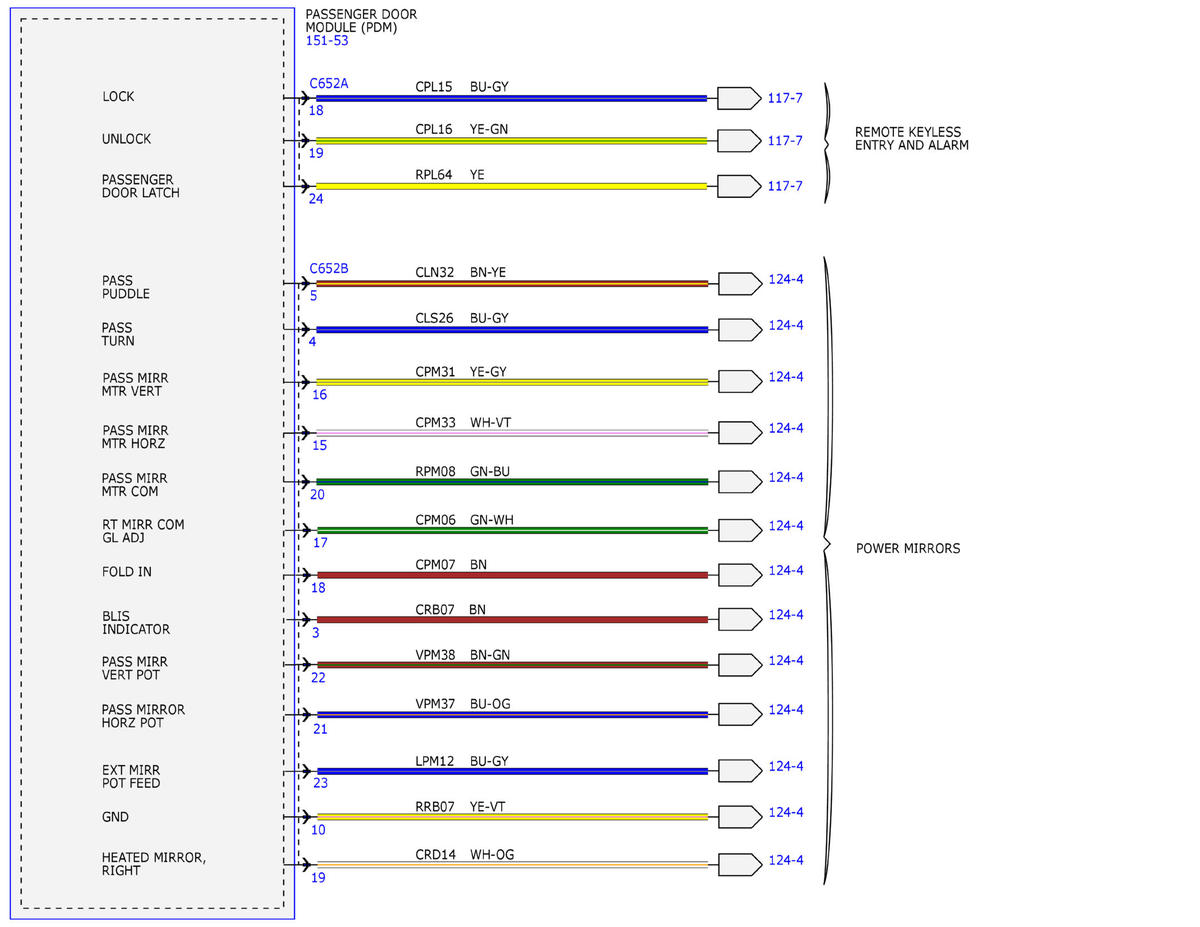

Fig 5: Power Windows System Wiring Diagrams (5 Of 7)

Courtesy of FORD MOTOR COMPANY

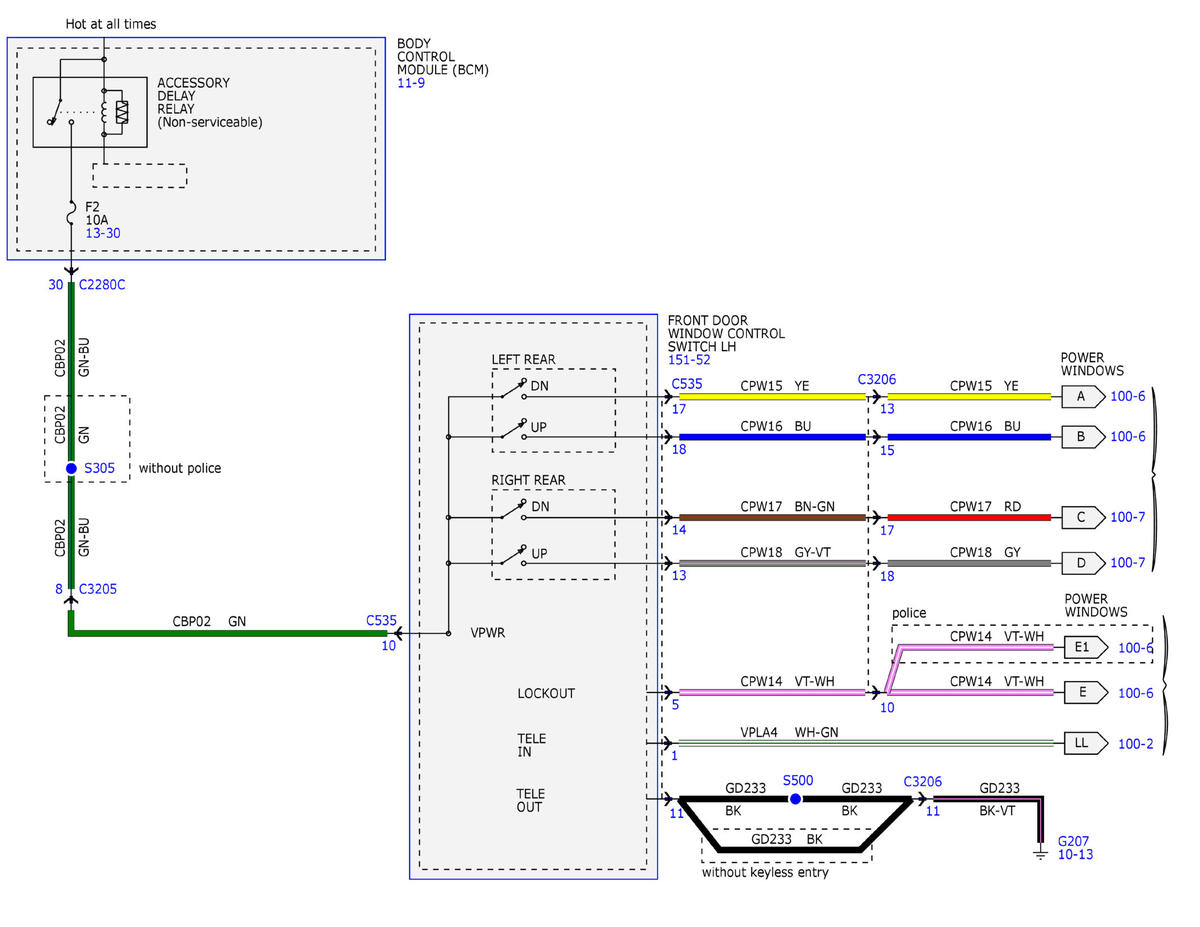

Fig 6: Power Windows System Wiring Diagrams (6 Of 7)

Courtesy of FORD MOTOR COMPANY

Fig 7: Power Windows System Wiring Diagrams (7 Of 7)

Courtesy of FORD MOTOR COMPANY
