Starting System
Starting System

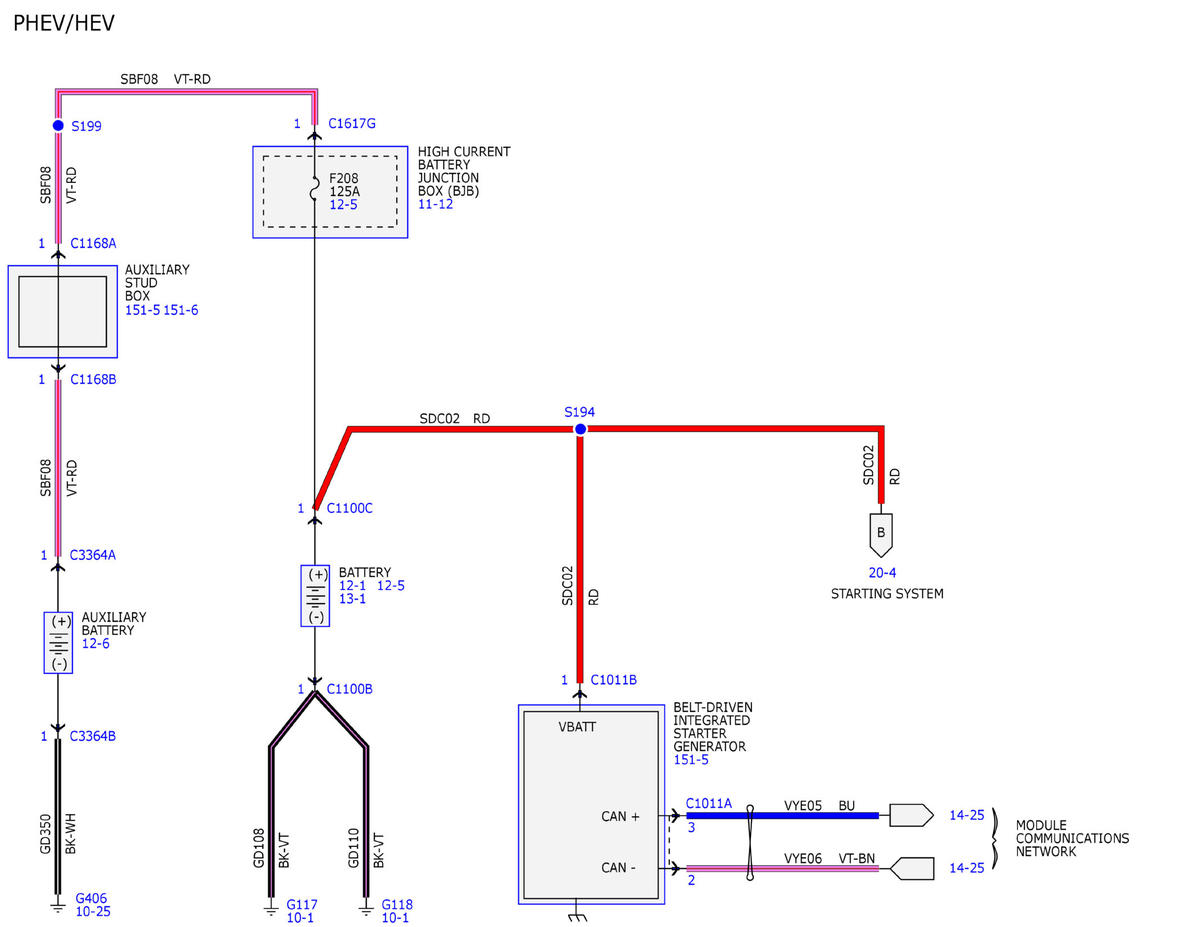

Fig 1: Starting System Wiring Diagrams (1 Of 5)
Courtesy of FORD MOTOR COMPANY

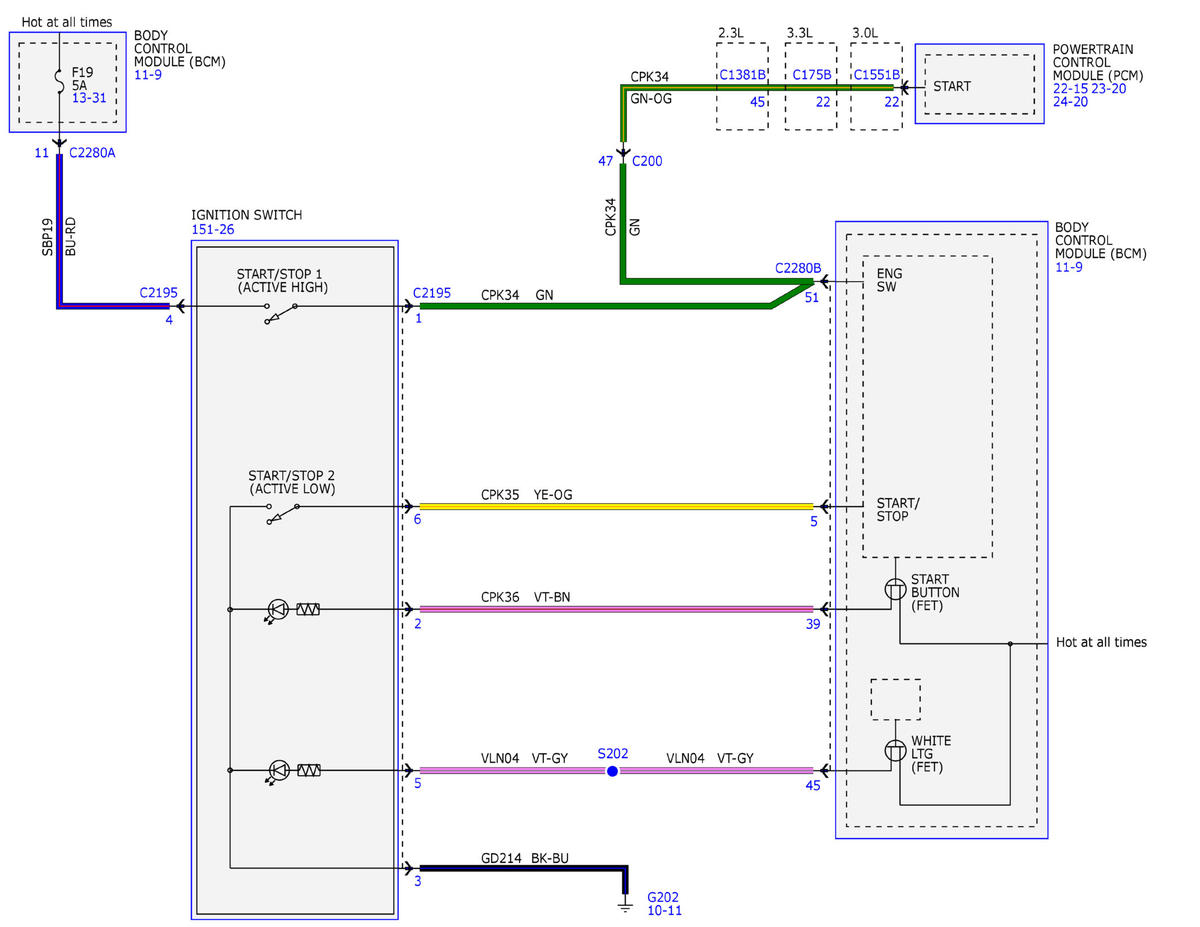

Fig 2: Starting System Wiring Diagrams (2 Of 5)
Courtesy of FORD MOTOR COMPANY

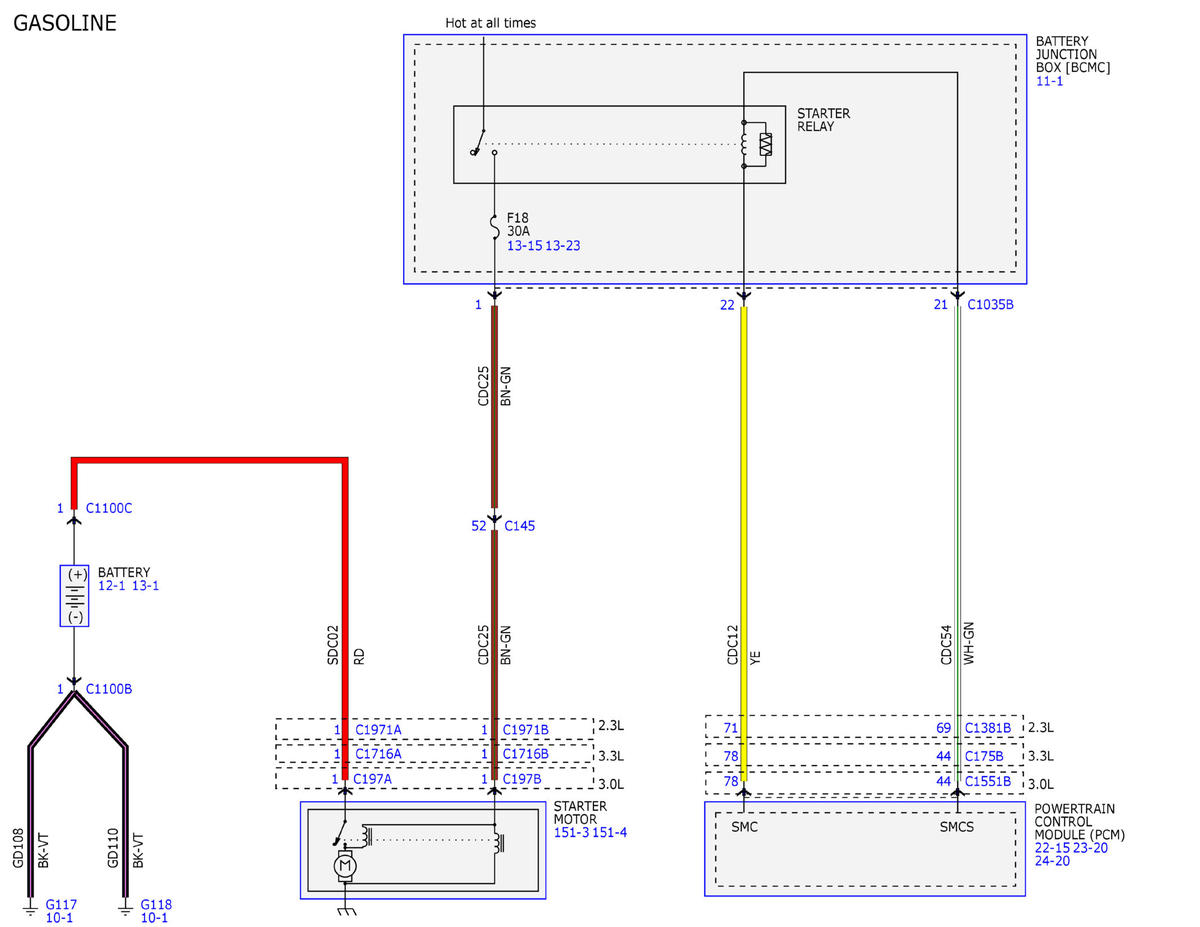

Fig 3: Starting System Wiring Diagrams (3 Of 5)
Courtesy of FORD MOTOR COMPANY

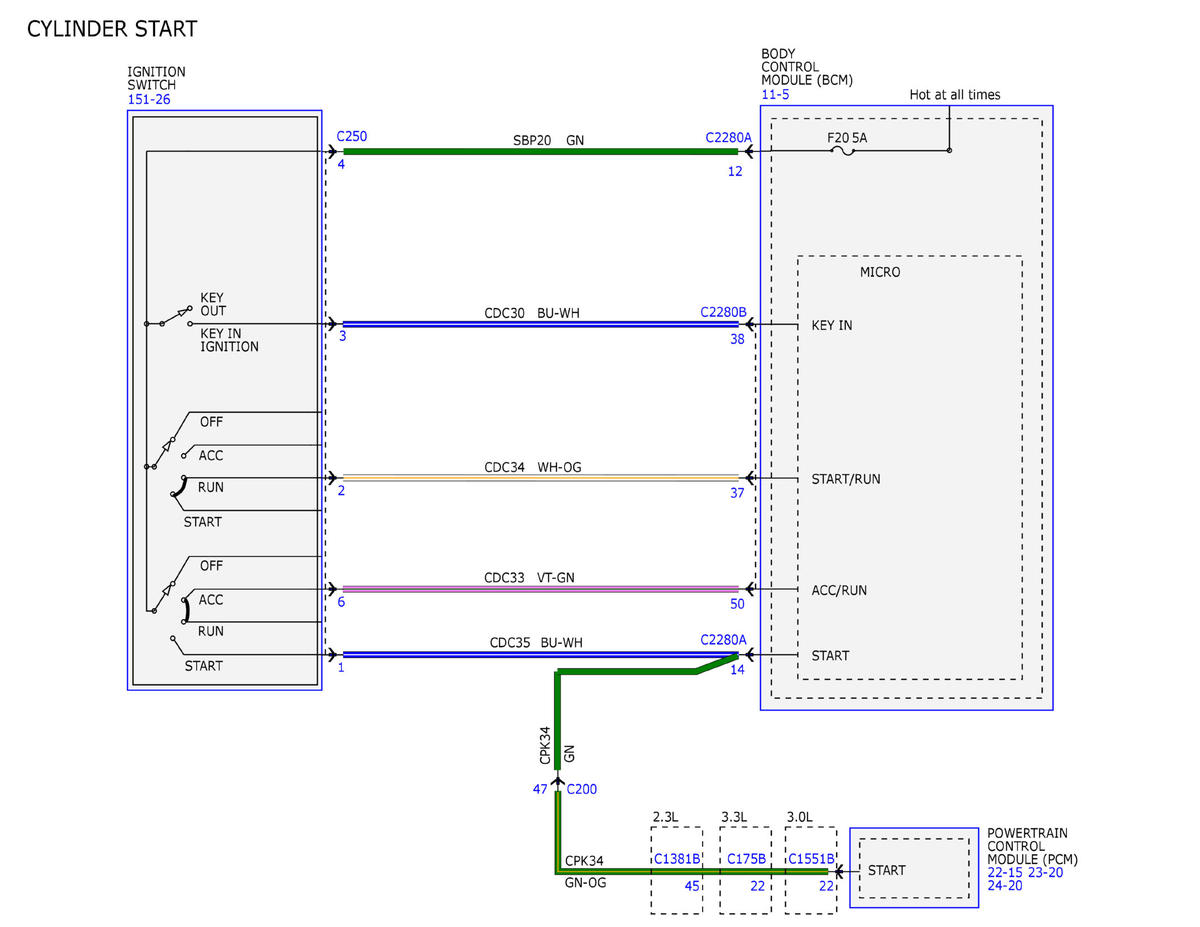

Fig 4: Starting System Wiring Diagrams (4 Of 5)
Courtesy of FORD MOTOR COMPANY

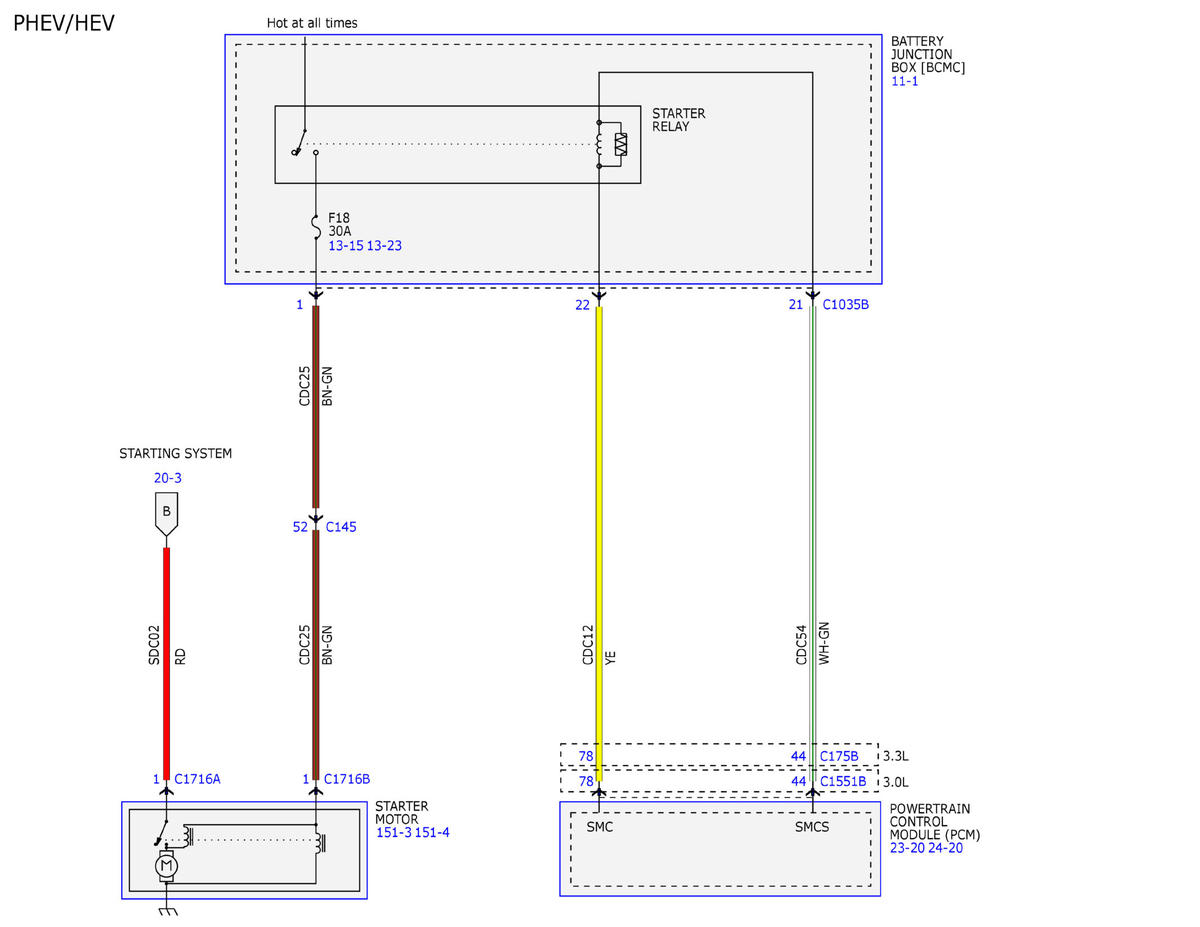

Fig 5: Starting System Wiring Diagrams (5 Of 5)
Courtesy of FORD MOTOR COMPANY
