Transmission Controls

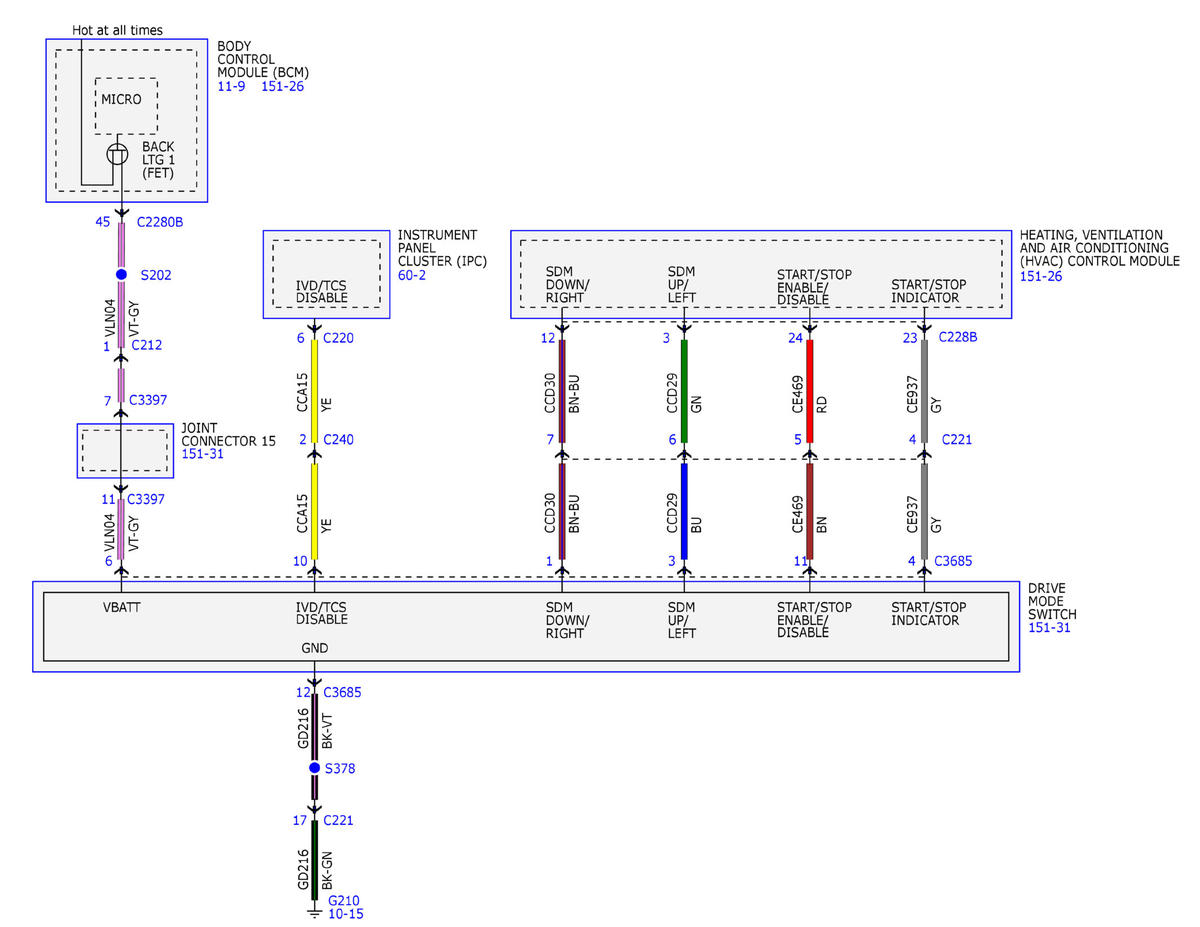

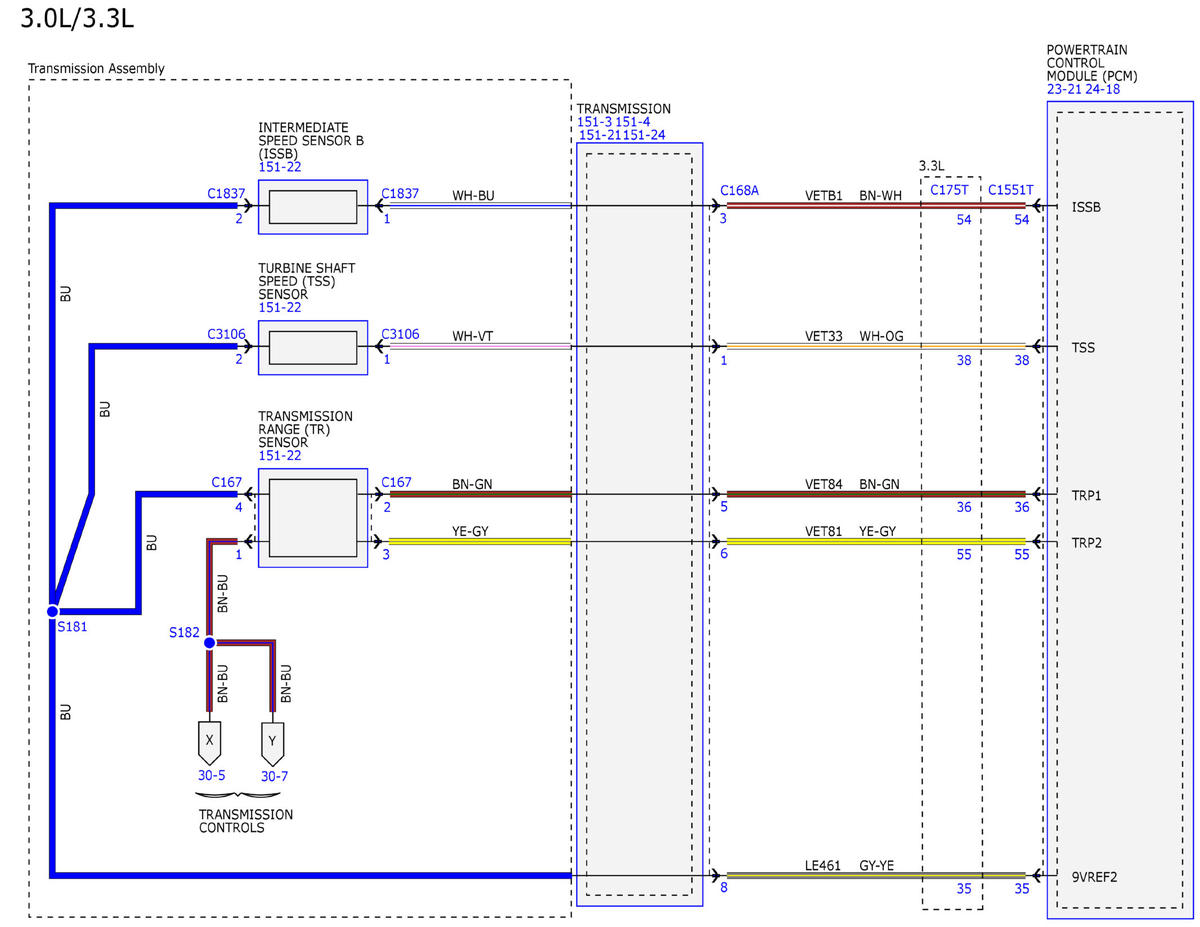

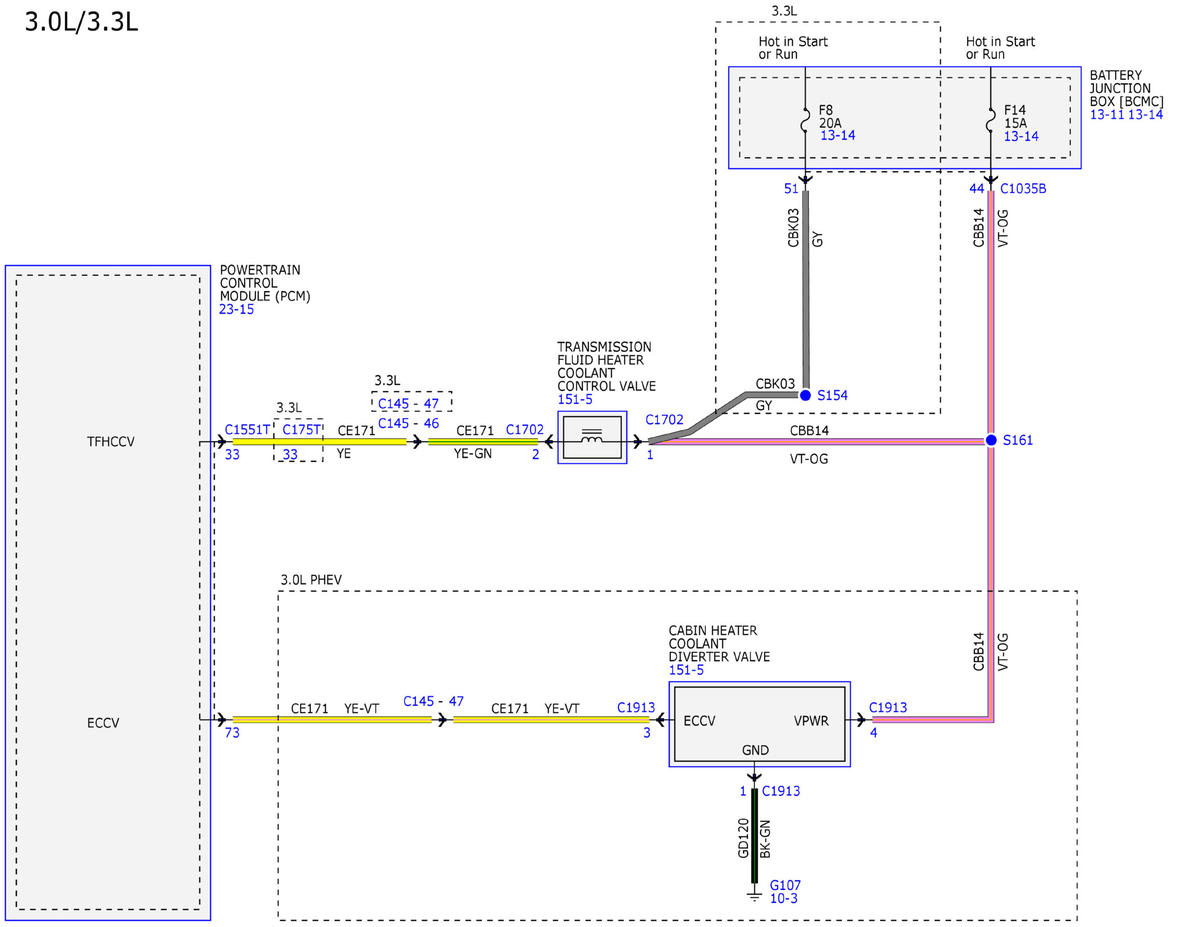

Fig 1: Transmission Controls System Wiring Diagrams (1 Of 17)

Courtesy of FORD MOTOR COMPANY

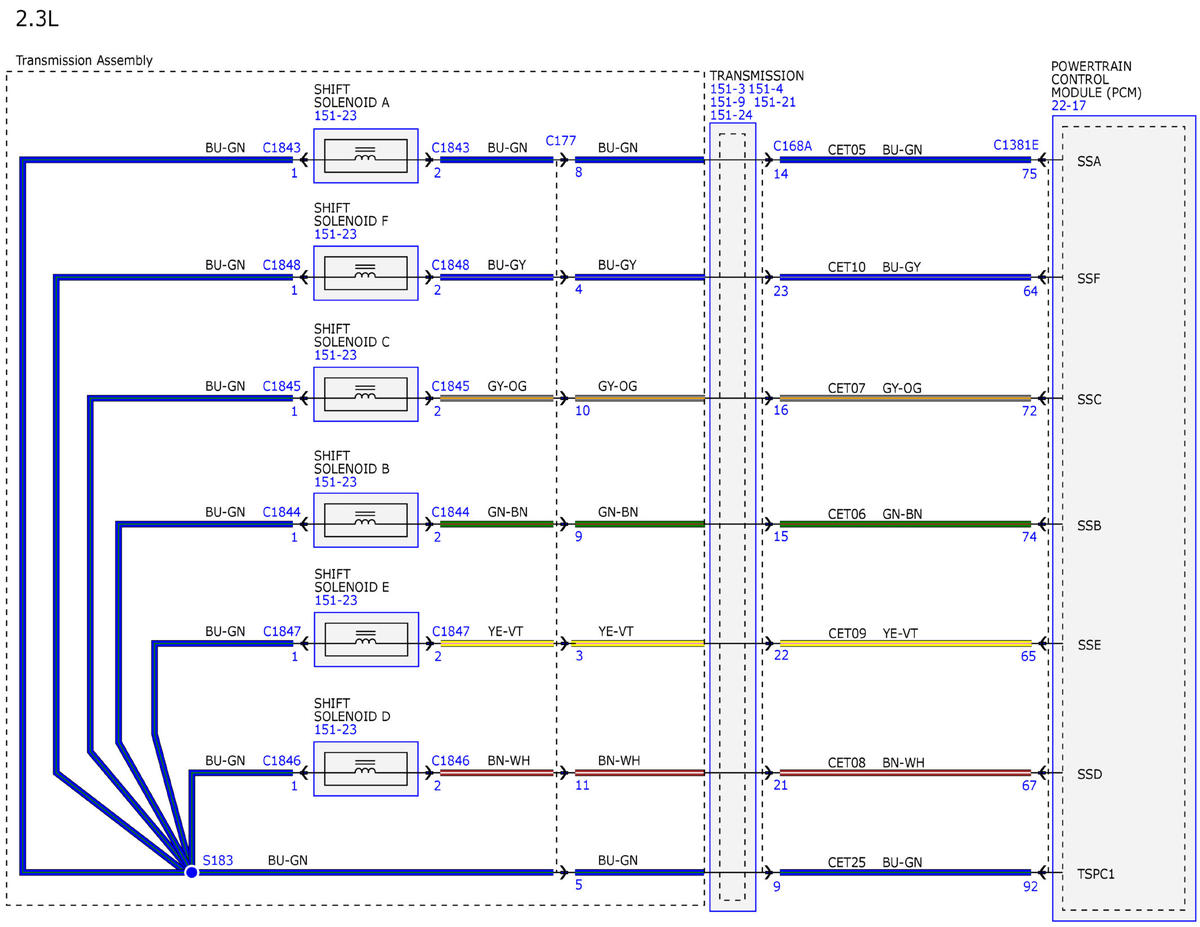

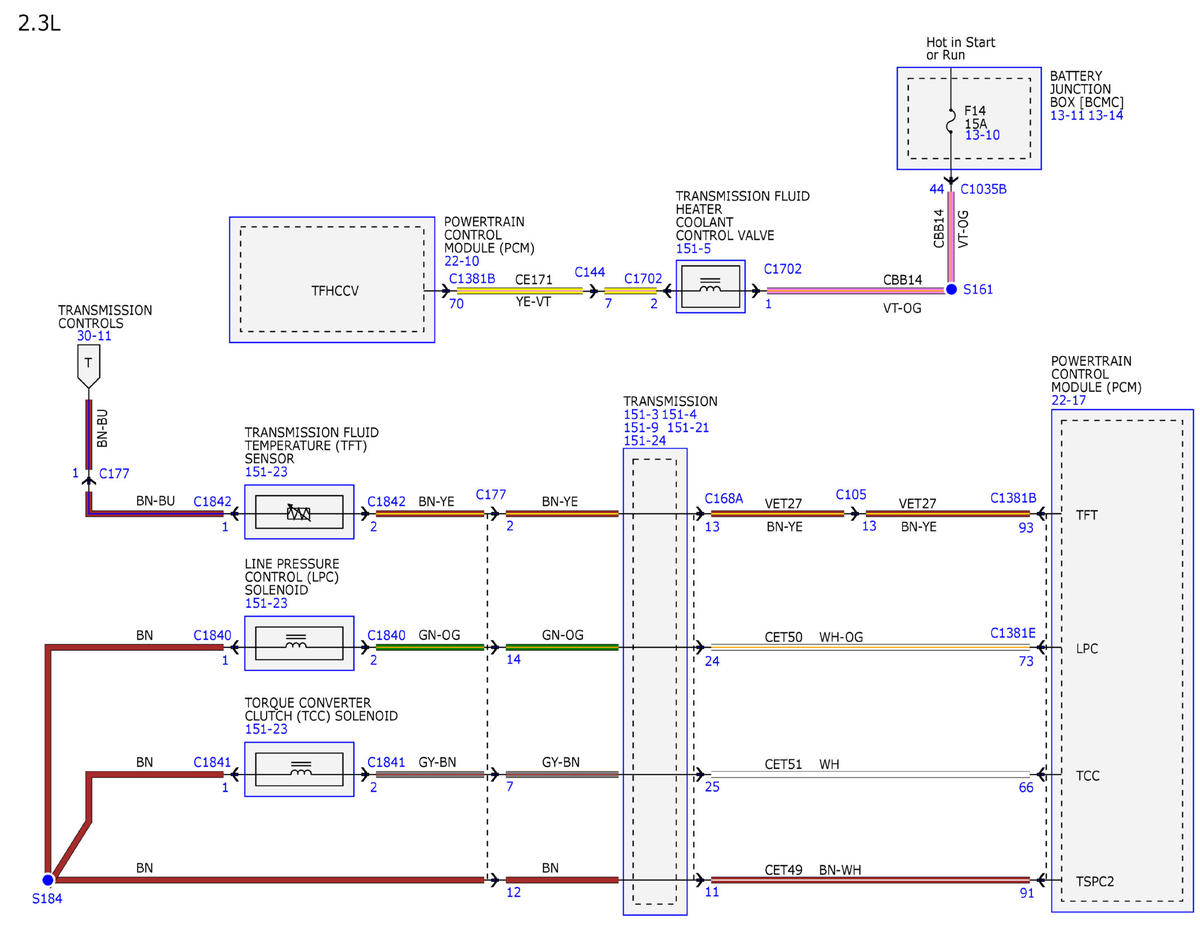

Fig 2: Transmission Controls System Wiring Diagrams (2 Of 17)

Courtesy of FORD MOTOR COMPANY

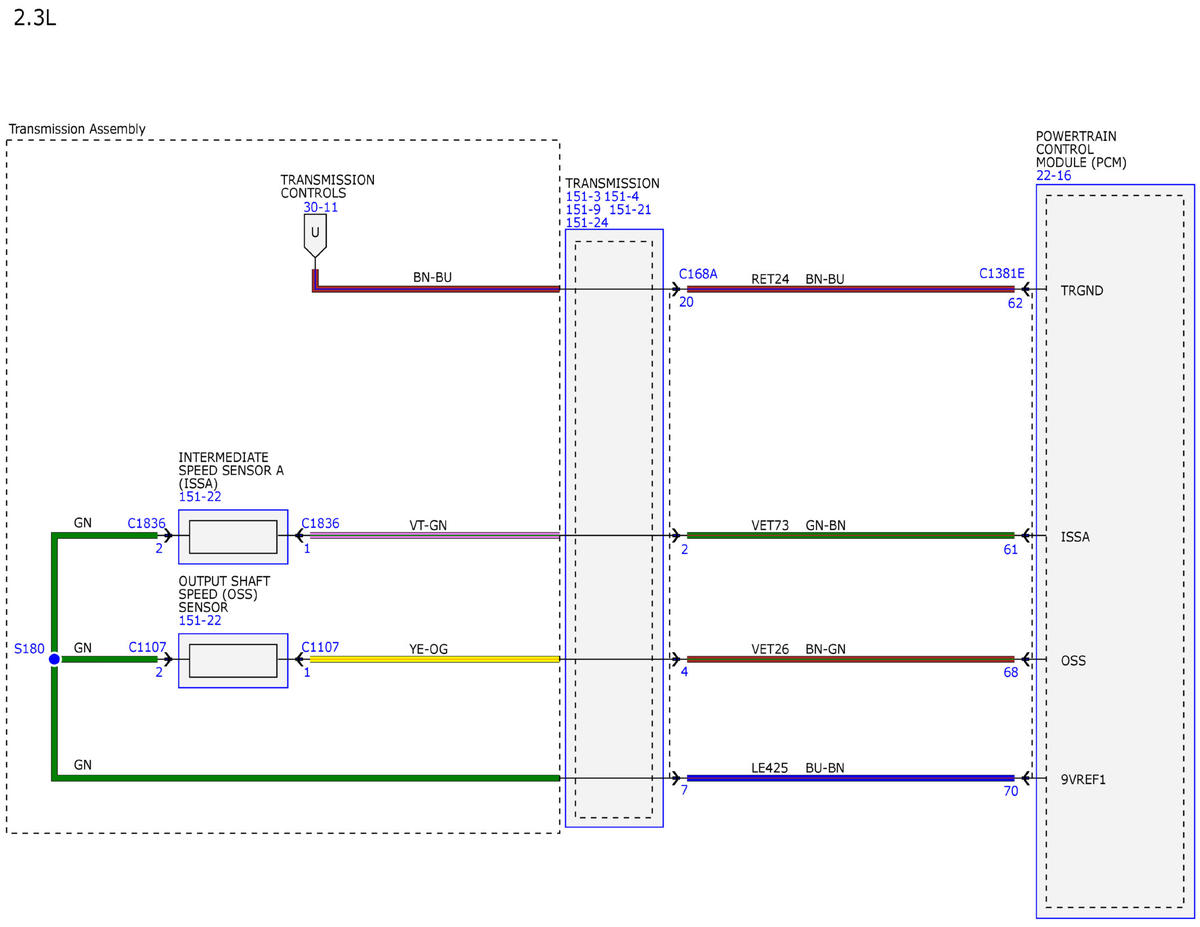

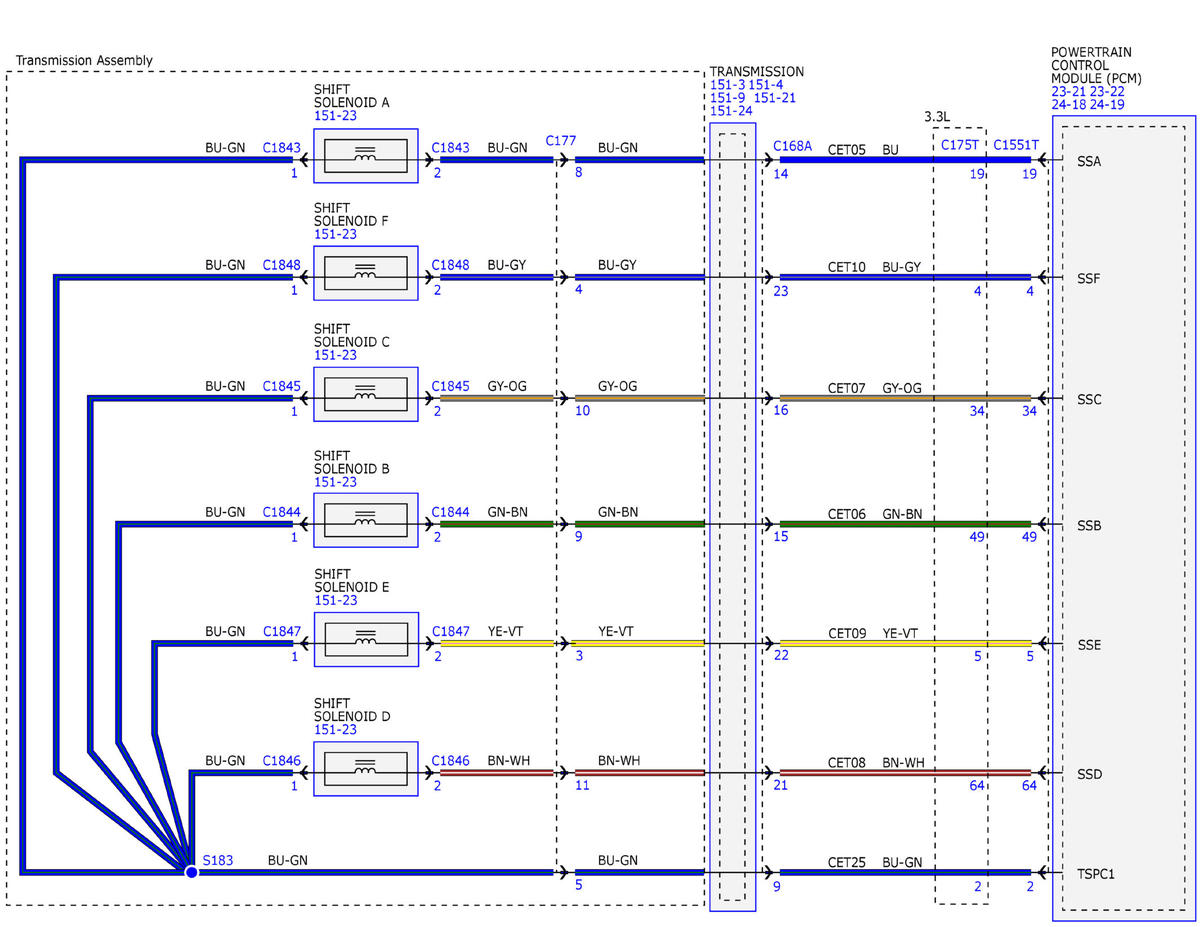

Fig 3: Transmission Controls System Wiring Diagrams (3 Of 17)

Courtesy of FORD MOTOR COMPANY

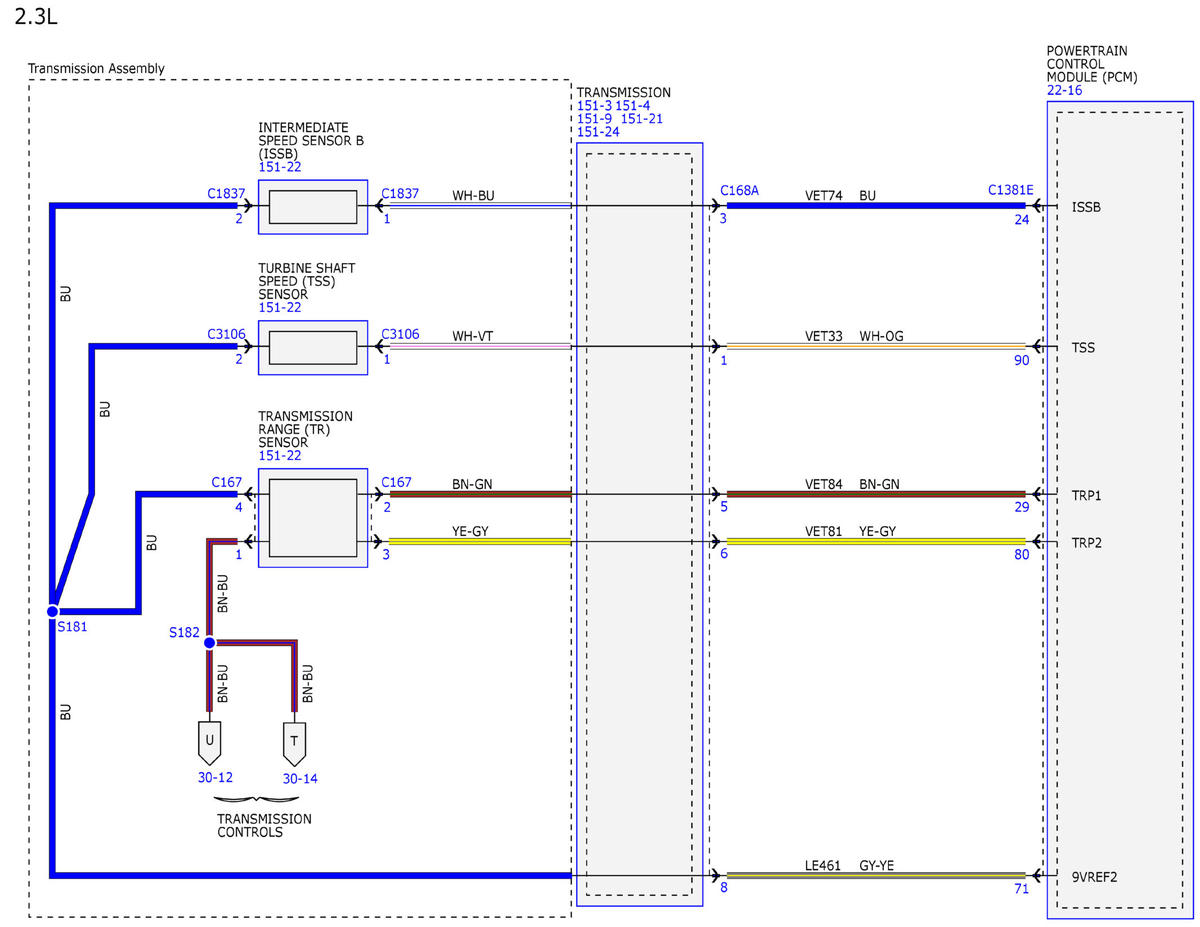

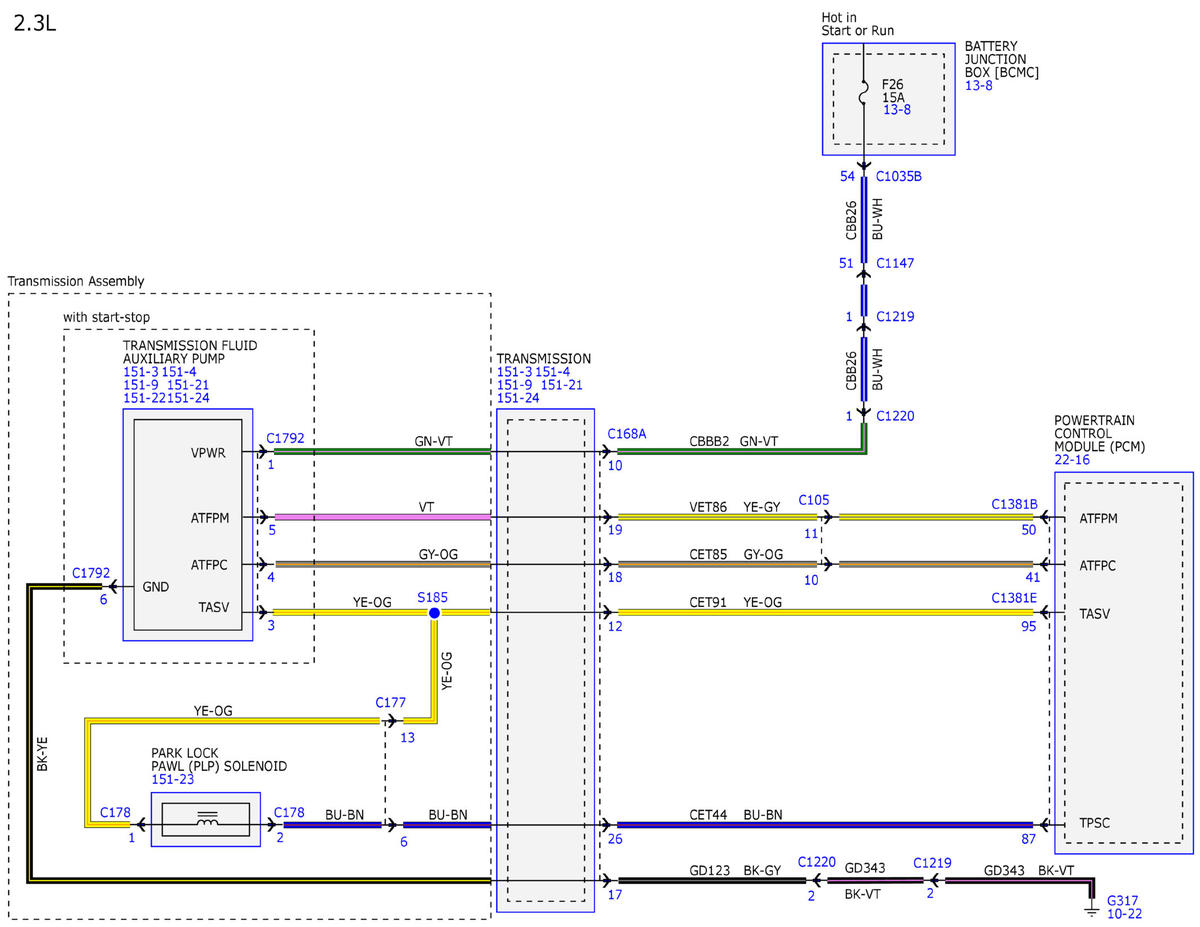

Fig 4: Transmission Controls System Wiring Diagrams (4 Of 17)

Courtesy of FORD MOTOR COMPANY

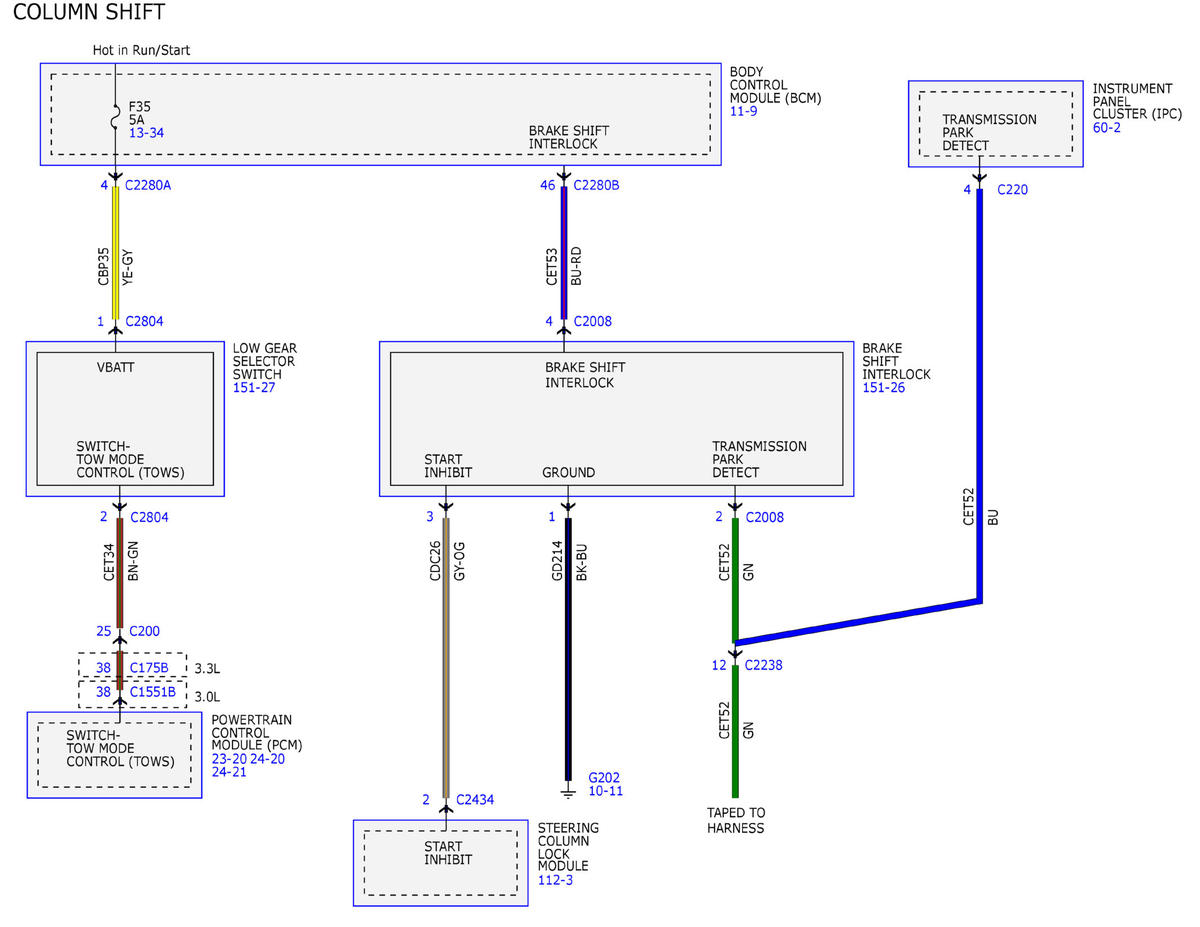

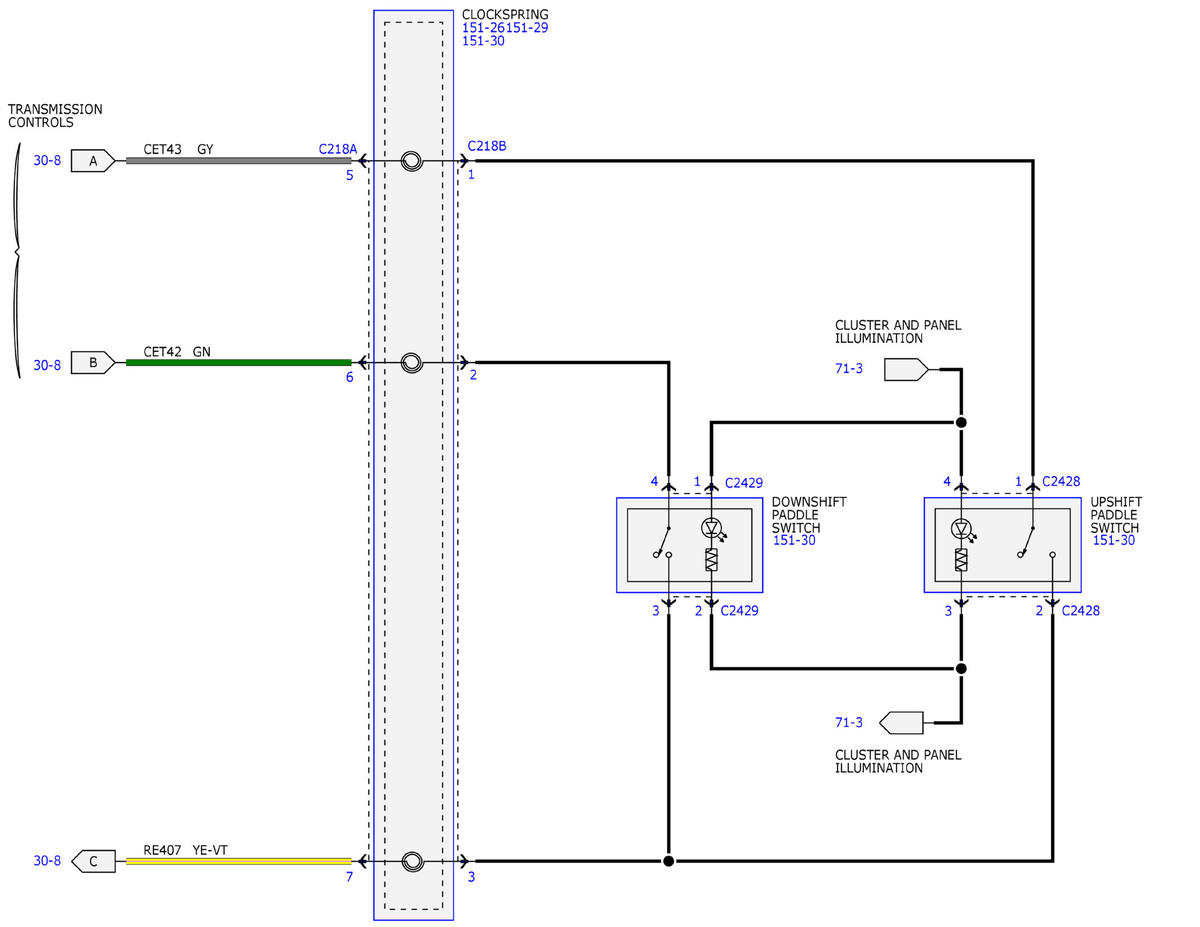

Fig 5: Transmission Controls System Wiring Diagrams (5 Of 17)

Courtesy of FORD MOTOR COMPANY

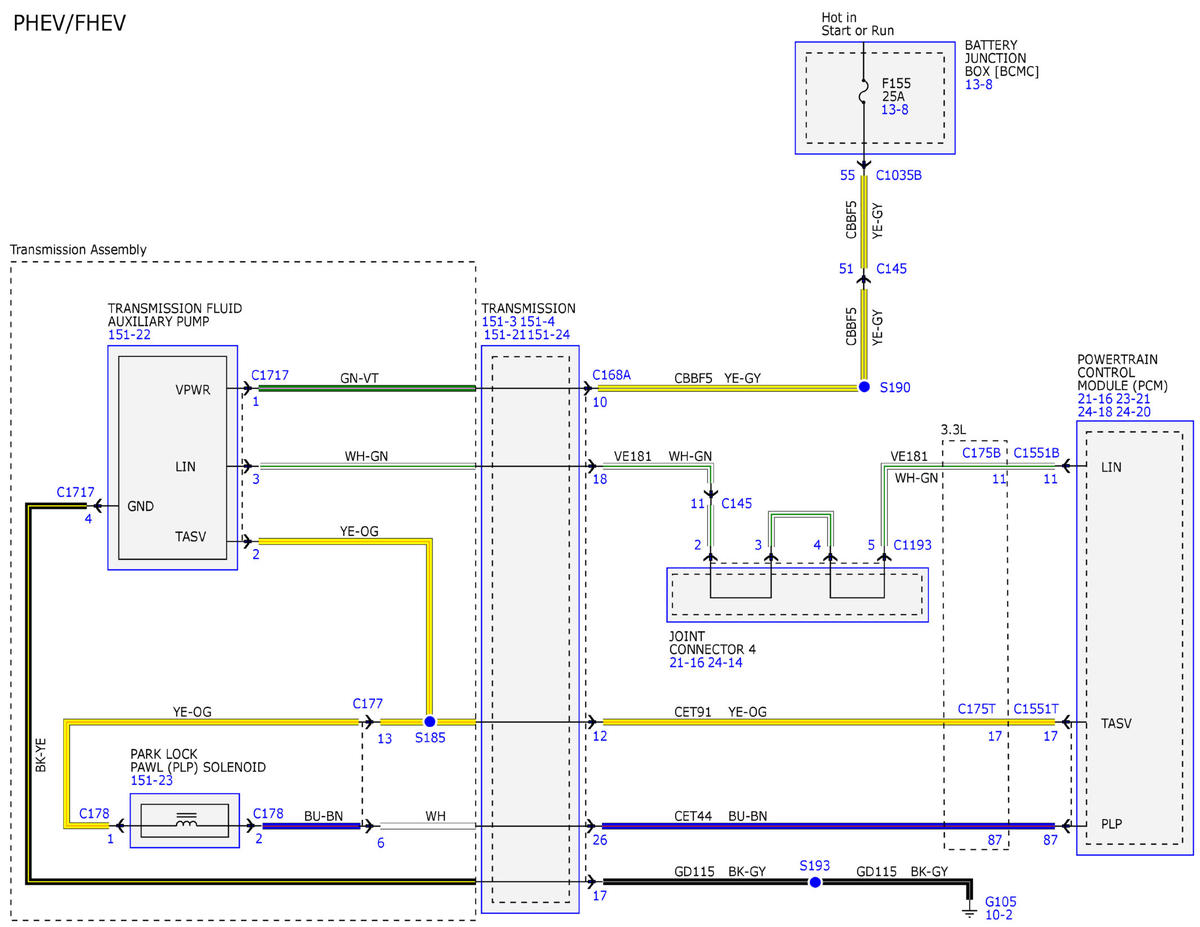

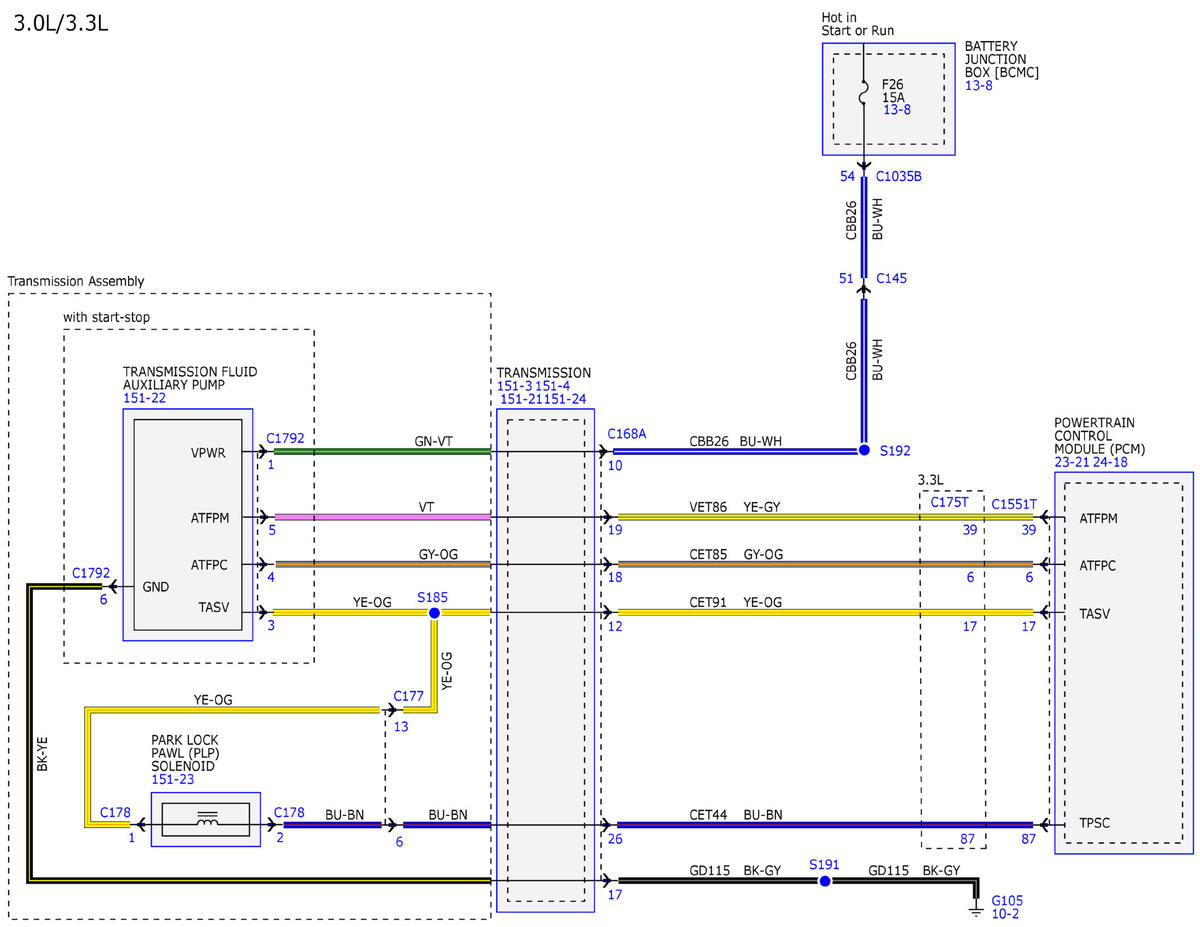

Fig 6: Transmission Controls System Wiring Diagrams (6 Of 17)

Courtesy of FORD MOTOR COMPANY

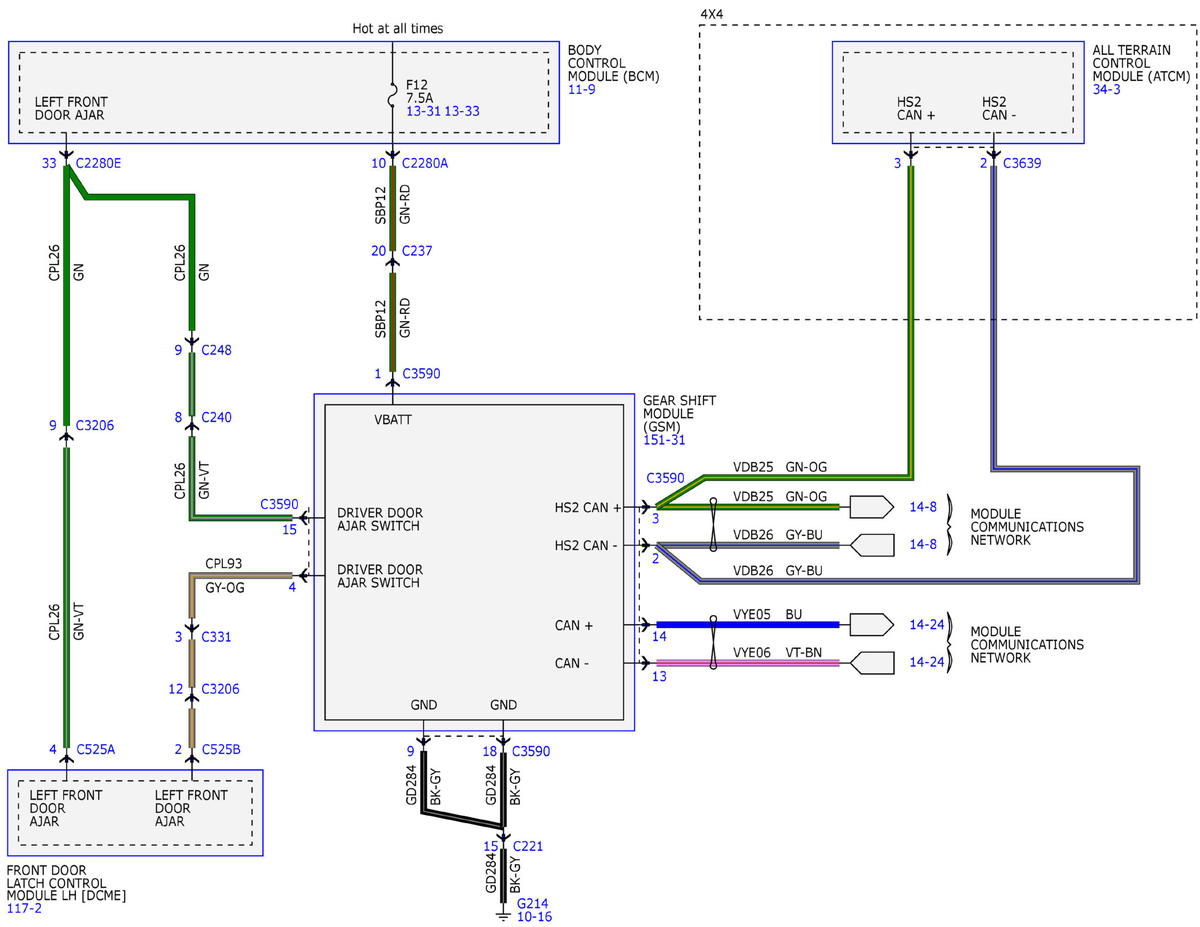

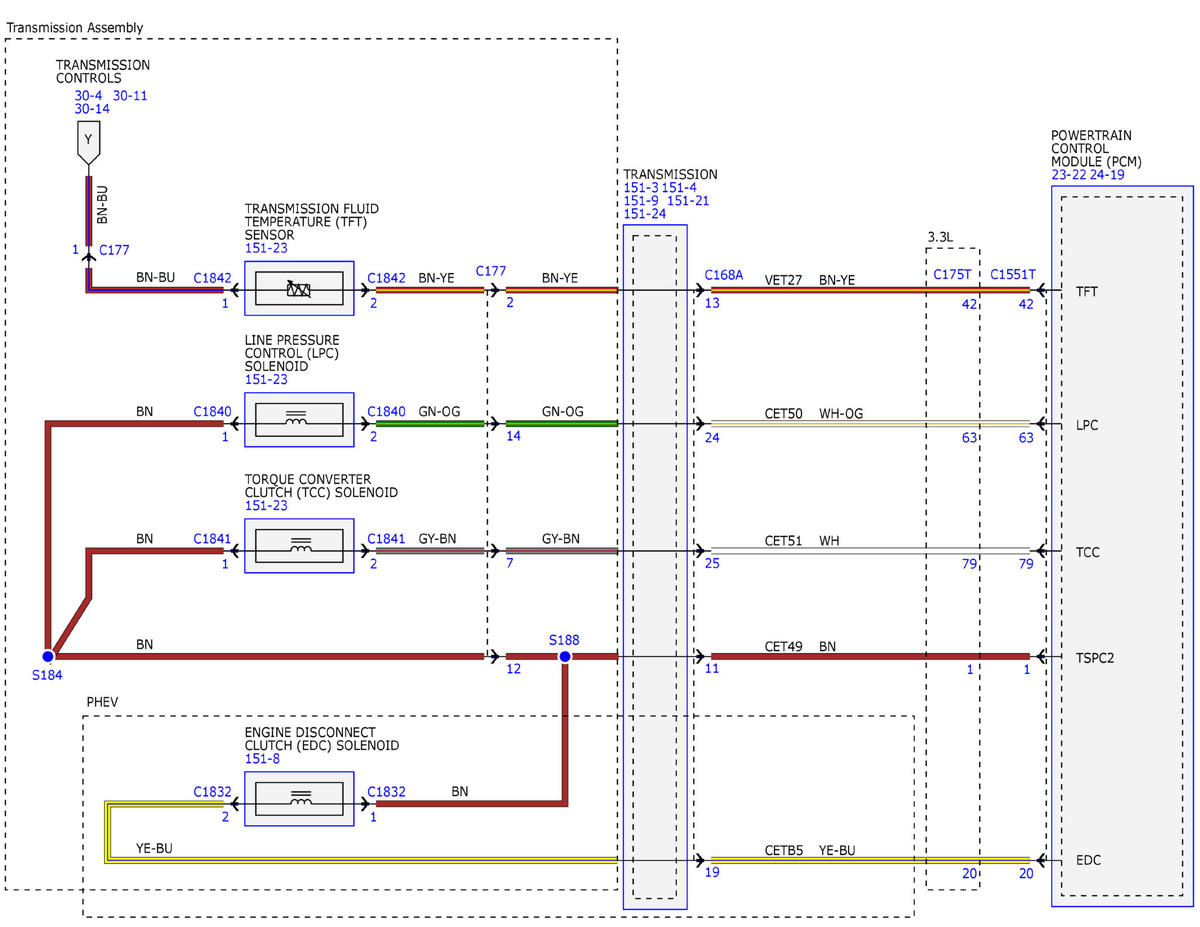

Fig 7: Transmission Controls System Wiring Diagrams (7 Of 17)

Courtesy of FORD MOTOR COMPANY

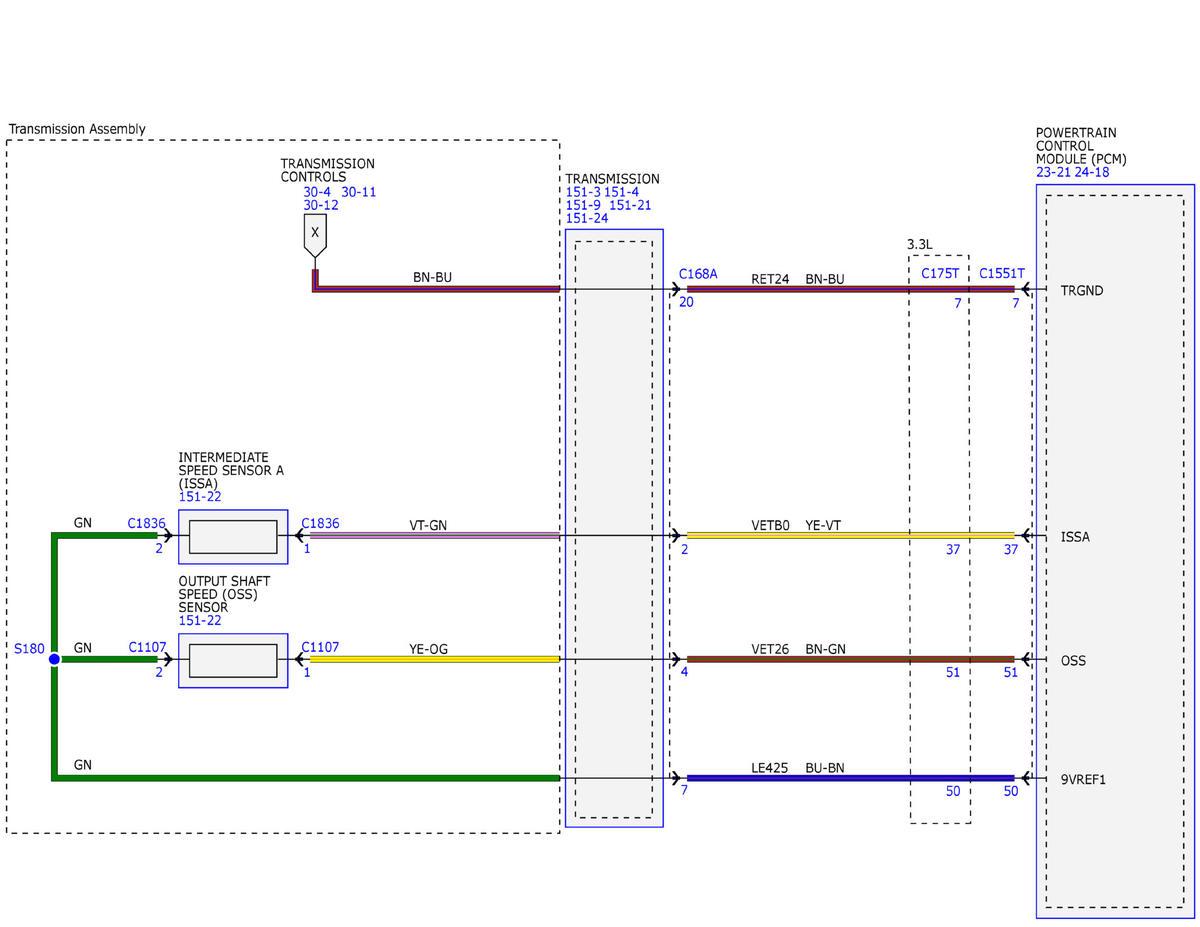

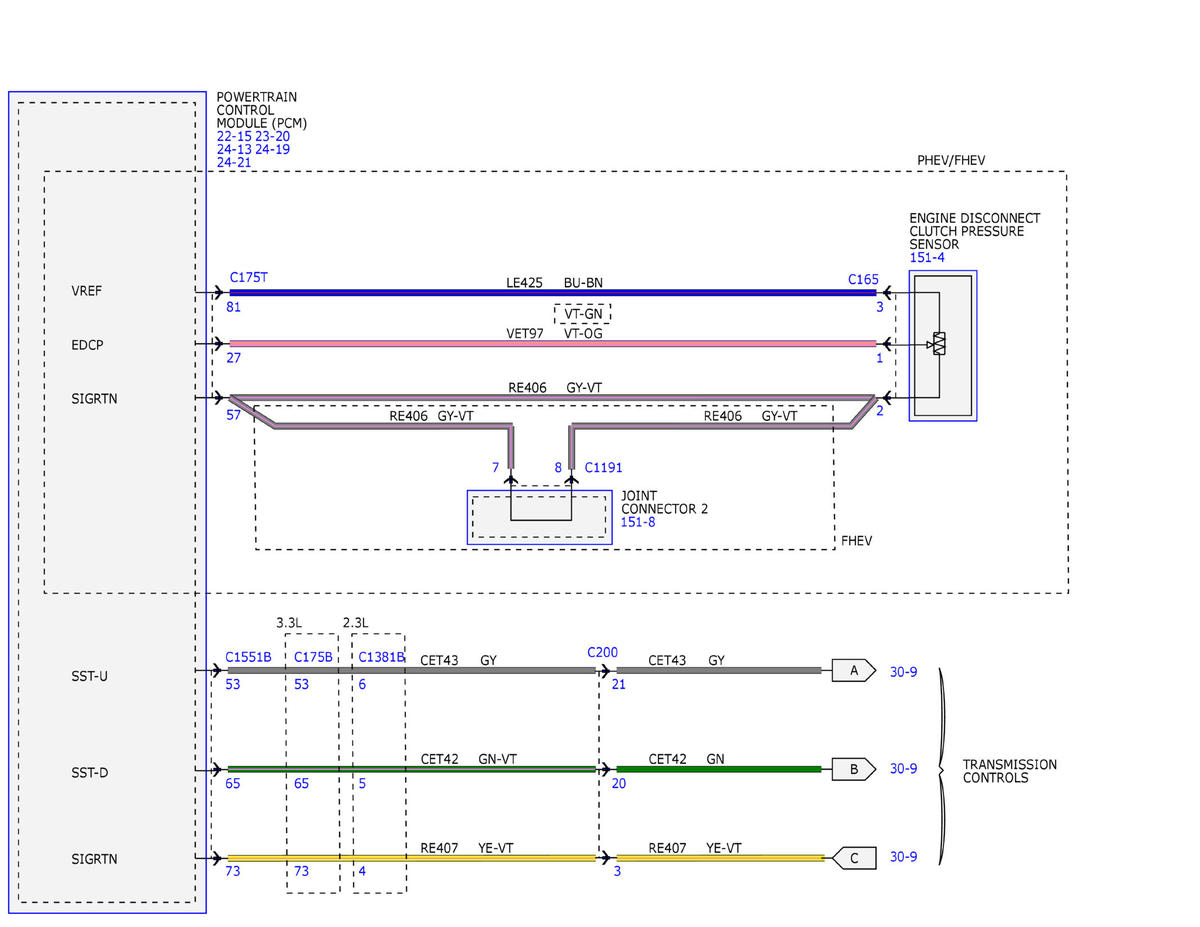

Fig 8: Transmission Controls System Wiring Diagrams (8 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 9: Transmission Controls System Wiring Diagrams (9 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 10: Transmission Controls System Wiring Diagrams (10 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 11: Transmission Controls System Wiring Diagrams (11 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 12: Transmission Controls System Wiring Diagrams (12 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 13: Transmission Controls System Wiring Diagrams (13 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 14: Transmission Controls System Wiring Diagrams (14 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 15: Transmission Controls System Wiring Diagrams (15 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 16: Transmission Controls System Wiring Diagrams (16 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 17: Transmission Controls System Wiring Diagrams (17 Of 17)

Courtesy of FORD MOTOR COMPANY
