Vehicle Dynamic Systems

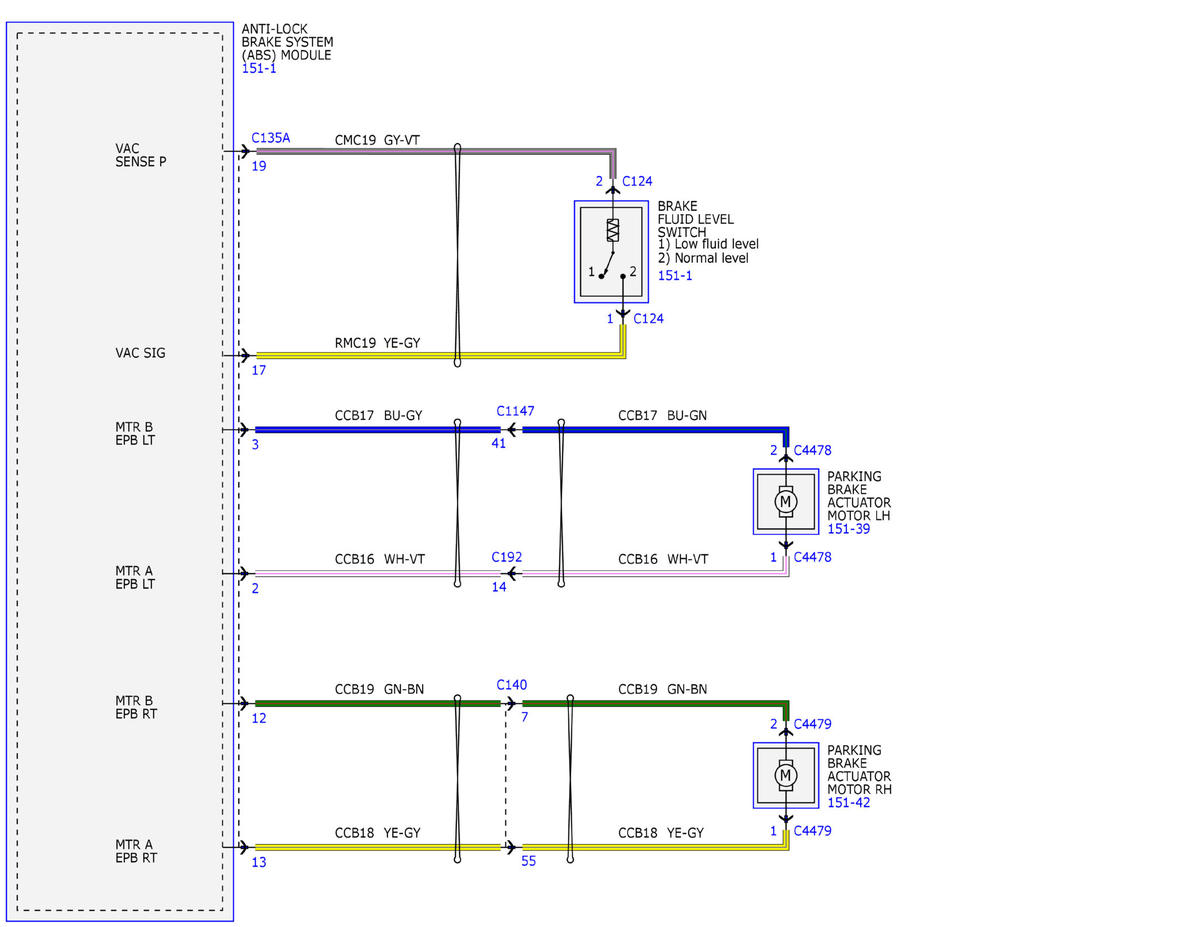

Fig 1: Vehicle Dynamic Systems System Wiring Diagrams (1 Of 7)

Courtesy of FORD MOTOR COMPANY

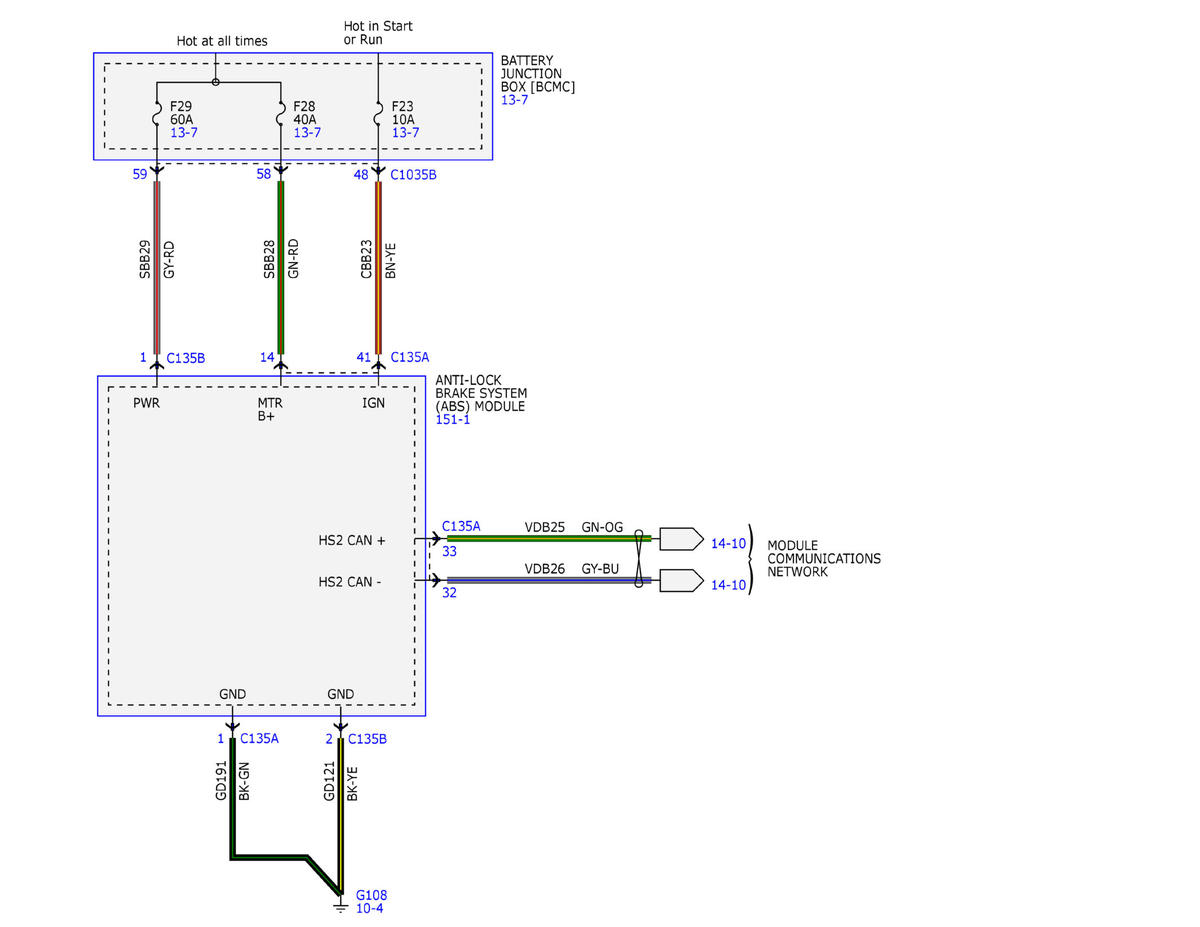

Fig 2: Vehicle Dynamic Systems System Wiring Diagrams (2 Of 7)

Courtesy of FORD MOTOR COMPANY

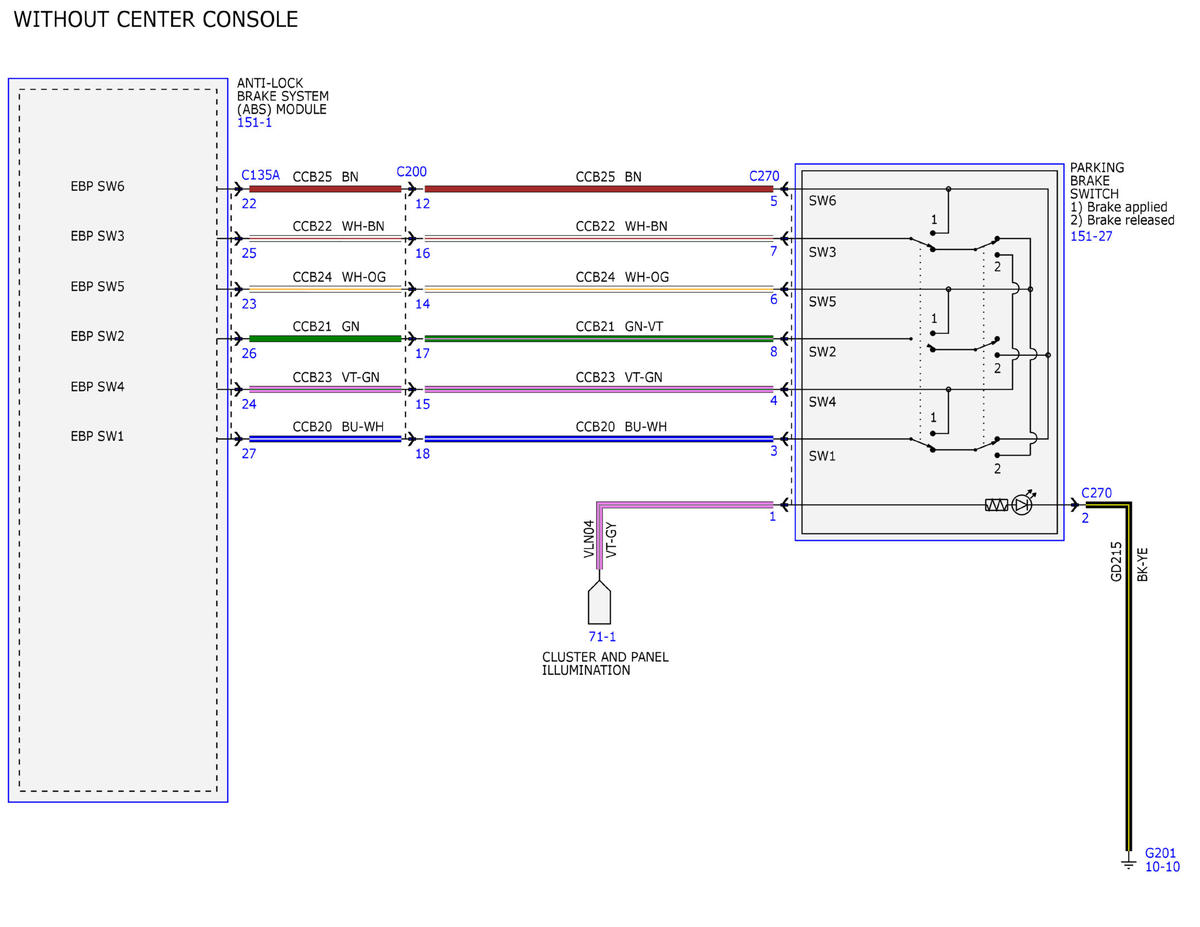

Fig 3: Vehicle Dynamic Systems System Wiring Diagrams (3 Of 7)

Courtesy of FORD MOTOR COMPANY

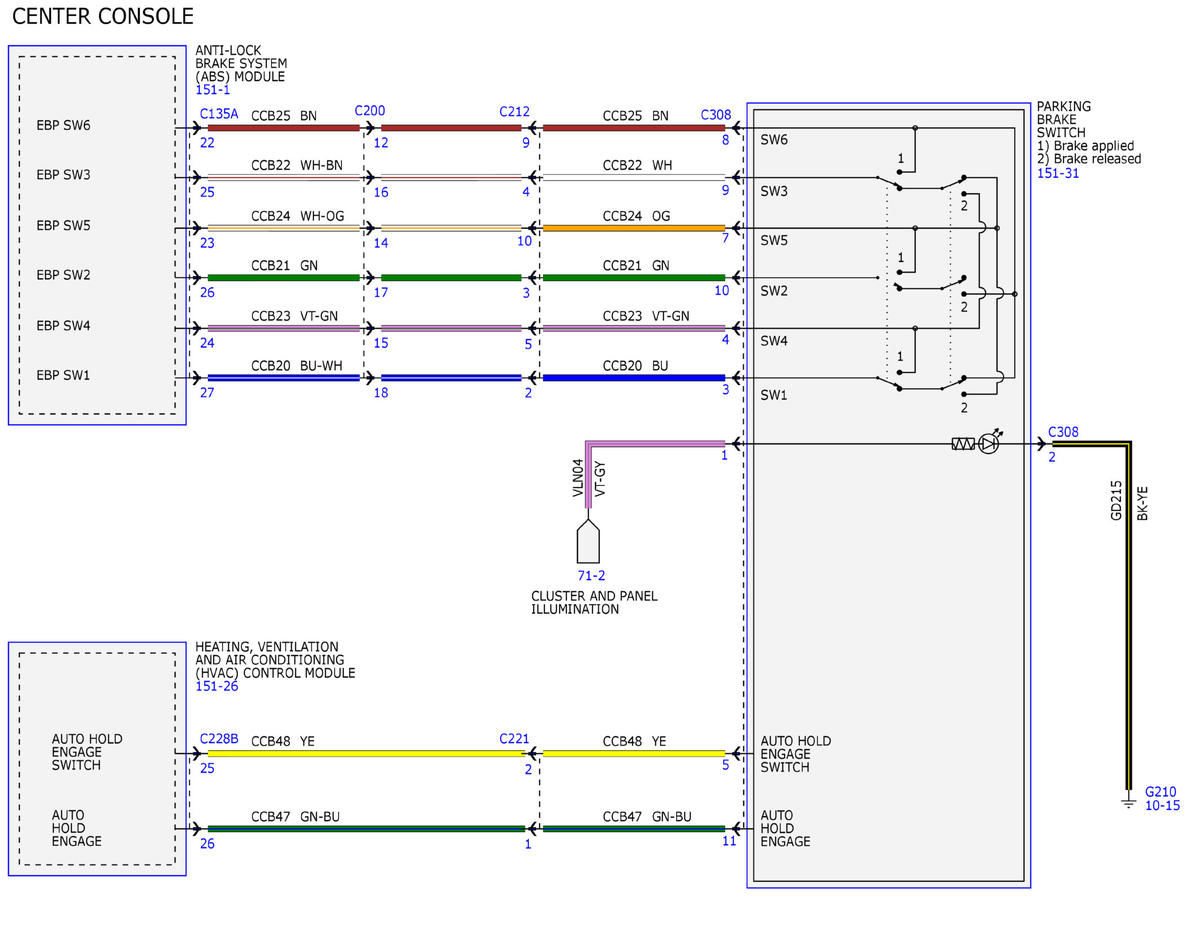

Fig 4: Vehicle Dynamic Systems System Wiring Diagrams (4 Of 7)

Courtesy of FORD MOTOR COMPANY

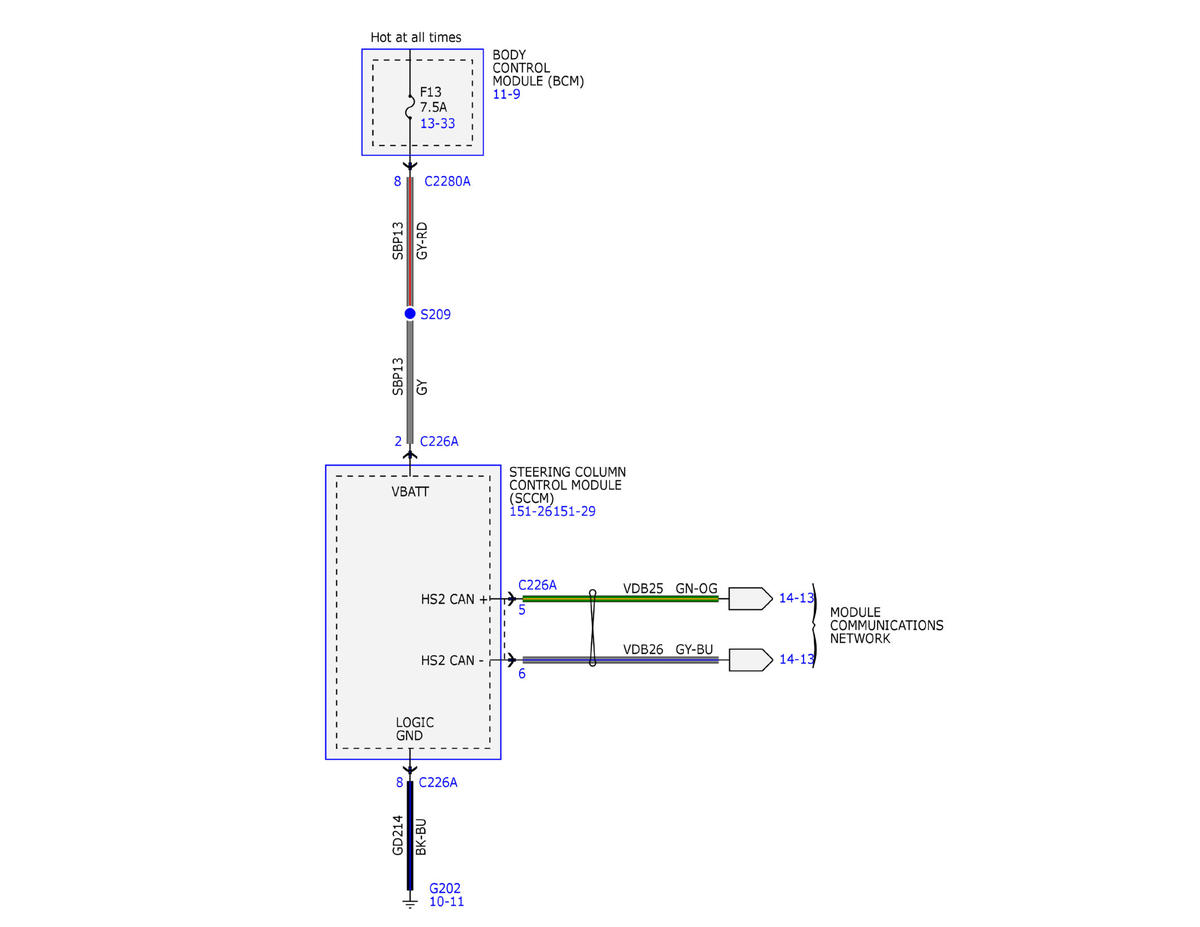

Fig 5: Vehicle Dynamic Systems System Wiring Diagrams (5 Of 7)

Courtesy of FORD MOTOR COMPANY

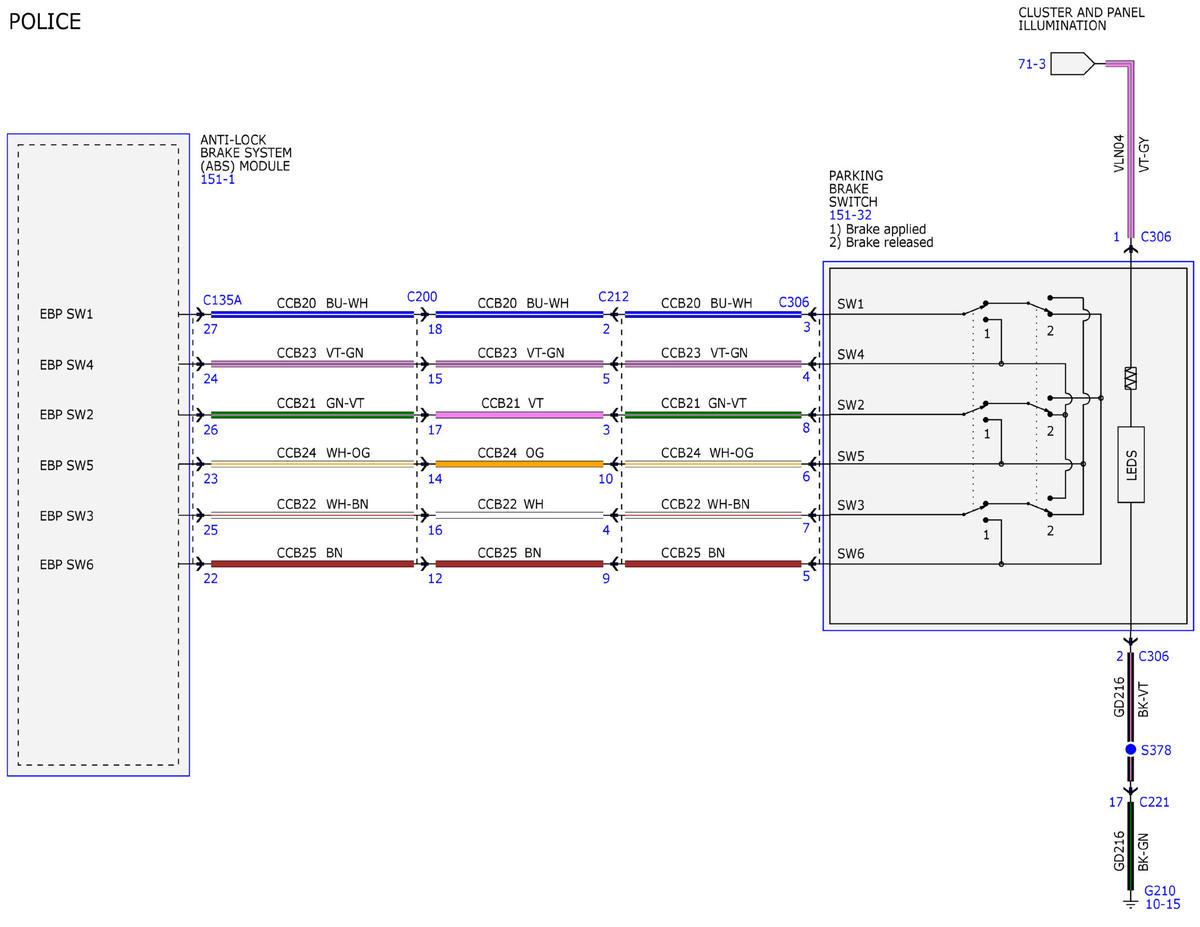

Fig 6: Vehicle Dynamic Systems System Wiring Diagrams (6 Of 7)

Courtesy of FORD MOTOR COMPANY

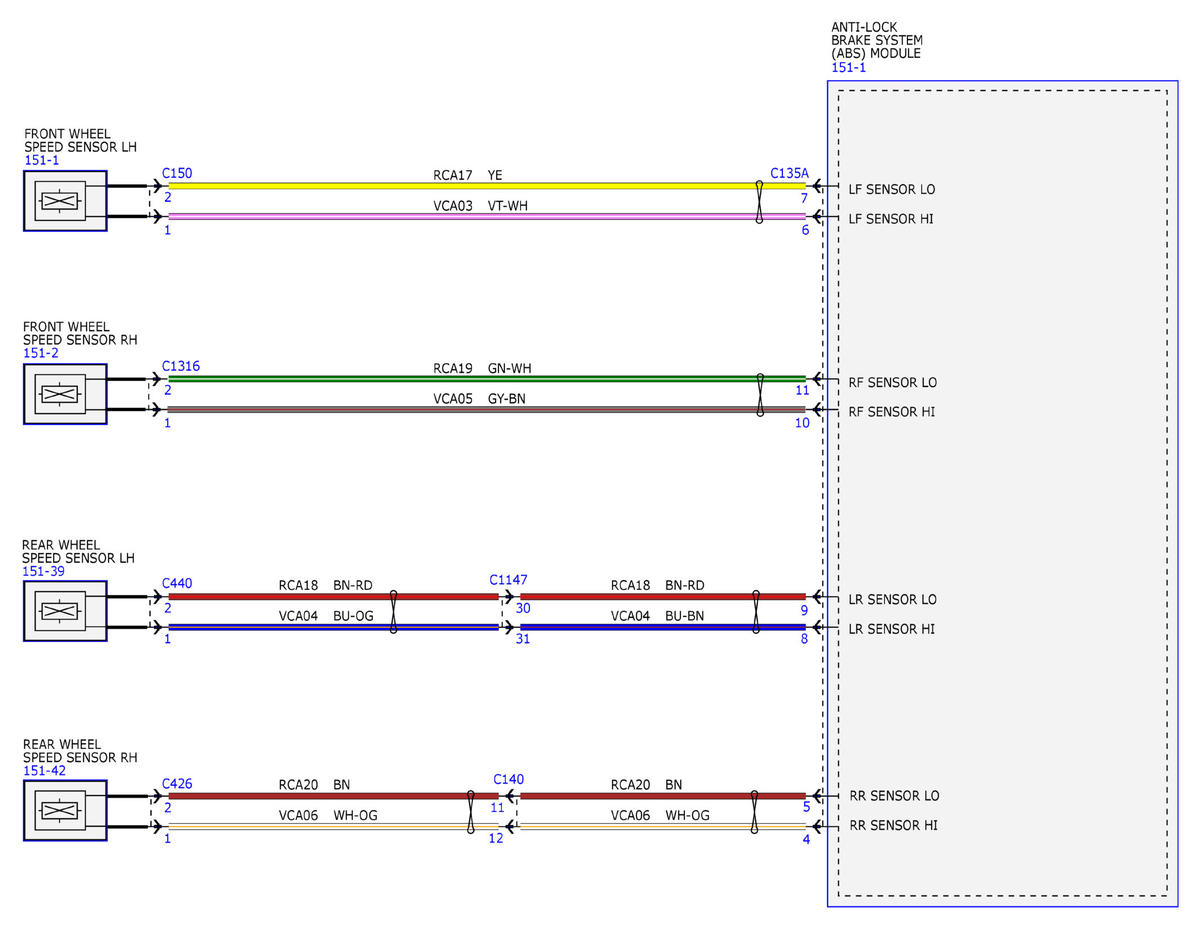

Fig 7: Vehicle Dynamic Systems System Wiring Diagrams (7 Of 7)

Courtesy of FORD MOTOR COMPANY
