Steering Column Opening Seal: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the steering column upper shaft. Refer to: Steering Column Upper Shaft .
Remove the cowl panel. Refer to: Cowl Panel .
NOTE: Note the position of the components before removal.

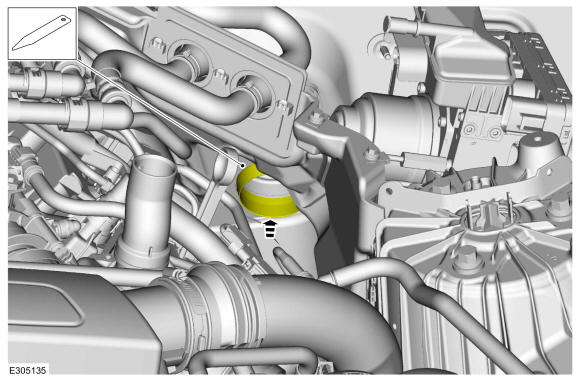

Push the cone into the rubber boot.

Courtesy of FORD MOTOR COMPANY

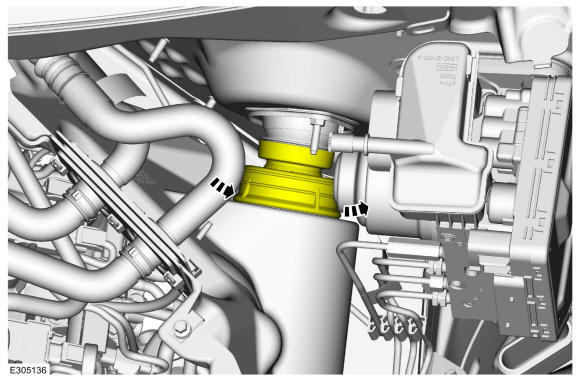

Move the rubber boot aside to gain access to the steering column opening seal retainers.

Courtesy of FORD MOTOR COMPANY

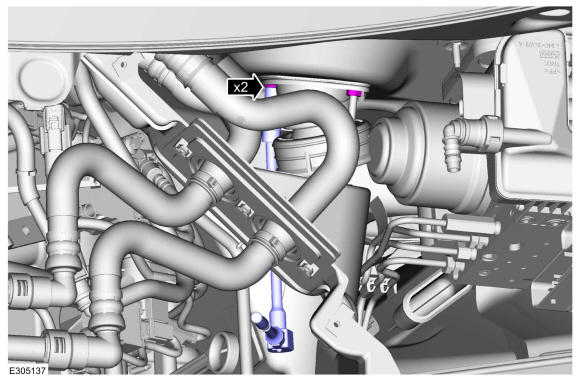

NOTE: Use a 1/4 inch drive wobble extension.

Remove the steering column opening seal retainers.

Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

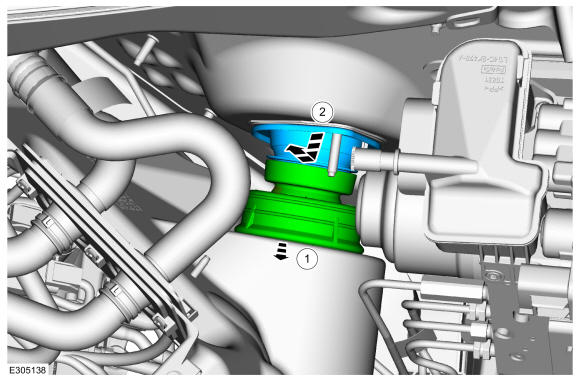

1. Remove the rubber boot.
2. Remove the steering column opening seal.

Courtesy of FORD MOTOR COMPANY
