Engine Mount RH: Installation

WARNING: This page is about a different variant/trim than selected.

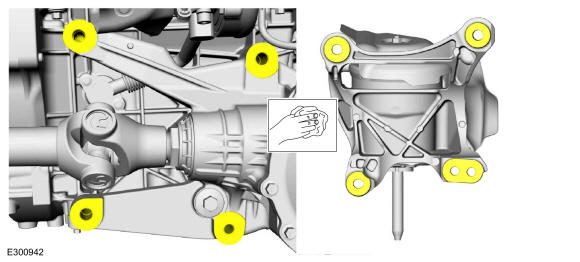

  1. Clean the engine mount-to-cylinder block mating surfaces of any dirt or foreign material prior to installation.
    GFD511296Courtesy of FORD MOTOR COMPANY

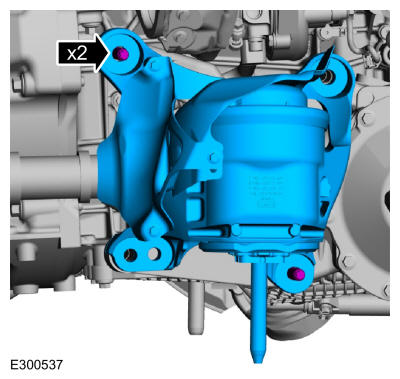

  2. Position the RH engine mount and install the new studs.

    Torque: 35 lb.ft (48 Nm)

    GFD511172Courtesy of FORD MOTOR COMPANY

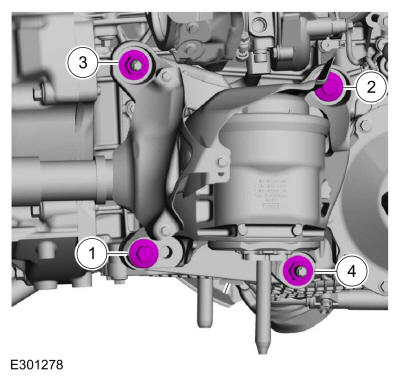

  3. Install the new bolts and nuts finger-tight and then tighten in sequence.

    Torque: Stage 1: 66 lb.ft (90 Nm) - Stage 2: 90°

    Fig 1: RH Engine Mount Tightening Sequence
    GFD511173Courtesy of FORD MOTOR COMPANY
    • If removed, install new studs.

      Torque: 18 lb.ft (25 Nm)

    • Install the new gasket.

    GFD511250Courtesy of FORD MOTOR COMPANY
  4. NOTE: Body of vehicle removed from graphic for clarity.

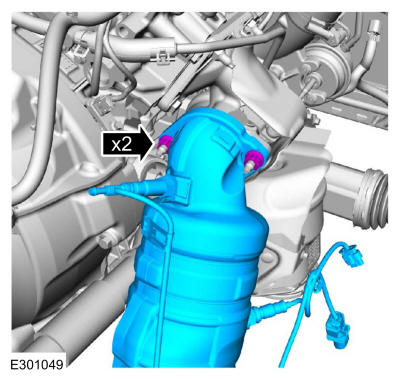

    Install the RH catalytic converter and the new nuts.

    Torque: 35 lb.ft (48 Nm)

    GFD511297Courtesy of FORD MOTOR COMPANY

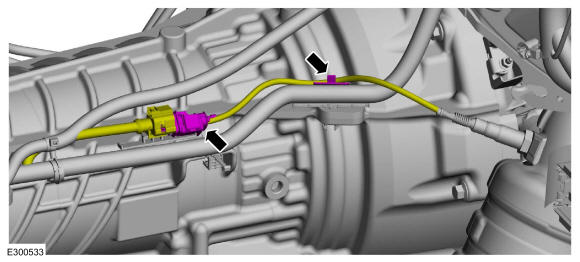

    • Connect the HO2S electrical connector.

    • Attach the wiring harness retainers.

    GFD511142Courtesy of FORD MOTOR COMPANY
  5. Raise the jack stand.
    GFD511255Courtesy of FORD MOTOR COMPANY

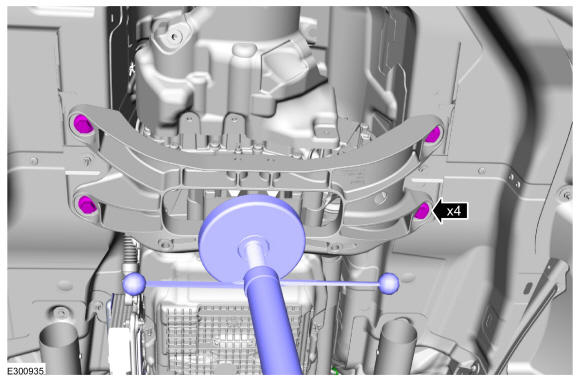

  6. Install the new transmission crossmember bolts.

    Torque: 76 lb.ft (103 Nm)

    GFD511256Courtesy of FORD MOTOR COMPANY
  7. Remove the adjustable jack stand.
    GFD511257Courtesy of FORD MOTOR COMPANY
  8. Install the exhaust crossmember and the fasteners.

    Torque: 18 lb.ft (25 Nm)

    GFD511129Courtesy of FORD MOTOR COMPANY
  9. If equipped, install the transmission cooler hose bracket nut.

    Torque: 80 lb.in (9 Nm)

    GFD511284Courtesy of FORD MOTOR COMPANY
  10. NOTE: Make sure that the LH and RH engine mount studs are in the subframe when raised.

    With the aid of an assistant, raise the front and rear jack stand evenly.

    GFD511181Courtesy of FORD MOTOR COMPANY
  11. Install the new front subframe bolts finger tight.
    GFD511182Courtesy of FORD MOTOR COMPANY
  12. Install the new middle subframe bolts finger tight.
    GFD511183Courtesy of FORD MOTOR COMPANY
  13. Install the new rear subframe bolts finger tight.
    GFD511184Courtesy of FORD MOTOR COMPANY
  14. Tighten the front subframe bolts.

    Torque: 195 lb.ft (265 Nm)

    GFD511182Courtesy of FORD MOTOR COMPANY
  15. Tighten the middle subframe bolts.

    Torque: 195 lb.ft (265 Nm)

    GFD511183Courtesy of FORD MOTOR COMPANY
  16. Tighten the rear subframe bolts.

    Torque: 52 lb.ft (70 Nm)

    GFD511184Courtesy of FORD MOTOR COMPANY
  17. Remove adjustable jack stands.
    GFD510565Courtesy of FORD MOTOR COMPANY
  18. Position the LH underbody shield and install the bolt.

    Torque: 22 lb.in (2.5 Nm)

    GFD510562Courtesy of FORD MOTOR COMPANY
  19. Position the RH underbody shield and install the bolt.

    Torque: 22 lb.in (2.5 Nm)

    GFD510561Courtesy of FORD MOTOR COMPANY
  20. NOTE: Only use hand tools when removing the engine mount nuts or damage to the engine mount can occur.

    Install the new LH and RH engine mount nuts.

    Torque: 184 lb.ft (250 Nm)

    GFD511292Courtesy of FORD MOTOR COMPANY
  21. Position the coolant tubes and install the bolt.

    Torque: 71 lb.in (8 Nm)

    GFD511282Courtesy of FORD MOTOR COMPANY
  22. Install the front radiator support bar bolts.

    Torque: 46 lb.ft (63 Nm)

    GFD510559Courtesy of FORD MOTOR COMPANY

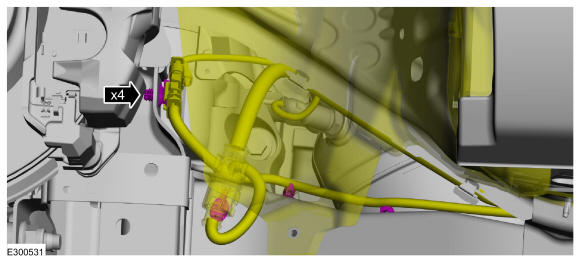

  23. Attach the wiring harness retainers to LH subframe.
    GFD511295Courtesy of FORD MOTOR COMPANY
  24. Position the splash shield and install the pin-type retainer to the LH subframe.
    GFD511278Courtesy of FORD MOTOR COMPANY
  25. Install the steering shield pin-type retainers to the LH subframe.
    GFD510555Courtesy of FORD MOTOR COMPANY
    • Connect the catalyst monitor sensor electrical connector.

    • Attach the wiring harness retainers.

    GFD511294Courtesy of FORD MOTOR COMPANY
  26. Install the splash shield pin-type retainer to the RH subframe.
    GFD511276Courtesy of FORD MOTOR COMPANY
  27. Install the steering shield pin-type retainers to the RH subframe.
    GFD510552Courtesy of FORD MOTOR COMPANY
  28. Install the rear underbody shield, bolts and the pin-type retainers.

    Torque: 22 lb.in (2.5 Nm)

    GFD510498Courtesy of FORD MOTOR COMPANY
    • Install the underbody shield and the bolts.

      Torque: 22 lb.in (2.5 Nm)

    • Install pin-type retainer.

    GFD510549Courtesy of FORD MOTOR COMPANY
  29. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Position the RH sway bar link and install the new nut.

    Torque: 129 lb.ft (175 Nm)

    GFD510582Courtesy of FORD MOTOR COMPANY
  30. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Position the LH sway bar link and install the new nut.

    Torque: 129 lb.ft (175 Nm)

    GFD510583Courtesy of FORD MOTOR COMPANY
  31. Install the following items:

    1. LH and RH exhaust flexible pipes. Refer to: Exhaust Flexible Pipe .
    2. Front wheels and tires. Refer to: Wheel and Tire .

  32. Remove Special Service Tool: 303-F072 Support Bar, Engine.
    GFD511258Courtesy of FORD MOTOR COMPANY
  33. Remove the two M8 x 1.25 bolts and the special tools. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
    GFD511275Courtesy of FORD MOTOR COMPANY
  34. Install the engine front cover bolts.

    Torque: Stage 1: 177 lb.in (20 Nm) - Stage 2: 45°

    GFD511274Courtesy of FORD MOTOR COMPANY
  35. Install the throttle body. Refer to: Throttle Body .
  36. Install the new steering shaft bolt.

    Torque: 22 lb.ft (30 Nm)

    GFD511293Courtesy of FORD MOTOR COMPANY
    • Position the coolant pipe.

    • Install the coolant pipe bolts.

      Torque: 97 lb.in (11 Nm)

    • Attach the wiring harness retainers.

    GFD511270Courtesy of FORD MOTOR COMPANY
  37. Install the bracket and the bolts.

    Torque: 93 lb.in (10.5 Nm)

    GFD511272Courtesy of FORD MOTOR COMPANY
  38. Attach the hose retainers and install the bolt.

    Torque: 93 lb.in (10.5 Nm)

    GFD511271Courtesy of FORD MOTOR COMPANY
    • Install the intake manifold bracket and bolts.

      Torque: 97 lb.in (11 Nm)

    • Install the coolant pipe bracket retaining bolts.

      Torque: 97 lb.in (11 Nm)

    GFD511269Courtesy of FORD MOTOR COMPANY
  39. Install the following items:

    1. Charge air cooler outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
    2. Air cleaner. Refer to: Air cleaner .
    3. Cowl panel. Refer to: Cowl Panel .

  40. Install the suspension support bar and the bolts.

    Torque: 22 lb.ft (30 Nm)

    GFD511268Courtesy of FORD MOTOR COMPANY
  41. Install the upper radiator panel and the retainers.
    GFD510541Courtesy of FORD MOTOR COMPANY
  42. Remove the holding device.
    GFD510539Courtesy of FORD MOTOR COMPANY
  43. Start and check the exhaust system for leaks.
