Oil Pump: Installation

WARNING: This page is about a different variant/trim than selected.

Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
NOTE: Make sure the oil pump drive belt teeth are engaged in the crankshaft sprocket prior to installing the oil pump.
1. Install the oil pump sprocket into the oil pump drive belt.
2. Raise the rear of the oil pump assembly into the installed position.
3. Install the oil pump bolts.
  Torque: Stage 1: 89 lb.in (10 Nm) - Stage 2: 45°
Courtesy of FORD MOTOR COMPANY
Install the splash shield and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
1. Install new O-ring seals.
2. Lubricate the O-ring seals with clean engine oil.
Courtesy of FORD MOTOR COMPANY

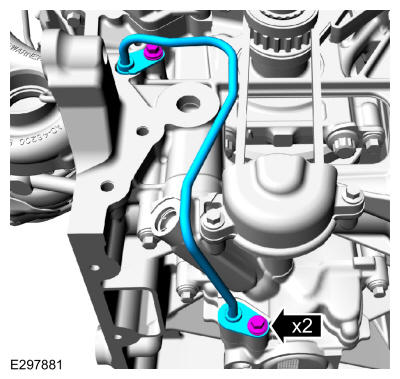

Install the oil pump return tube and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the engine front cover. Refer to: Engine Front Cover .
