Vacuum Pump: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white part number 07528) to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. They also cause contamination that will cause premature engine failure. Remove all traces of the Sealant.

Make sure that the mating faces of the engine are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

Material: Motorcraft® Metal Surface Prep wipes / ZC-31-B

Courtesy of FORD MOTOR COMPANY
Inspect the gaskets and install new gaskets as necessary.

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: If the brake vacuum pump is not secured within 10 minutes of Sealant application, the Sealant must be removed and the sealing area cleaned. Failure to follow this procedure can cause future oil leakage.

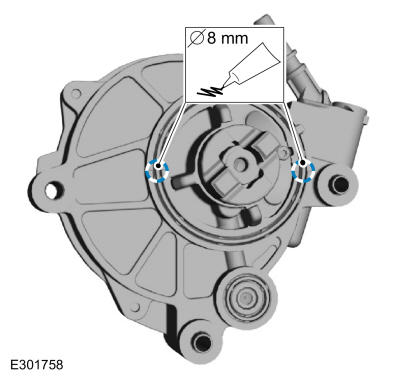

Apply 8 mm (0.31 in) beads of Motorcraft® High Performance Engine RTV Silicone in the locations shown.

Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY

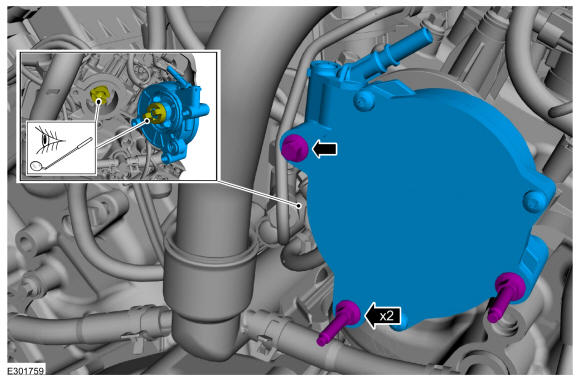

NOTE: Manually align the brake vacuum pump drive key with the camshaft slot before installation.

Position the vacuum pump and install the fasteners.

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

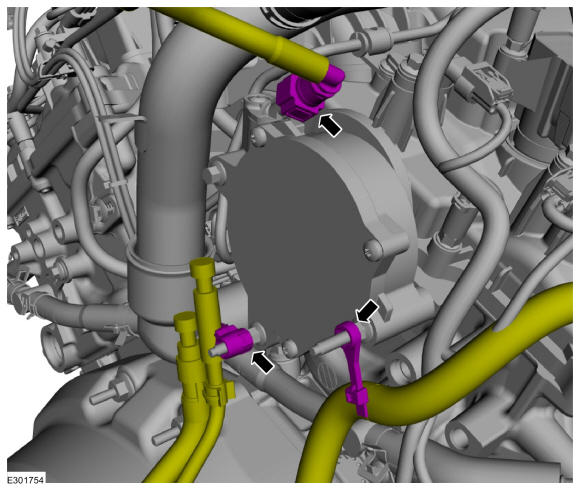

1. Connect the vacuum tube quick connect coupling. Refer to: QUICK RELEASE COUPLING .
2. Attach the wiring harness retainer.
3. Attach the vent hose retainer.
Courtesy of FORD MOTOR COMPANY
Install the cowl panel. Refer to: Cowl Panel .
