Valve Cover LH: Installation
WARNING: This page is about a different variant/trim than selected.
- To install, reverse the removal procedure.
-
NOTE: Installation of new seals is only required if damaged seals were removed.
Using the special tools, install new spark plug tube seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1247 VCT Spark Plug Tube Seal Remover and Installer.
-
NOTE: If the valve cover is not installed and the fasteners tightened within 10 minutes, the Sealant must be removed and the sealing area cleaned.
Apply an 8 mm (0.31 in) diameter drop of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

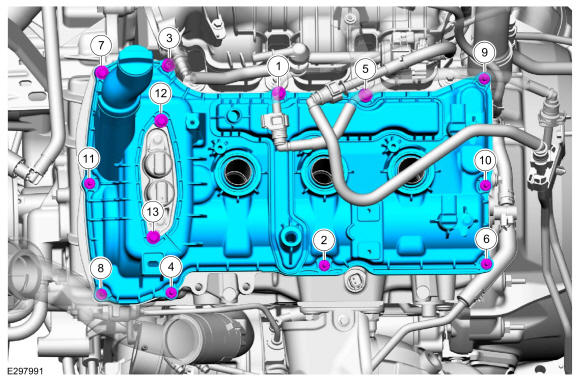

- Install the valve cover and tighten the bolts in sequence.
Torque: 89 lb.in (10 Nm)
