Engine Mount LH: Installation

WARNING: This page is about a different variant/trim than selected.

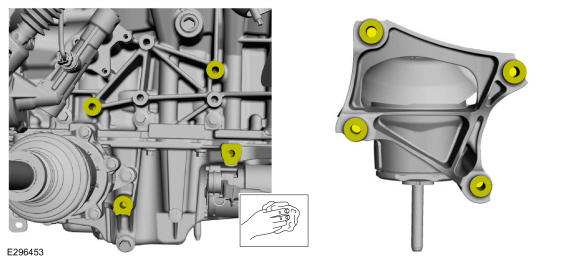

  1. Clean the LH engine mount-to-cylinder block mating surfaces of any dirt or foreign material prior to installation.
    GFD511820Courtesy of FORD MOTOR COMPANY
  2. Install the LH engine mount and the new bolts.

    Torque: 46 lb.ft (63 Nm)

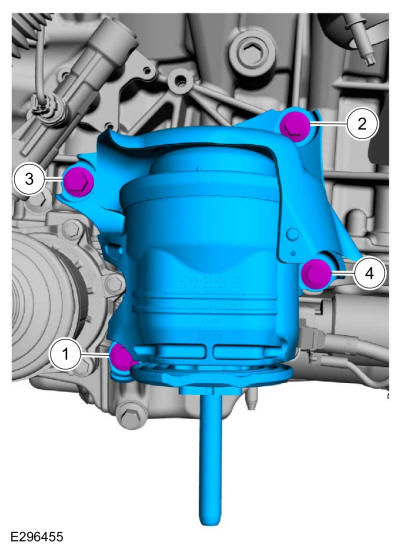

    Fig 1: LH Engine Mount Tightening Sequence
    GFD511821Courtesy of FORD MOTOR COMPANY

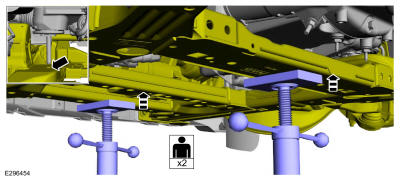

  3. NOTE: Make sure that the LH and RH engine mount studs are in the subframe when raised.

    With the aid of an assistant, raise the front and rear jack stand evenly.

    GFD511822Courtesy of FORD MOTOR COMPANY

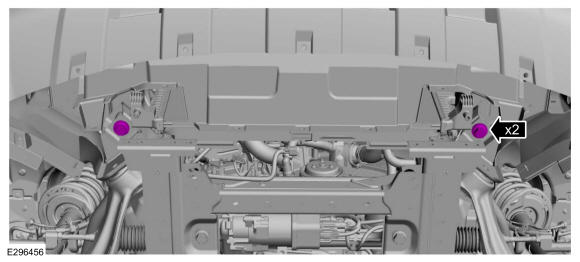

  4. Install the new front subframe bolts finger tight.
    GFD511823Courtesy of FORD MOTOR COMPANY

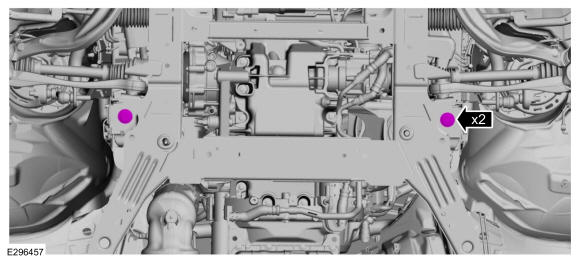

  5. Install the new middle subframe bolts finger tight.
    GFD511824Courtesy of FORD MOTOR COMPANY

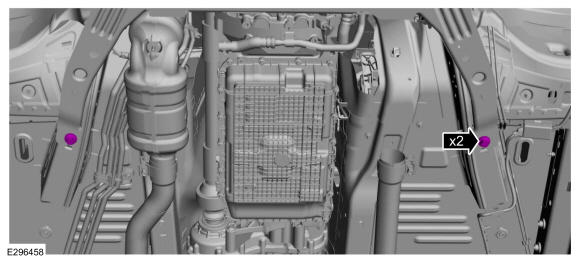

  6. Install the new rear subframe bolts finger tight.
    GFD511825Courtesy of FORD MOTOR COMPANY
  7. Tighten the front subframe bolts.

    Torque: 195 lb.ft (265 Nm)

    GFD511823Courtesy of FORD MOTOR COMPANY
  8. Tighten the middle subframe bolts.

    Torque: 195 lb.ft (265 Nm)

    GFD511824Courtesy of FORD MOTOR COMPANY
  9. Tighten the rear subframe bolts.

    Torque: 52 lb.ft (70 Nm)

    GFD511825Courtesy of FORD MOTOR COMPANY

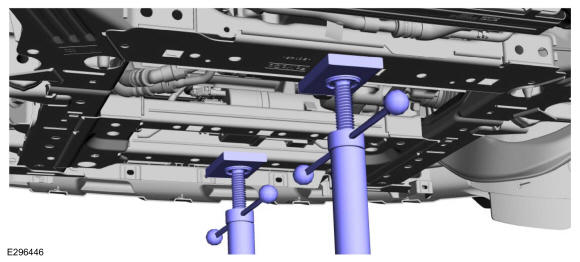

  10. Remove adjustable jack stands.
    GFD511814Courtesy of FORD MOTOR COMPANY

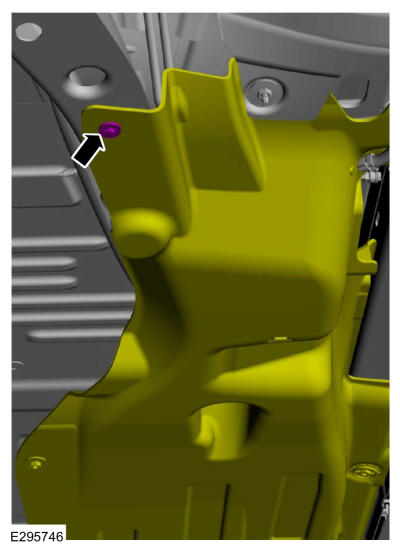

  11. Position the LH underbody shield and install the bolt.

    Torque: 22 lb.in (2.5 Nm)

    GFD511811Courtesy of FORD MOTOR COMPANY

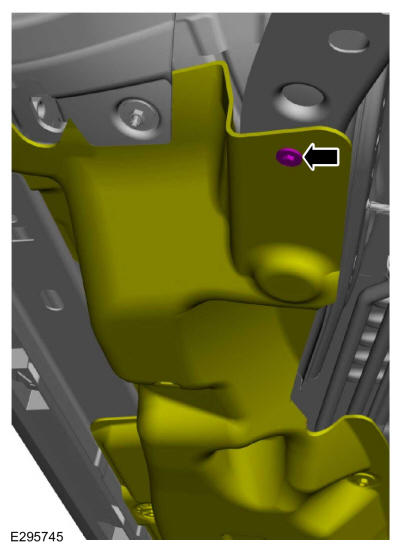

  12. Position the RH underbody shield and install the bolt.

    Torque: 22 lb.in (2.5 Nm)

    GFD511810Courtesy of FORD MOTOR COMPANY

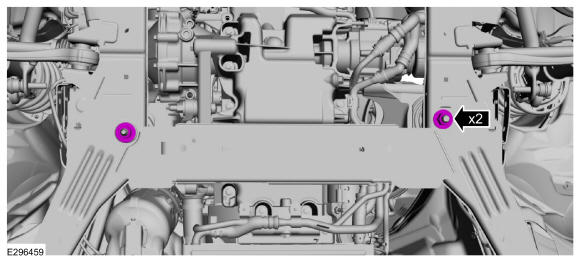

  13. NOTE: Only use hand tools when removing the engine mount nuts or damage to the engine mount can occur.

    Install the new LH and RH engine mount nuts.

    Torque: 184 lb.ft (250 Nm)

    GFD511826Courtesy of FORD MOTOR COMPANY

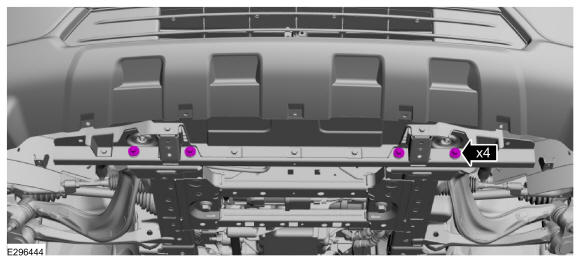

  14. Install the front radiator support bar bolts.

    Torque: 46 lb.ft (63 Nm)

    GFD511808Courtesy of FORD MOTOR COMPANY

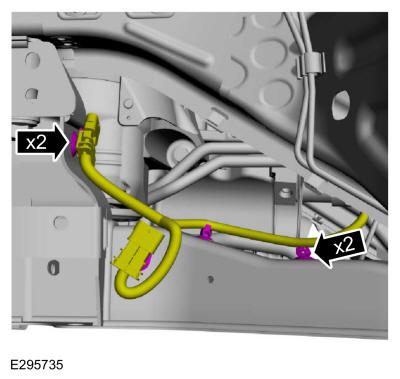

  15. Attach the HO2S wiring harness retainers to LH subframe.
    GFD511807Courtesy of FORD MOTOR COMPANY

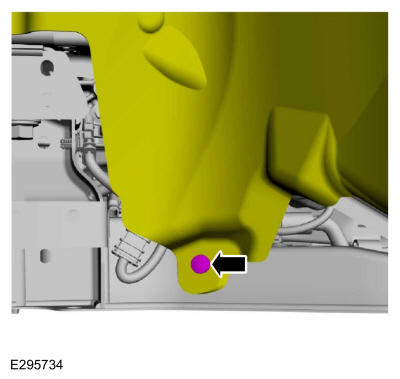

  16. Position the splash shield and install the pin-type retainer to the LH subframe.
    GFD511806Courtesy of FORD MOTOR COMPANY

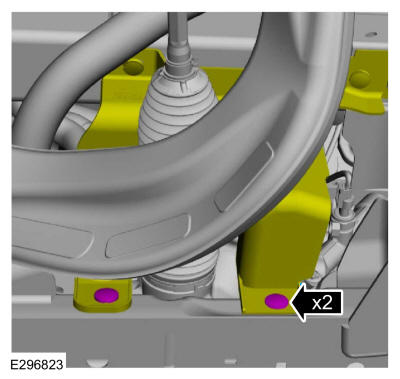

  17. Install the steering shield pin-type retainers to the LH subframe.
    GFD511805Courtesy of FORD MOTOR COMPANY

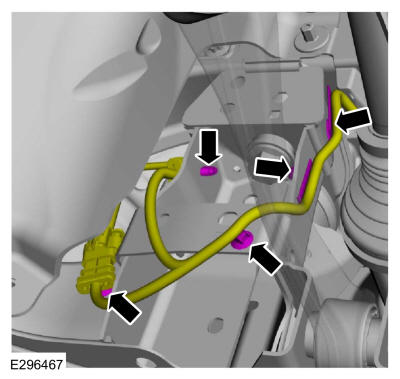

  18. Attach the HO2S wiring harness retainers to the RH subframe.
    GFD511804Courtesy of FORD MOTOR COMPANY

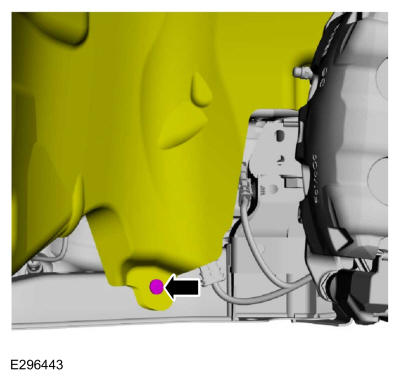

  19. Install the splash shield pin-type retainer to the RH subframe.
    GFD511803Courtesy of FORD MOTOR COMPANY

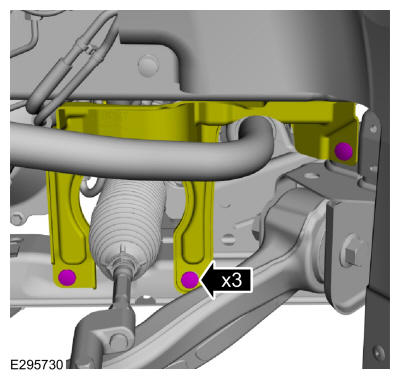

  20. Install the steering shield pin-type retainers to the RH subframe.
    GFD511802Courtesy of FORD MOTOR COMPANY
  21. Install the LH catalytic converter. Refer to: Catalytic Converter LH .

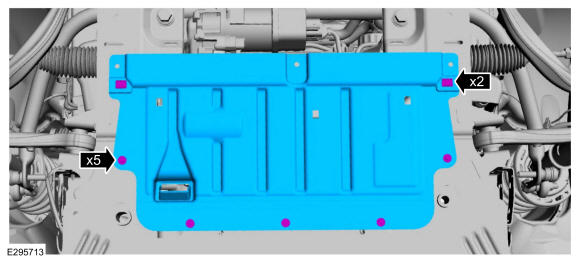

  22. Install the rear underbody shield, bolts and the pin-type retainers.

    Torque: 22 lb.in (2.5 Nm)

    GFD511801Courtesy of FORD MOTOR COMPANY

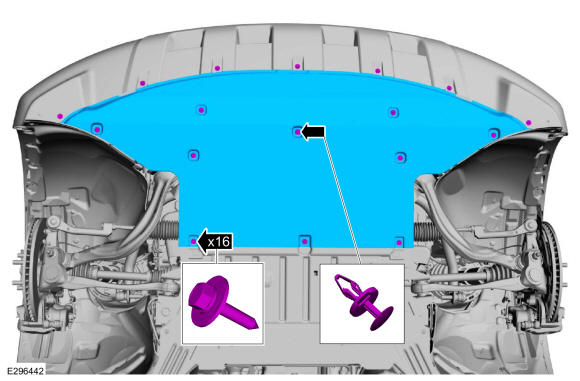

    • Install the underbody shield and the bolts.

      Torque: 22 lb.in (2.5 Nm)

    • Install pin-type retainer.

    GFD511800Courtesy of FORD MOTOR COMPANY

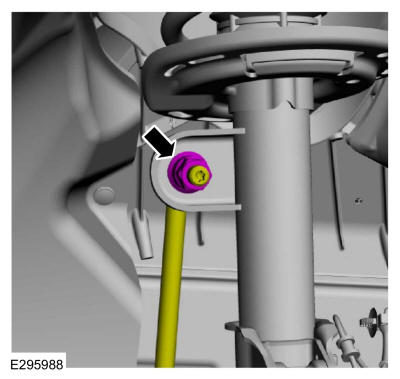

  23. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Position the RH sway bar link and install the new nut.

    Torque: 129 lb.ft (175 Nm)

    GFD511827Courtesy of FORD MOTOR COMPANY

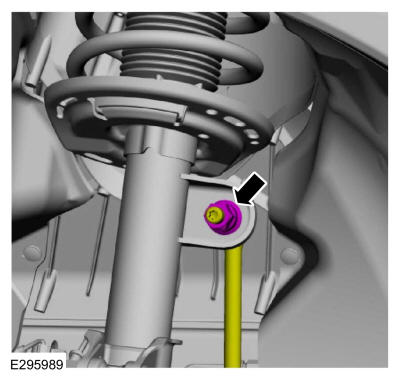

  24. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Position the LH sway bar link and install the new nut.

    Torque: 129 lb.ft (175 Nm)

    GFD511828Courtesy of FORD MOTOR COMPANY
  25. Install the LH and RH front wheels and tires. Refer to: Wheel and Tire .

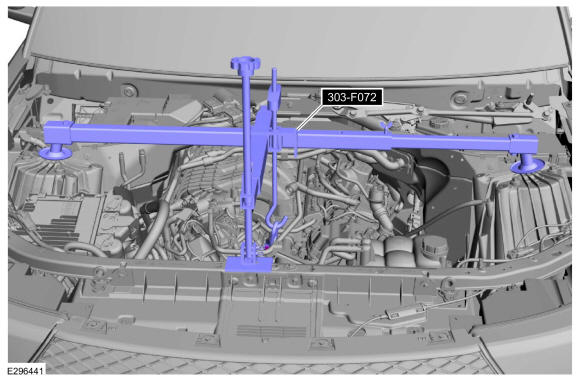

  26. Remove Special Service Tool: 303-F072 Support Bar, Engine.
    GFD511797Courtesy of FORD MOTOR COMPANY

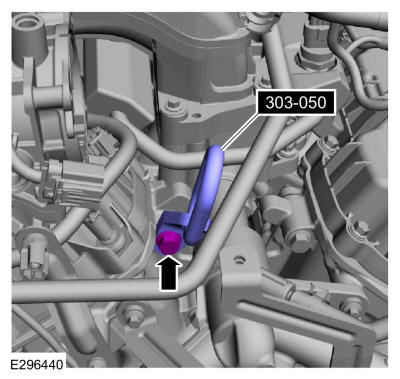

  27. Remove the special tool and install the engine front cover bolt. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

    Torque: Stage 1: 177 lb.in (20 Nm) - Stage 2: 45°

    GFD511796Courtesy of FORD MOTOR COMPANY

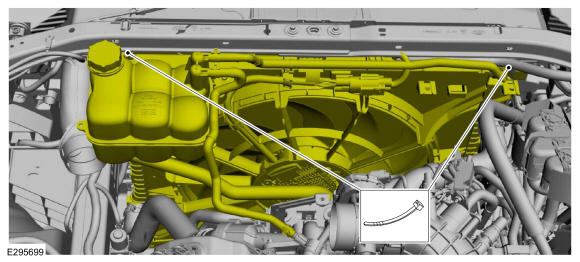

  28. Remove the radiator support cable ties or mechanics wire.
    GFD511795Courtesy of FORD MOTOR COMPANY
  29. Install the upper radiator panel and the retainers.
    GFD511794Courtesy of FORD MOTOR COMPANY
  30. Install the new steering shaft bolt.

    Torque: 22 lb.ft (30 Nm)

    GFD511829Courtesy of FORD MOTOR COMPANY
  31. Install the following items:

    1. Install the cowl panel. Refer to: Cowl Panel .
    2. Install the air cleaner. Refer to: Air Cleaner .
    3. Install the throttle body. Refer to: Throttle Body .

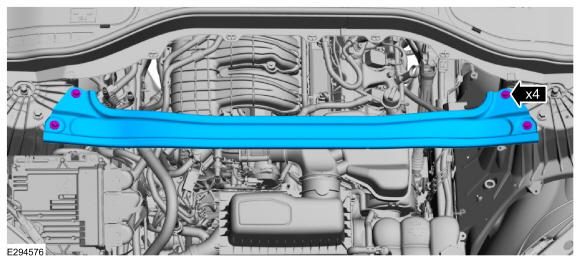

  32. Install the suspension support bar and the bolts.

    Torque: 22 lb.ft (30 Nm)

    GFD511792Courtesy of FORD MOTOR COMPANY

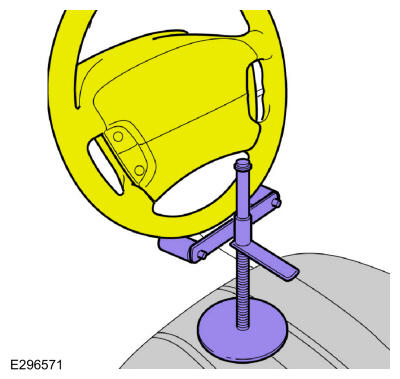

  33. Remove the holding device.
    GFD511791Courtesy of FORD MOTOR COMPANY
  34. Start and check the exhaust system for leaks.
