Upper Intake Manifold: Installation

WARNING: This page is about a different variant/trim than selected.
  1. NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

    Inspect the intake manifold for damage or metal debris.

    GFD512069Courtesy of FORD MOTOR COMPANY
  2. With the aid of an assistant, install the upper intake manifold.
    GFD512067Courtesy of FORD MOTOR COMPANY

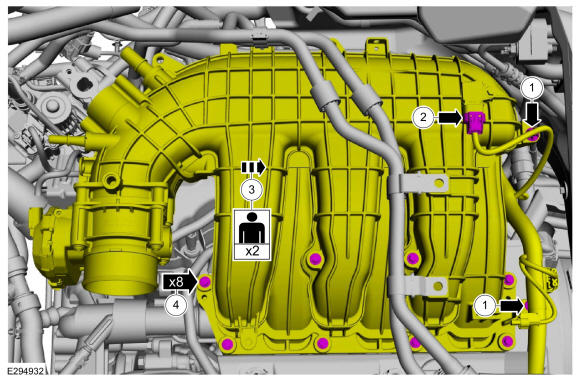

    1. Attach the wiring harness retainers.
    2. Connect the MAP sensor electrical connector.
    3. With the aid of an assistant, position the upper intake manifold rearward.
    4. Tighten the upper intake manifold bolts finger tight.
    GFD512070Courtesy of FORD MOTOR COMPANY

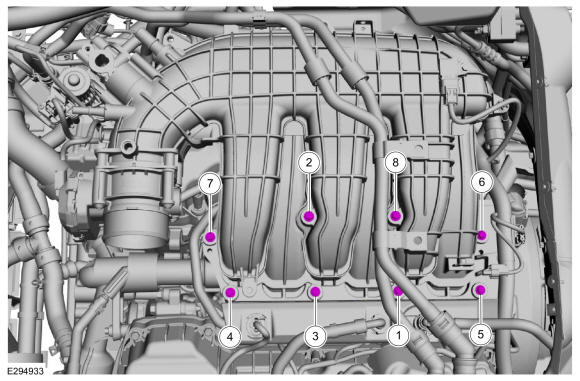

  3. Tighten the upper intake manifold bolts in sequence shown.

    Torque: Stage 1: 89 lb.in (10 Nm) - Stage 2: 45°

    Fig 1: Upper Intake Manifold Tightening Sequence
    GFD512071Courtesy of FORD MOTOR COMPANY
  4. Install the following items:

    1. Install the EGR valve outlet tube. Refer to: Exhaust Gas Recirculation (EGR) Outlet Tube .
    2. Install the differential pressure feedback EGR valve sensor. Refer to: Differential Pressure Feedback Exhaust Gas Recirculation (EGR) Sensor .

  5. Connect the PCV tube quick connect coupling to the intake manifold. Refer to: QUICK RELEASE COUPLING - 3.3L .
    GFD512065Courtesy of FORD MOTOR COMPANY
    • Install the upper intake manifold support bracket and the bolts.

      Torque: 89 lb.in (10 Nm)

    • Connect the throttle body electrical connector and wire harness retainer.

    GFD512064Courtesy of FORD MOTOR COMPANY
    • Position and attach the EVAP canister purge valve to the intake manifold tab.

    • Attach the EVAP canister purge valve tube retainers to the intake manifold.

    GFD512063Courtesy of FORD MOTOR COMPANY
  6. Attach the wiring harness retainers to the RH side of the intake manifold.
    GFD512062Courtesy of FORD MOTOR COMPANY
  7. Attach the coolant hose retaining clip to the intake manifold.
    GFD512061Courtesy of FORD MOTOR COMPANY
  8. Install the coolant tube bolts to the intake manifold.

    Torque: 62 lb.in (7 Nm)

    GFD512060Courtesy of FORD MOTOR COMPANY
    • Install the air cleaner bracket and the bolts.

      Torque: 97 lb.in (11 Nm)

    • Attach the coolant hose retainers.

    GFD512059Courtesy of FORD MOTOR COMPANY
  9. Position the crankcase vent tube towards the intake manifold.
    GFD512072Courtesy of FORD MOTOR COMPANY
  10. Install the following items:

    1. Install the air cleaner. Refer to: Air Cleaner .
    2. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

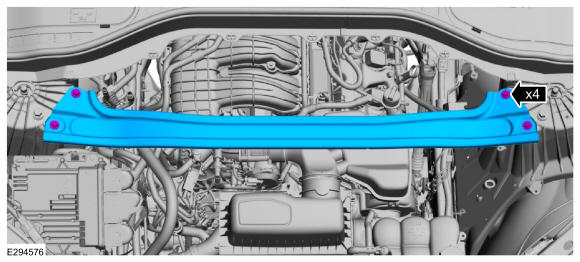

  11. Install the suspension support bar and the bolts.

    Torque: 22 lb.ft (30 Nm)

GFD512057Courtesy of FORD MOTOR COMPANY
