Cooling Module: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Evacuate the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R1234YF Refrigerant .
- Remove the radiator grille opening panel. Refer to: Radiator Grille Opening Panel .
-
NOTE: Make sure that all openings are sealed.

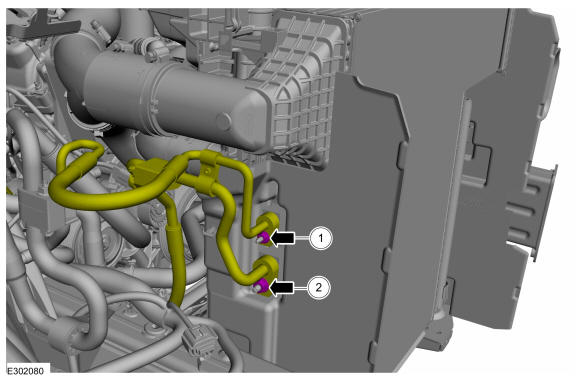

Remove the condenser inlet and outlet nuts and disconnect the fittings.
Torque: Stage 1: 80 lb.in (9 Nm) - - Stage 2 : 155 lb.in (17.5 Nm)
-

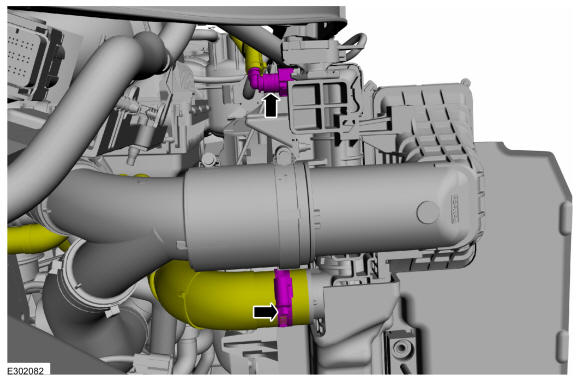

- Disconnect the quick release coupling.
- Loosen the clamp and position the upper radiator hose.
Torque: 44 lb.in (5 Nm)
-

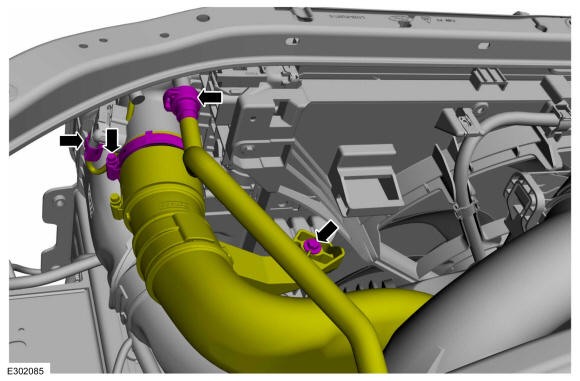

- Detach the coolant hose retainer.

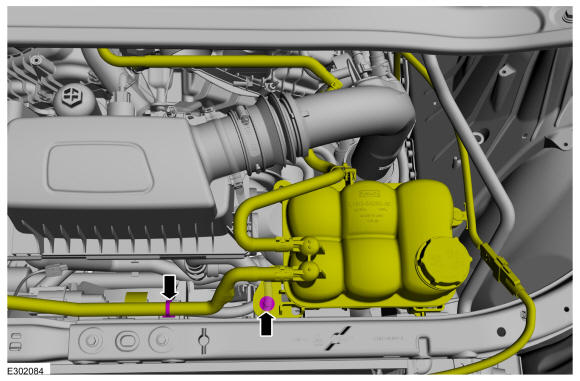

- Remove the bolt and position the degas bottle aside.
Torque: 44 lb.in (5 Nm)

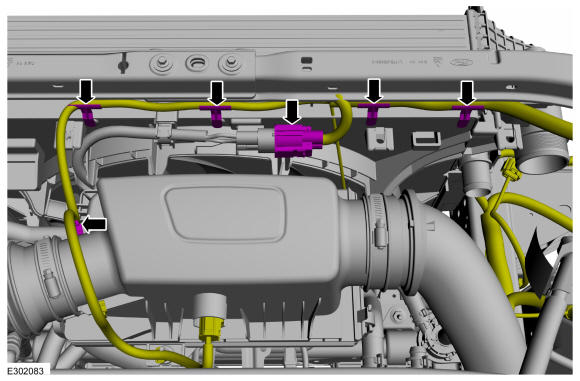

- Disconnect the electrical connector and detach the wiring harness retainers.

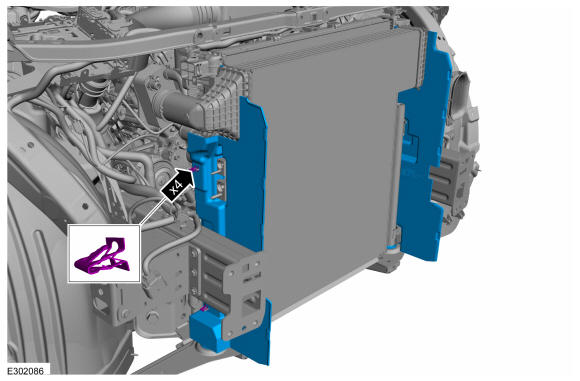

- Release the clips and remove the radiator air deflector.

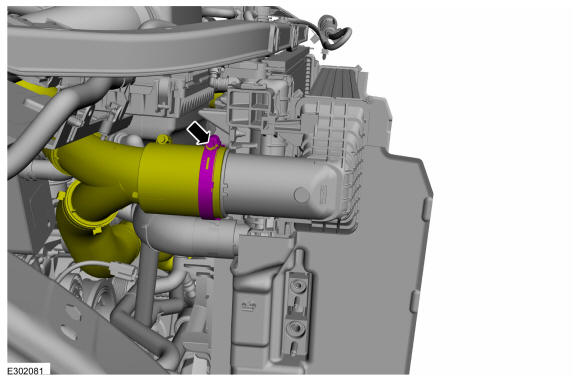

- Loosen the clamp and position the CAC hose.
Torque: 44 lb.in (5 Nm)
-
- Disconnect the MAP electrical connector.
- Release the quick connect coupling.
- Remove the bolt.
Torque: 93 lb.in (10.5 Nm)
- Loosen the clamp and position the CAC hose.
Torque: 44 lb.in (5 Nm)

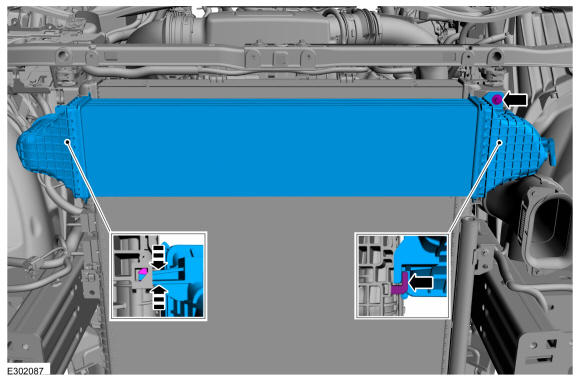

- Release the tabs, remove the bolt and the CAC.
Torque: 71 lb.in (8 Nm)

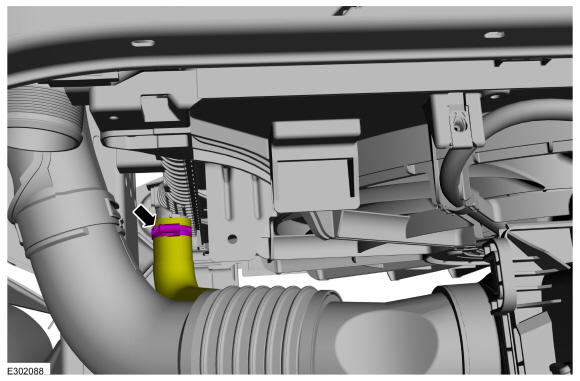

- Loosen the clamp and position the lower radiator hose.

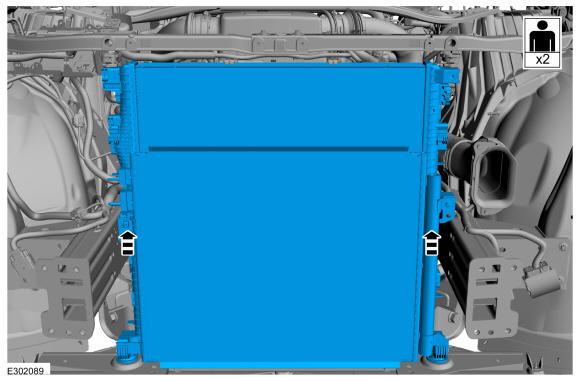

- Remove the cooling module.
