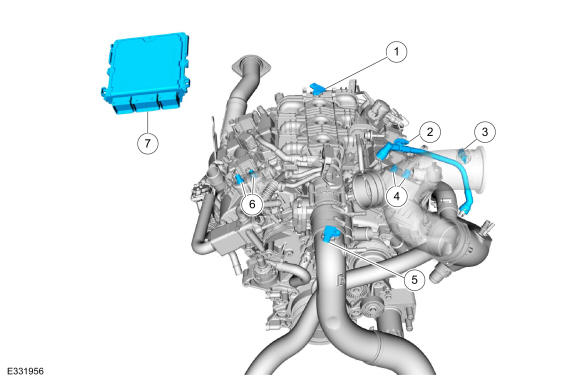

Electronic Engine Controls- Front
| Item | Description |
|---|---|
| 1 | MAPT sensor |
| 2 | Crankcase Pressure Sensor |
| 3 | IAT sensor |
| 4 | Left hand VCT oil control solenoids |
| 5 | Turbocharger Boost Pressure (TCBP) Charge Air Cooler (CAC) Temperature sensor |
| 6 | Right hand VCT oil control solenoids |
| 7 | PCM |
