Pinpoint Tests EB: Engine Brake: Introduction

This pinpoint test is intended to diagnose the following:

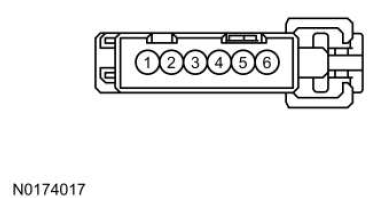

Fig 1: Engine Brake Switch Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
4	EBIS (Engine Brake Input Signal)
1	VPWR (Vehicle Power)

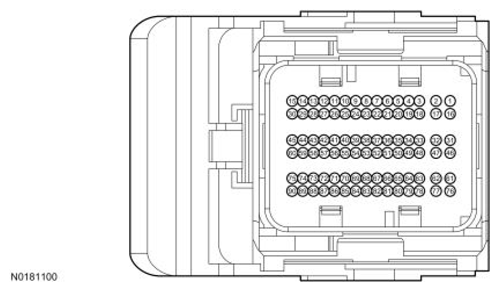

Fig 2: Powertrain Control Module-B (PCM-B) Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
6	EBIS (Engine Brake Input Signal)
