Pinpoint Tests TA: Clutch Pedal Position (CPP) Switch: Introduction
This pinpoint test is intended to diagnose the following:
- CPP sensor
- harness circuits: CPP, CPP1, CPP2, CPP-BT, GND, SIGRTN, and VREF
- PCM (12A650)

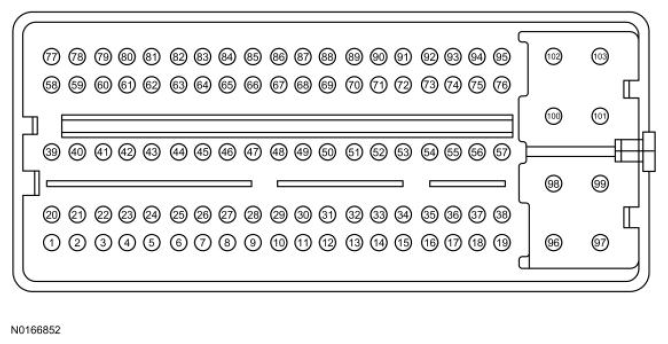

| Pin | Circuit |
|---|---|
| 1 | CPP2 (Clutch Pedal Position 2) |
| 3 | CPP1 (Clutch Pedal Position 1) |
| 4 | SIGRTN (Signal Return) |
| 2 | VREF (Reference Voltage) |
| Pin | Circuit |
|---|---|
| 9 | CPP2 (Clutch Pedal Position 2) |
| 10 | CPP1 (Clutch Pedal Position 1) |
