Body Control Module (BCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If the BCM did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair. This step is only necessary if the BCM is being replaced.

Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions.

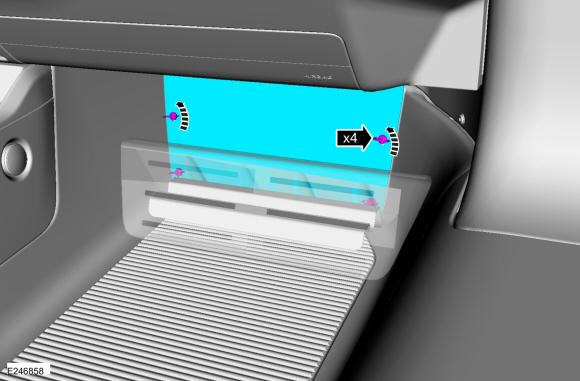

Remove the fasteners and the access panel.

Courtesy of FORD MOTOR COMPANY

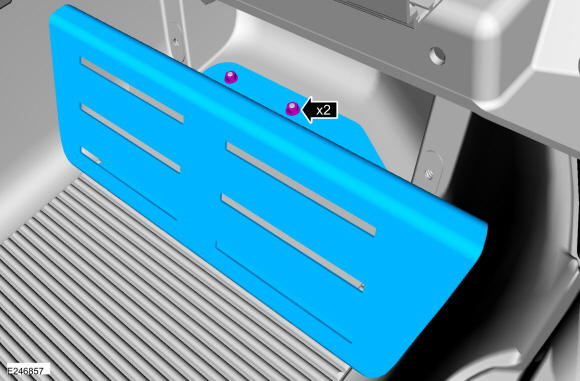

Remove the two nuts and the toe panel.

Courtesy of FORD MOTOR COMPANY

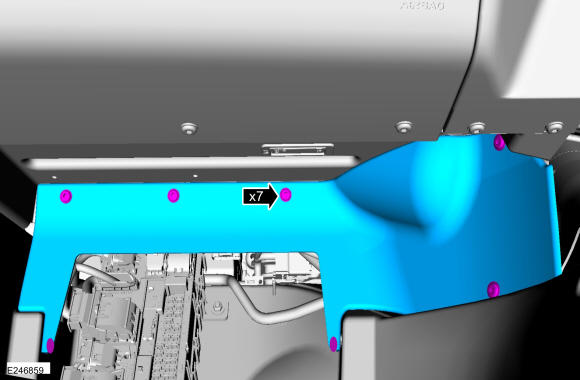

Remove the screws and the close out panel.

Courtesy of FORD MOTOR COMPANY

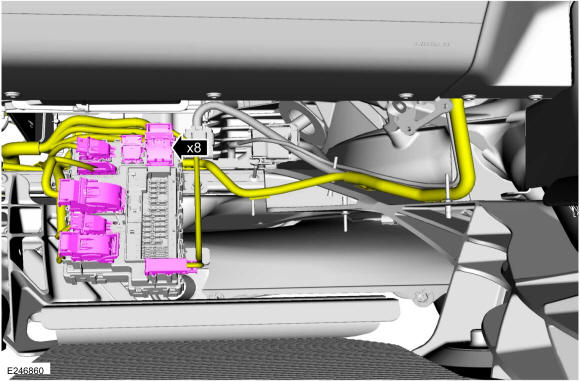

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

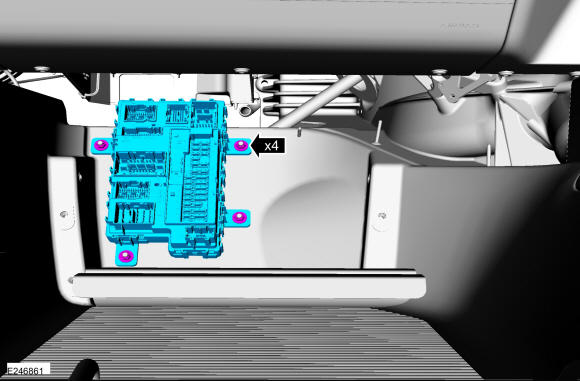

Remove the nuts and the BCM.
Torque: 55 lb.in (6.2 Nm)

Courtesy of FORD MOTOR COMPANY
