Radio Transceiver Module (RTM): Removal

NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Carry out the PMI procedure for the RTM.

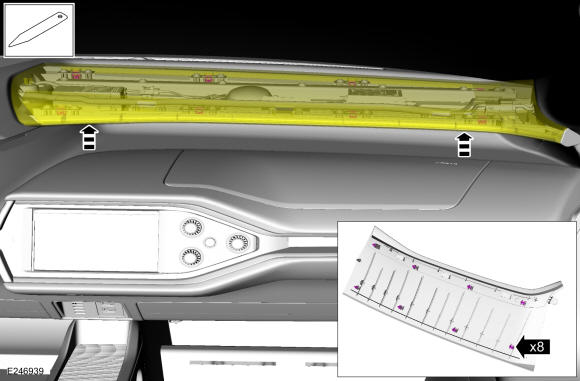

Release the clips and position up the RH upper trim panel.

Courtesy of FORD MOTOR COMPANY

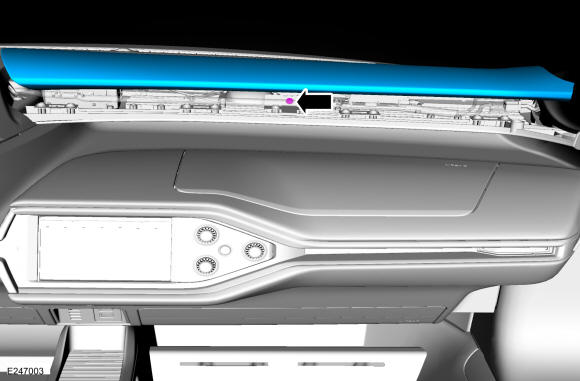

Remove the tether strap screw and the RH upper trim panel.

Courtesy of FORD MOTOR COMPANY

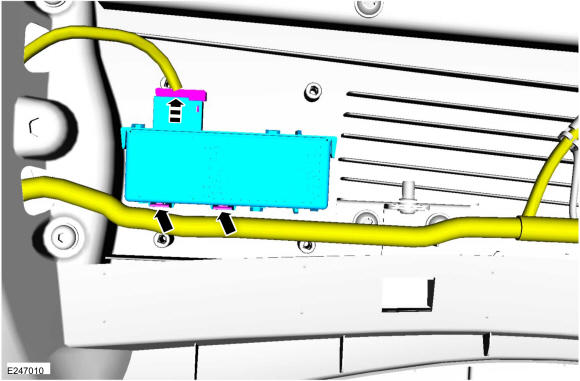

Release the tabs and remove the RTM.
- Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY
