Overhead Console: Removal

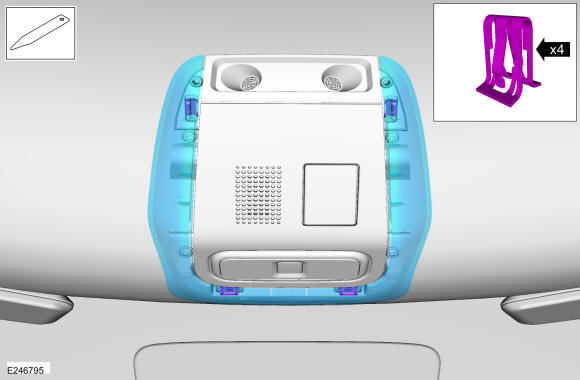

  1. Release the clips and remove the overhead console bezel.
    GFD346156Courtesy of FORD MOTOR COMPANY

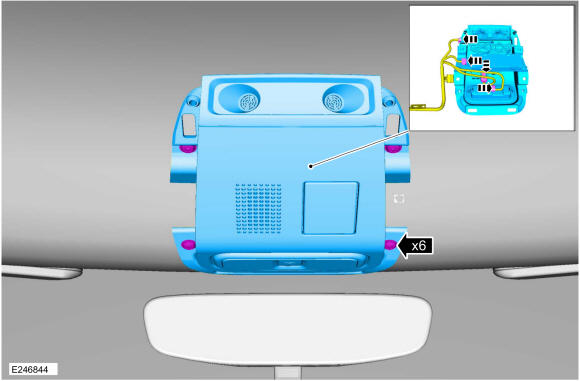

  2. Remove the bolts and the overhead console.

    • Disconnect the electrical connectors.

GFD346157Courtesy of FORD MOTOR COMPANY
