Automatic Climate Control System

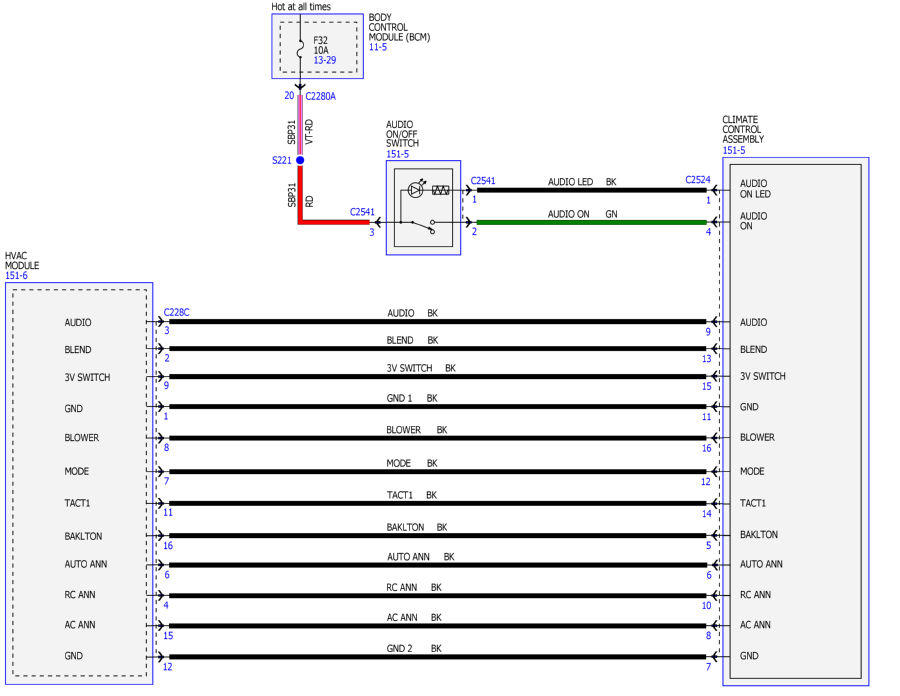

GFDWR31908Courtesy of FORD MOTOR COMPANY

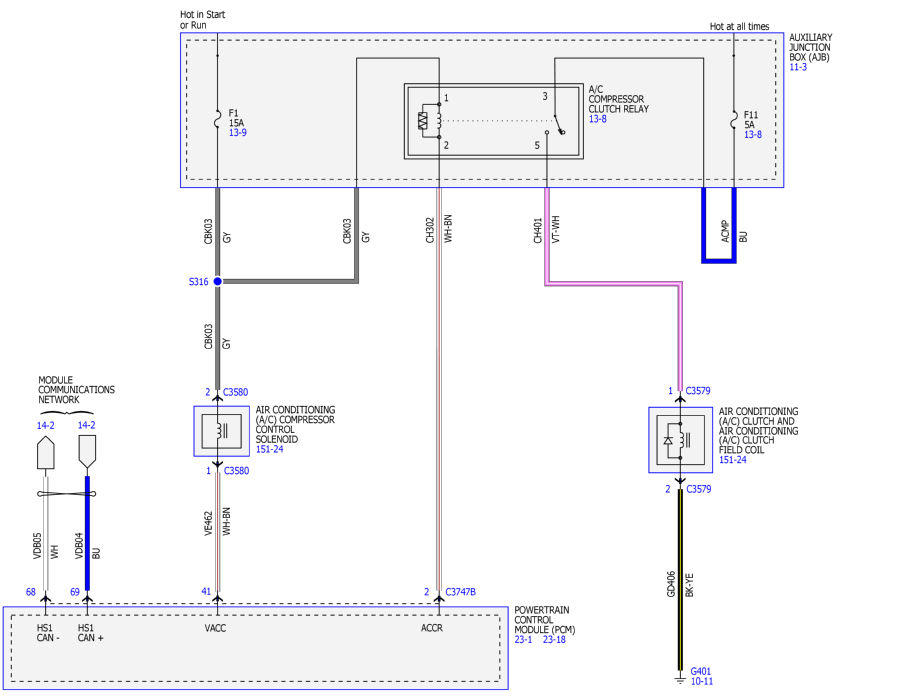

GFDWR31909Courtesy of FORD MOTOR COMPANY

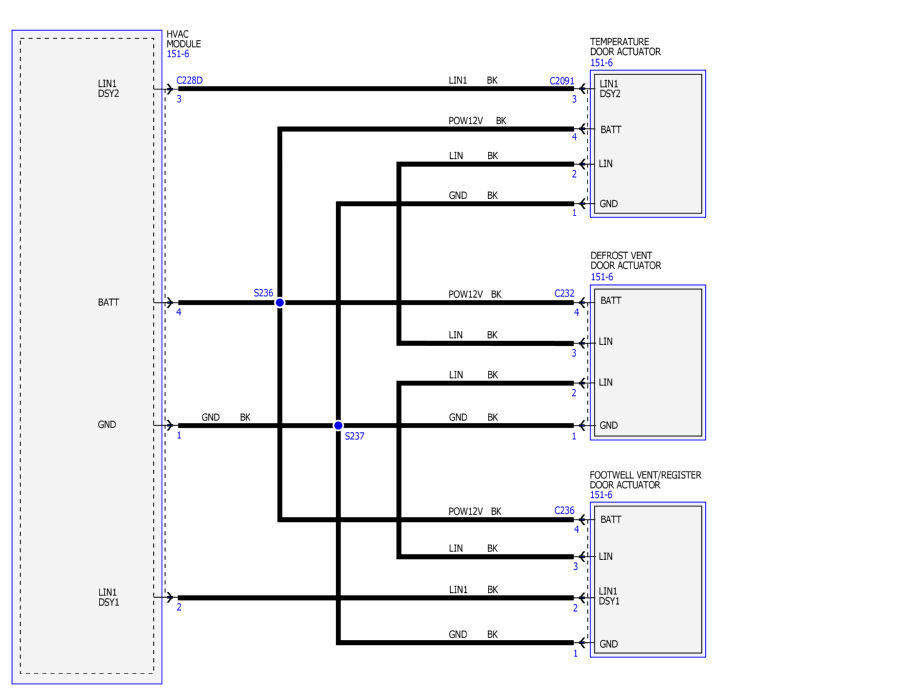

GFDWR31910Courtesy of FORD MOTOR COMPANY

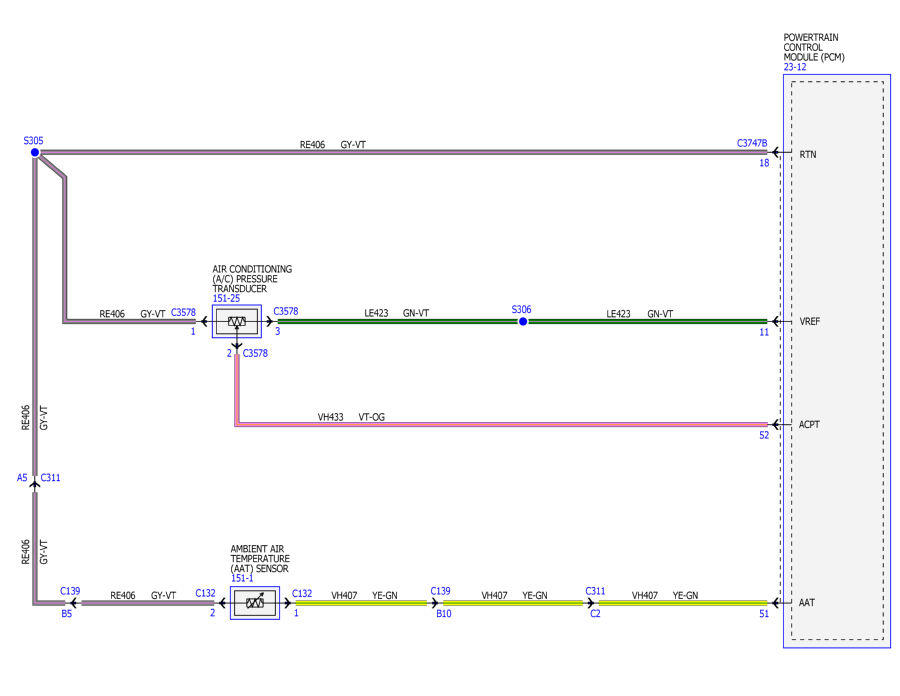

GFDWR31911Courtesy of FORD MOTOR COMPANY

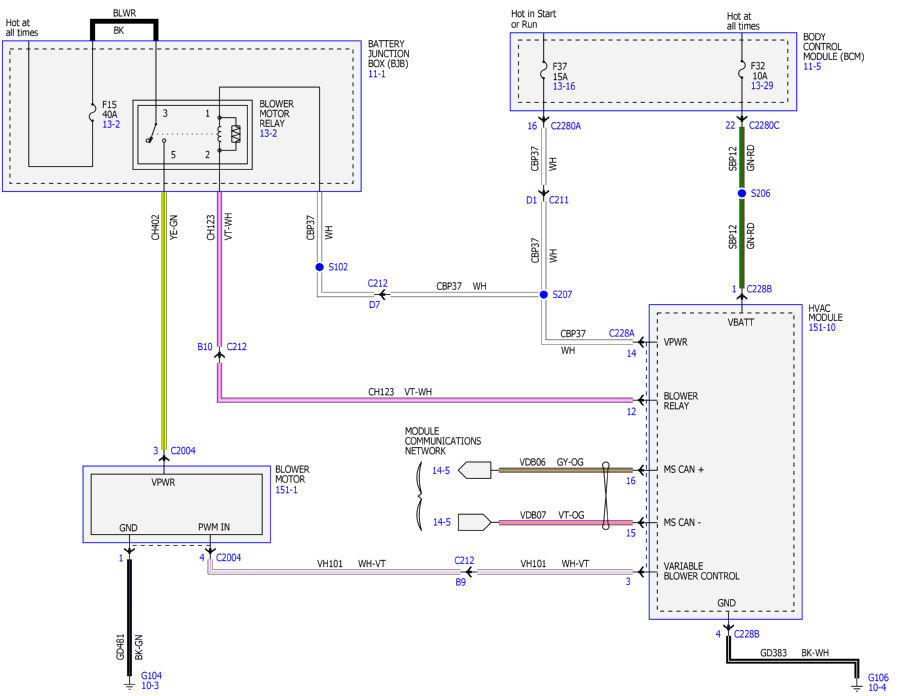

GFDWR31912Courtesy of FORD MOTOR COMPANY

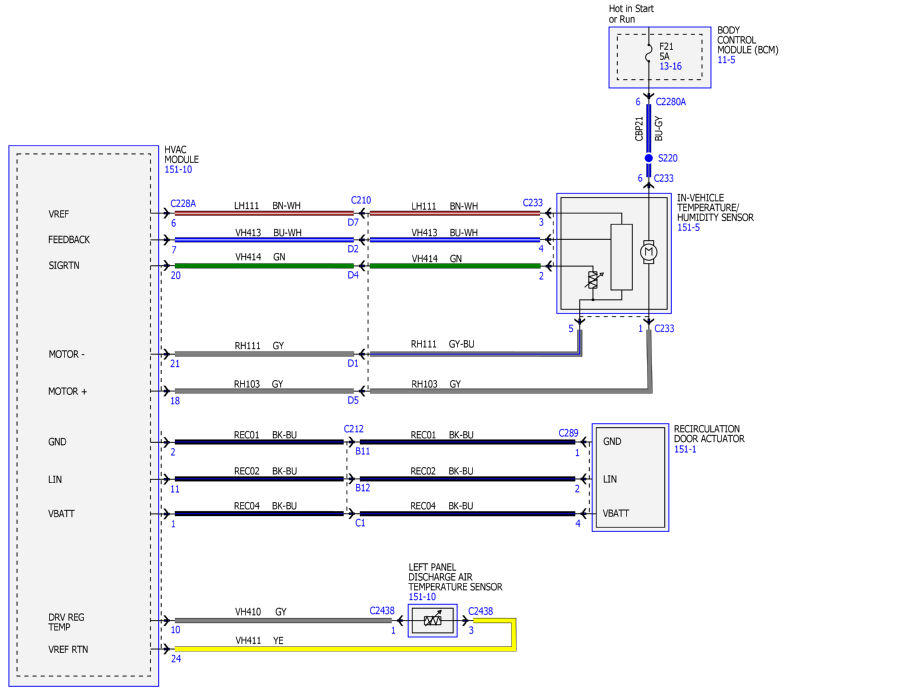

GFDWR31913Courtesy of FORD MOTOR COMPANY

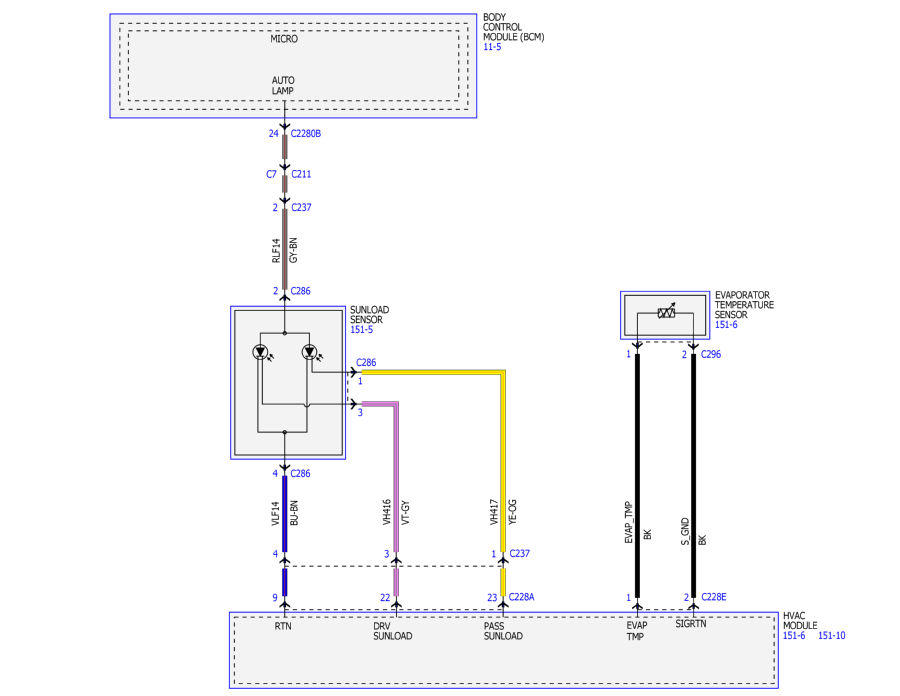

GFDWR31914Courtesy of FORD MOTOR COMPANY
