Removal And Installation: Radiator: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the cooling module. Refer to: Cooling Module .

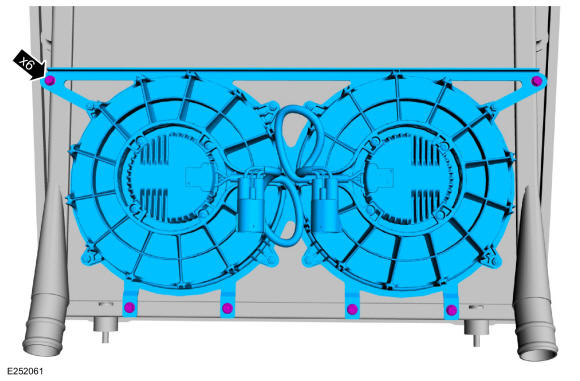

- Remove the bolts and the cooling fan assembly.
Torque: 97 lb.in (11 Nm)

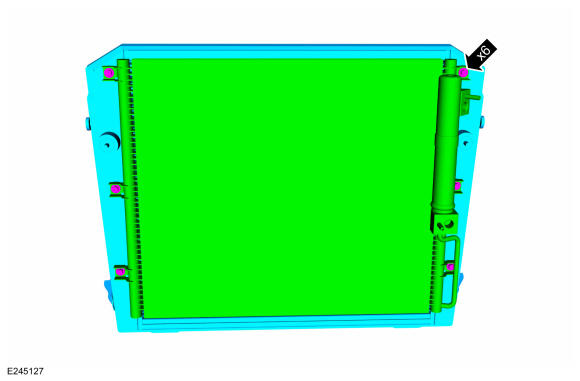

- Remove the bolts, separate the A/C condenser and the radiator.
Torque: 97 lb.in (11 Nm)
