Variable Camshaft Timing (VCT) Oil Control Solenoid RH: Removal
-
NOTE: Removal steps in this procedure may contain installation details.
Remove the RH valve cover. Refer to: Valve Cover RH .

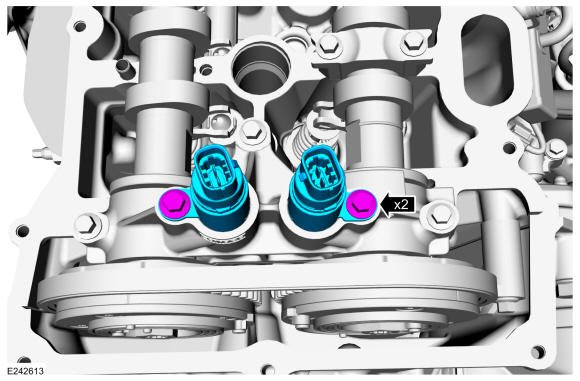

- Remove the bolts and the RH VCT oil control solenoids.
Torque: 89 lb.in (10 Nm)
