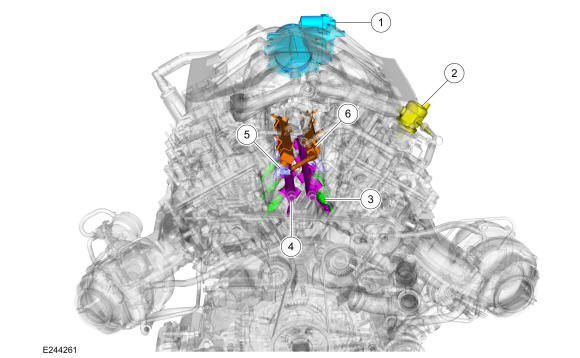

Fuel Charging and Controls - Component Location
›
3.5L Eco Boost
3.5L Eco Boost
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Throttle body
2
High-pressure fuel pump
3
Direct injection fuel injector
4
Direct injection fuel rail
5
Port injection fuel injector
6
Port injection fuel rail
