Climate Control Assembly: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the FDIM. Refer to: Front Display Interface Module (FDIM) .

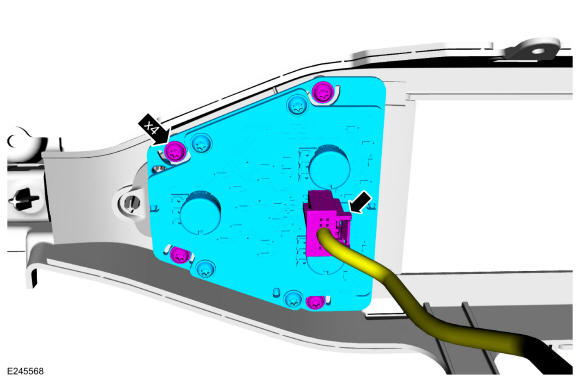

- Disconnect the electrical connector, remove the retainers and the climate control assembly.
