Component Location Views

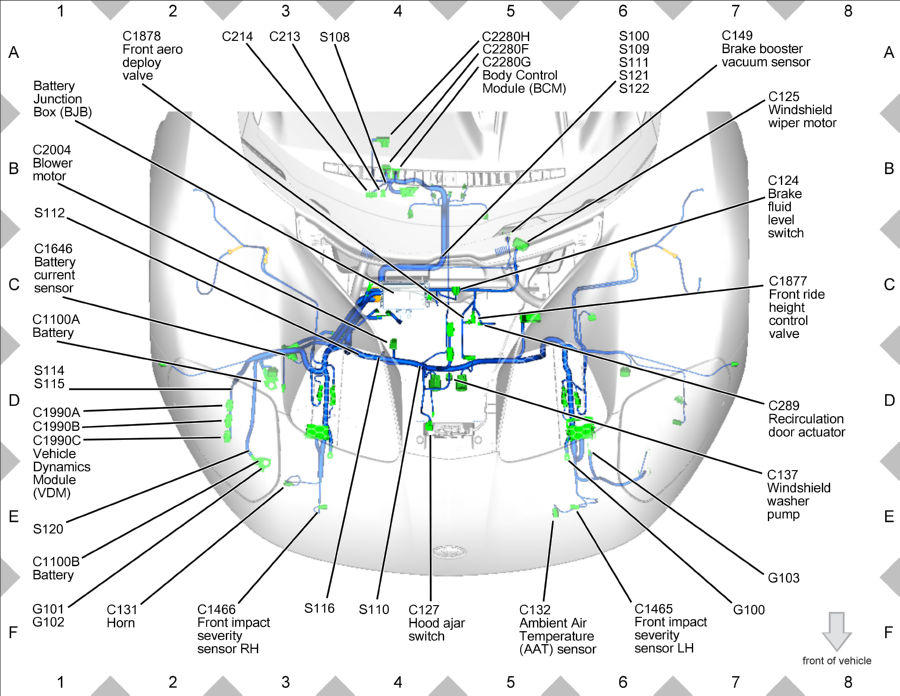

GFDWR31852Courtesy of FORD MOTOR COMPANY

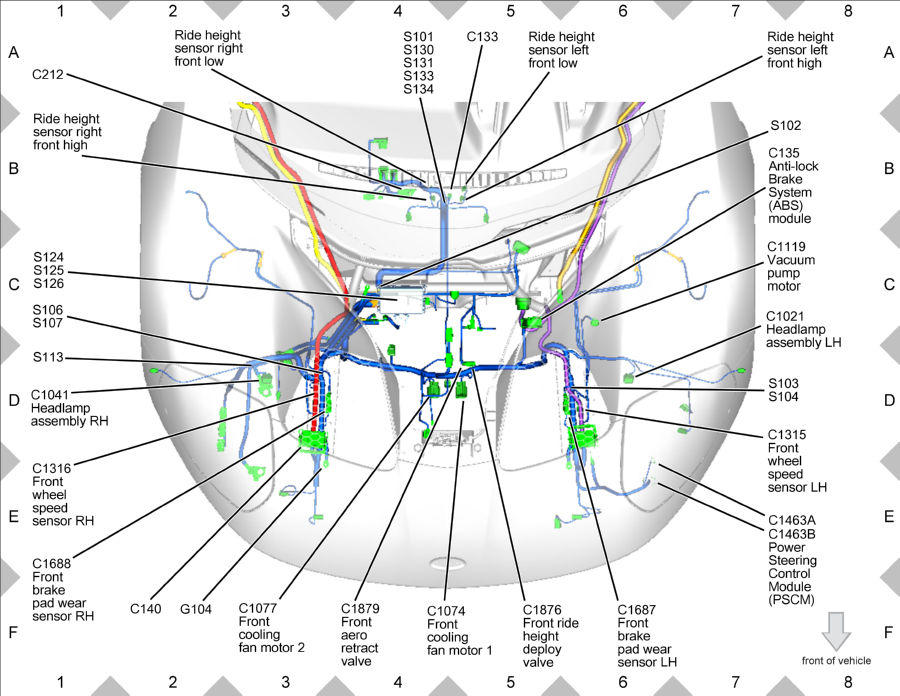

GFDWR31836Courtesy of FORD MOTOR COMPANY

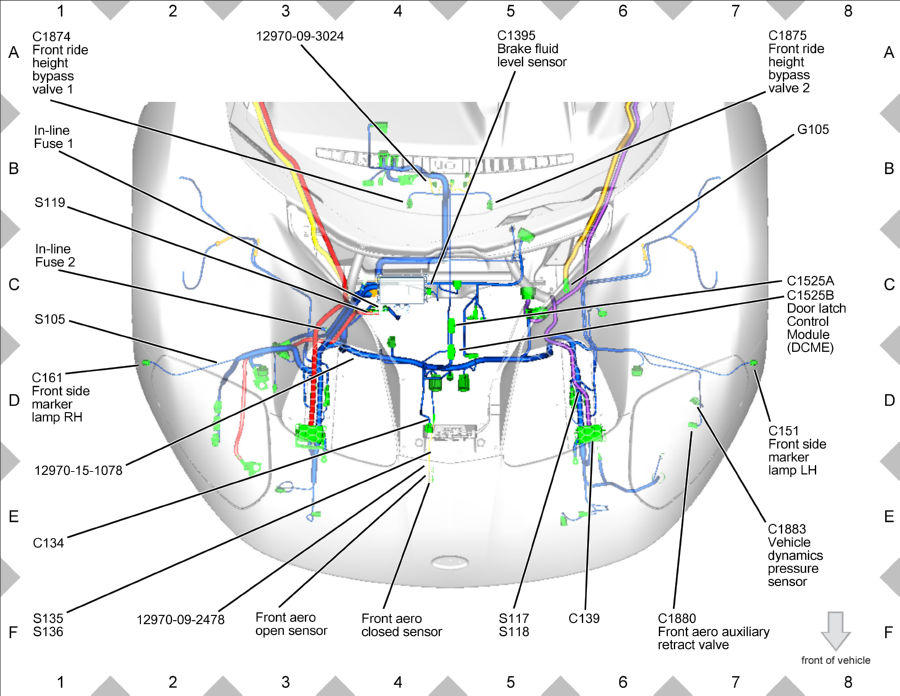

GFDWR31849Courtesy of FORD MOTOR COMPANY

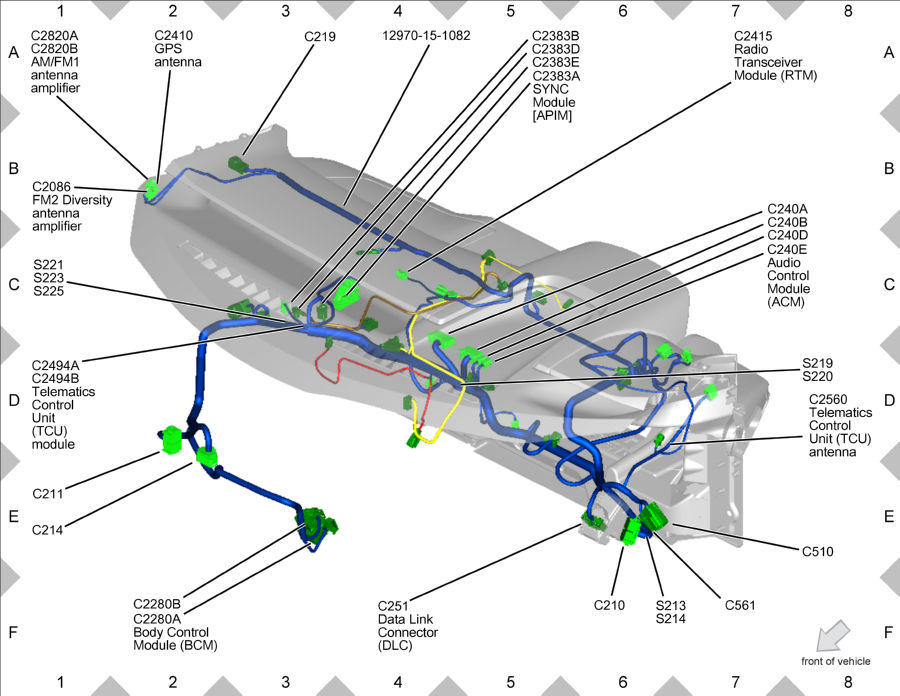

GFDWR31855Courtesy of FORD MOTOR COMPANY

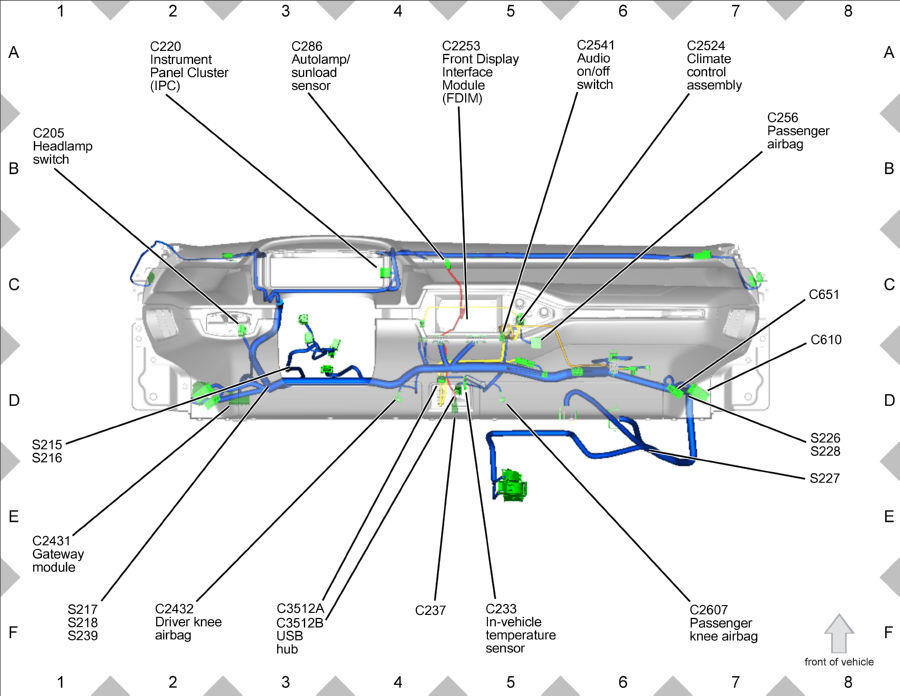

GFDWR31862Courtesy of FORD MOTOR COMPANY

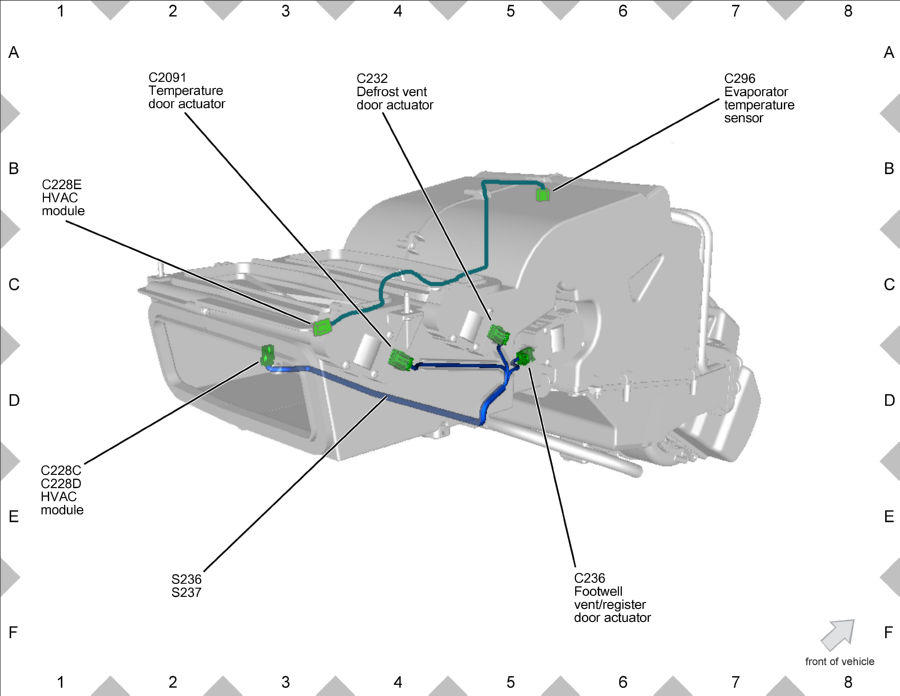

GFDWR31850Courtesy of FORD MOTOR COMPANY

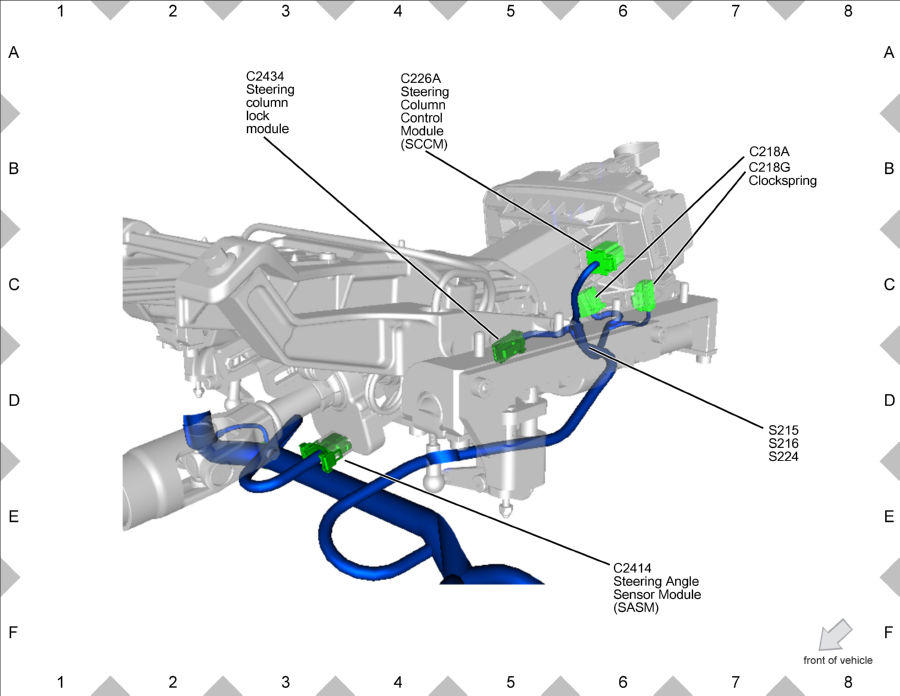

GFDWR31845Courtesy of FORD MOTOR COMPANY

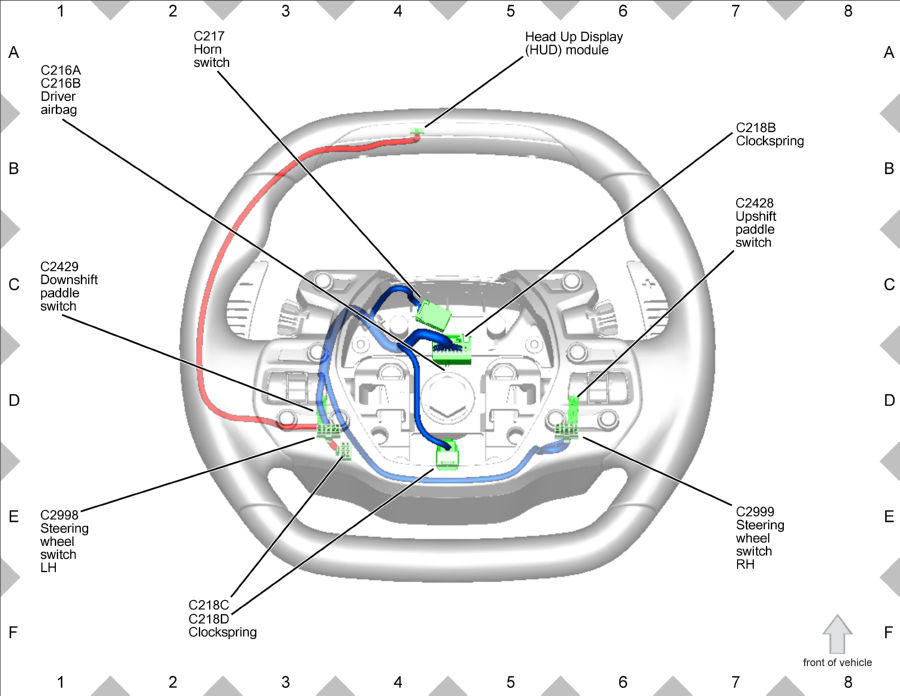

GFDWR31842Courtesy of FORD MOTOR COMPANY

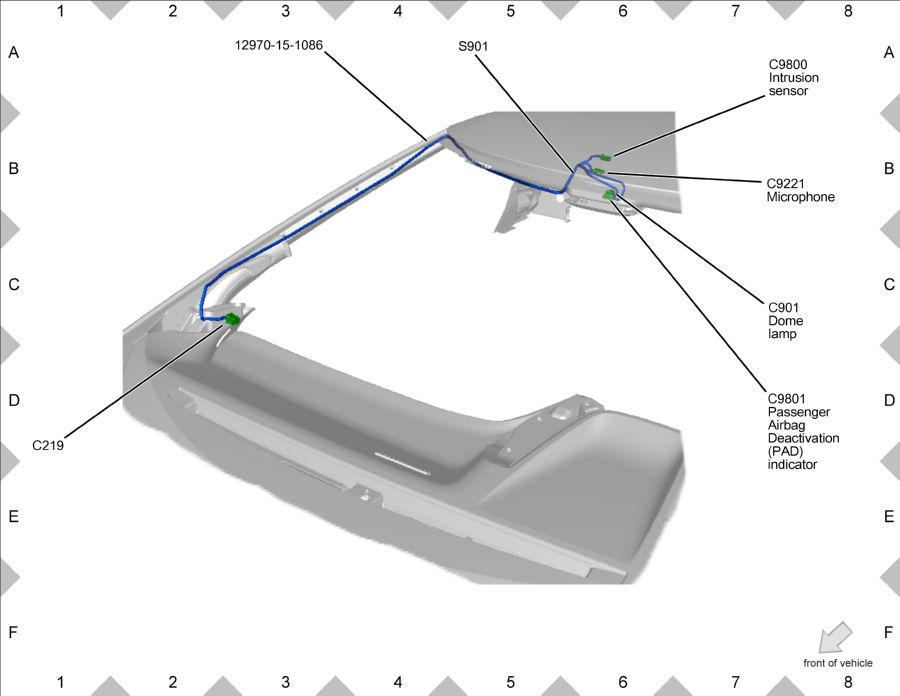

GFDWR31840Courtesy of FORD MOTOR COMPANY

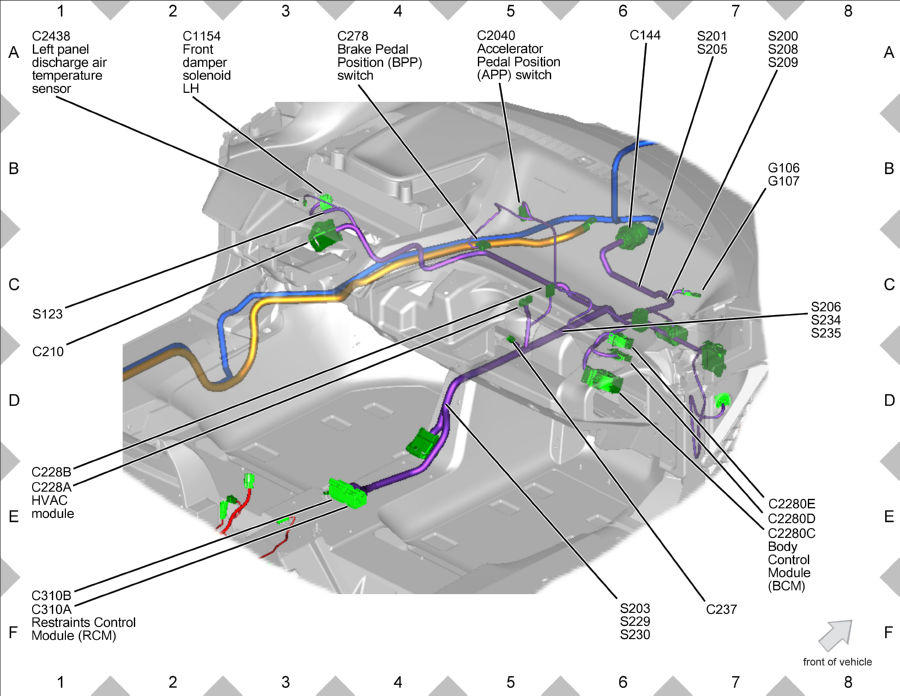

GFDWR31863Courtesy of FORD MOTOR COMPANY

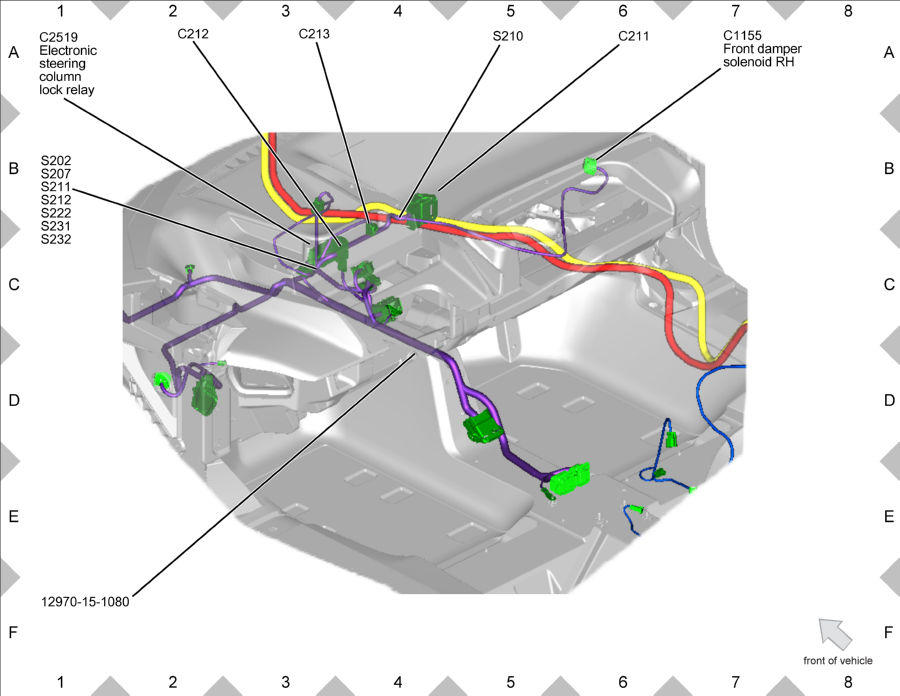

GFDWR31857Courtesy of FORD MOTOR COMPANY

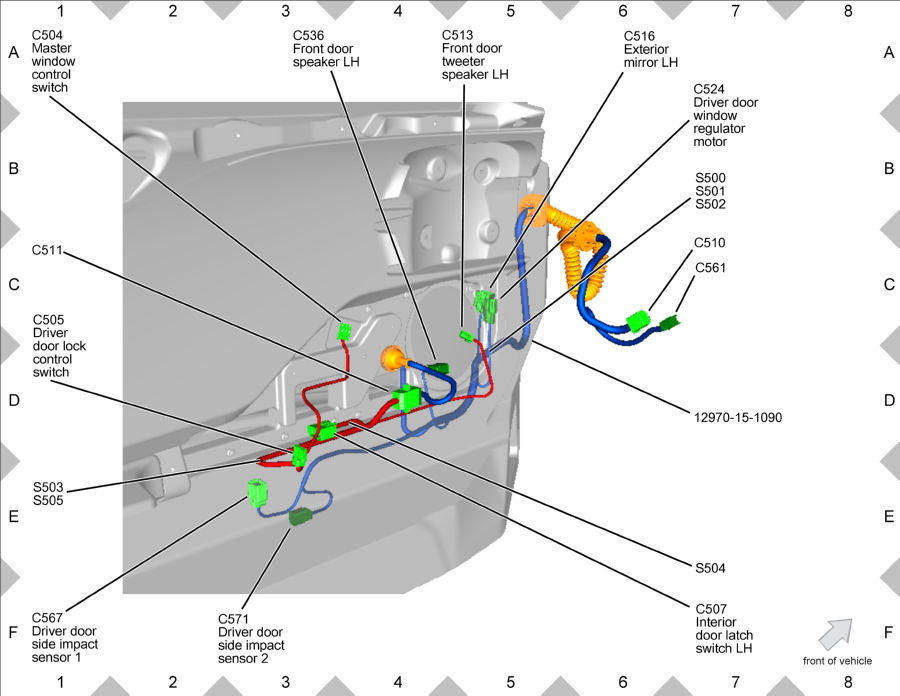

GFDWR31843Courtesy of FORD MOTOR COMPANY

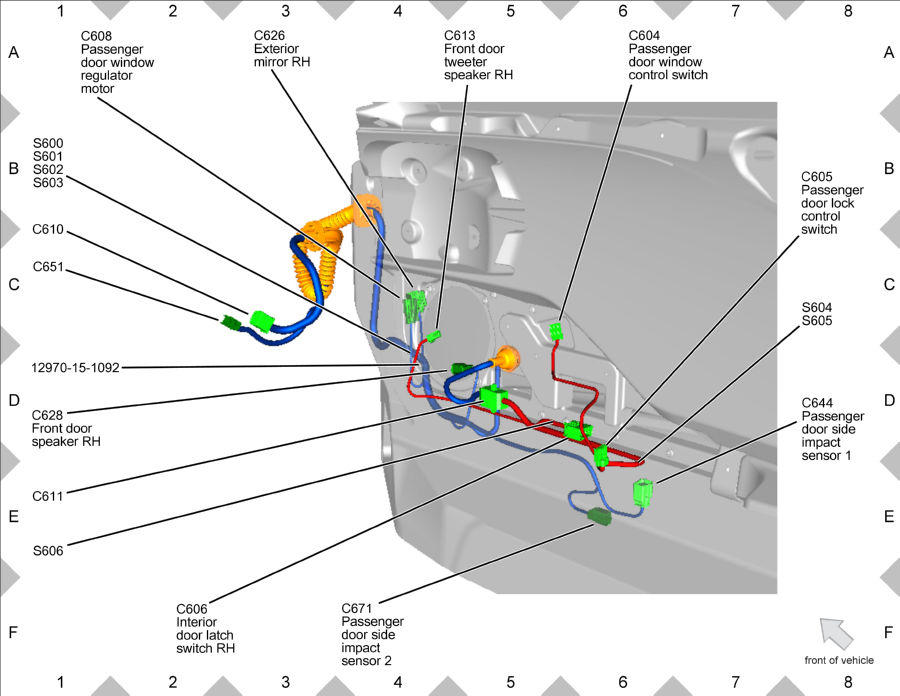

GFDWR31839Courtesy of FORD MOTOR COMPANY

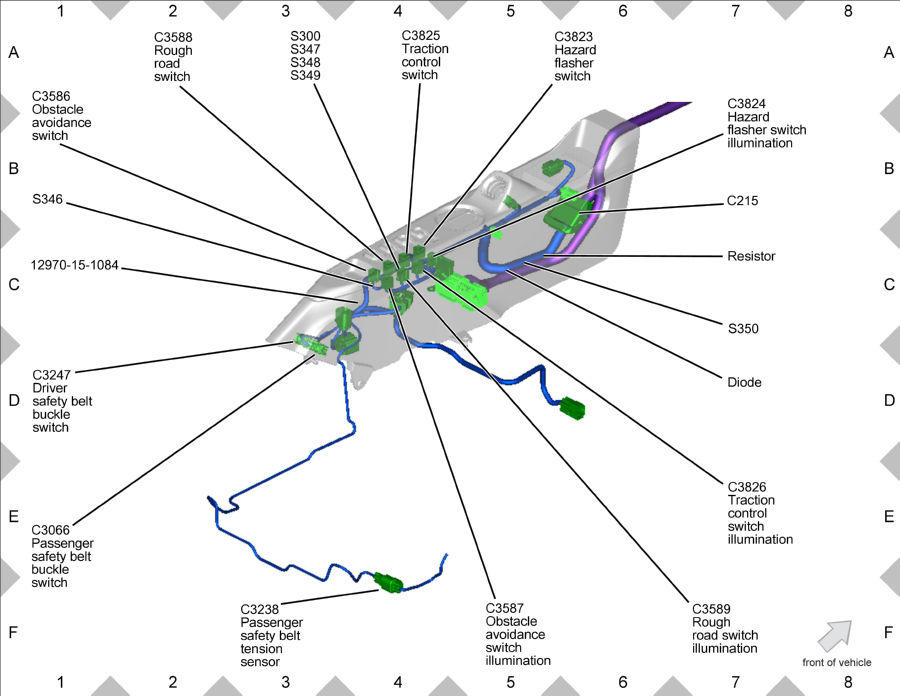

GFDWR31860Courtesy of FORD MOTOR COMPANY

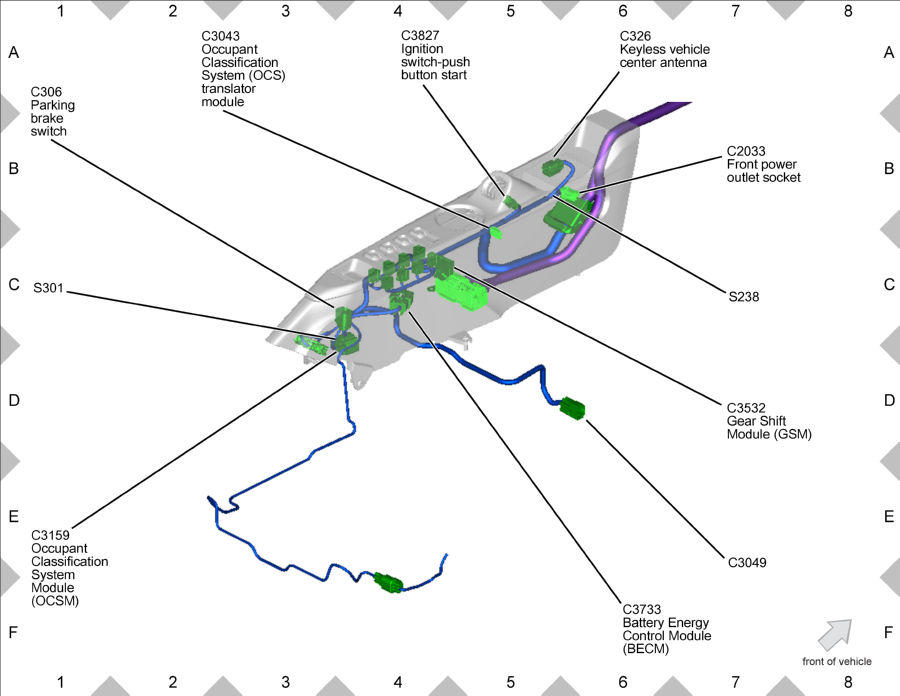

GFDWR31851Courtesy of FORD MOTOR COMPANY

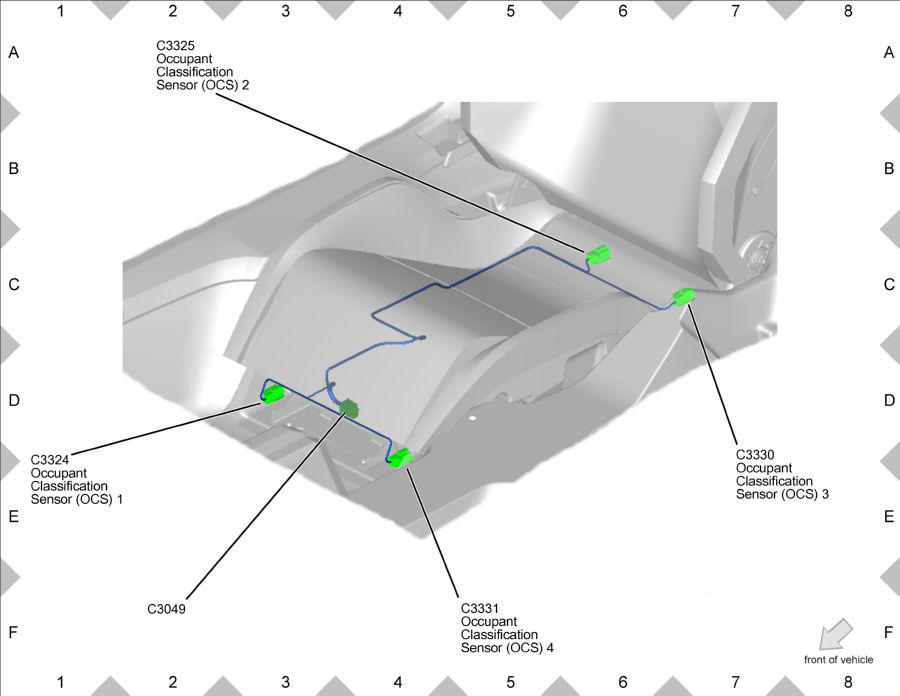

GFDWR31841Courtesy of FORD MOTOR COMPANY

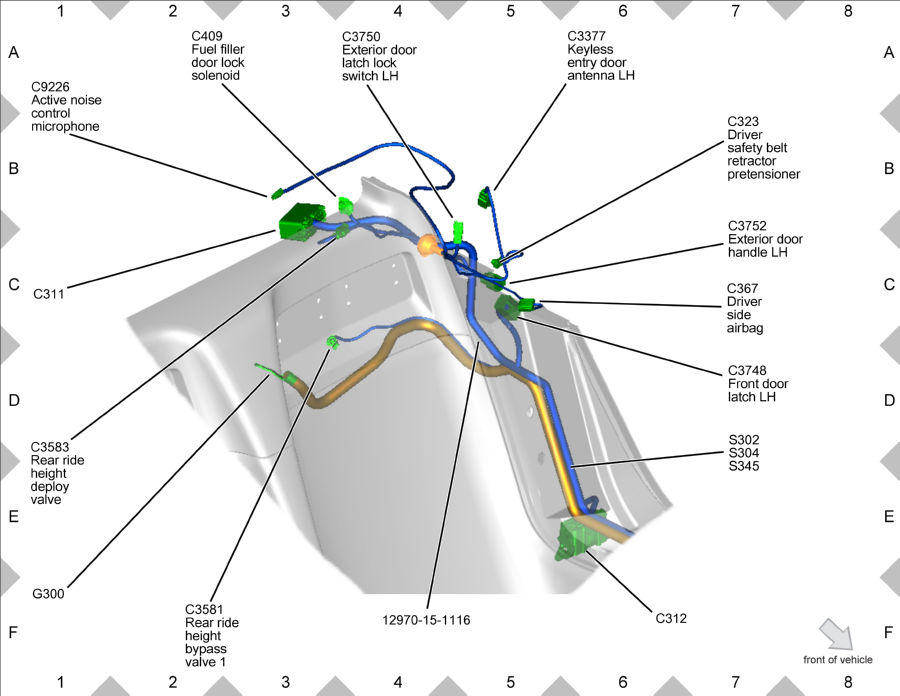

GFDWR31856Courtesy of FORD MOTOR COMPANY

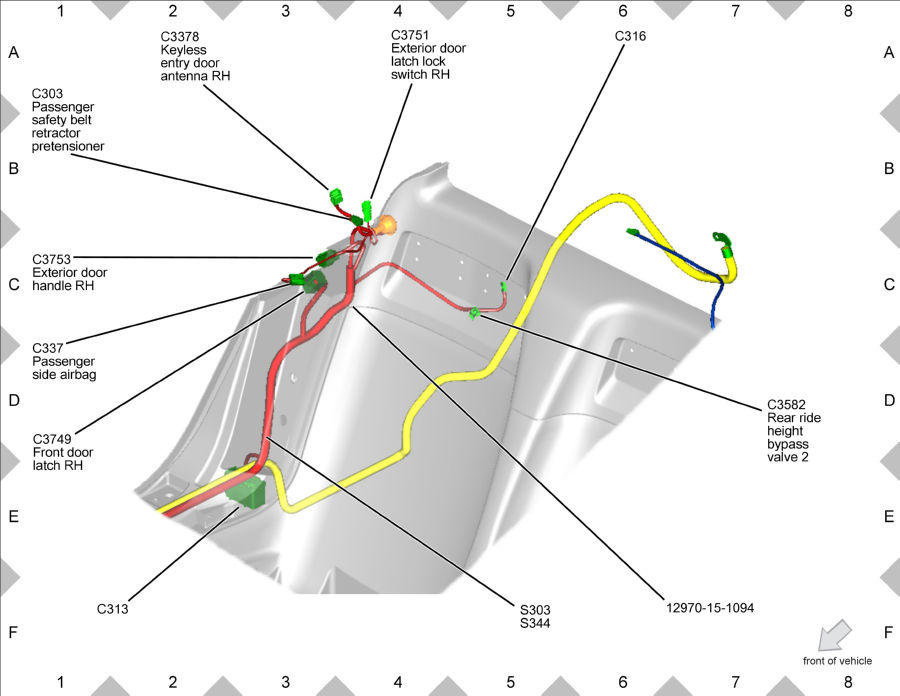

GFDWR31858Courtesy of FORD MOTOR COMPANY

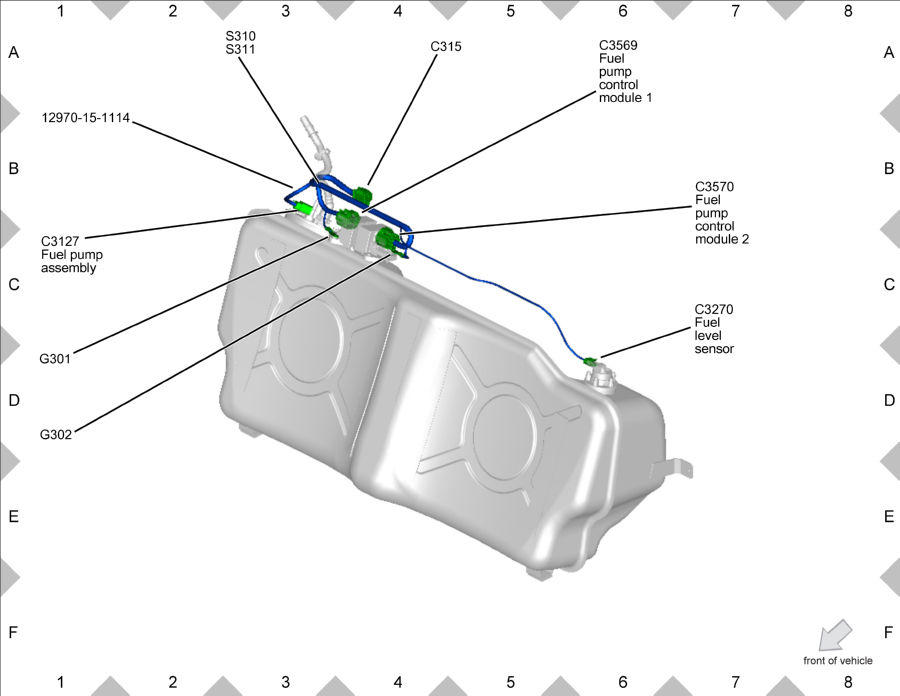

GFDWR31844Courtesy of FORD MOTOR COMPANY

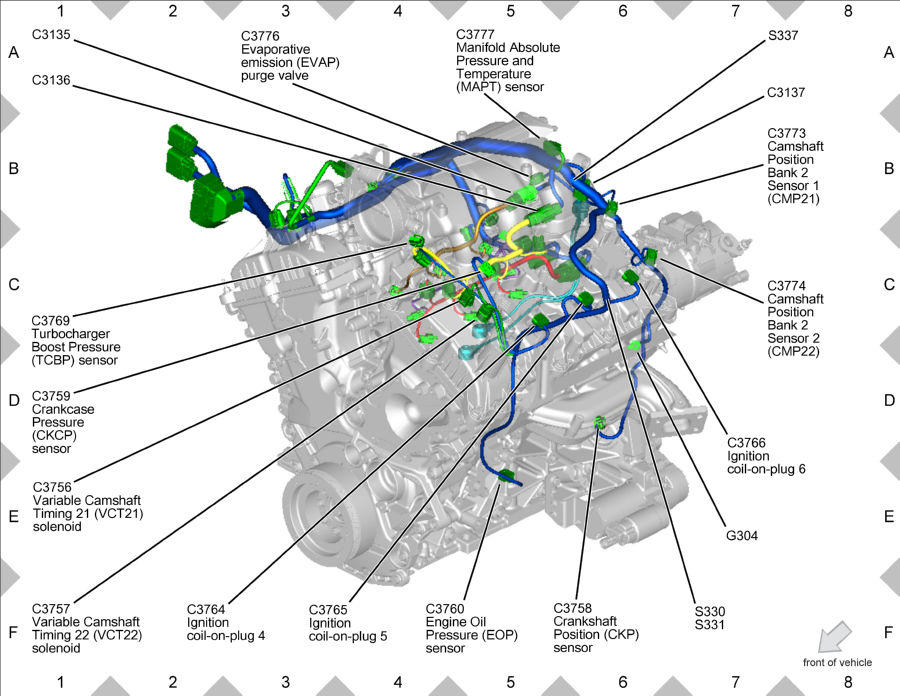

GFDWR31846Courtesy of FORD MOTOR COMPANY

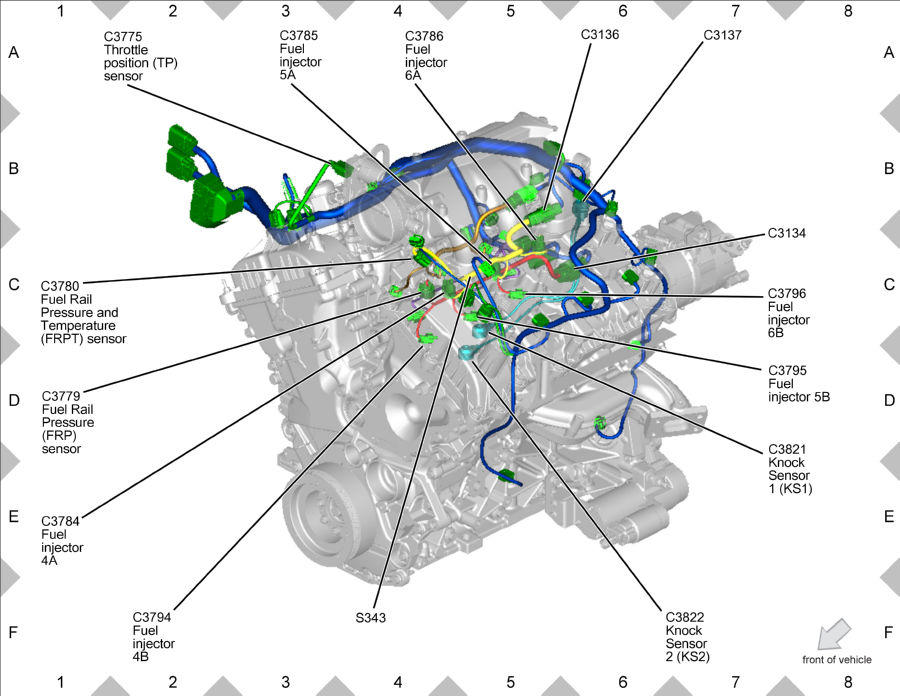

GFDWR31838Courtesy of FORD MOTOR COMPANY

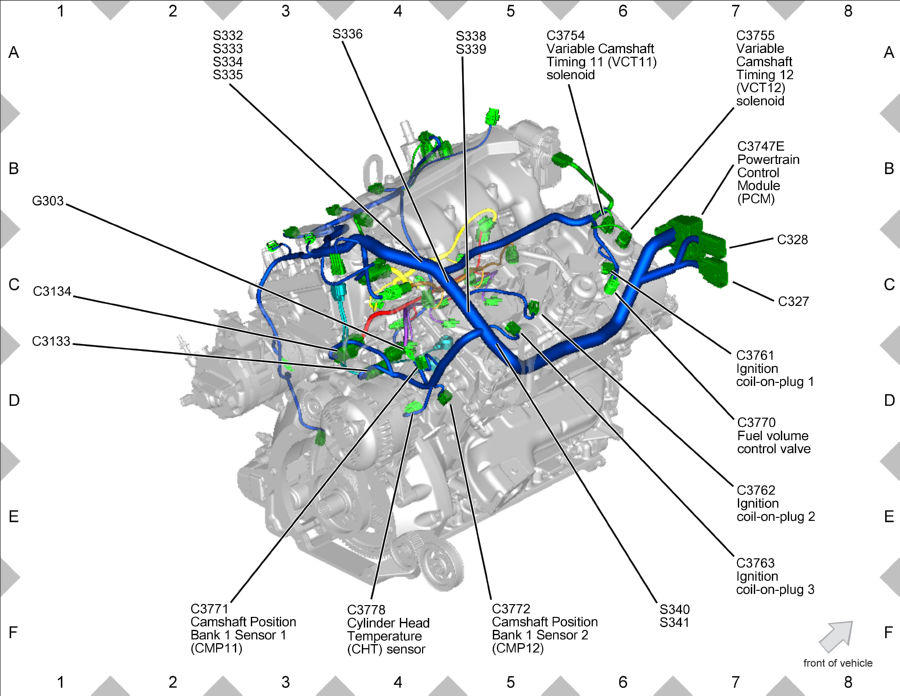

GFDWR31853Courtesy of FORD MOTOR COMPANY

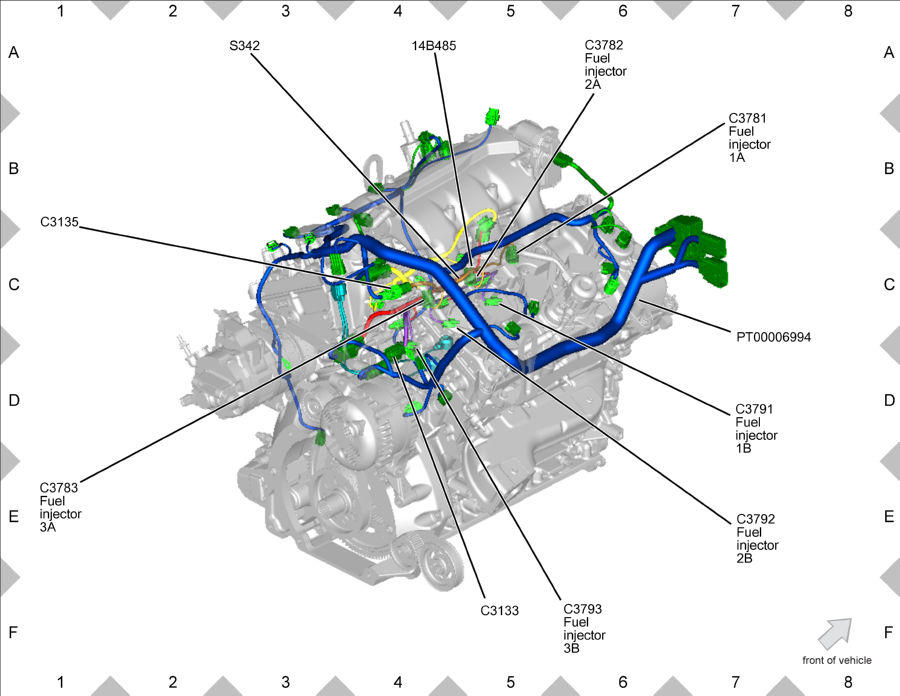

GFDWR31837Courtesy of FORD MOTOR COMPANY

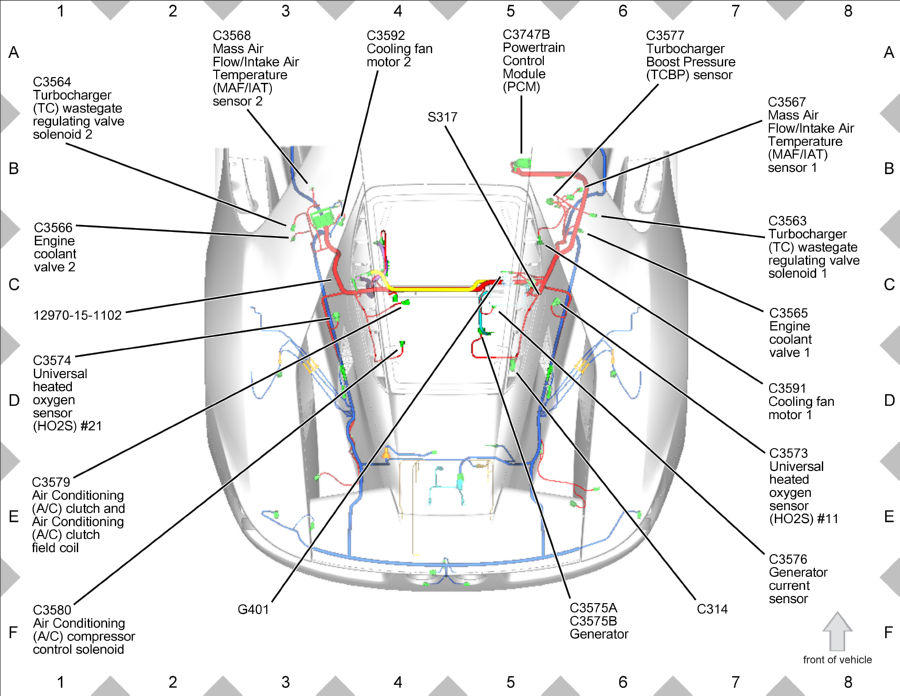

GFDWR31861Courtesy of FORD MOTOR COMPANY

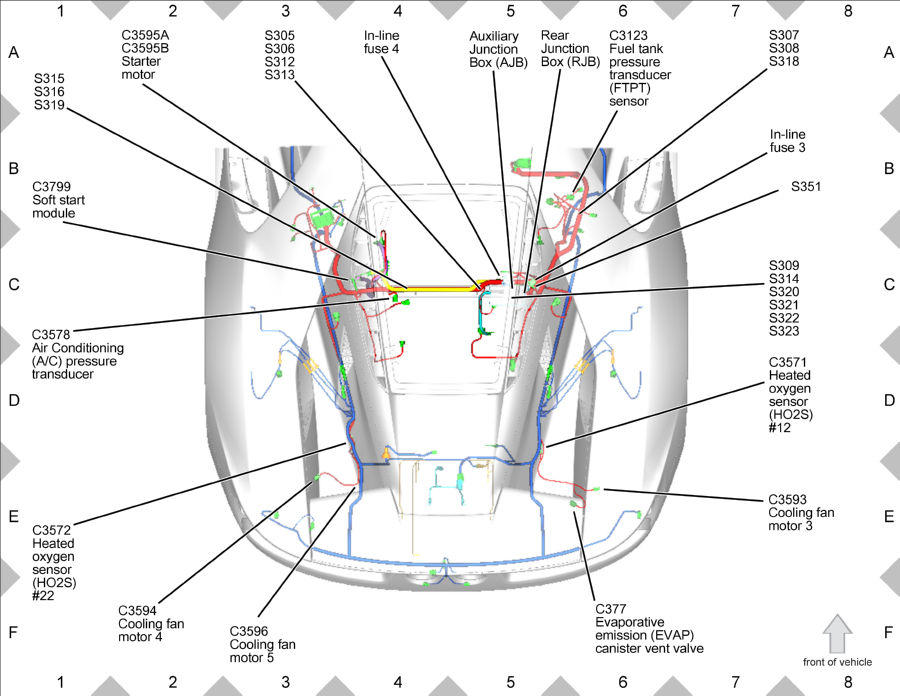

GFDWR31847Courtesy of FORD MOTOR COMPANY

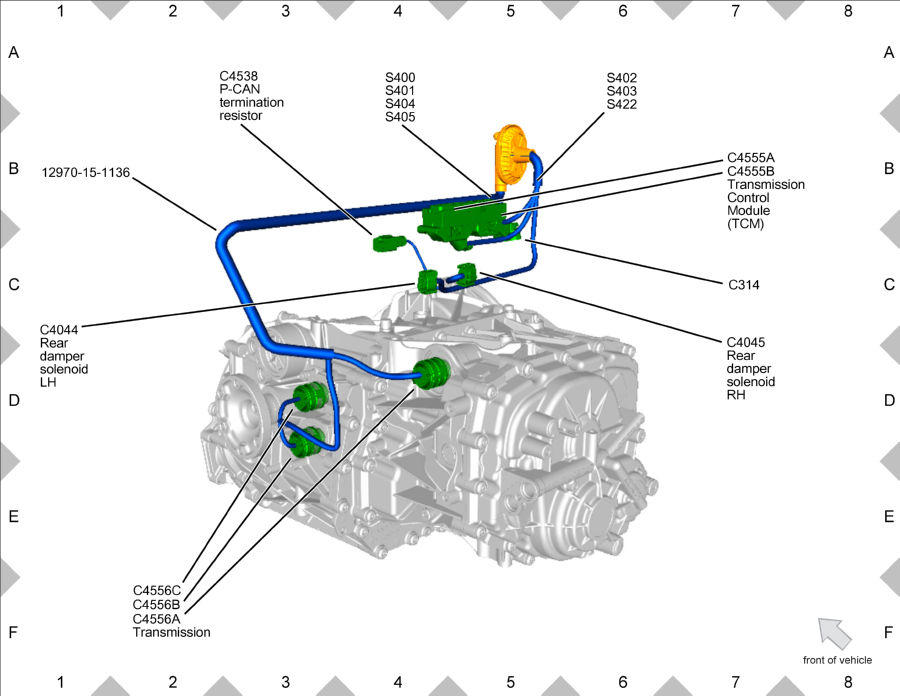

GFDWR31854Courtesy of FORD MOTOR COMPANY

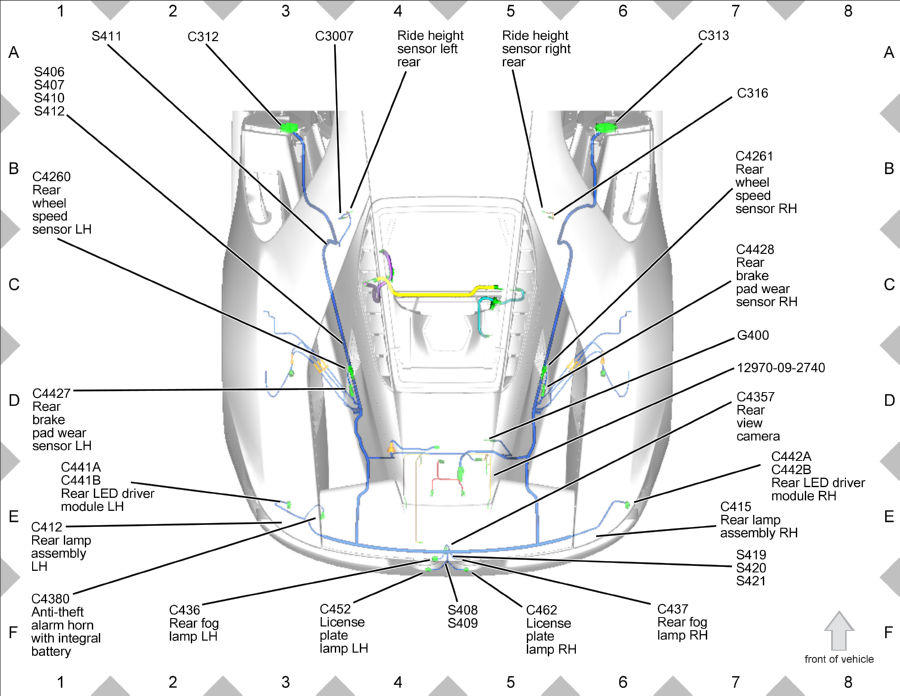

GFDWR31859Courtesy of FORD MOTOR COMPANY

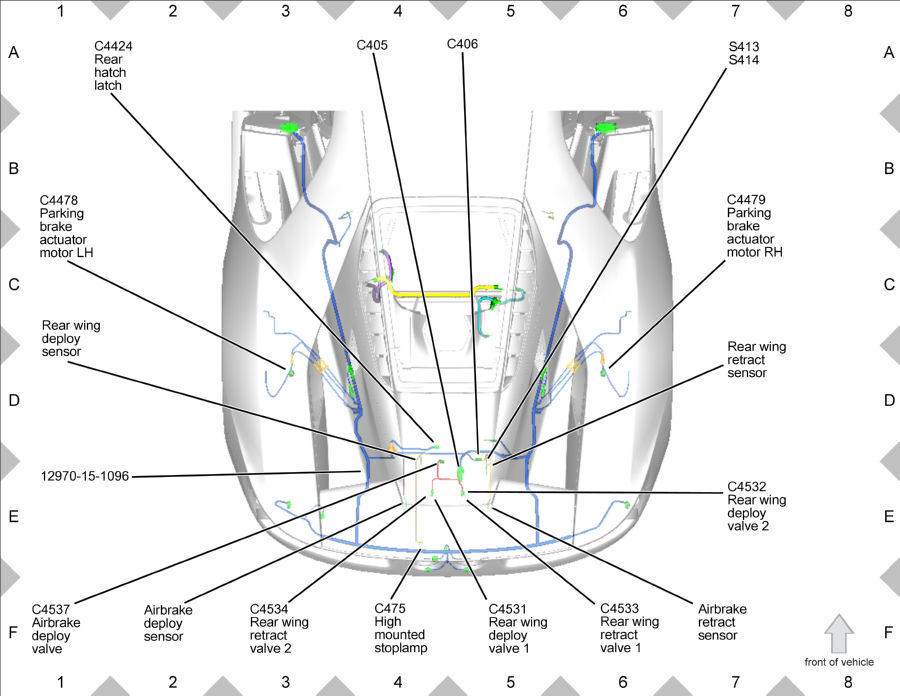

GFDWR31848Courtesy of FORD MOTOR COMPANY
