OEM Electrical Wiring Diagram Introduction: Introduction

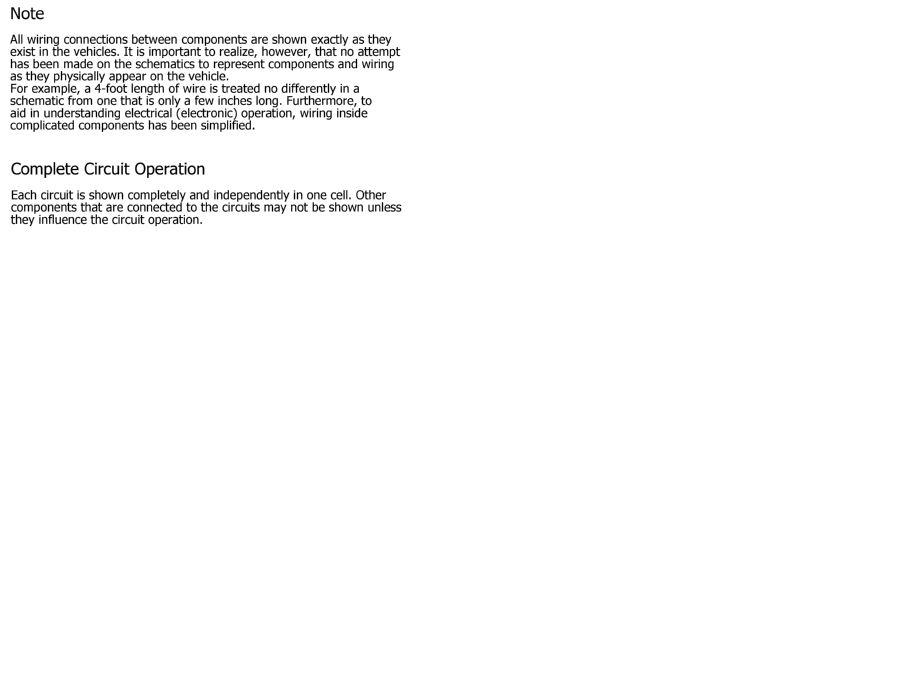

GFDWR31878Courtesy of FORD MOTOR COMPANY

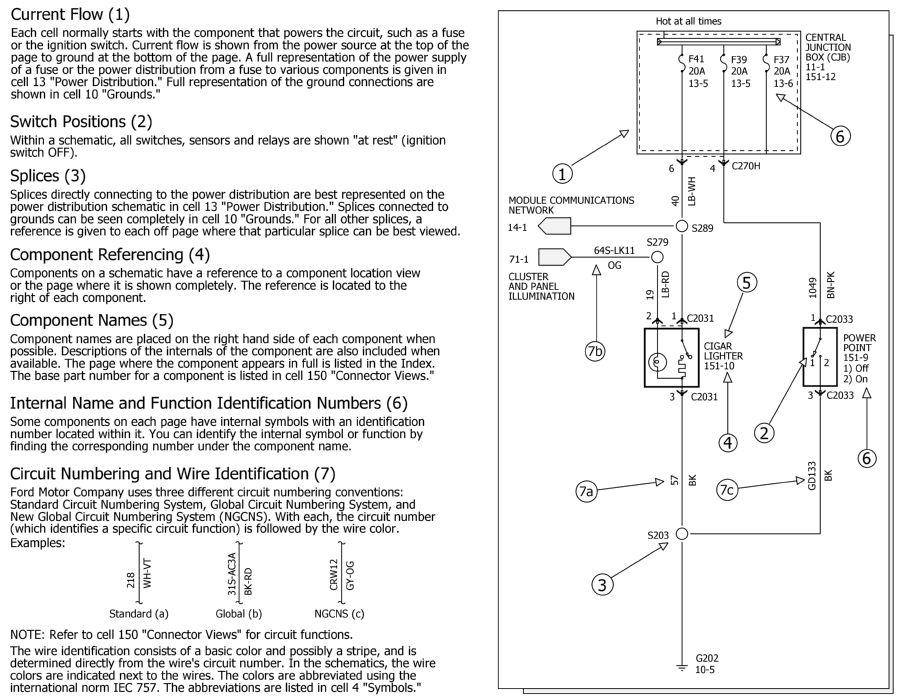

GFDWR31876Courtesy of FORD MOTOR COMPANY

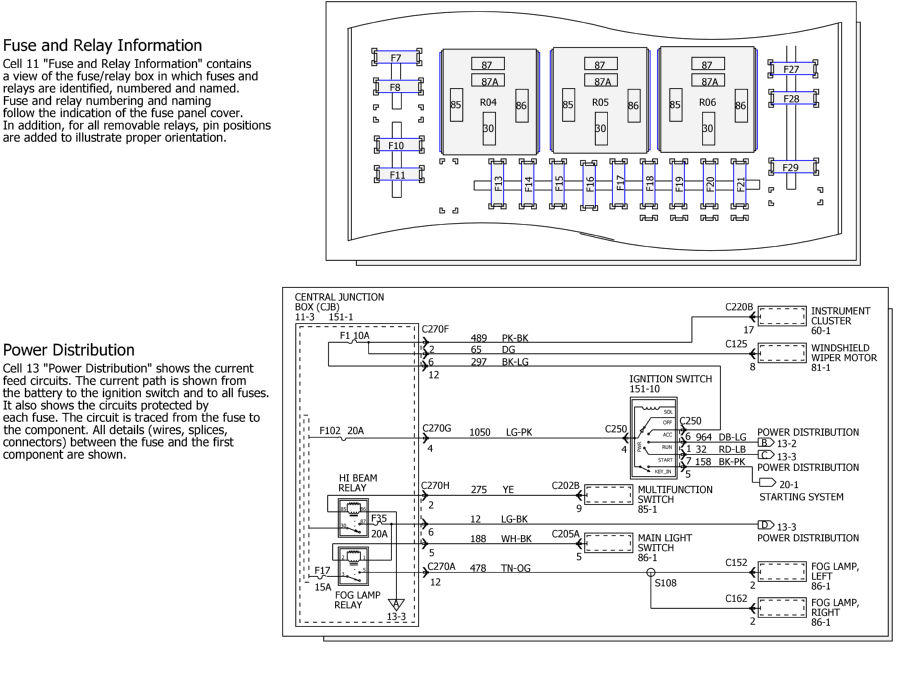

GFDWR31877Courtesy of FORD MOTOR COMPANY

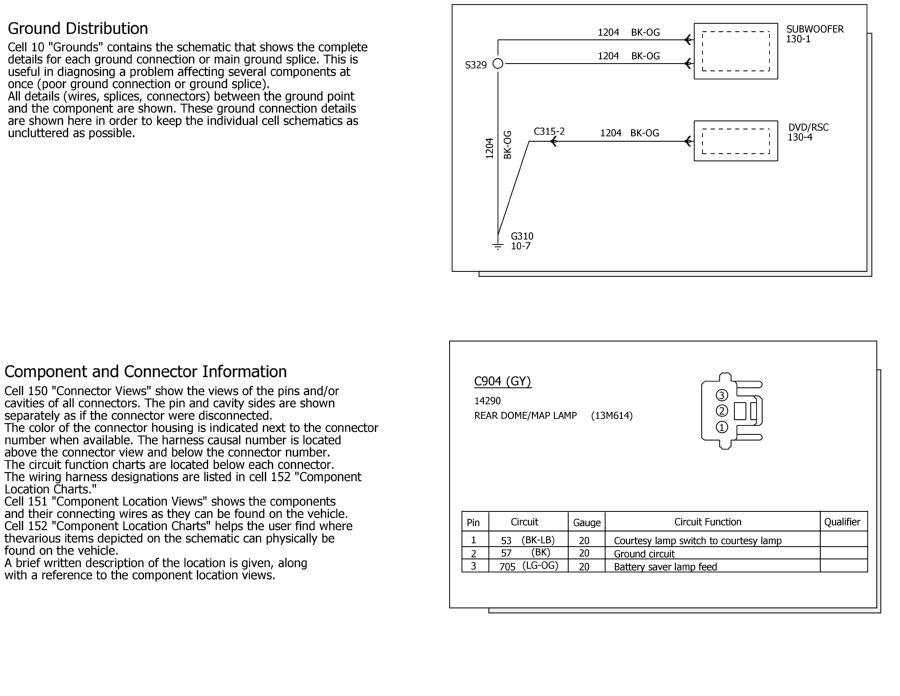

GFDWR31879Courtesy of FORD MOTOR COMPANY

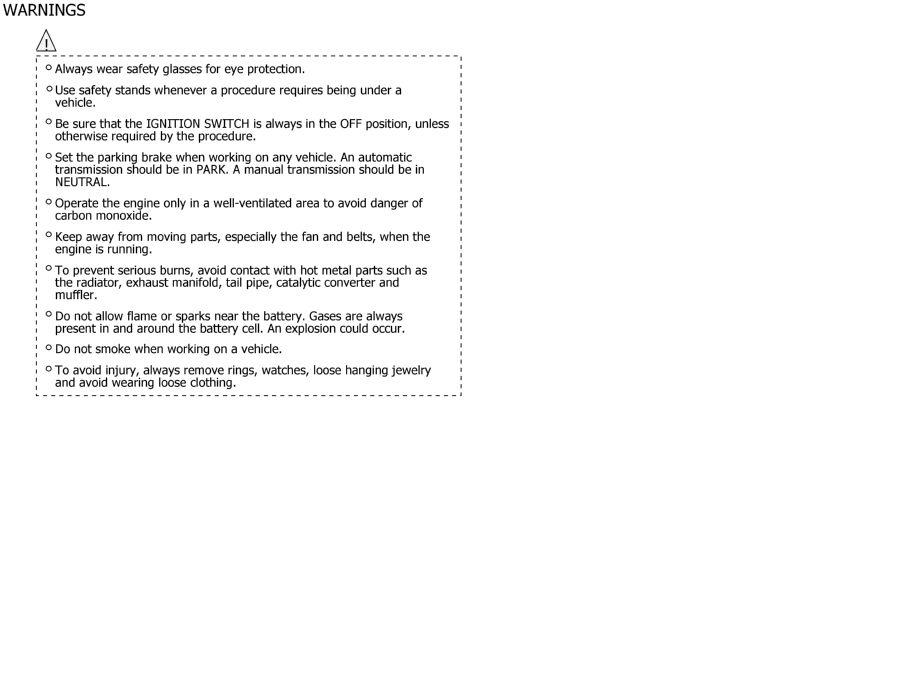

GFDWR31880Courtesy of FORD MOTOR COMPANY
