Component Testing

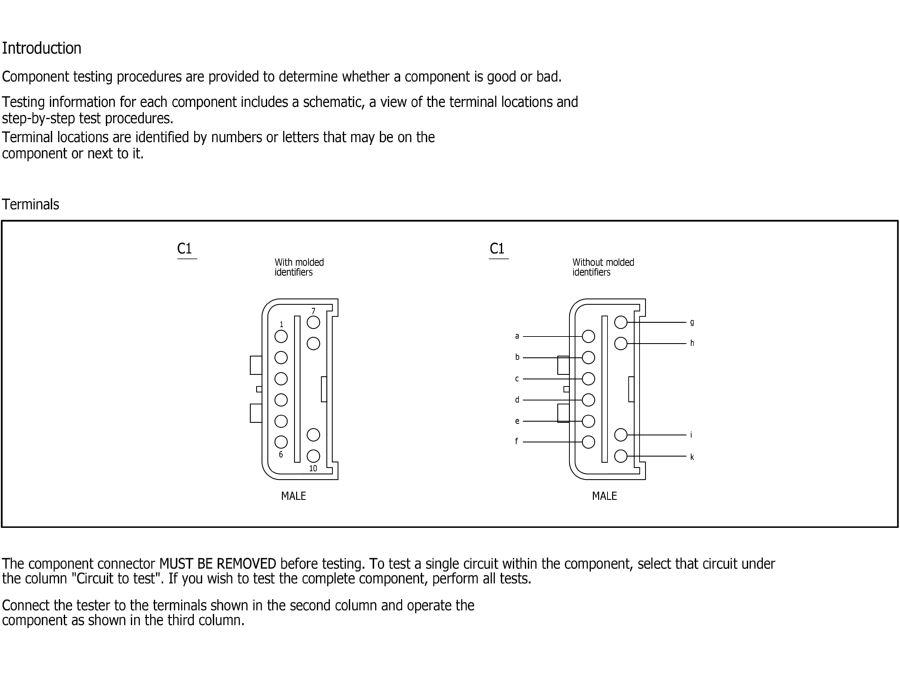

Fig 1: Component Testing Introduction

Courtesy of FORD MOTOR COMPANY

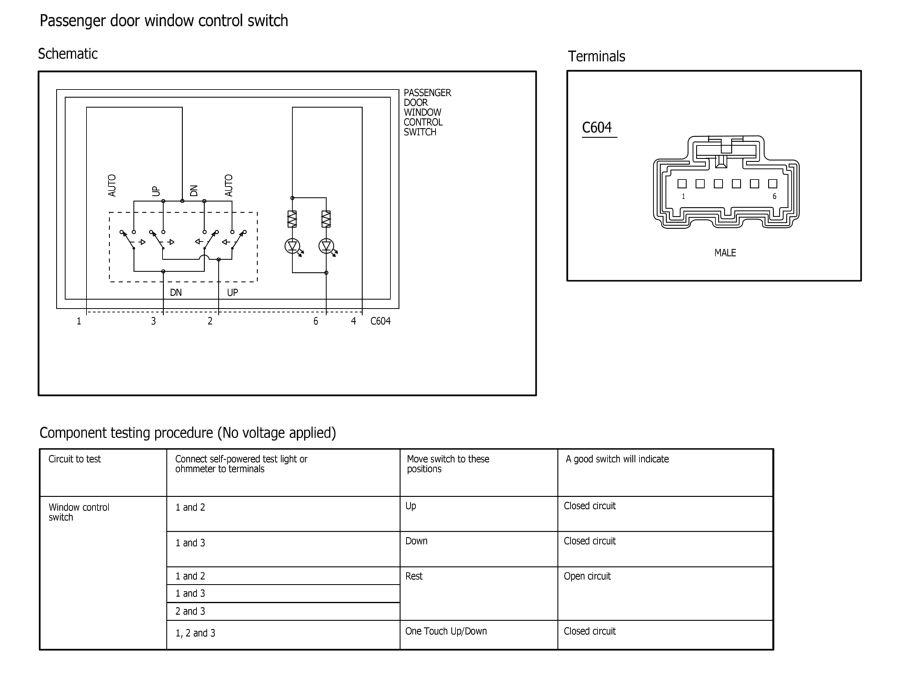

Fig 2: Passenger Door Window Control Switch Component Testing

Courtesy of FORD MOTOR COMPANY

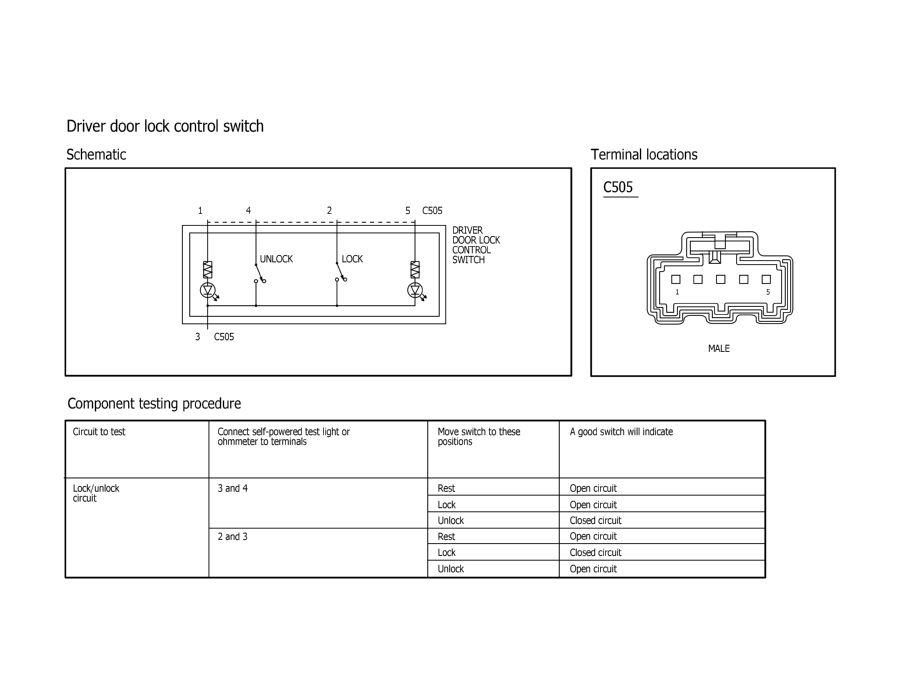

Fig 3: Driver Door Lock Control Switch Component Testing

Courtesy of FORD MOTOR COMPANY

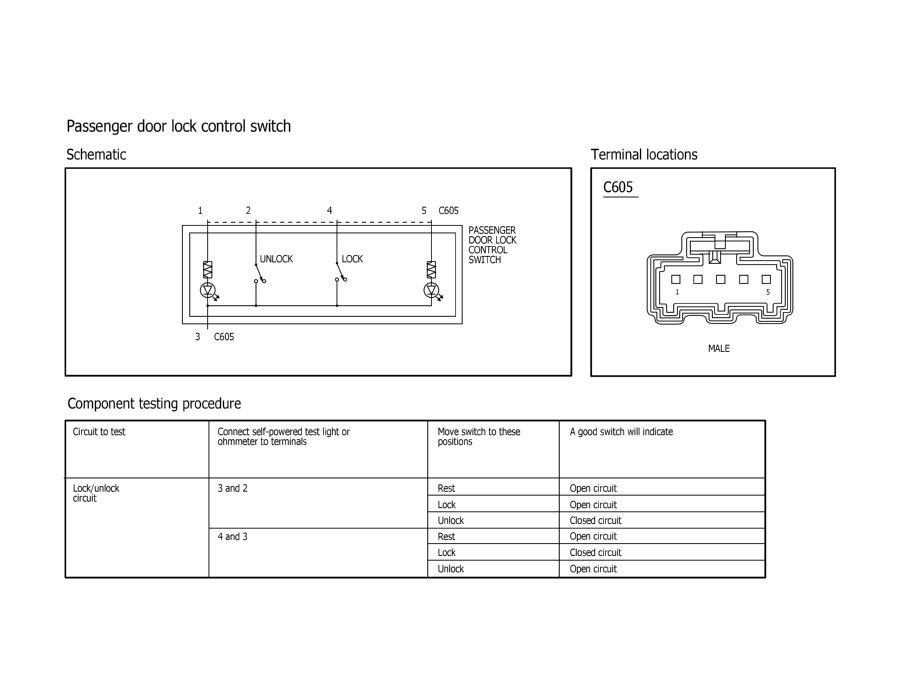

Fig 4: Passenger Door Lock Control Switch Component Testing

Courtesy of FORD MOTOR COMPANY

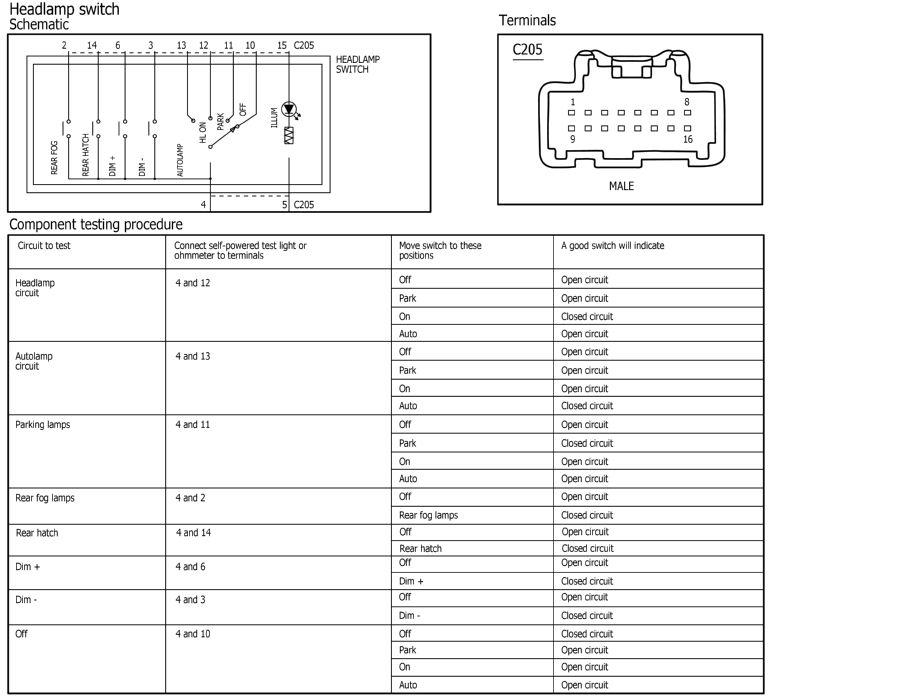

Fig 5: Headlamp Switch Component Testing

Courtesy of FORD MOTOR COMPANY

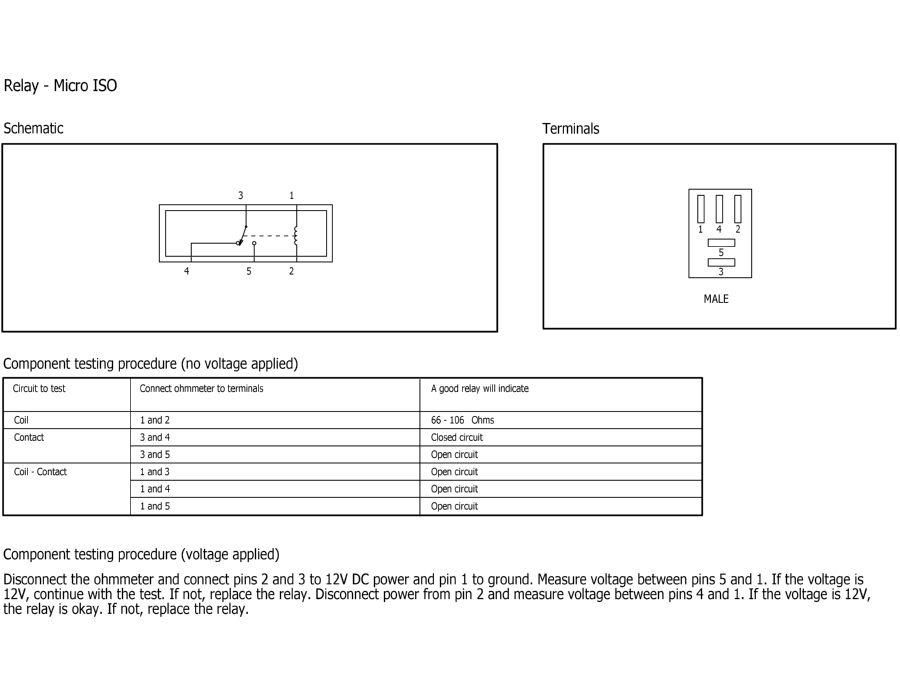

Fig 6: Relay - Micro ISO Component Testing

Courtesy of FORD MOTOR COMPANY

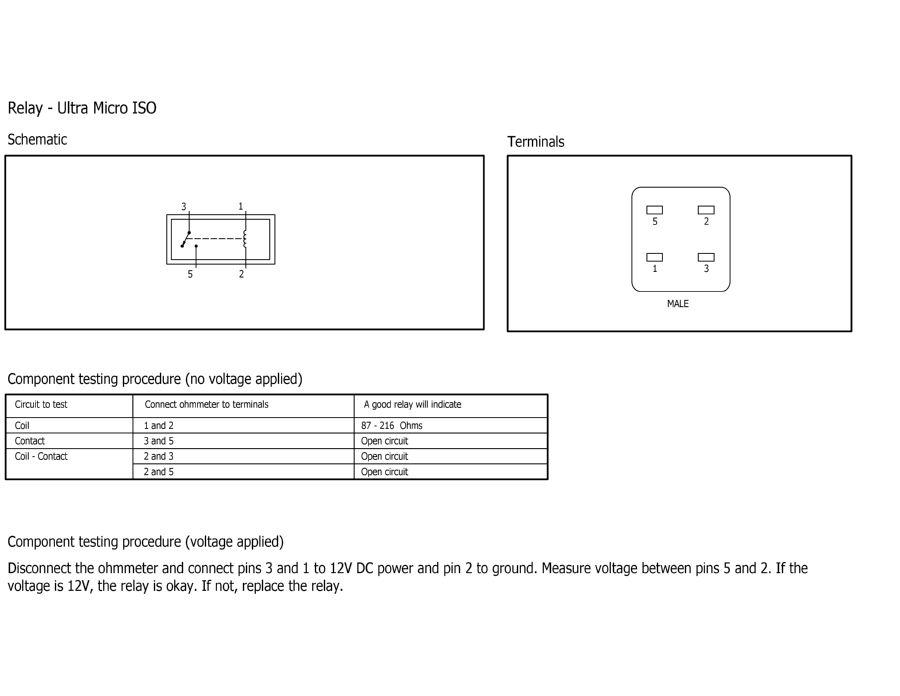

Fig 7: Relay - Ultra Micro ISO Component Testing

Courtesy of FORD MOTOR COMPANY

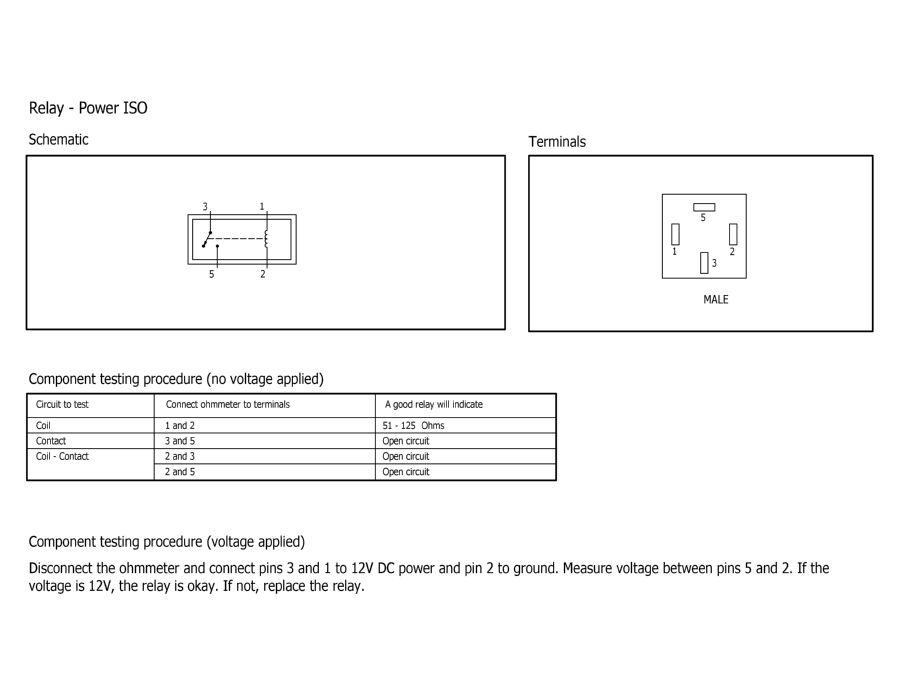

Fig 8: Relay - Power ISO Component Testing

Courtesy of FORD MOTOR COMPANY
