Gear Shift Module (GSM): Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the floor console. Refer to: Floor Console .
2. Remove the screws and the cupholder.

   Courtesy of FORD MOTOR COMPANY

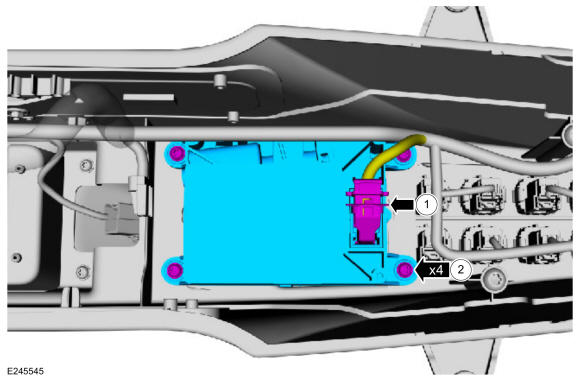

3. Remove the GSM
   1. Disconnect the electrical connector.
   2. Remove the bolts and the GSM.

      Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
