Hydraulic Control Unit (HCU): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The ABS module and HCU are released individually. A new ABS module does not come equipped with an HCU.

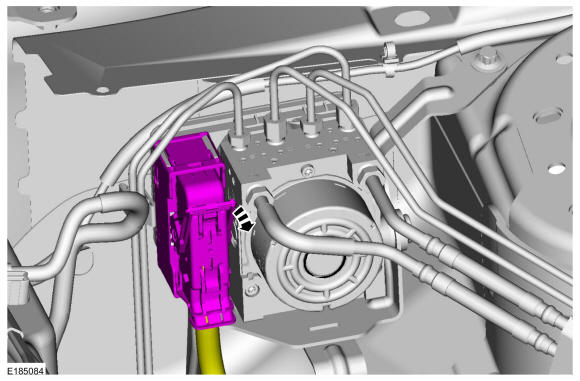

Disconnect the ABS module electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed.

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

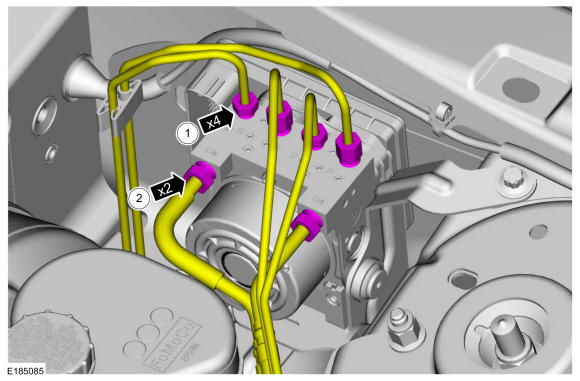

Disconnect the 6 brake tube fittings.

Torque:

1.: 177 lb.in (20 Nm)

2.: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

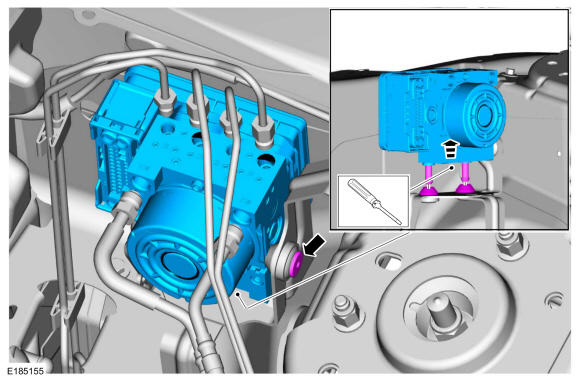

Remove the bolt and separate the HCU from the bracket.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the 3 screws and ABS. Discard the retainers.
Torque

: 44 lb.in (5 Nm)

GFD599622

Courtesy of FORD MOTOR COMPANY
