Overhead Console: Removal

Coupe

  1. Lower the headliner. Refer to: HEADLINER - LOWERING .

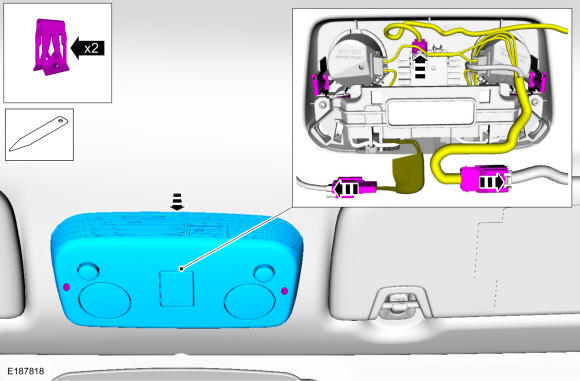

  2. Release the clips, disconnect the electrical connectors and remove the overhead console. Use the General Equipment: Interior Trim Remover
    GFD605465Courtesy of FORD MOTOR COMPANY

    Convertible

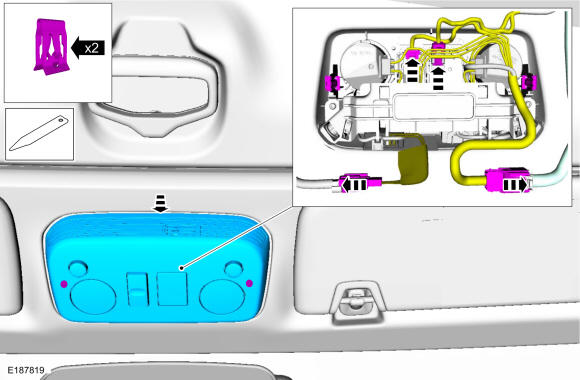

  3. Release the clips, disconnect the electrical connectors and remove the overhead console. Use the General Equipment: Interior Trim Remover
GFD605466Courtesy of FORD MOTOR COMPANY
