OEM Electrical Wiring Diagram Introduction: Introduction

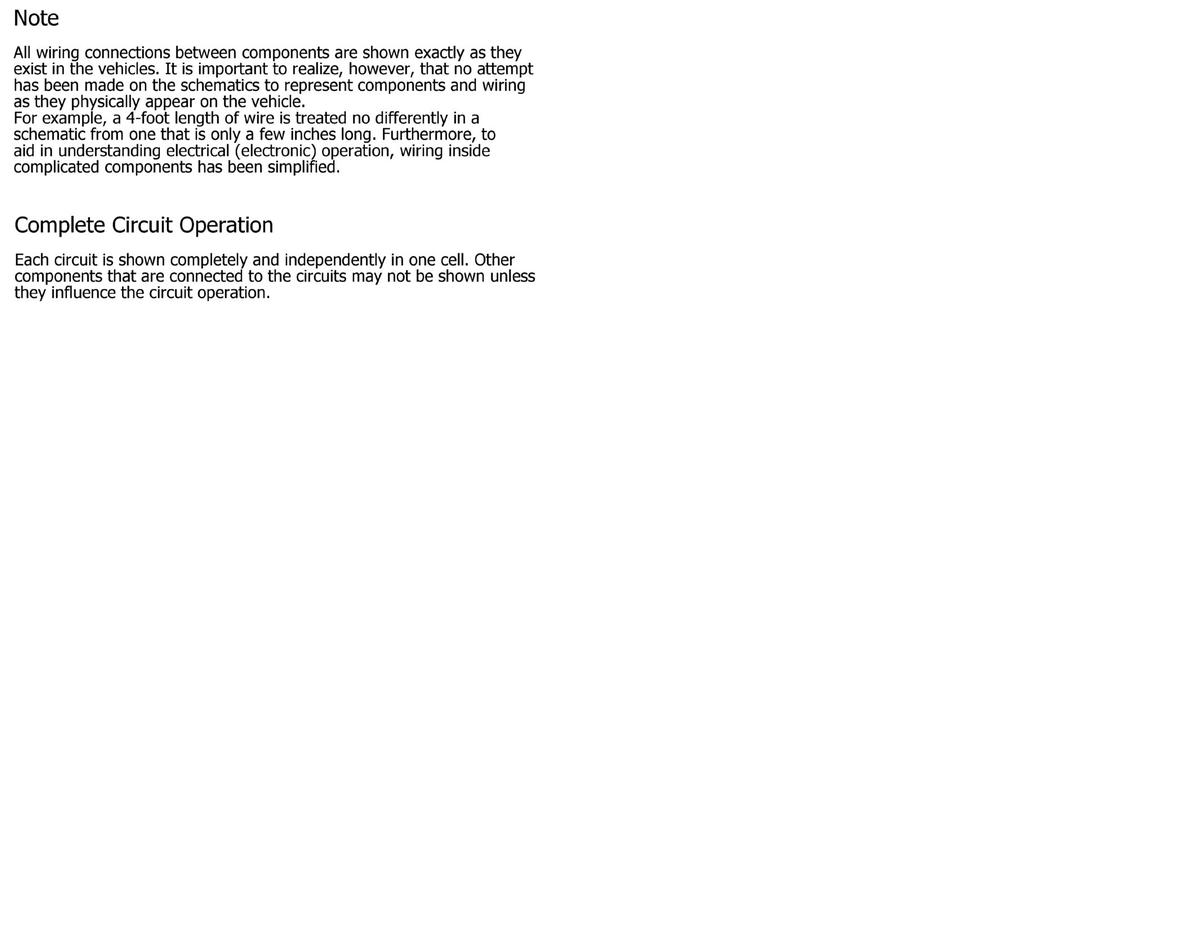

GFDWR141545Courtesy of FORD MOTOR COMPANY

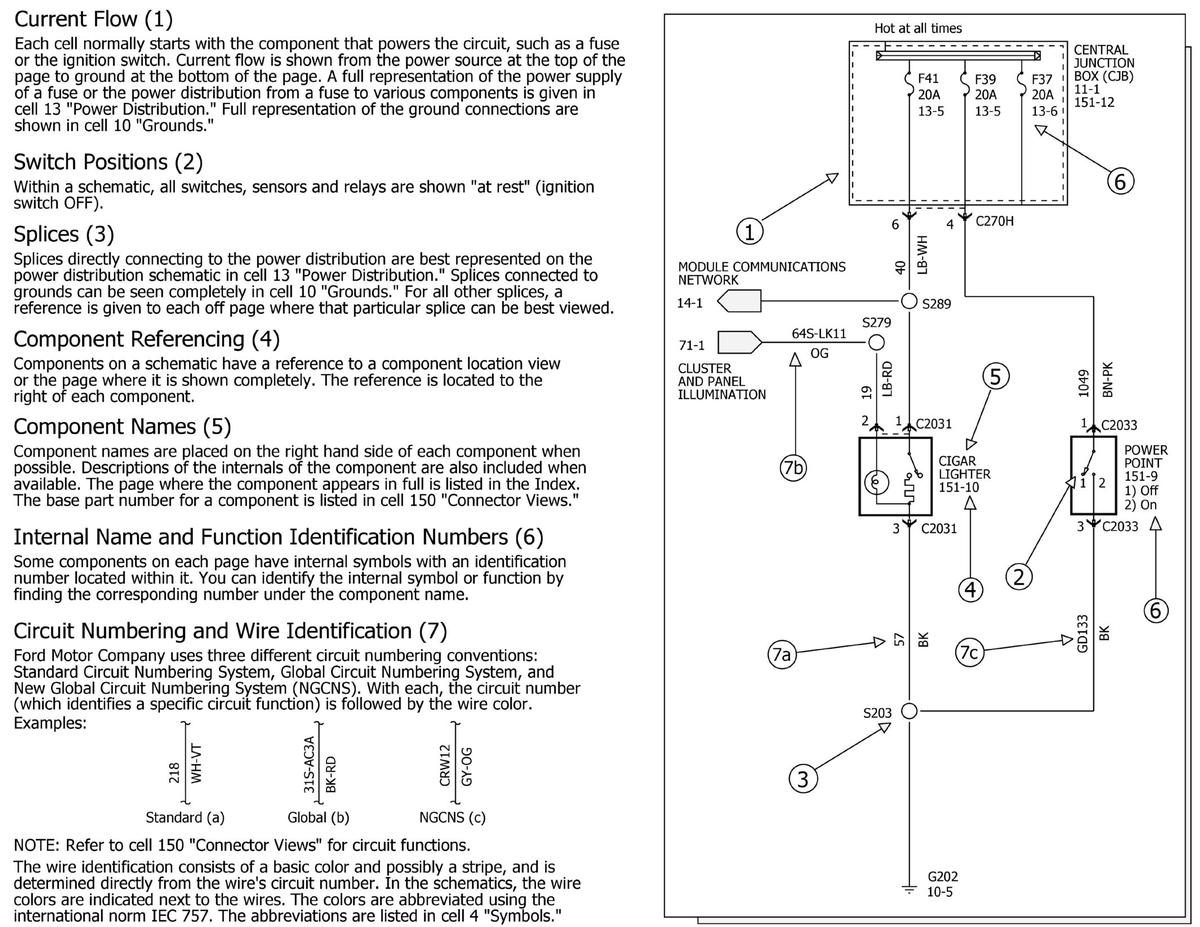

GFDWR141546Courtesy of FORD MOTOR COMPANY

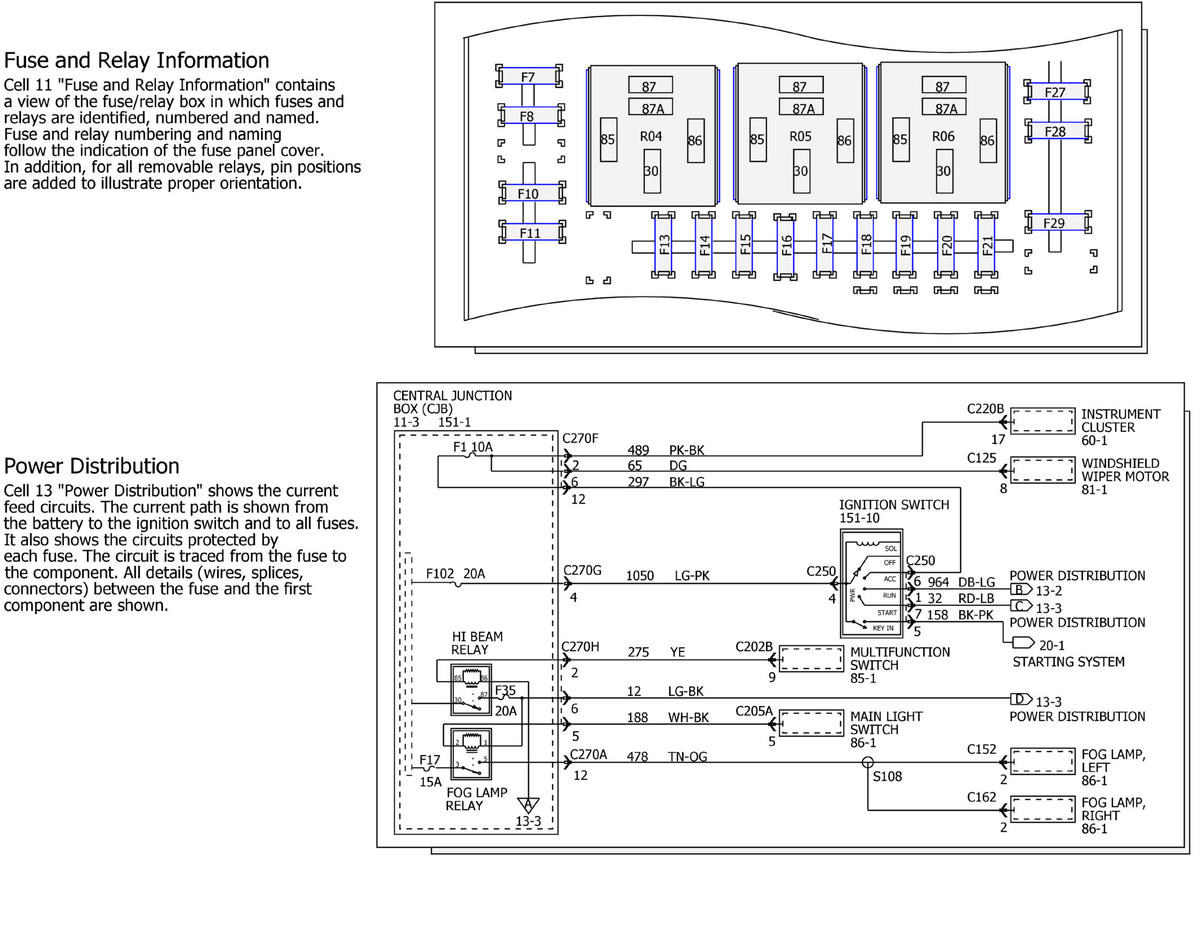

GFDWR141547Courtesy of FORD MOTOR COMPANY

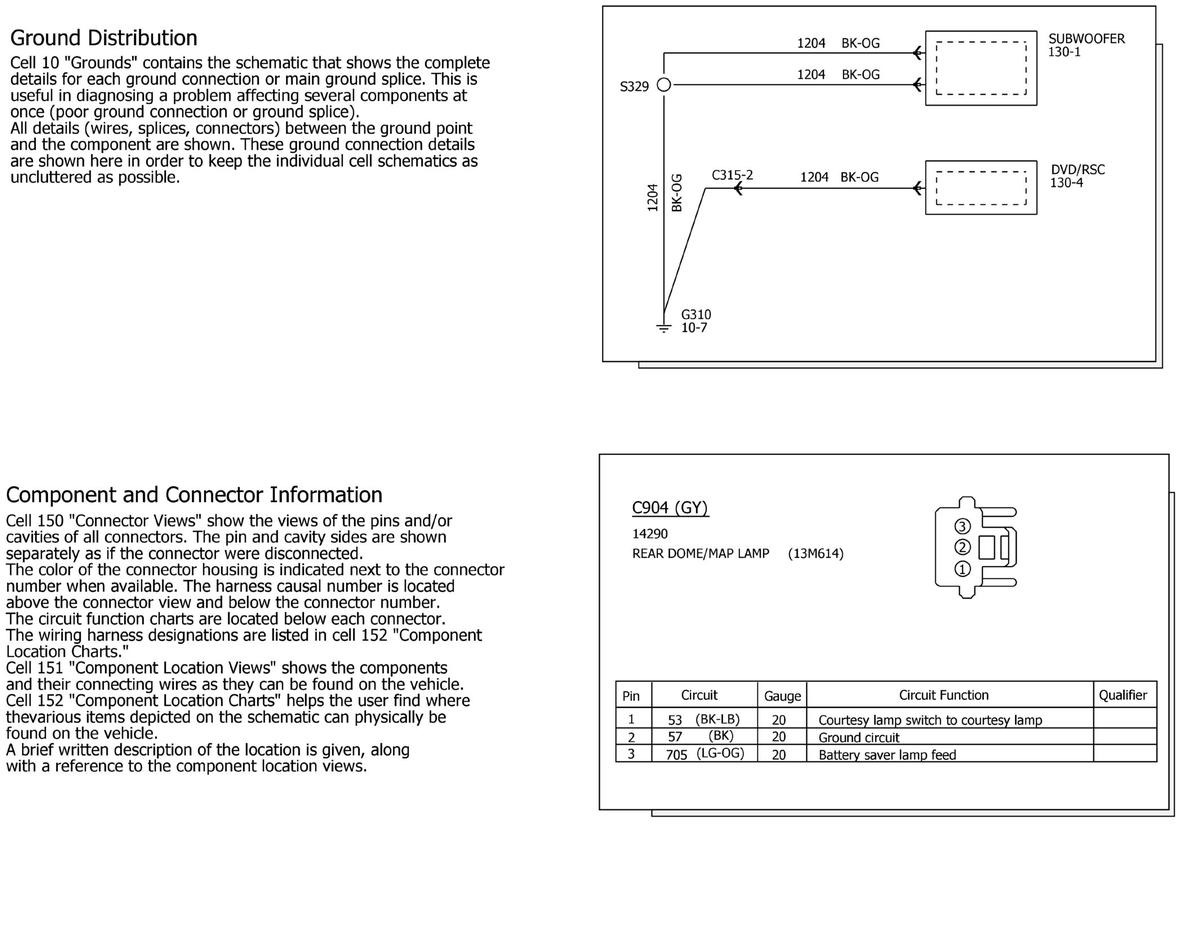

GFDWR141548Courtesy of FORD MOTOR COMPANY

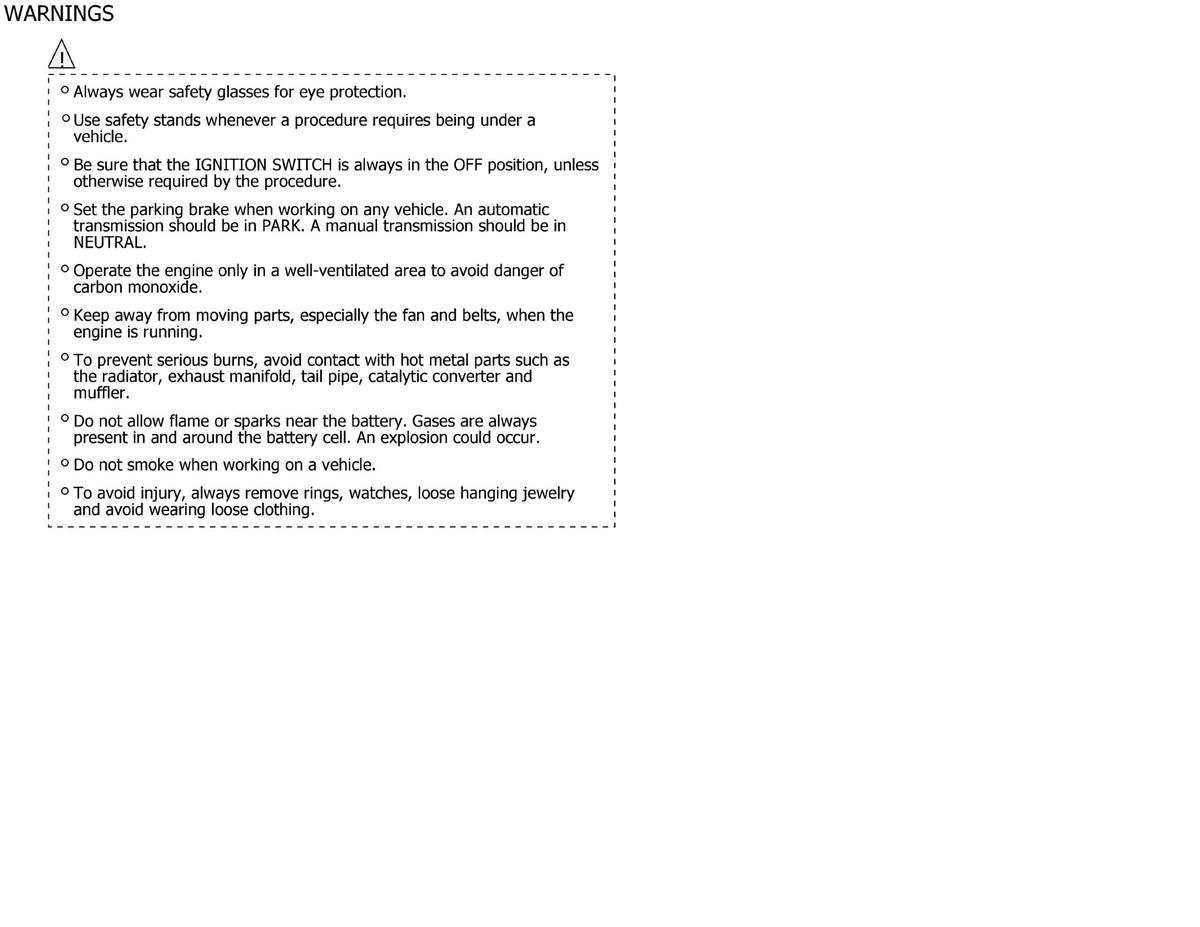

GFDWR141549Courtesy of FORD MOTOR COMPANY
