Body Control Module (BCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Left hand drive (LHD) shown, right hand drive (RHD) similar.

If installing a new BCM, connect a battery charger to the battery to make sure it is charged to maintain proper battery voltage. Refer to: Battery Charging .
NOTE: If the BCM (body control module) did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair. This step is only necessary if the BCM (body control module) is being replaced.

Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions. Refer to: Module Configuration - System Operation and Component Description .

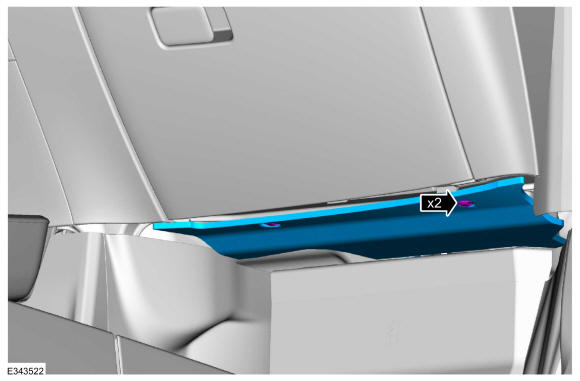

Remove the retainers and the RH lower insulation panel.

Courtesy of FORD MOTOR COMPANY

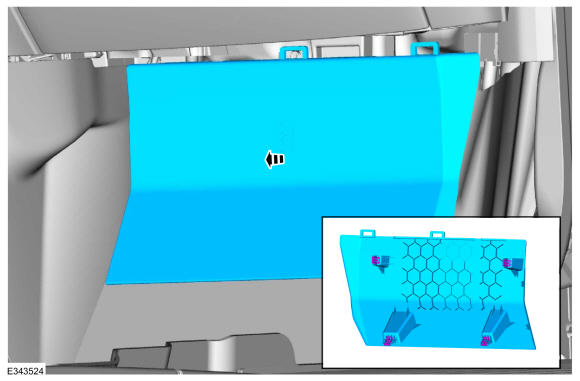

Release the clips and remove the BCM cover.

Courtesy of FORD MOTOR COMPANY

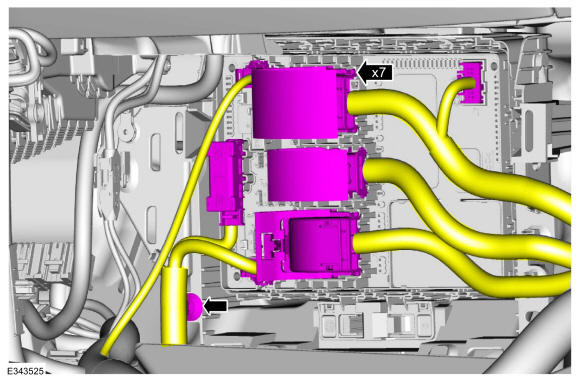

Detach the wire harness retainer, disconnect the BCM electrical connectors.

Courtesy of FORD MOTOR COMPANY

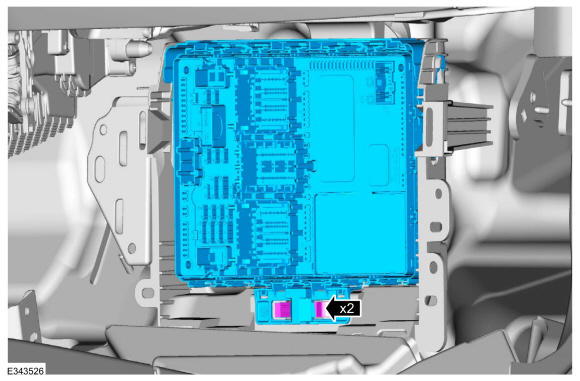

Release the clips and remove the BCM.

Courtesy of FORD MOTOR COMPANY
