Image Processing Module A (IPMA): Removal

1. Remove the loadspace trim panel. Refer to: Loadspace Trim Panel

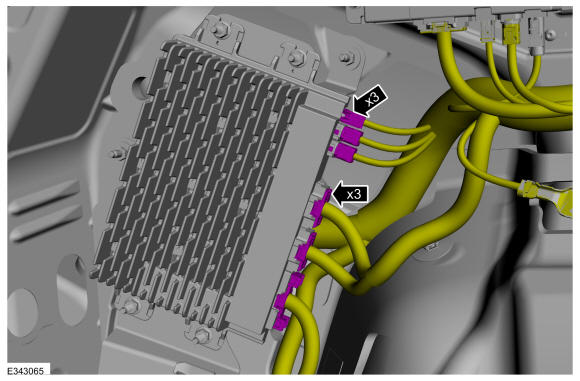

2. Disconnect the IPMA electrical connectors.

   Courtesy of FORD MOTOR COMPANY

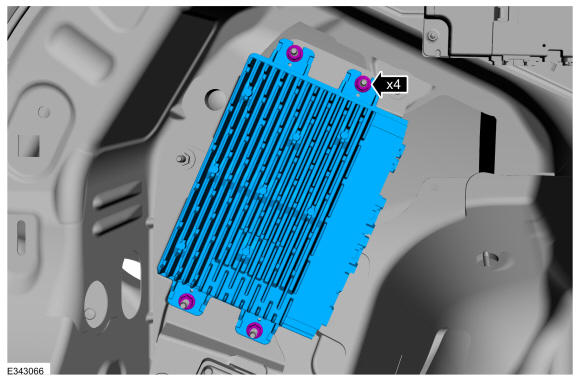

3. Remove the nuts and IPMA.

   Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
