Rear Wheel Speed Sensor: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

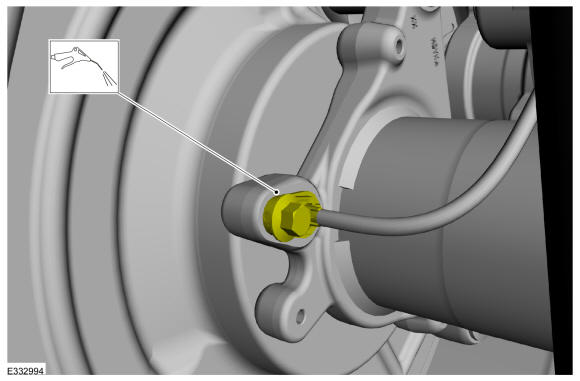

On both sides. Using compressed air, clean the area surrounding the rear wheel speed sensor.

Courtesy of FORD MOTOR COMPANY

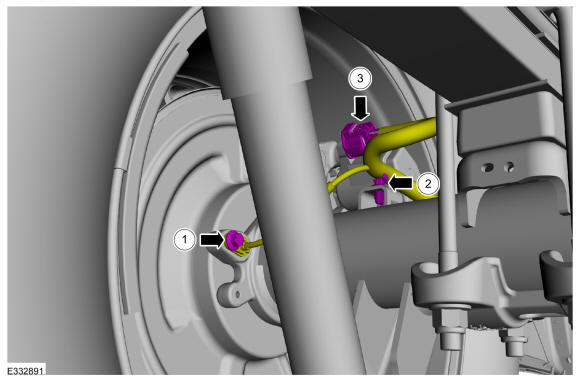

1. On both sides. Remove the rear wheel speed sensor bolt and detach the sensor.
  Torque

  : 133 lb.in (15 Nm)
2. On both sides. Detach the harness retainer.
3. On both sides. Disconnect the parking brake actuator motor electrical connector.
Courtesy of FORD MOTOR COMPANY

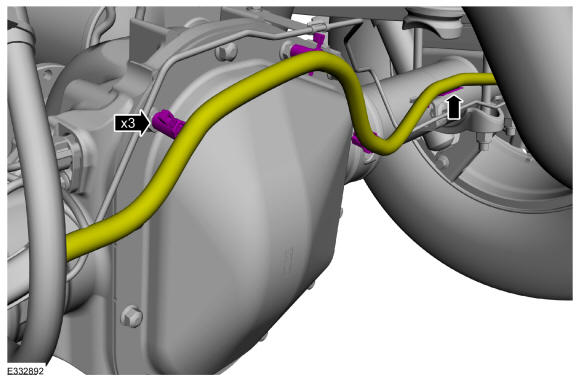

Detach the harness retainers from the rear axle.

Courtesy of FORD MOTOR COMPANY

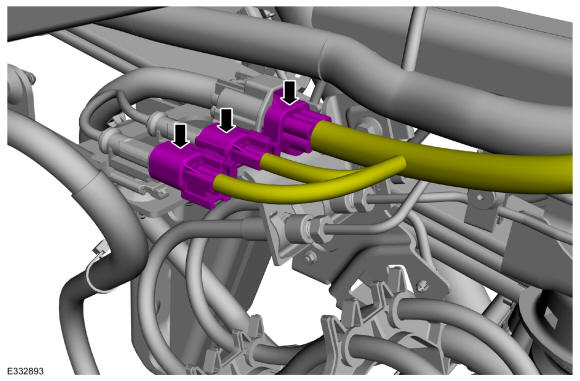

Disconnect the EPB and rear wheel speed sensor electrical connectors.

Courtesy of FORD MOTOR COMPANY

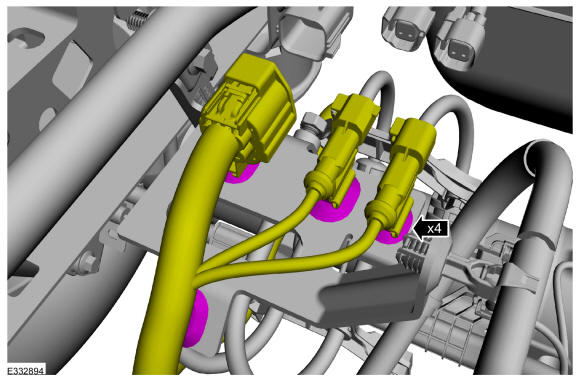

Detach the EPB and rear wheel speed sensor electrical connector retainers.

Courtesy of FORD MOTOR COMPANY

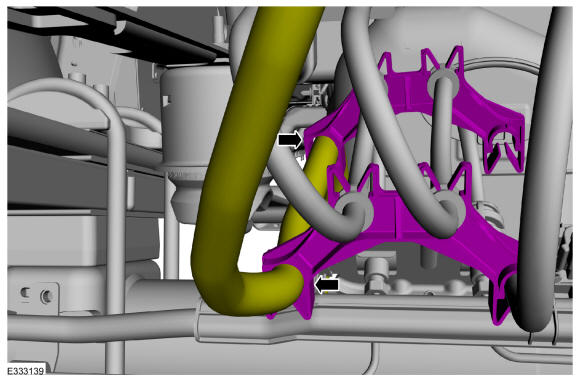

Detach the harness.

Courtesy of FORD MOTOR COMPANY

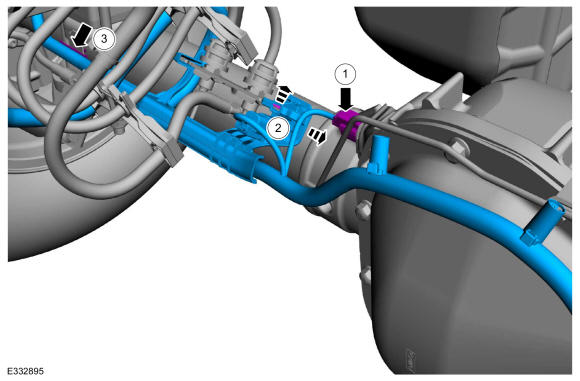

1. Disconnect the rear differential electrical connector.
2. Push the locking tab up and detach the harness routing bracket.
3. Detach the harness retainer and remove the rear wheel speed sensor and EPB harness assembly.

Courtesy of FORD MOTOR COMPANY
