OEM Electrical Wiring Diagram Introduction: Introduction

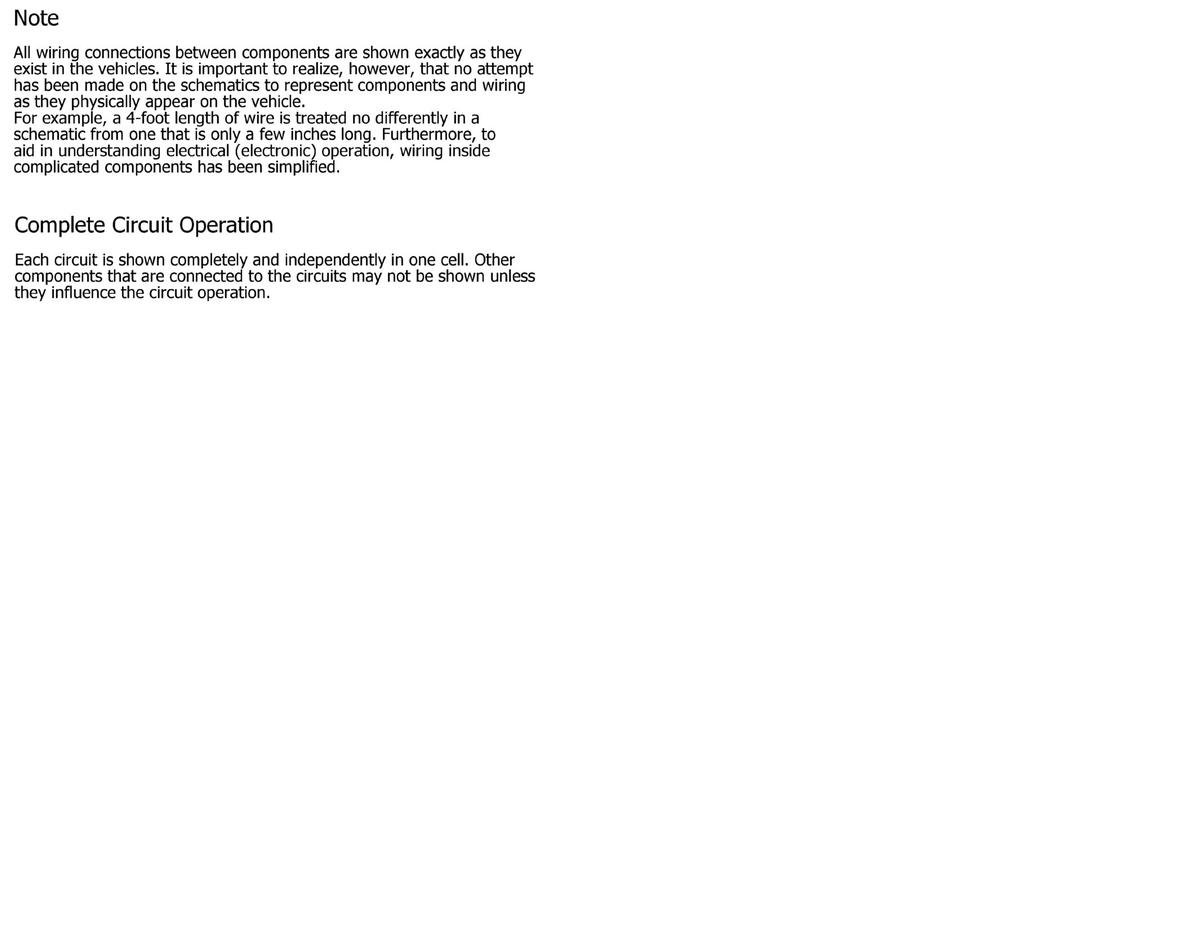

GFDWR145137Courtesy of FORD MOTOR COMPANY

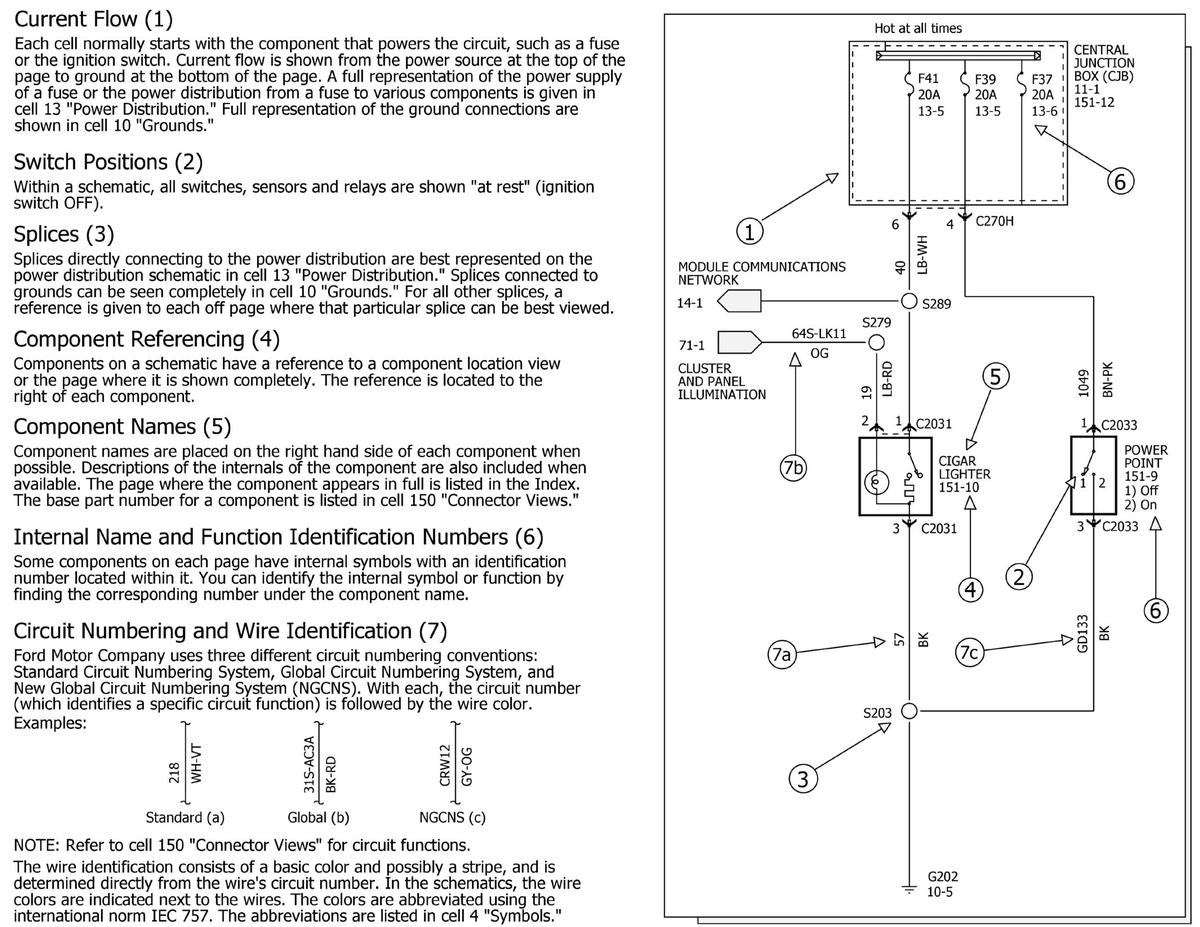

GFDWR145138Courtesy of FORD MOTOR COMPANY

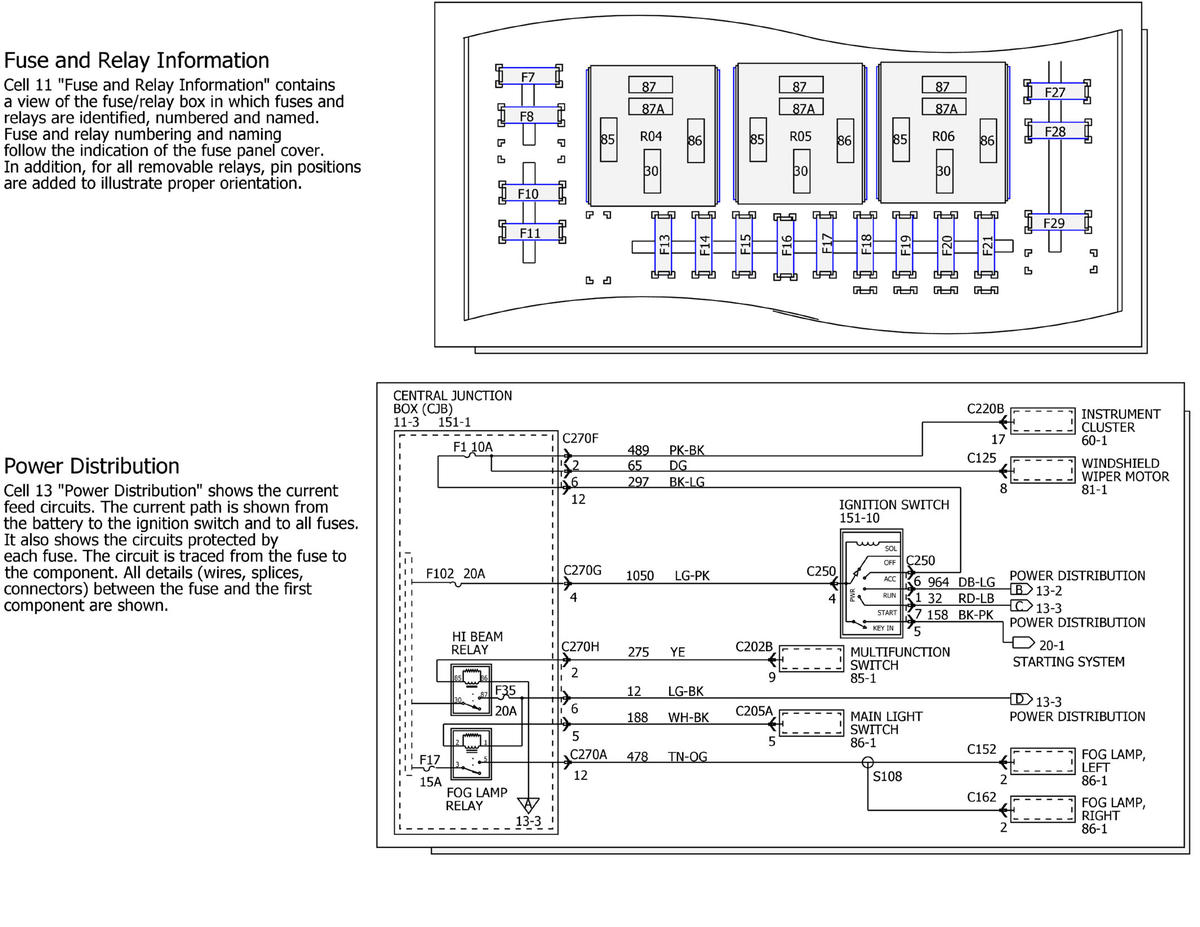

GFDWR145139Courtesy of FORD MOTOR COMPANY

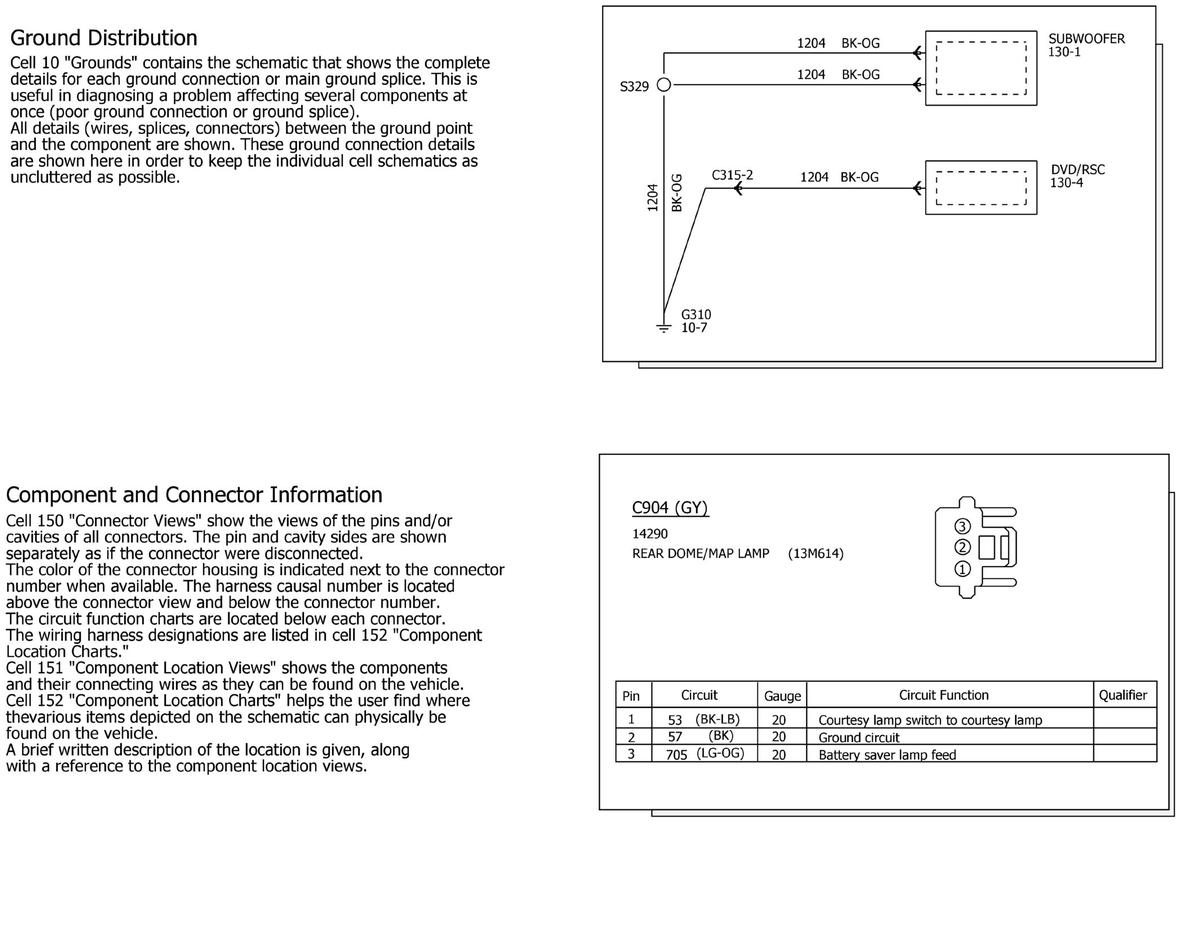

GFDWR145140Courtesy of FORD MOTOR COMPANY

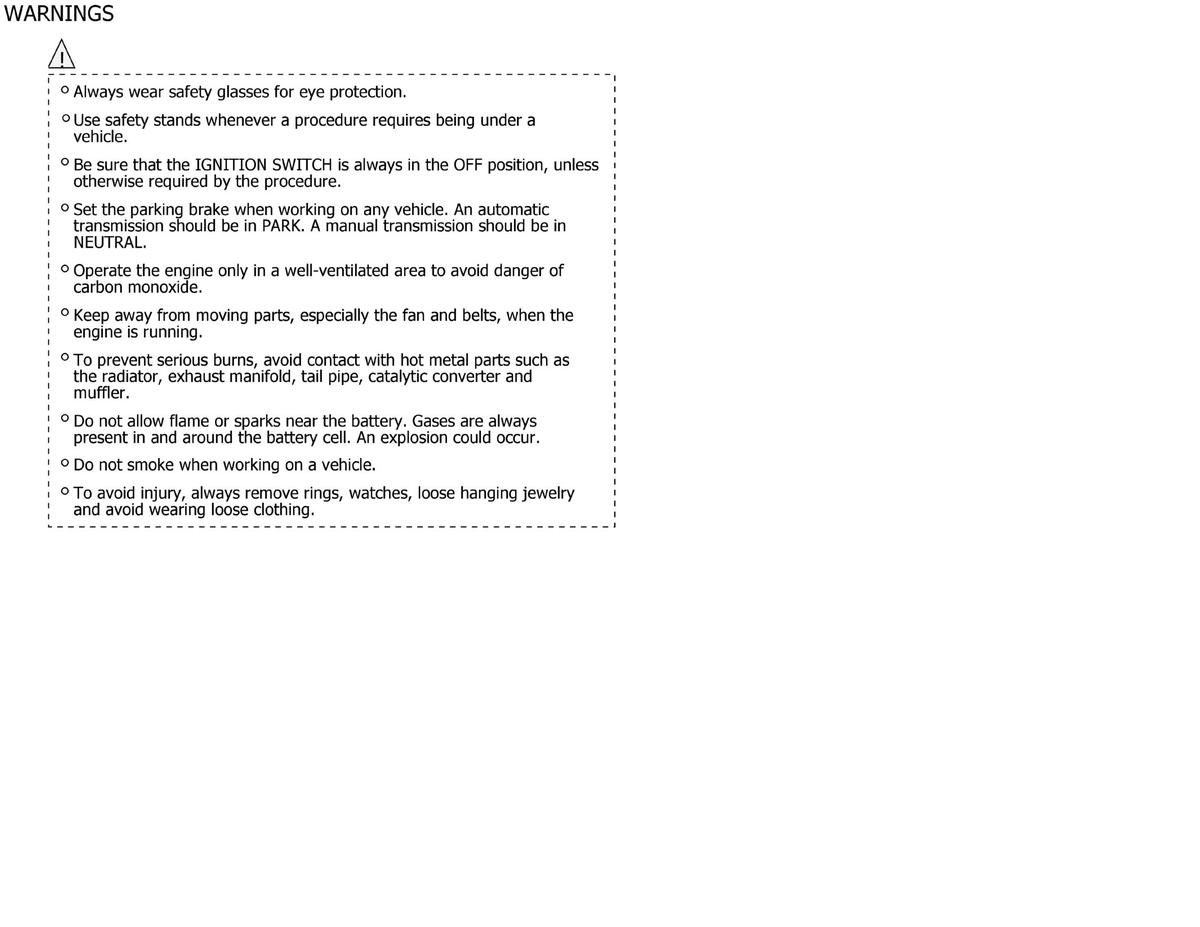

GFDWR145141Courtesy of FORD MOTOR COMPANY
