Front Seat: Installation
- To install, reverse the removal procedure.
-
WARNING: The following procedure describes critical repair steps required for correct seat component installation. Follow all notes and steps carefully. Do not place any objects between the seat components and the body of the vehicle, nor any objects within a joint internal to the seat structure. Failure to follow step instructions may result in incorrect operation of the seat components and increases the risk of serious personal injury.

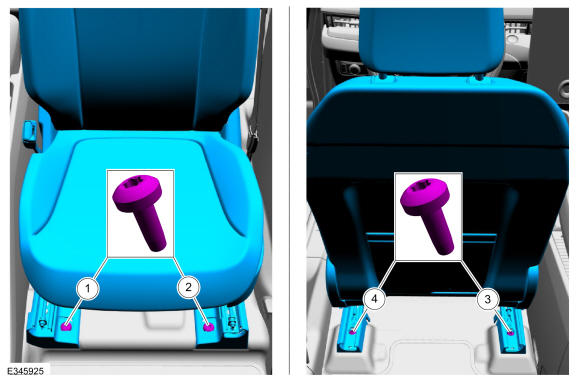

Install the front seat bolts in the following sequence.
- Install the front inboard bolt.
Torque: 41 lb.ft (55 Nm)
- Install the front outboard bolt.
Torque: 41 lb.ft (55 Nm)
- Install the rear inboard bolt.
Torque: 30 lb.ft (40 Nm)
- Install the rear outboard bolt.
Torque: 30 lb.ft (40 Nm)
- Install the front inboard bolt.
- Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering .
