Electrified Drivetrain Control - Component Location

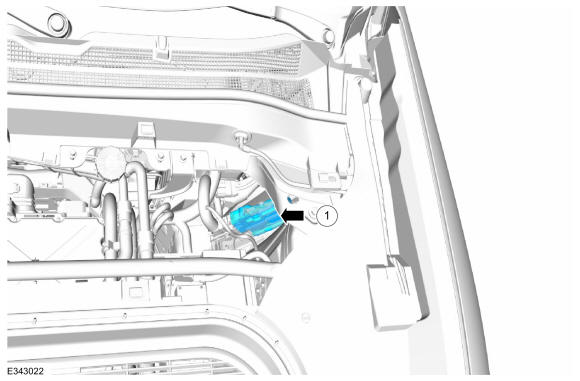

Powertrain Control Module (PCM)

GFD609512Courtesy of FORD MOTOR COMPANY
Item Description
1 PCM

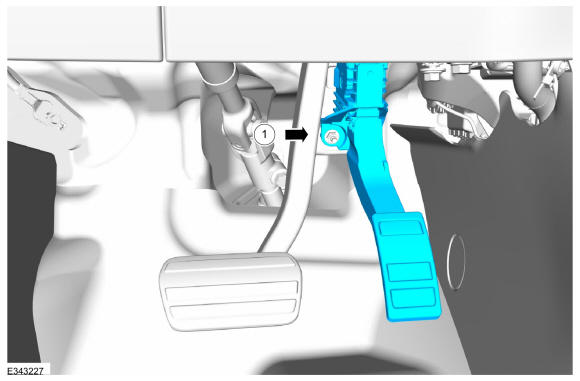

Accelerator Pedal Position (APP) Sensor

GFD609513Courtesy of FORD MOTOR COMPANY
Item Description
1 APP sensor
