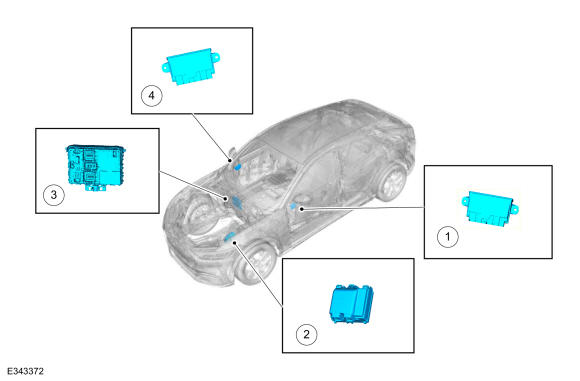

Module Controlled Functions - Component Location

NOTE: Left hand drive (LHD) shown, right hand drive (RHD) similar.

GFD610249

Courtesy of FORD MOTOR COMPANY

Item	Description
1	DDM
2	BCMC
3	BCM
4	PDM
