Front Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the wheel and tire. Refer to: WHEELS AND TIRES .

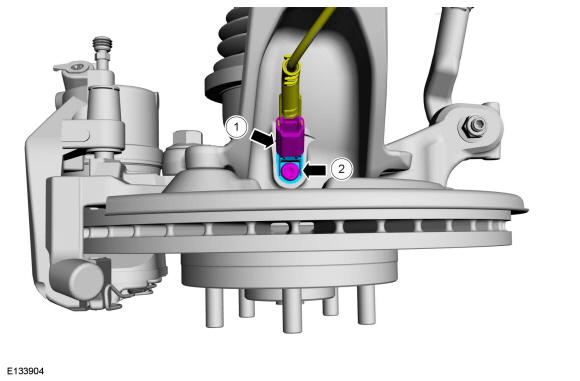

2. 1. Disconnect the front wheel speed sensor electrical connector.
   2. Remove the bolt and the front wheel speed sensor.

      Torque

      : 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
