Rear Wheel Speed Sensor: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-

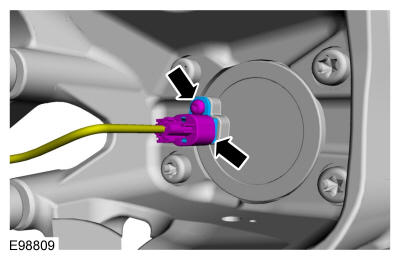

- Disconnect the rear wheel speed sensor electrical connector.
- Remove the bolt and the rear wheel speed sensor.
Torque
: 44 lb.in (5 Nm)
-

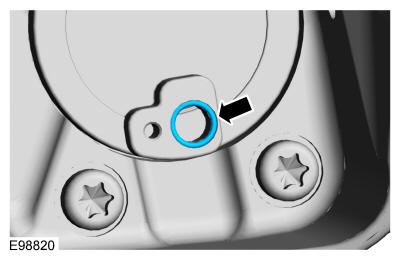

NOTE: The O-ring seal is to be reused unless damaged.
Remove the O-ring seal.
