Front Overhead Console: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the dome lamp and disconnect the electrical connectors.

    Use the General Equipment: Interior Trim Remover

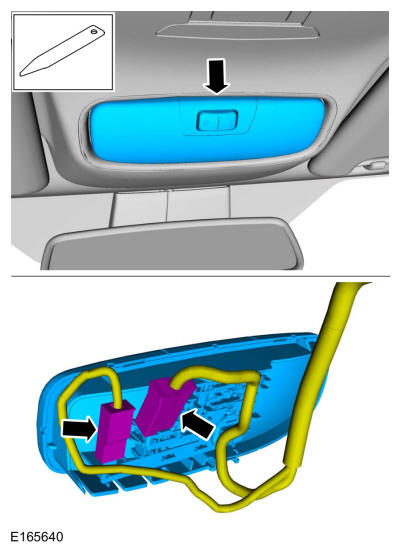

    GFD574148Courtesy of FORD MOTOR COMPANY
  2. Disconnect the electrical connector and then disengage the connector clips.

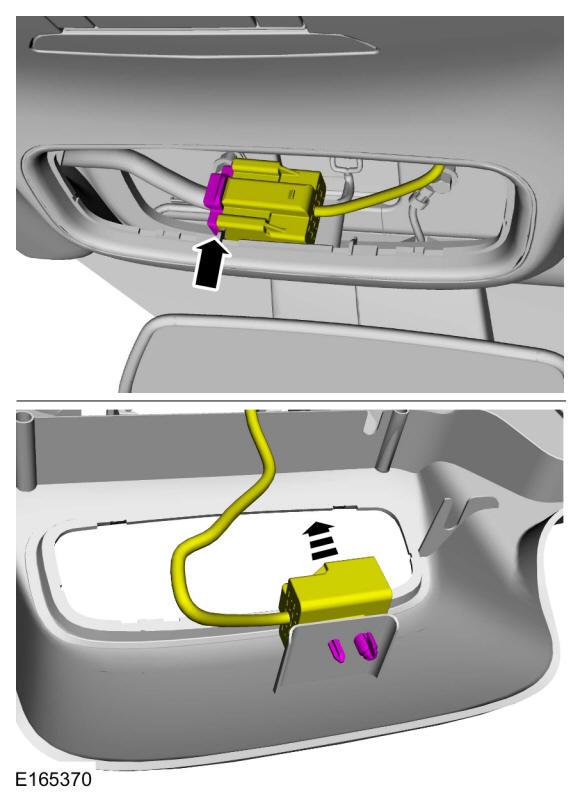

    GFD574149Courtesy of FORD MOTOR COMPANY
    • Disengage the retaining tabs and remove the roof bezel cover.

    • Disconnect the roof bezel cover electrical connectors.

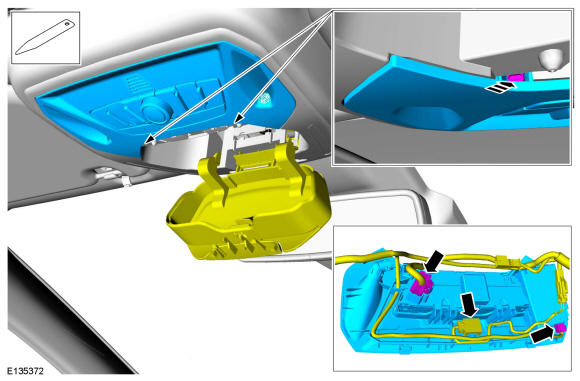

    GFD574150Courtesy of FORD MOTOR COMPANY

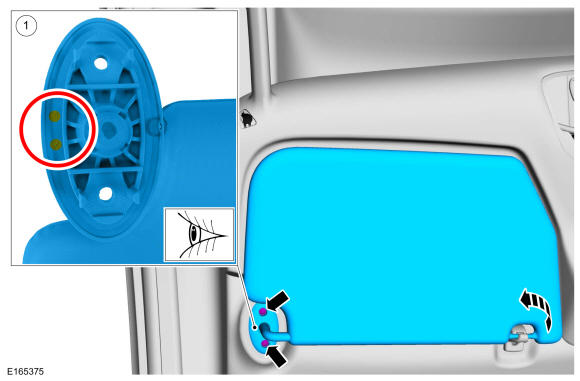

  4. GFD574151Courtesy of FORD MOTOR COMPANY

    1. NOTE: Note the position of the component before removal.

      Remove the retainers and the LH side sun visor.

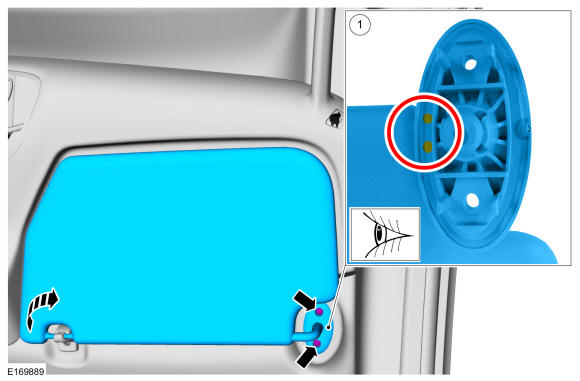

  5. GFD574152Courtesy of FORD MOTOR COMPANY

    1. NOTE: Note the position of the component before removal.

      Remove the retainers and the RH side sun visor.

  6. On both sides, remove the grab handle covers and retainers. Use the General Equipment: Interior Trim Remover

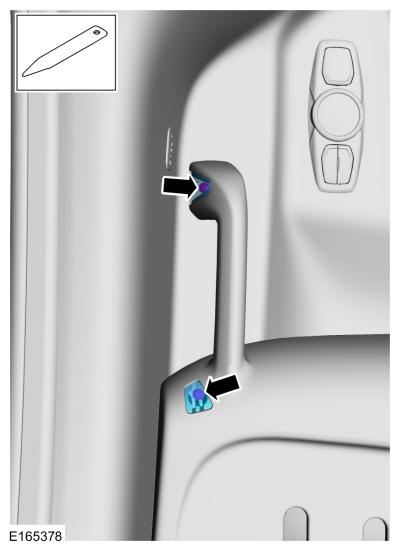

    GFD574153Courtesy of FORD MOTOR COMPANY
  7. Remove the retainers and the front seat overhead storage compartment assembly.

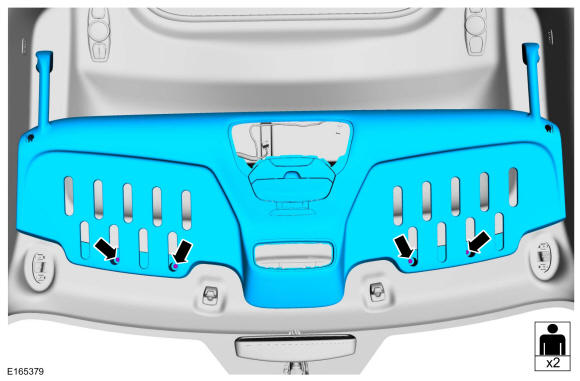

GFD574154Courtesy of FORD MOTOR COMPANY
