Ford
›
2022
›
E-Transit Van Cargo Extended
›
Repair and Diagnosis
›
Quick Lookups
›
Wiring Diagrams
›
OEM Component Harness Location Views
›

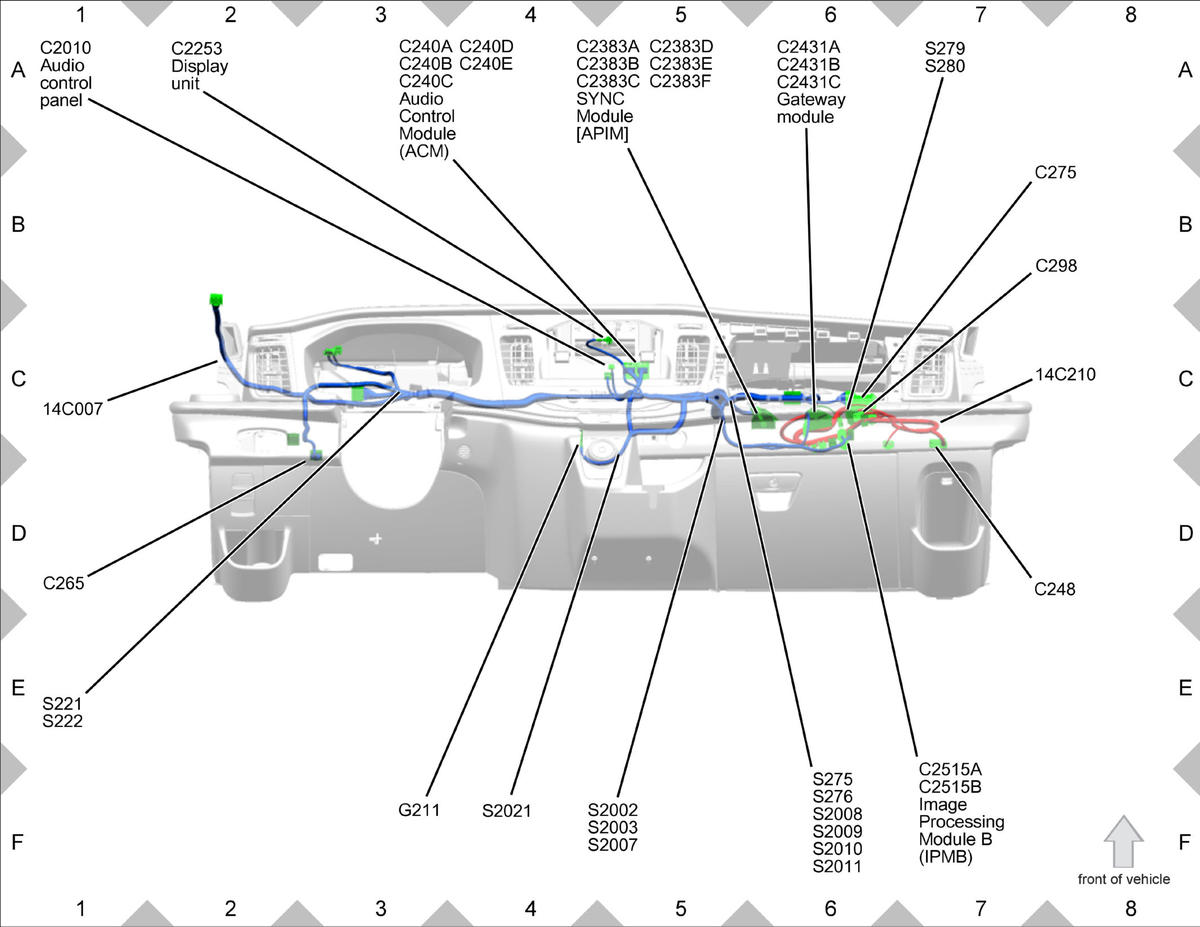

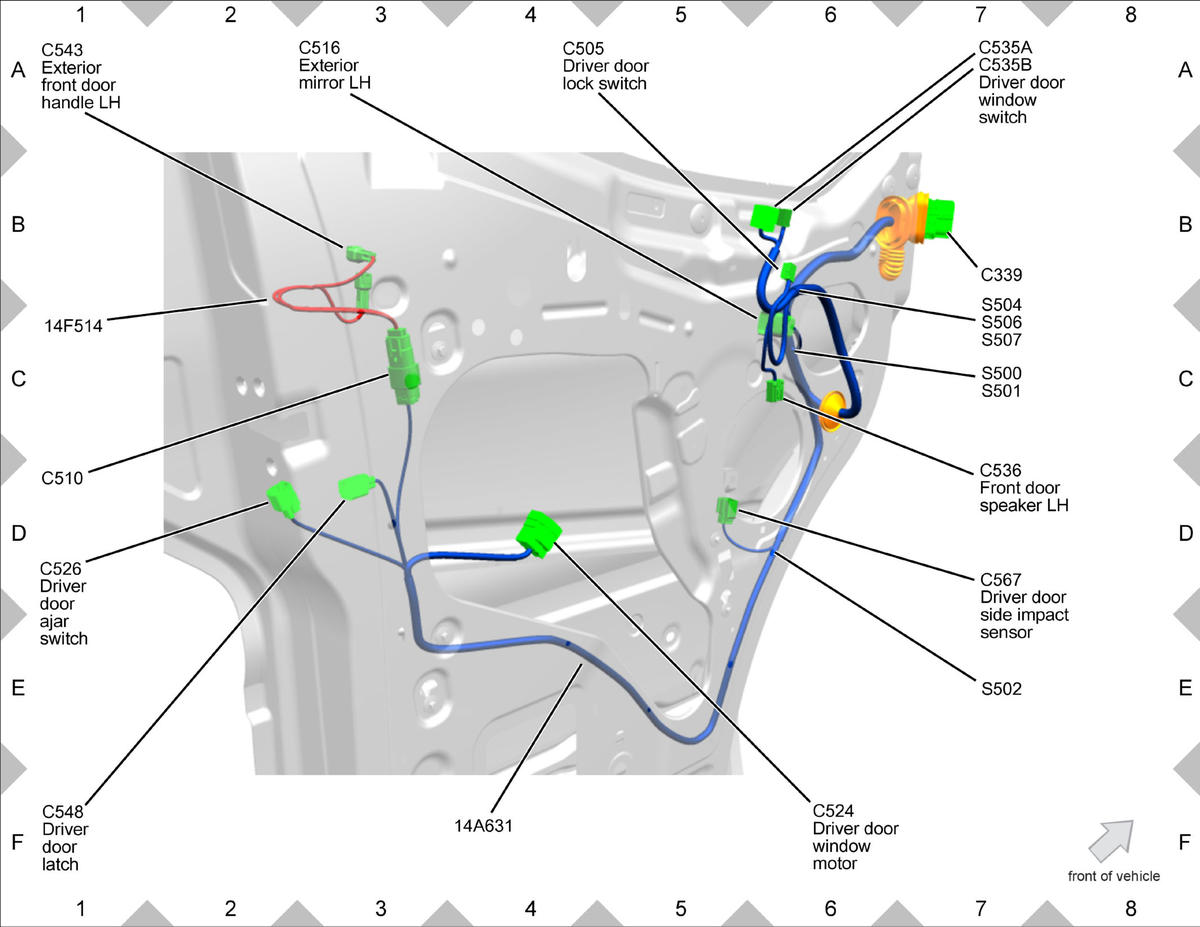

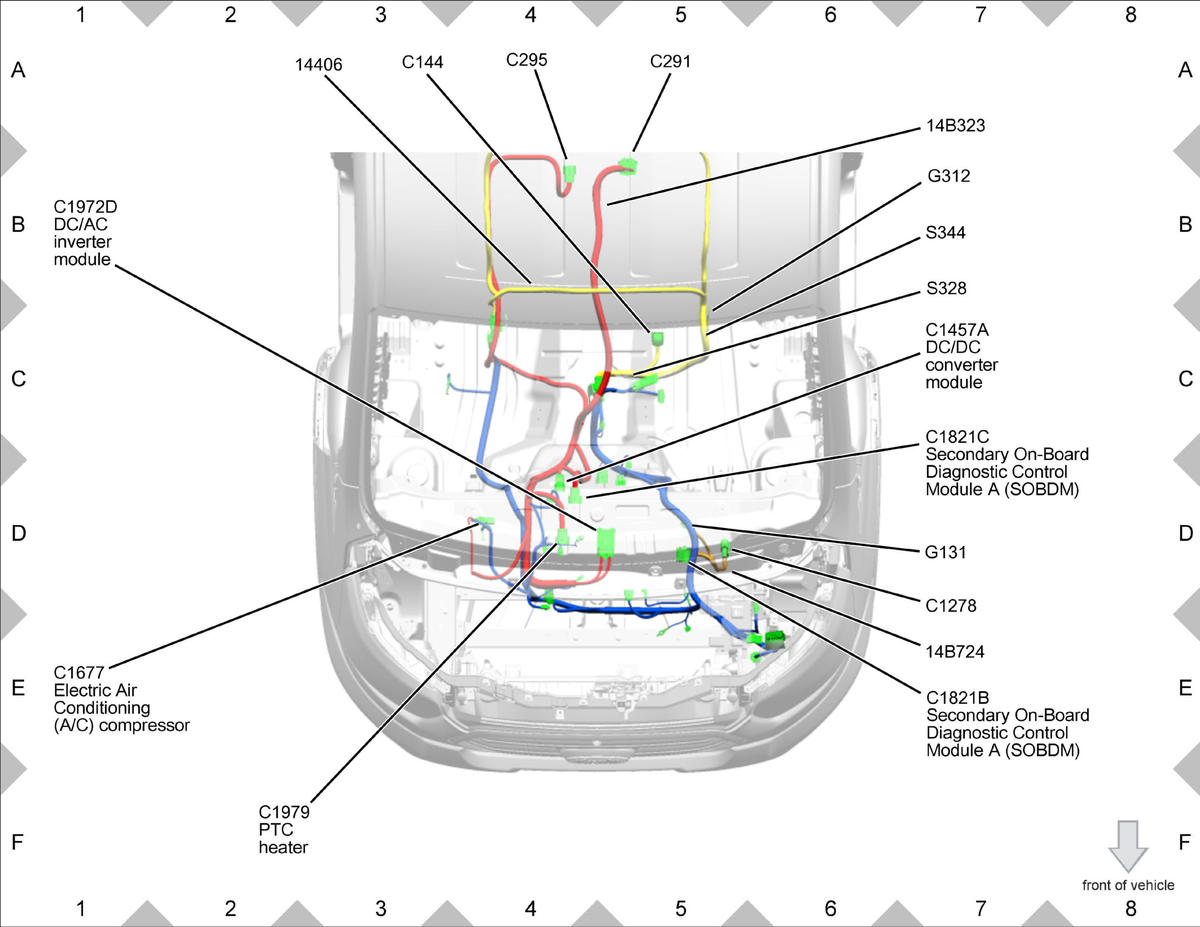

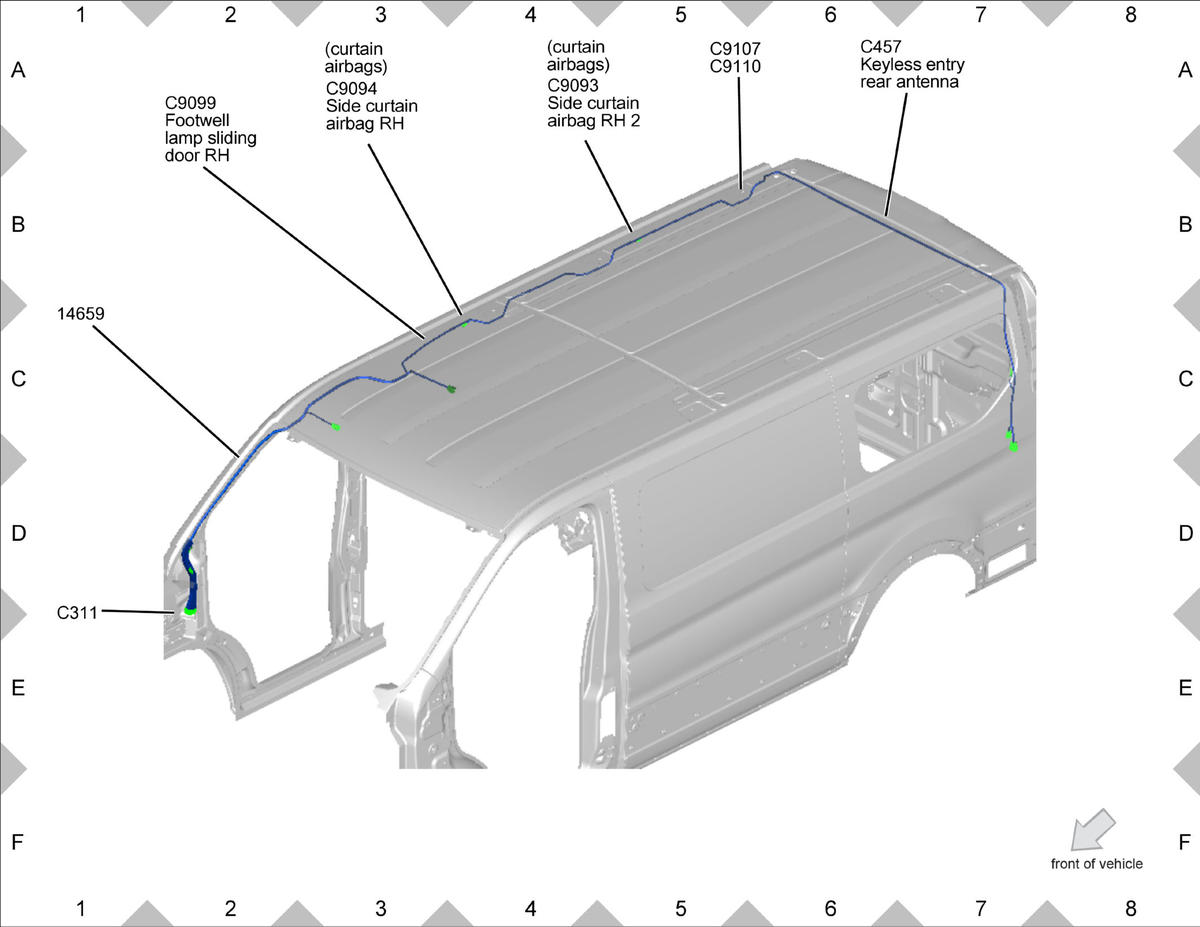

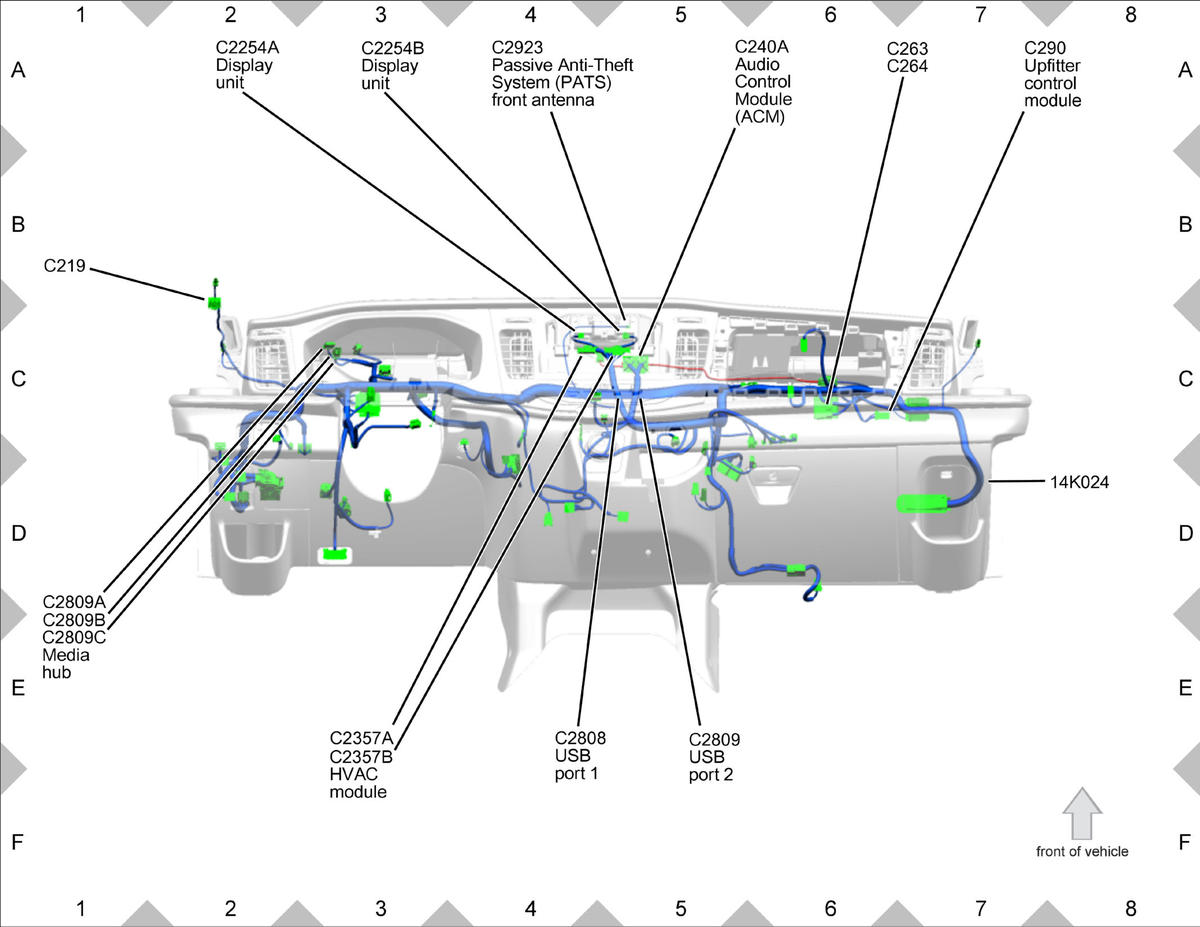

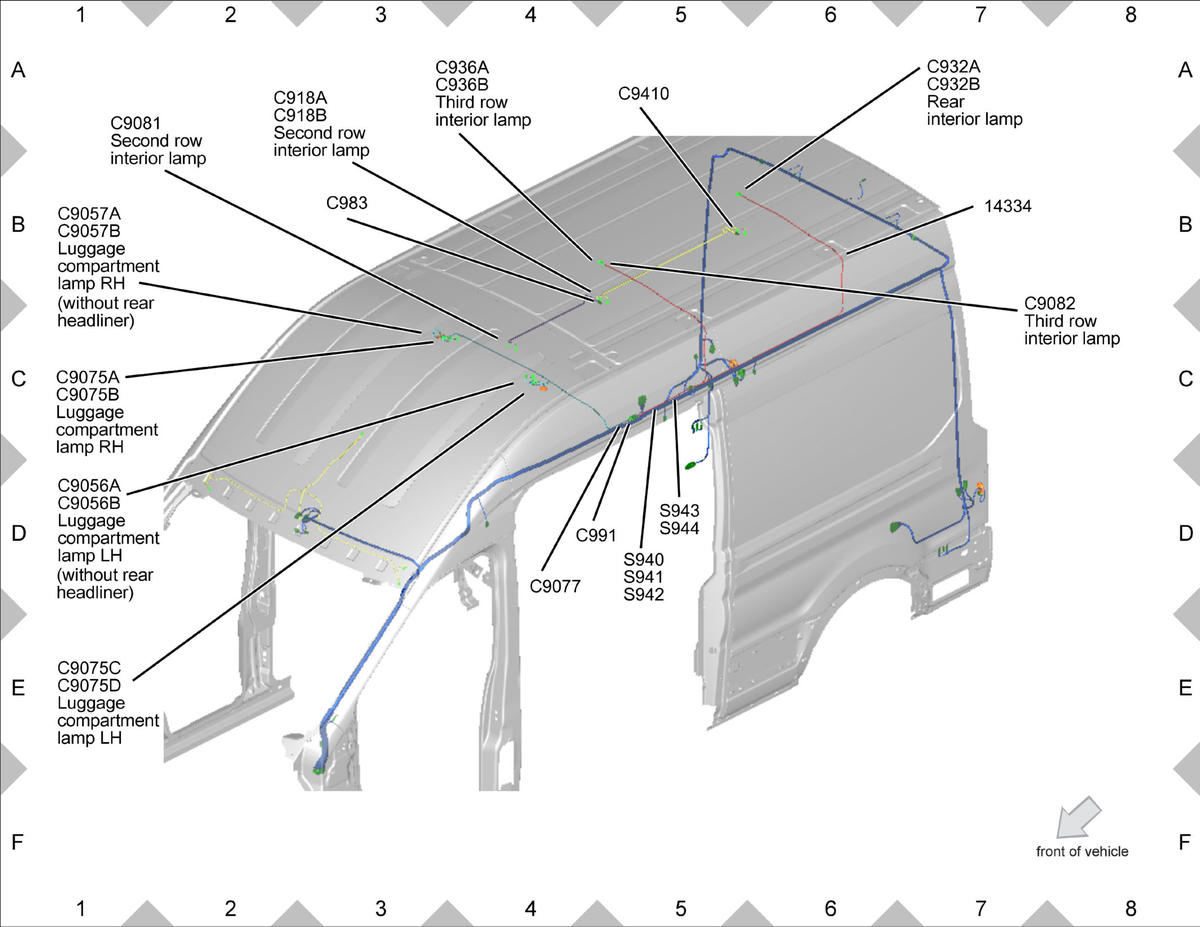

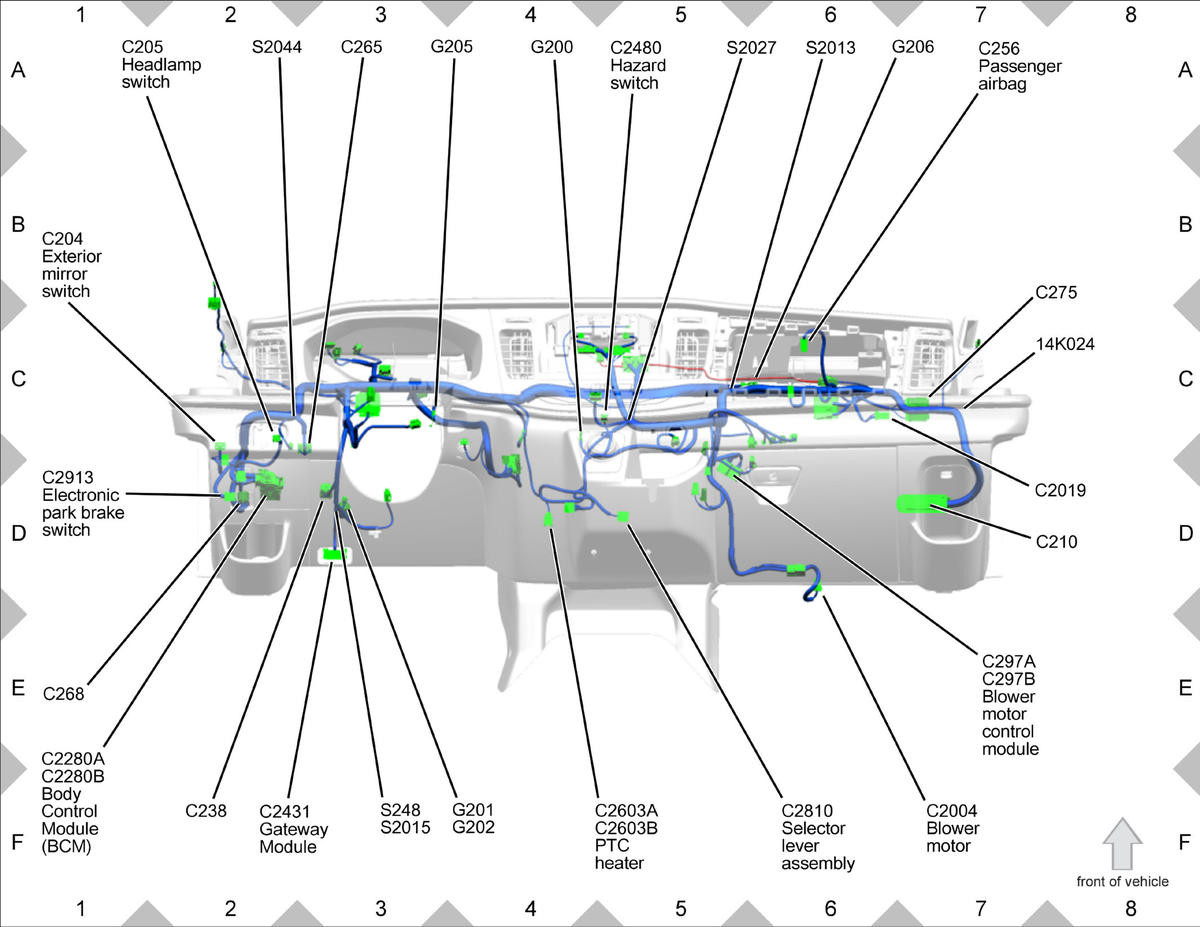

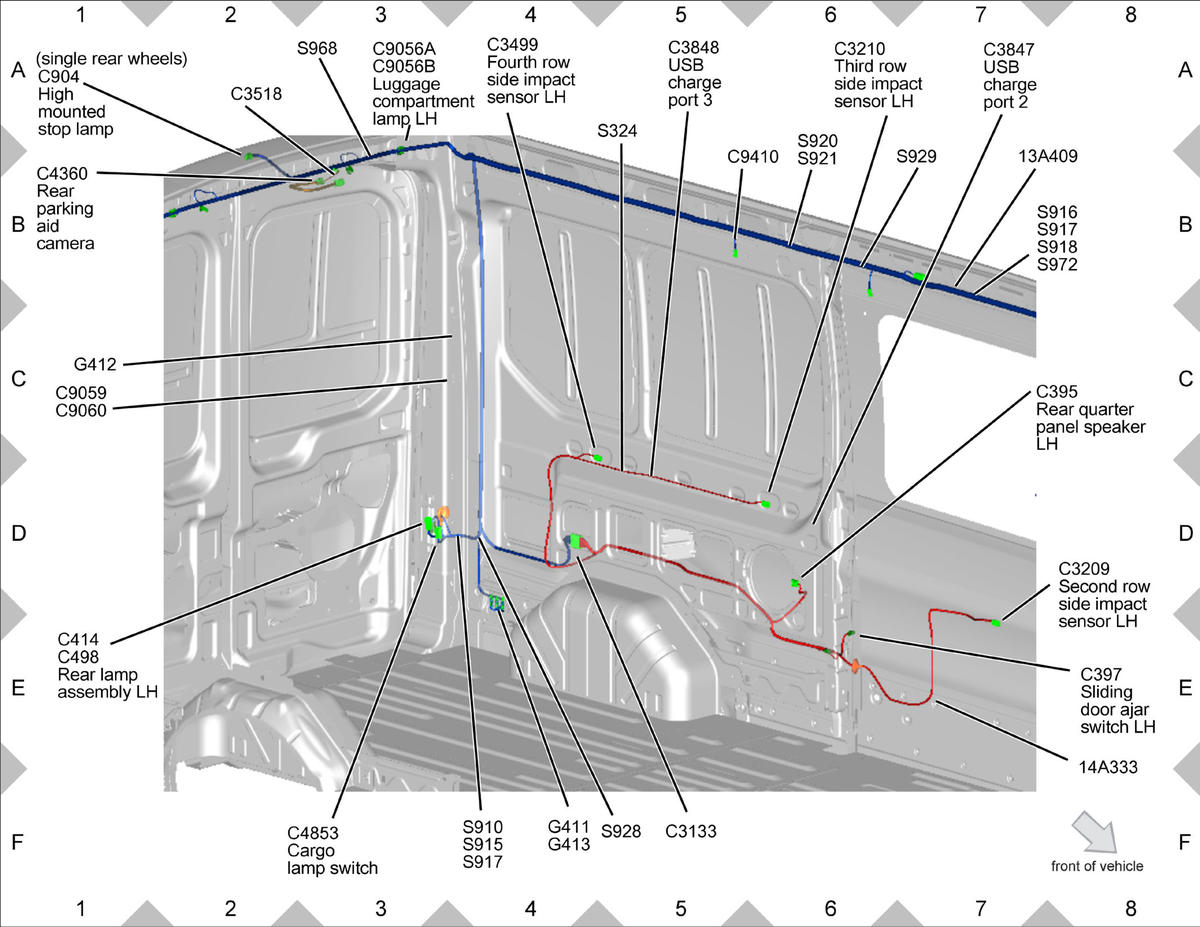

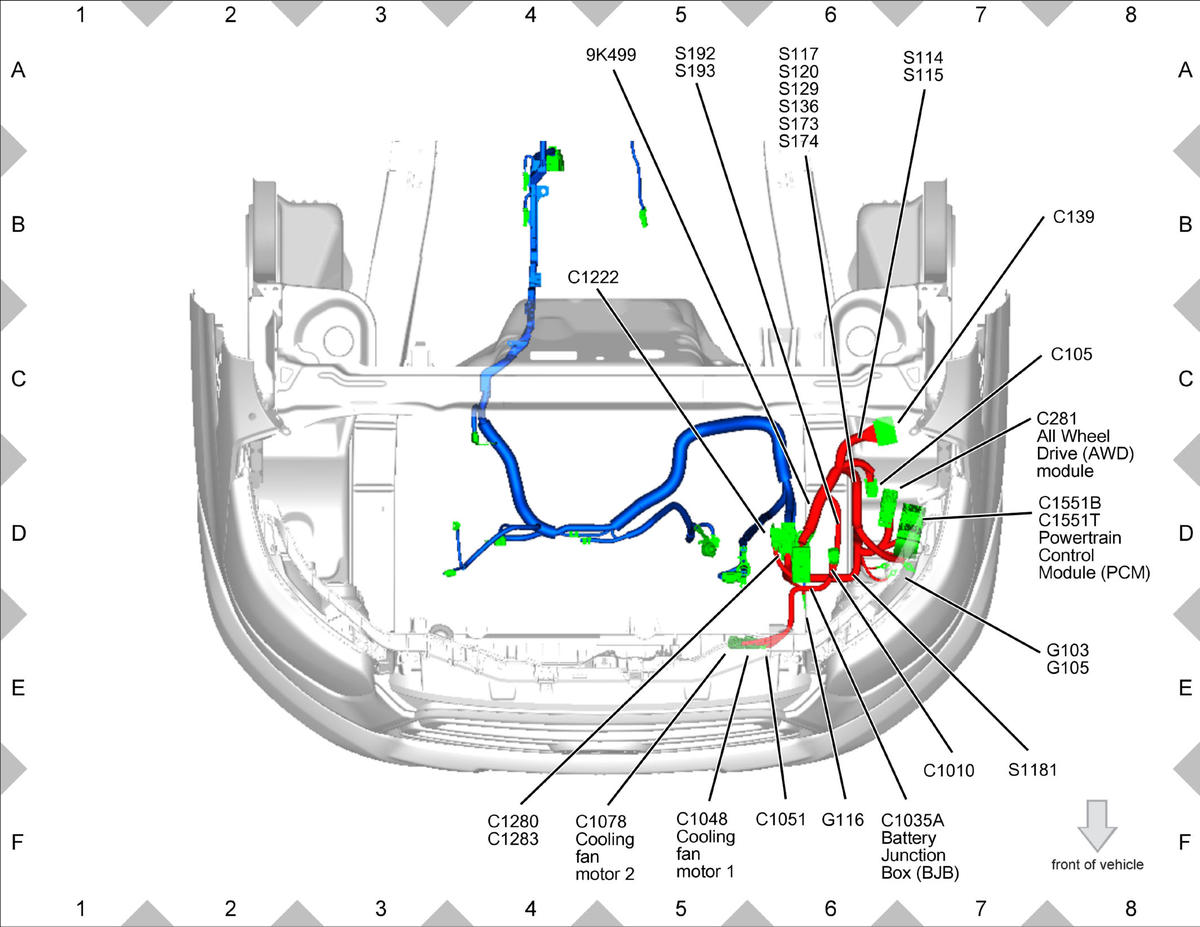

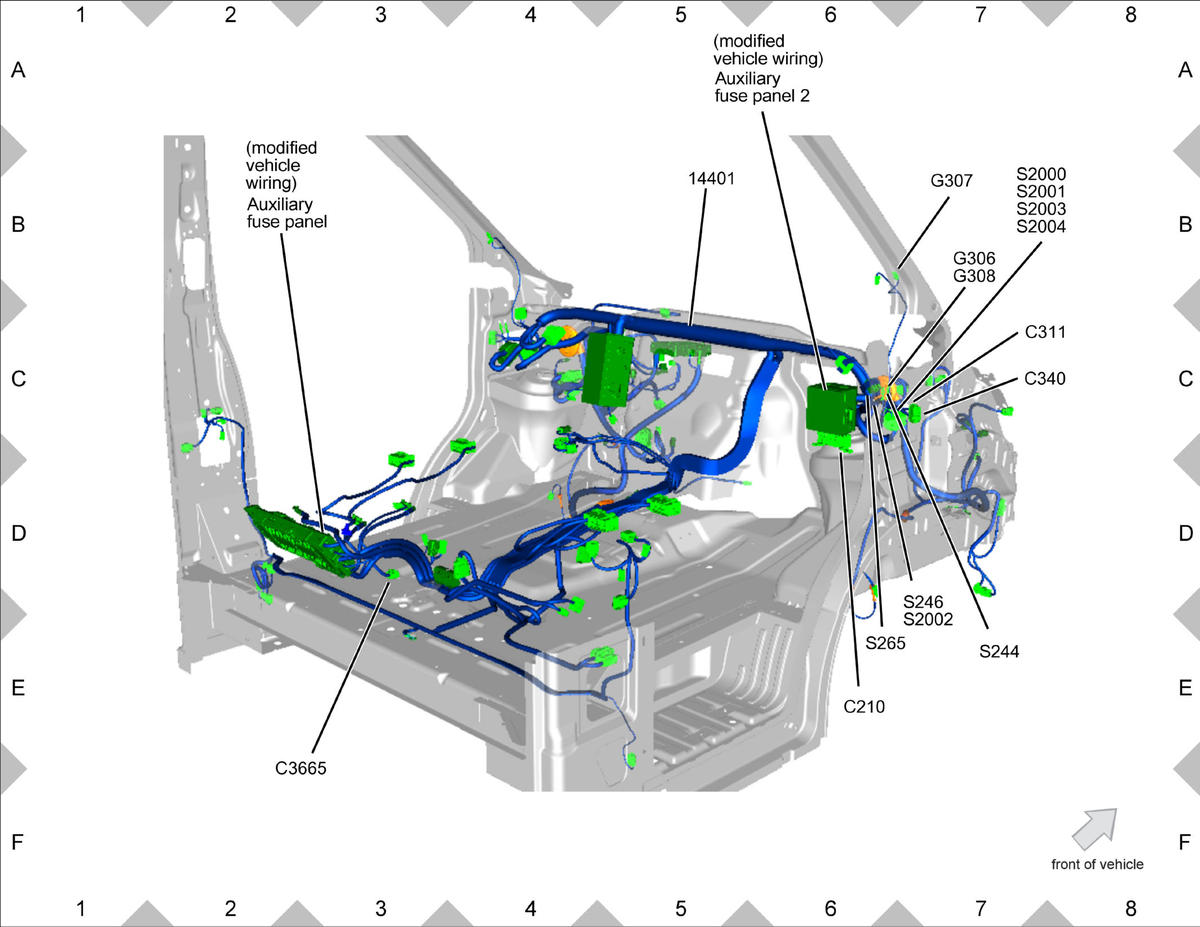

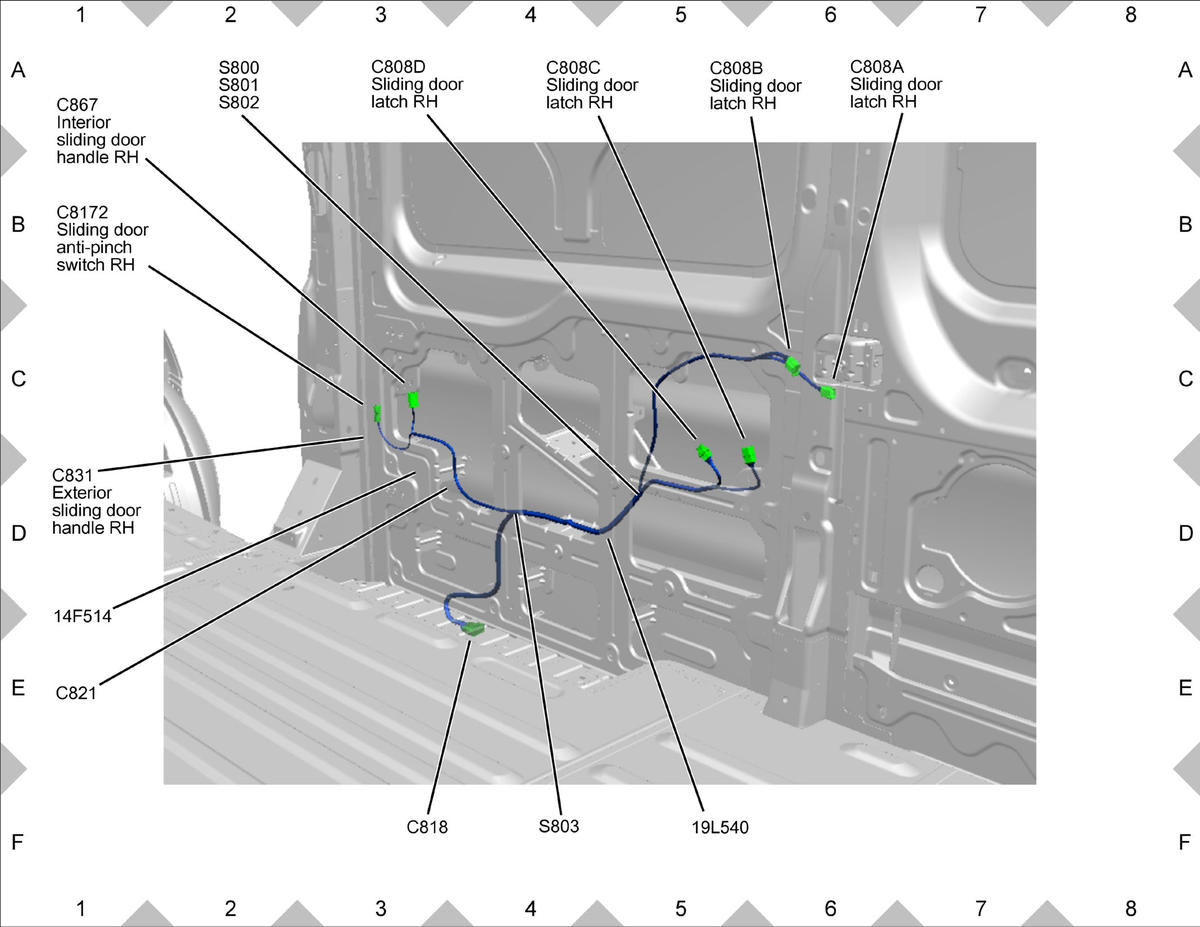

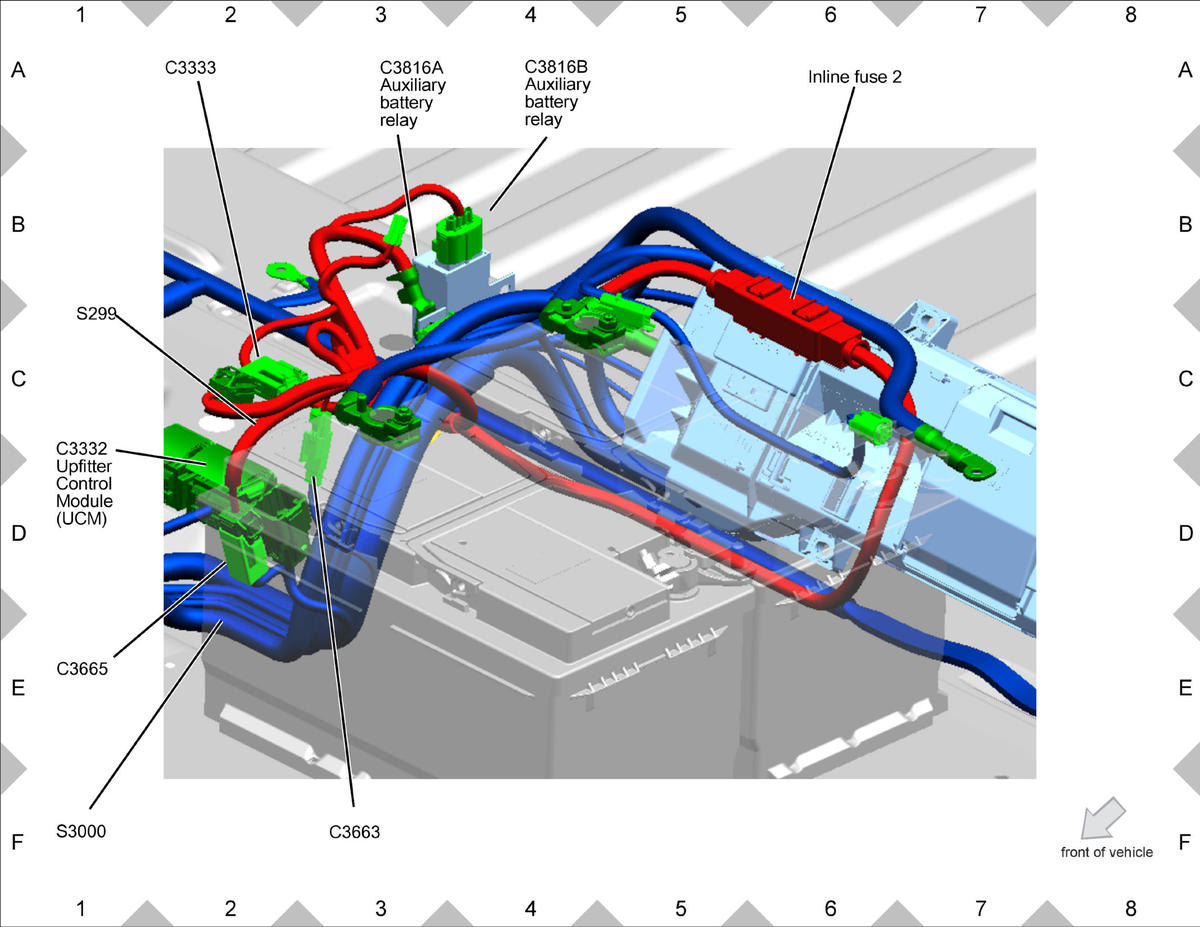

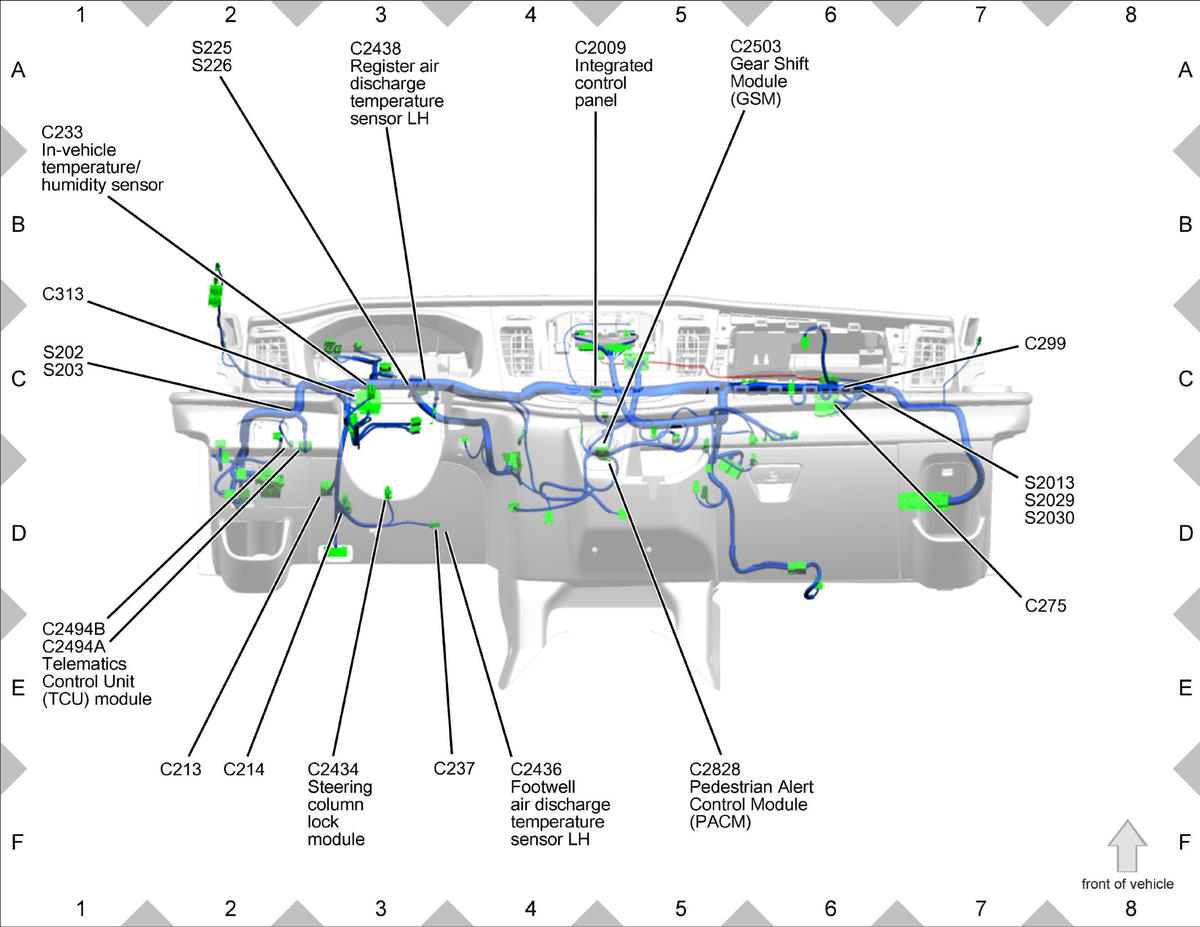

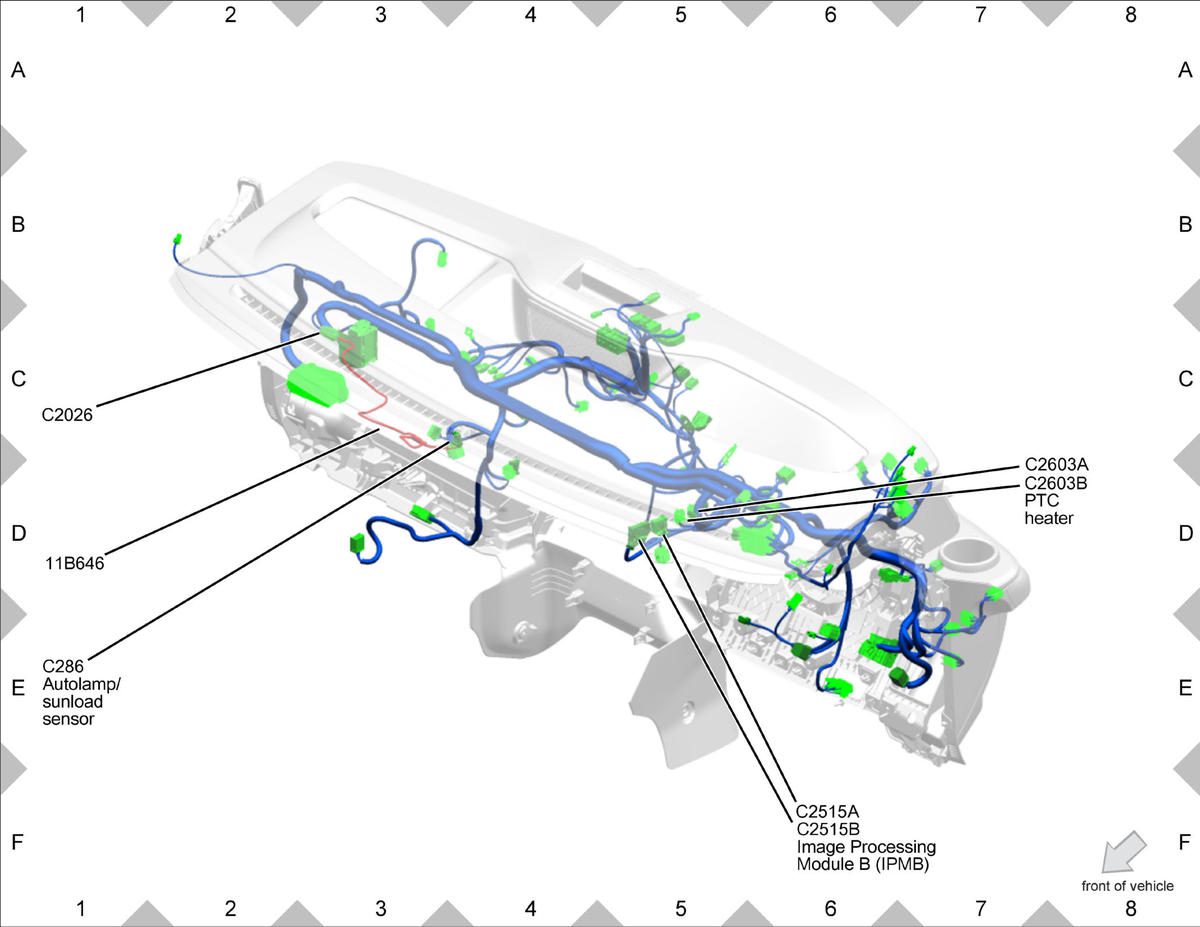

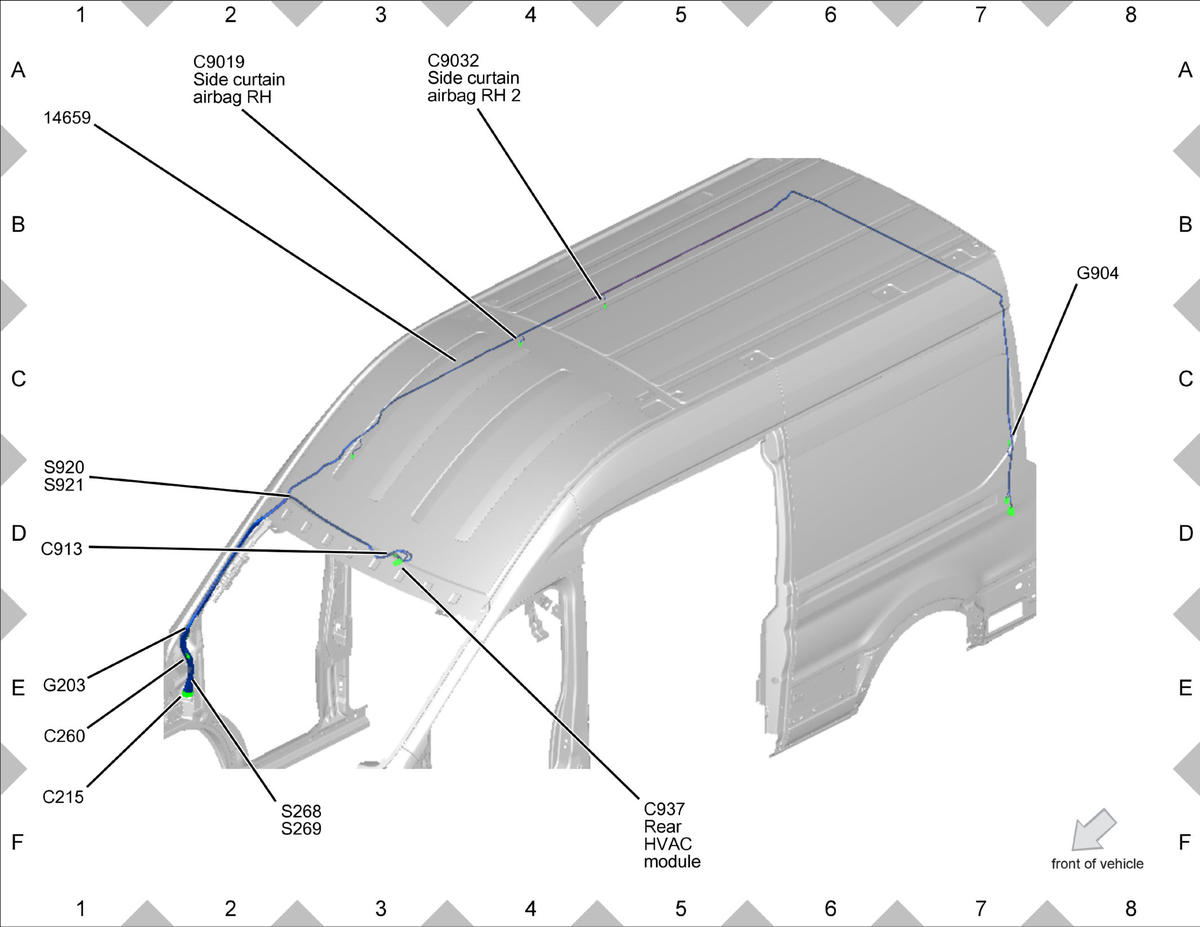

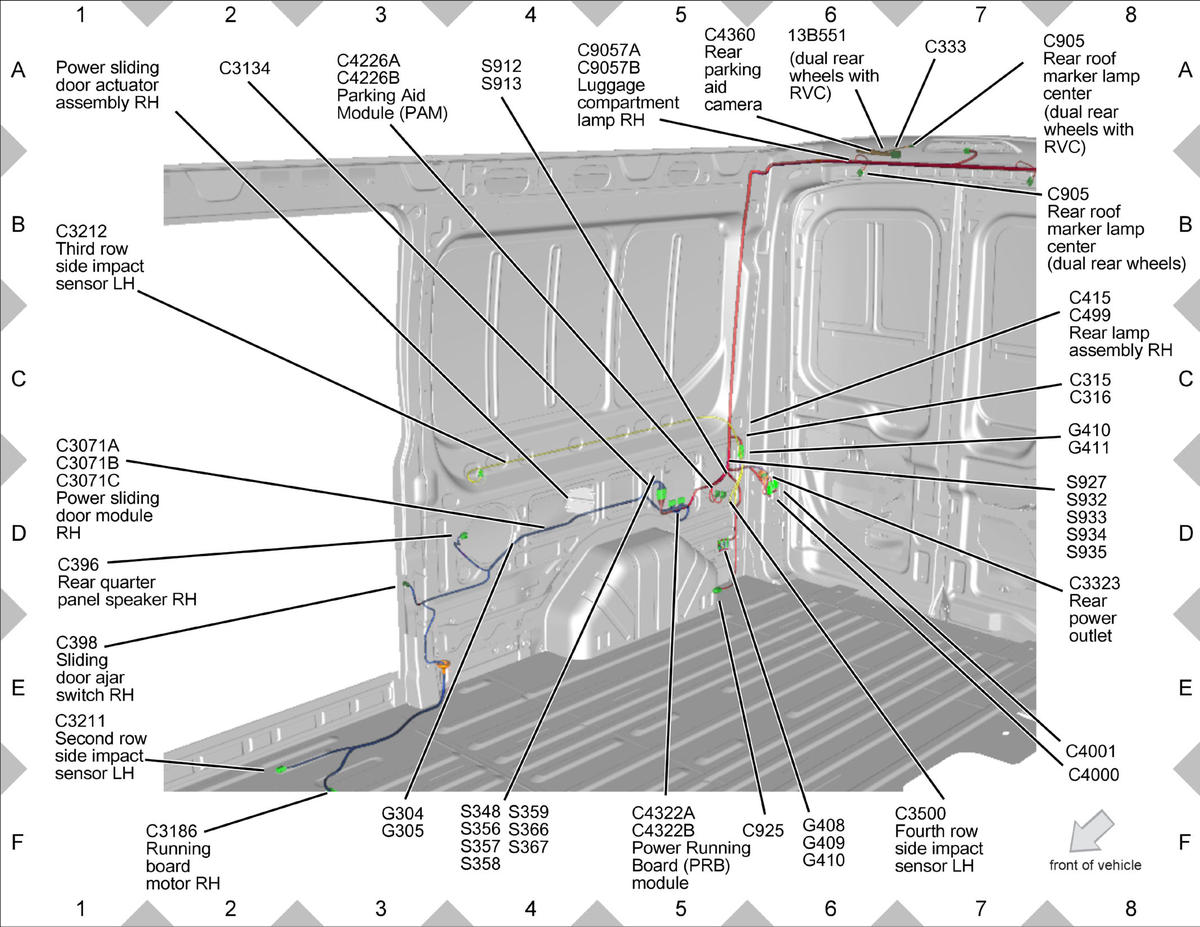

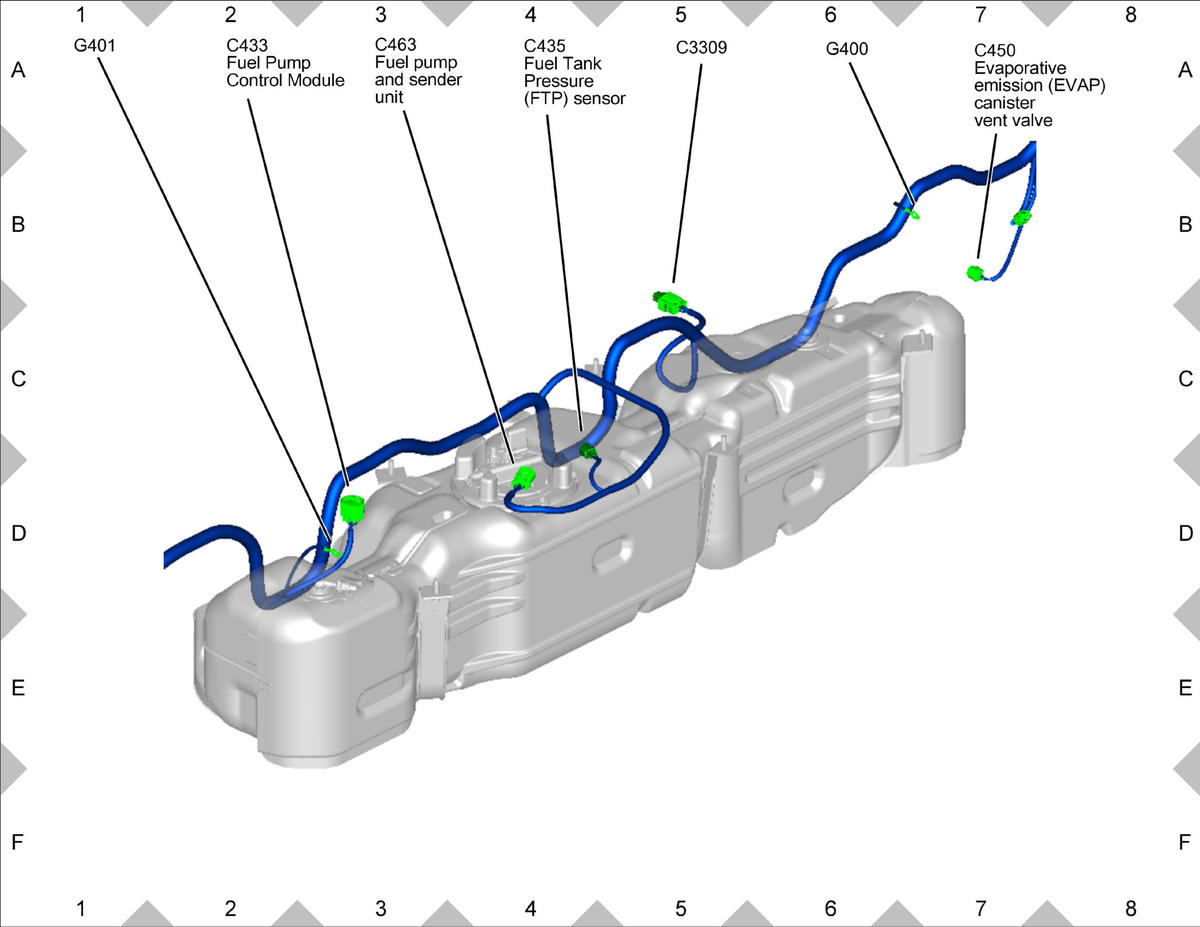

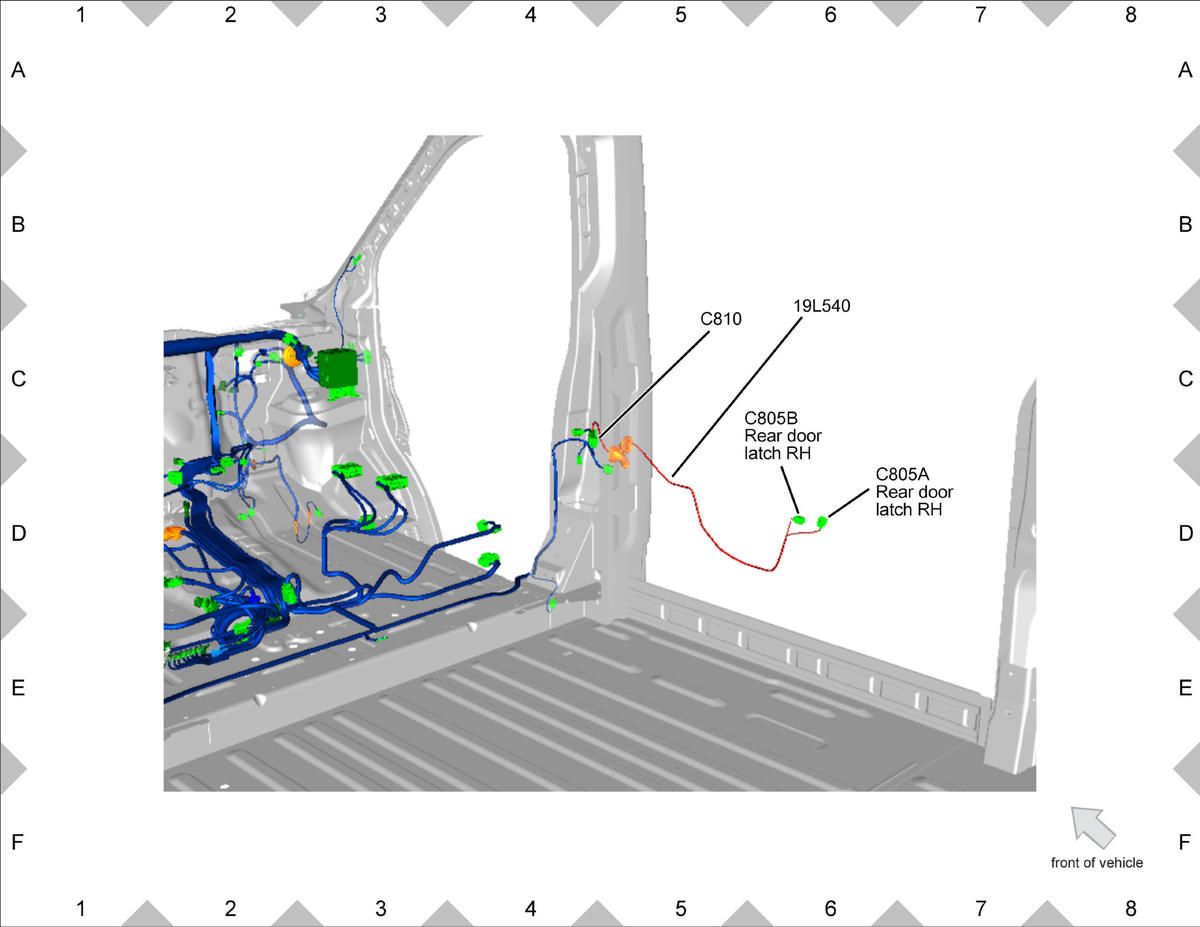

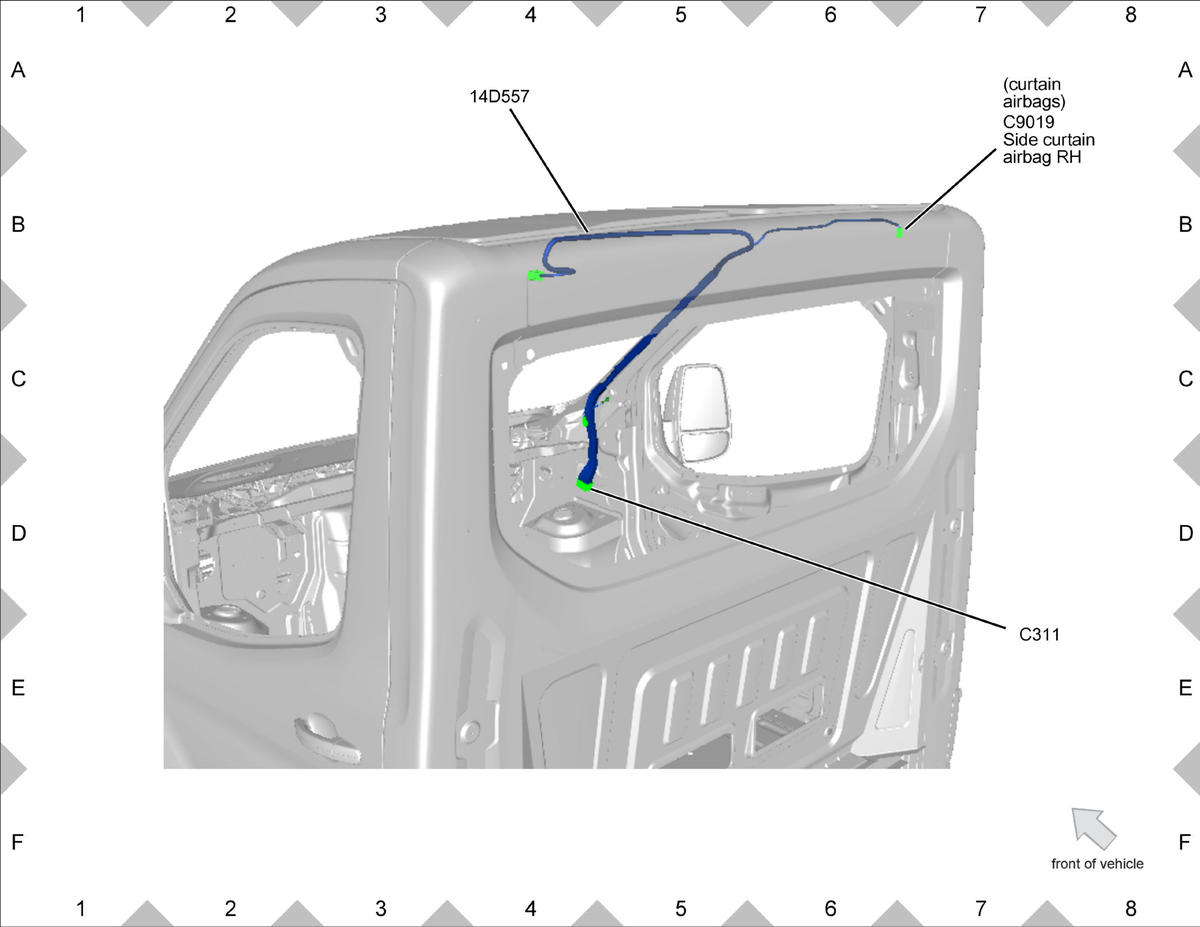

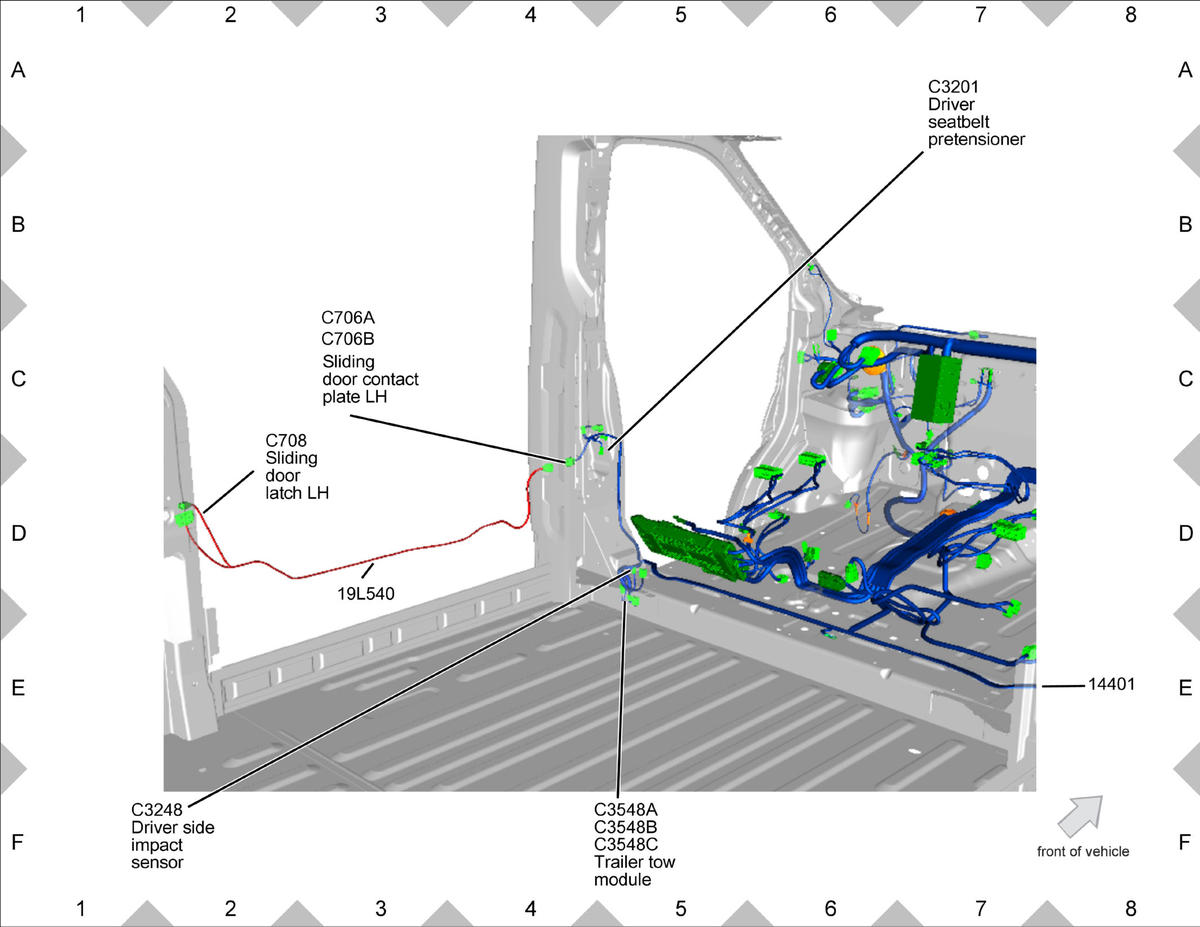

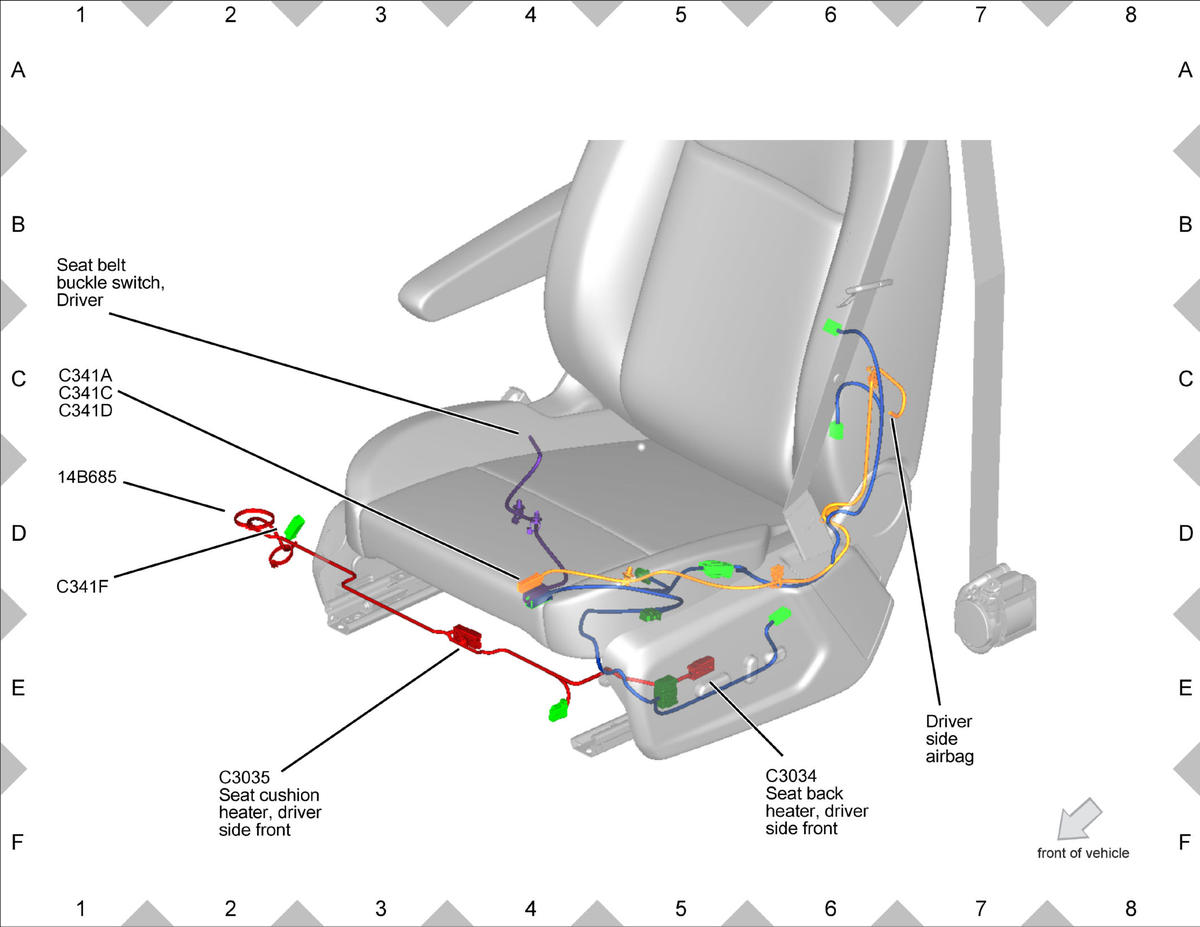

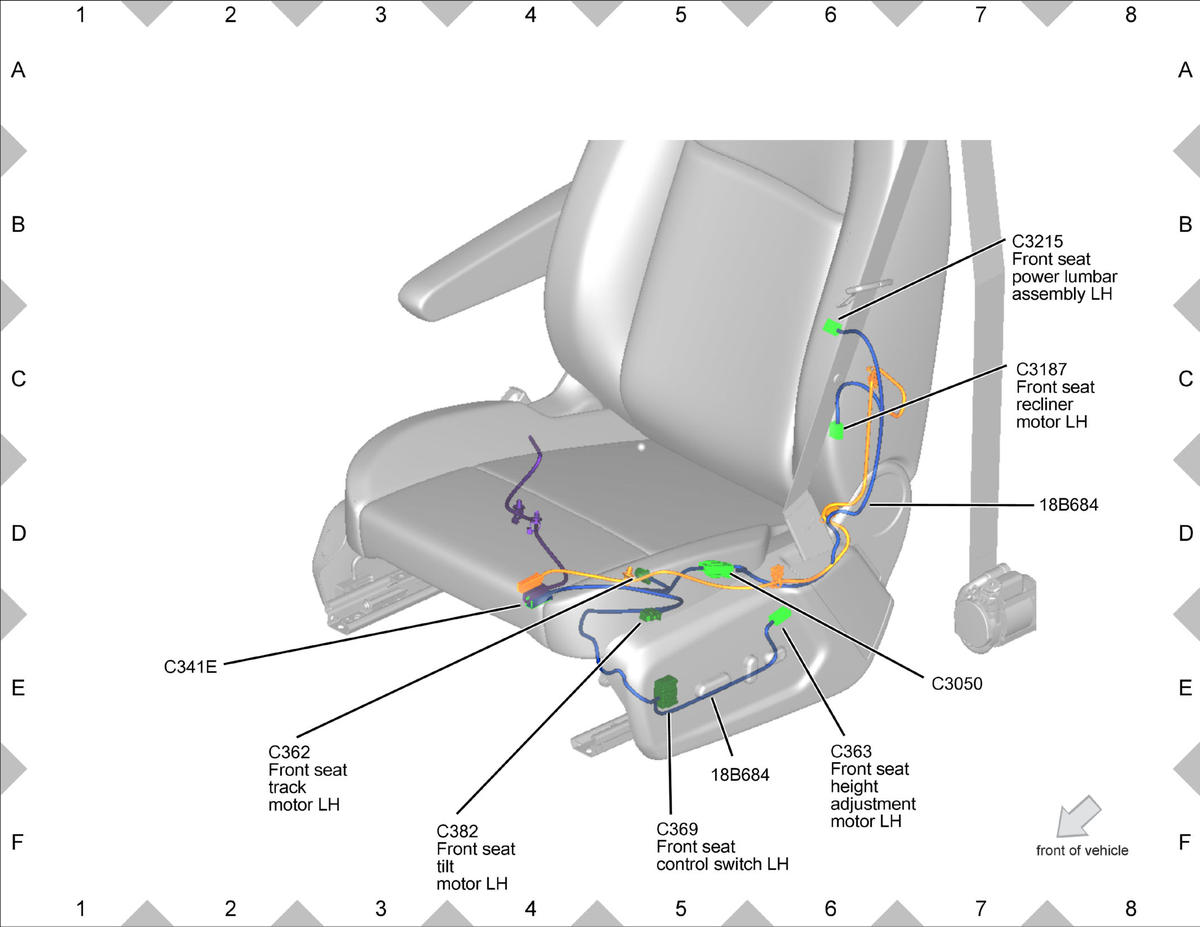

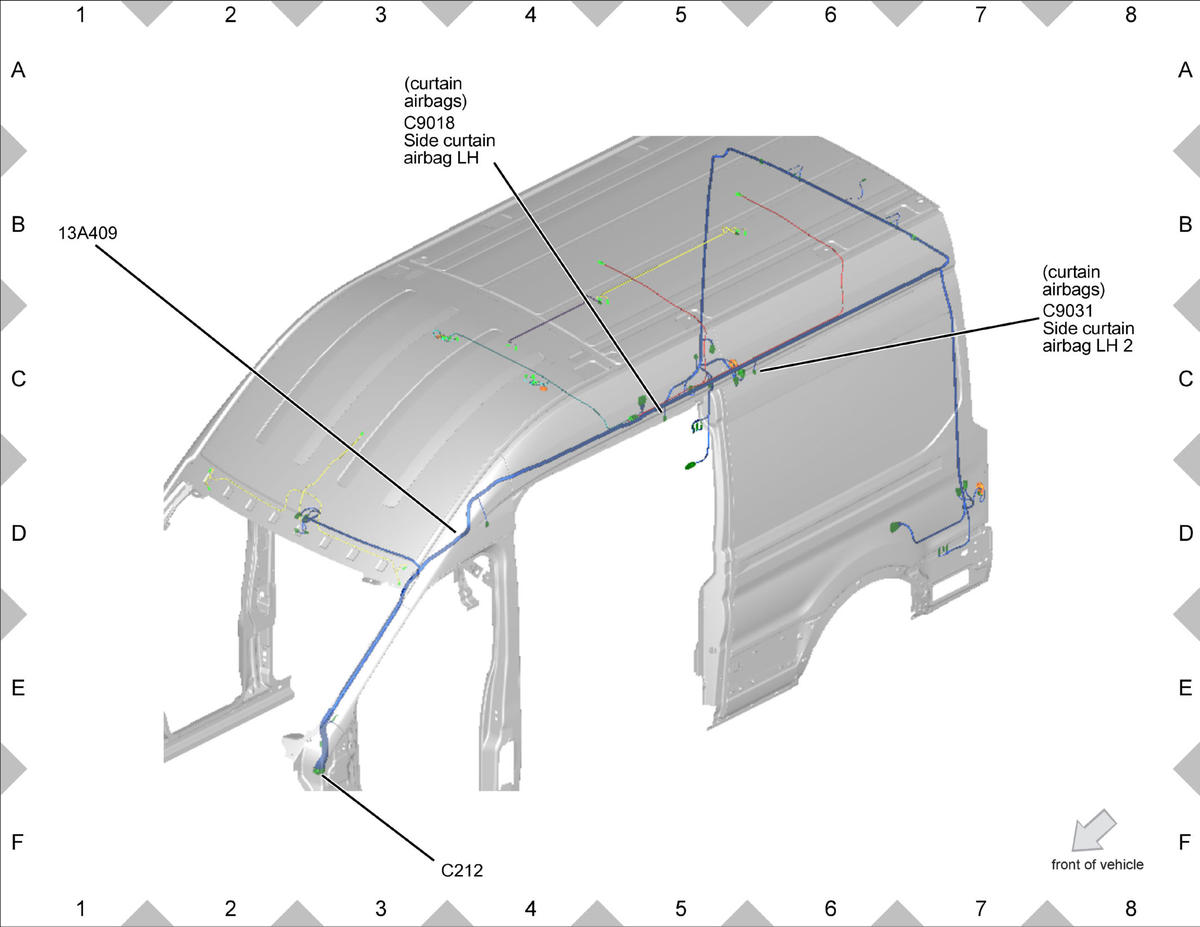

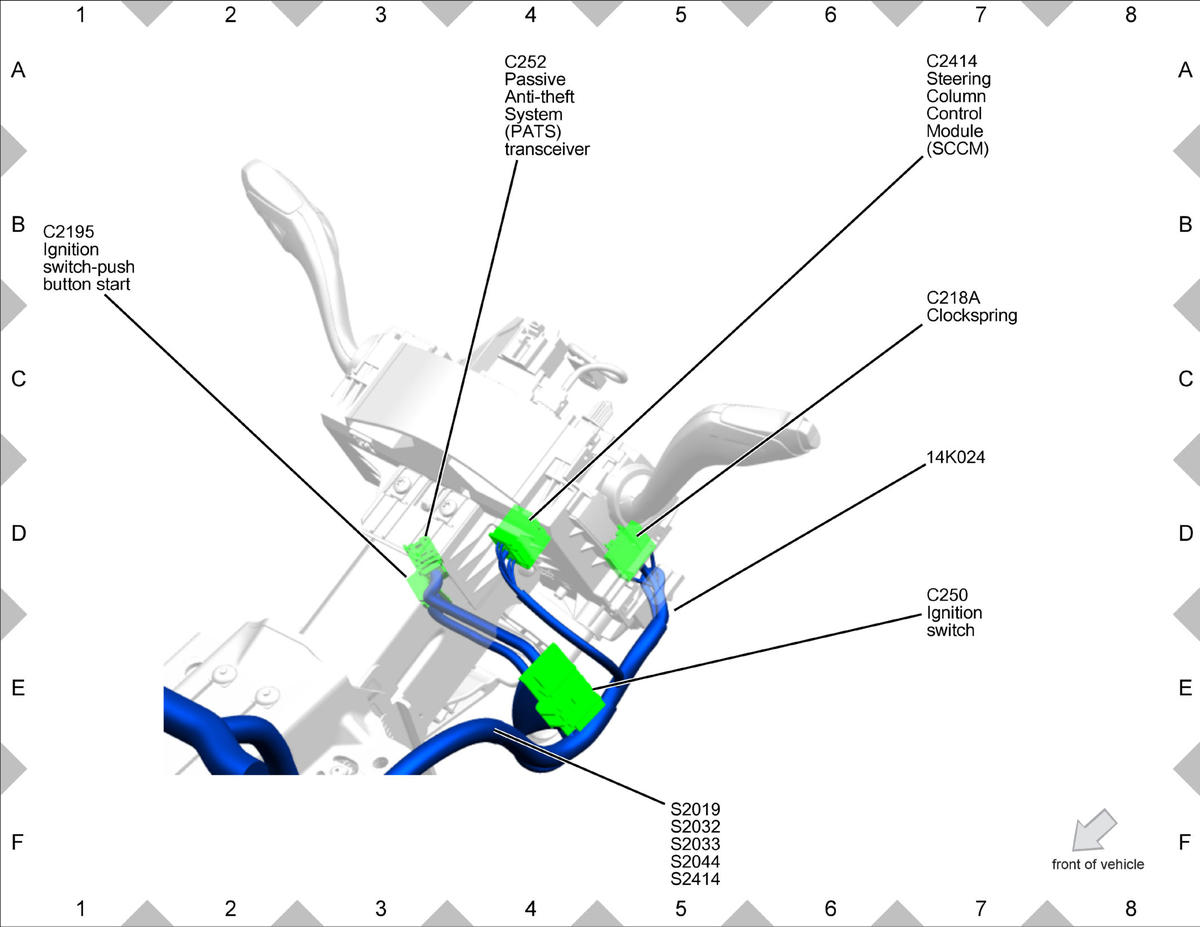

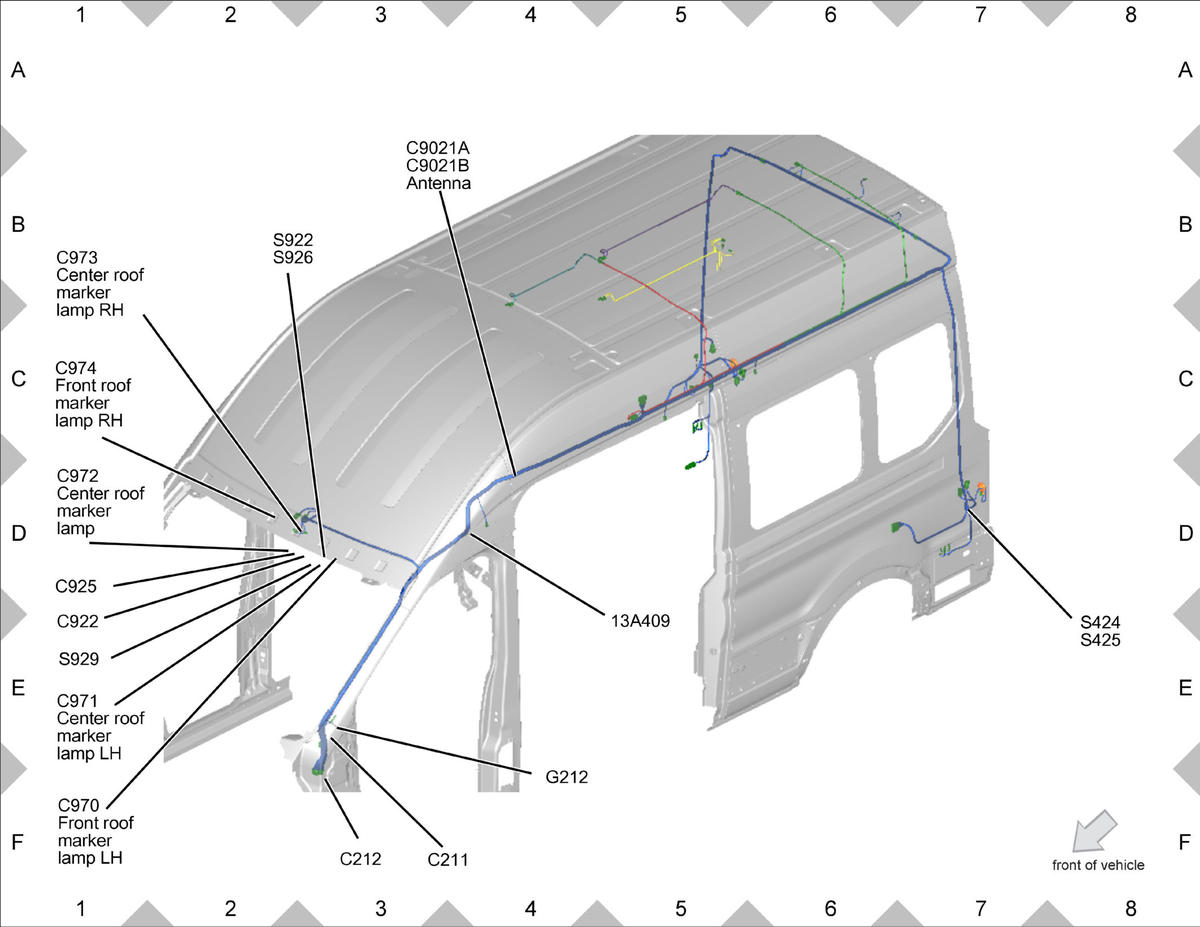

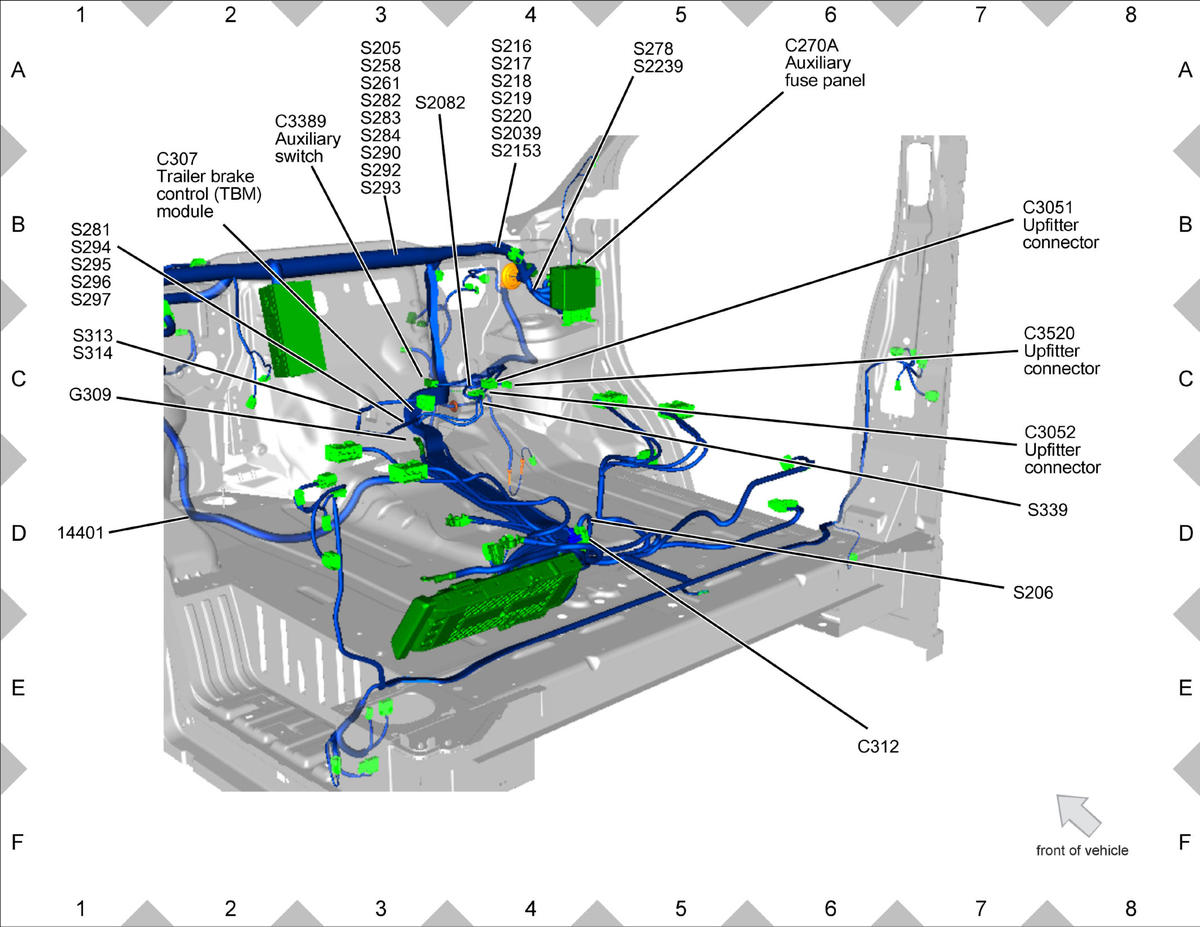

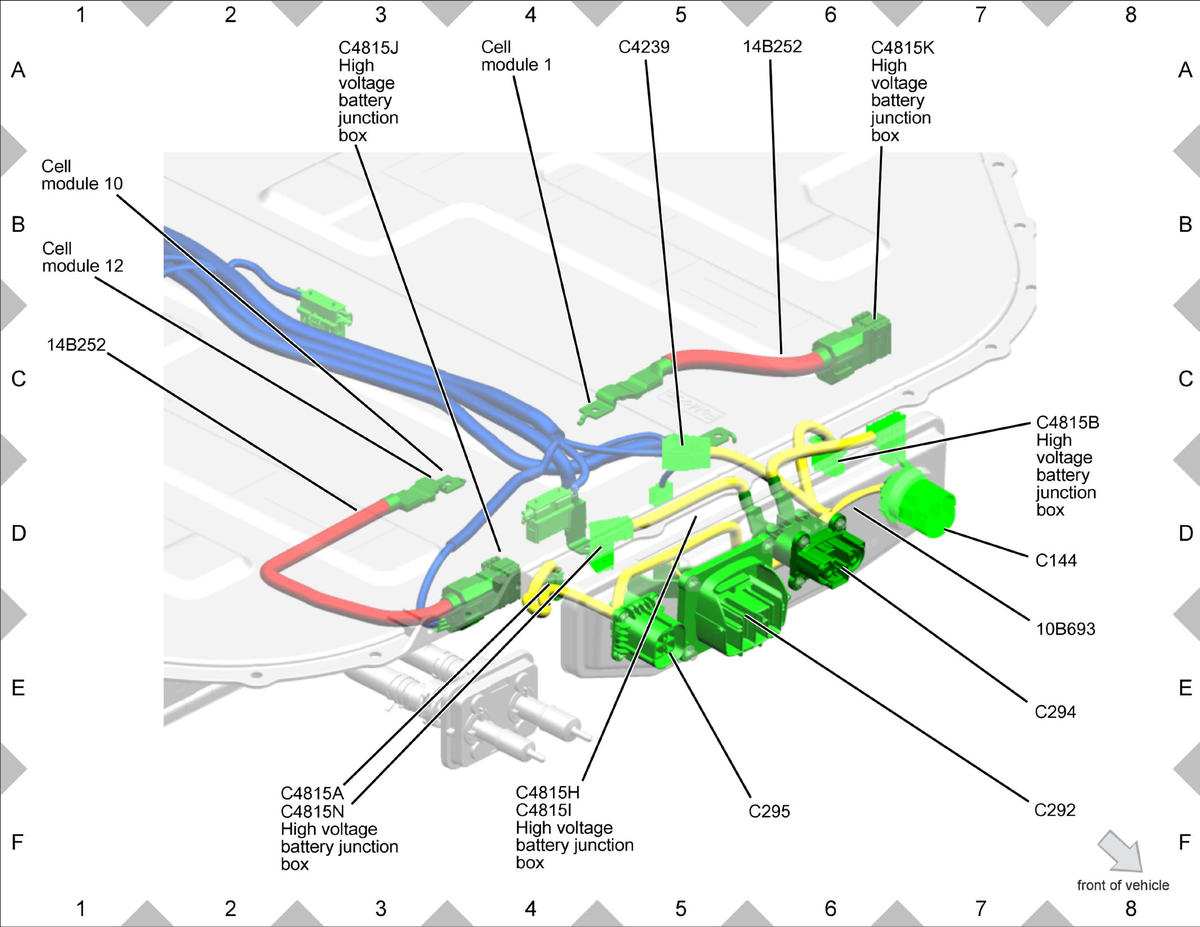

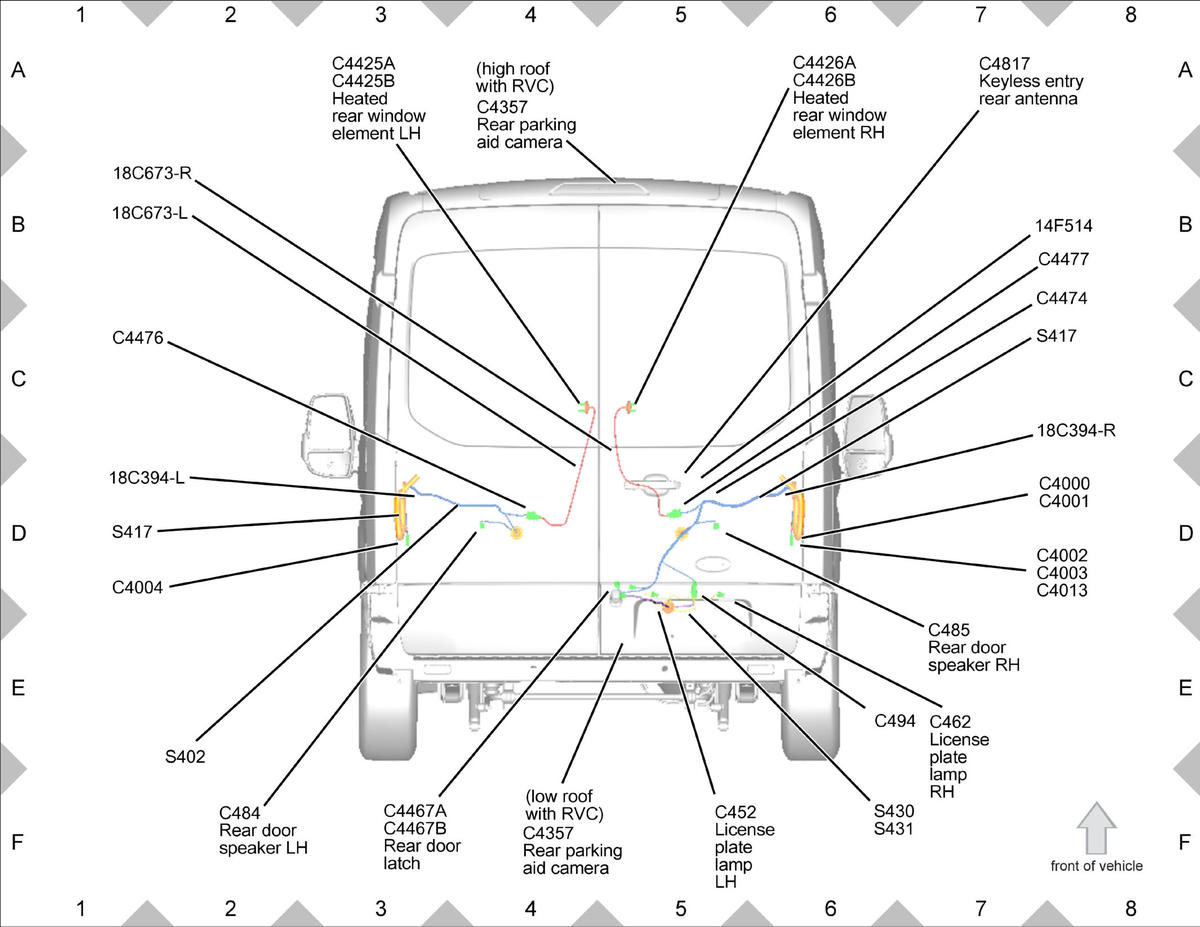

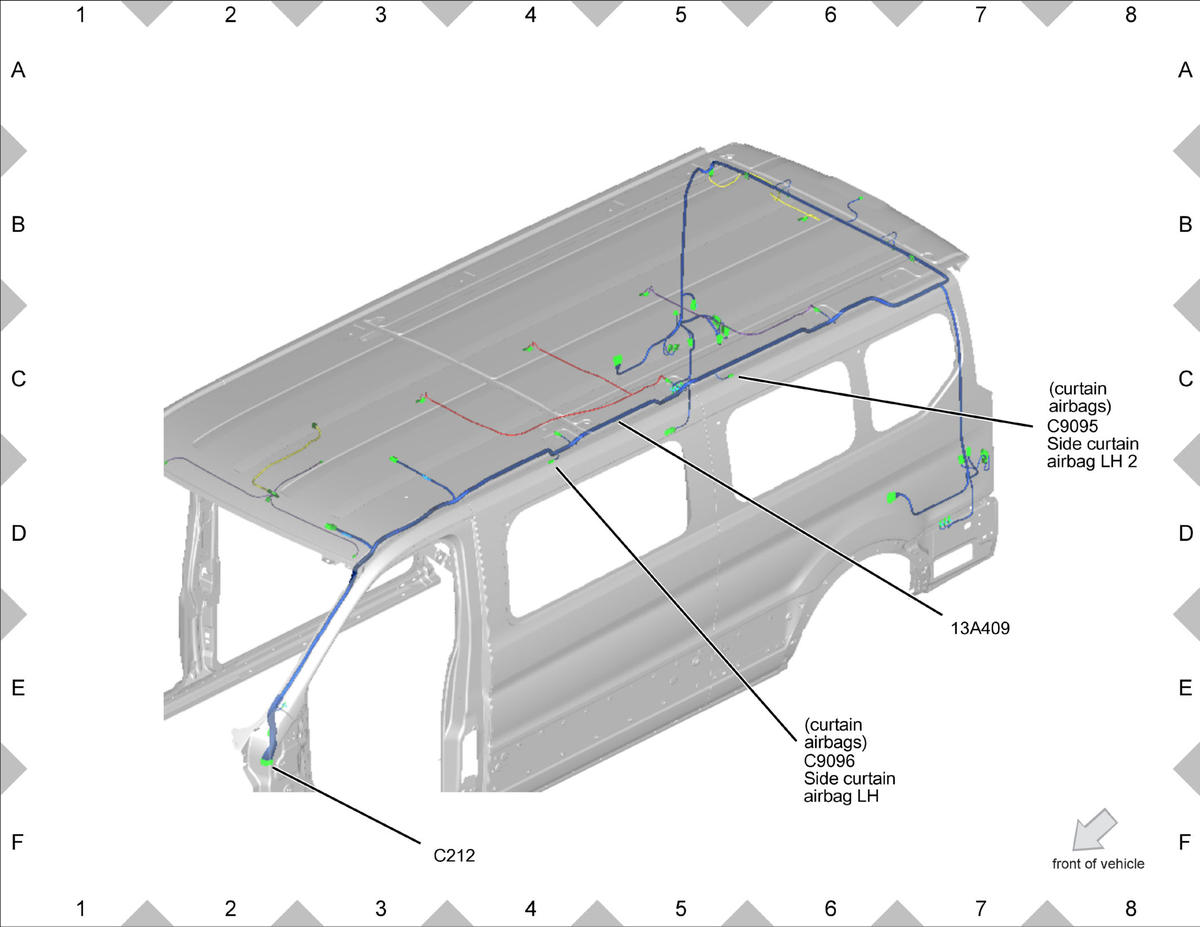

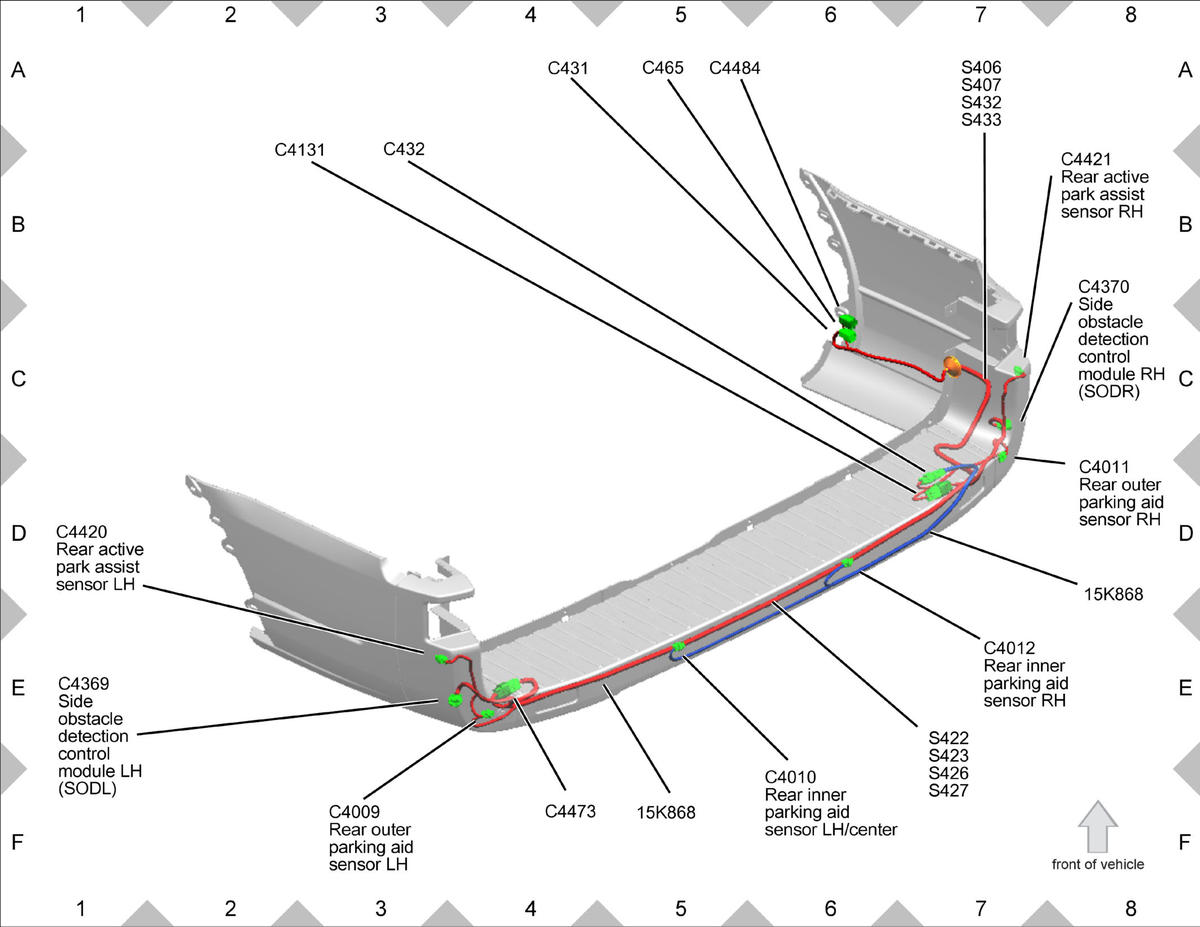

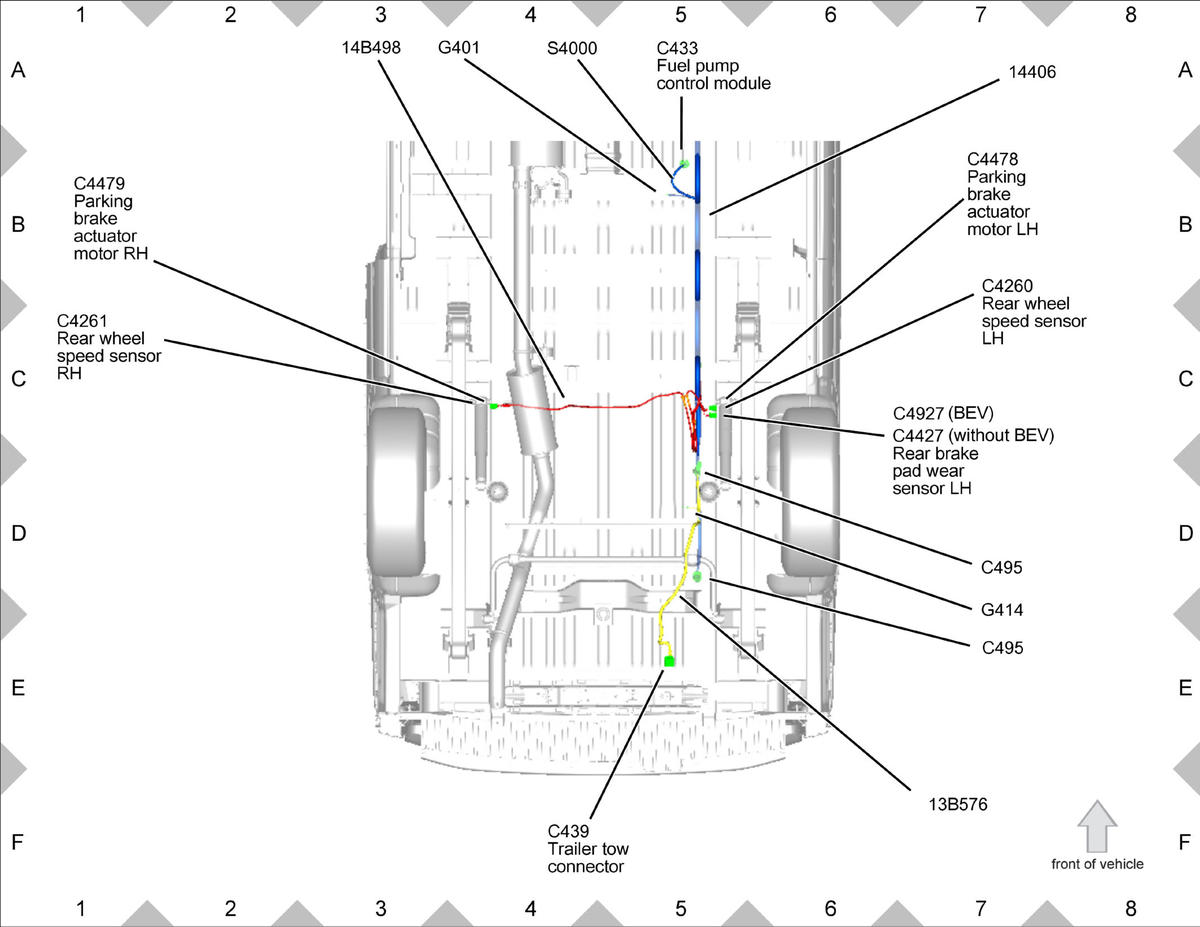

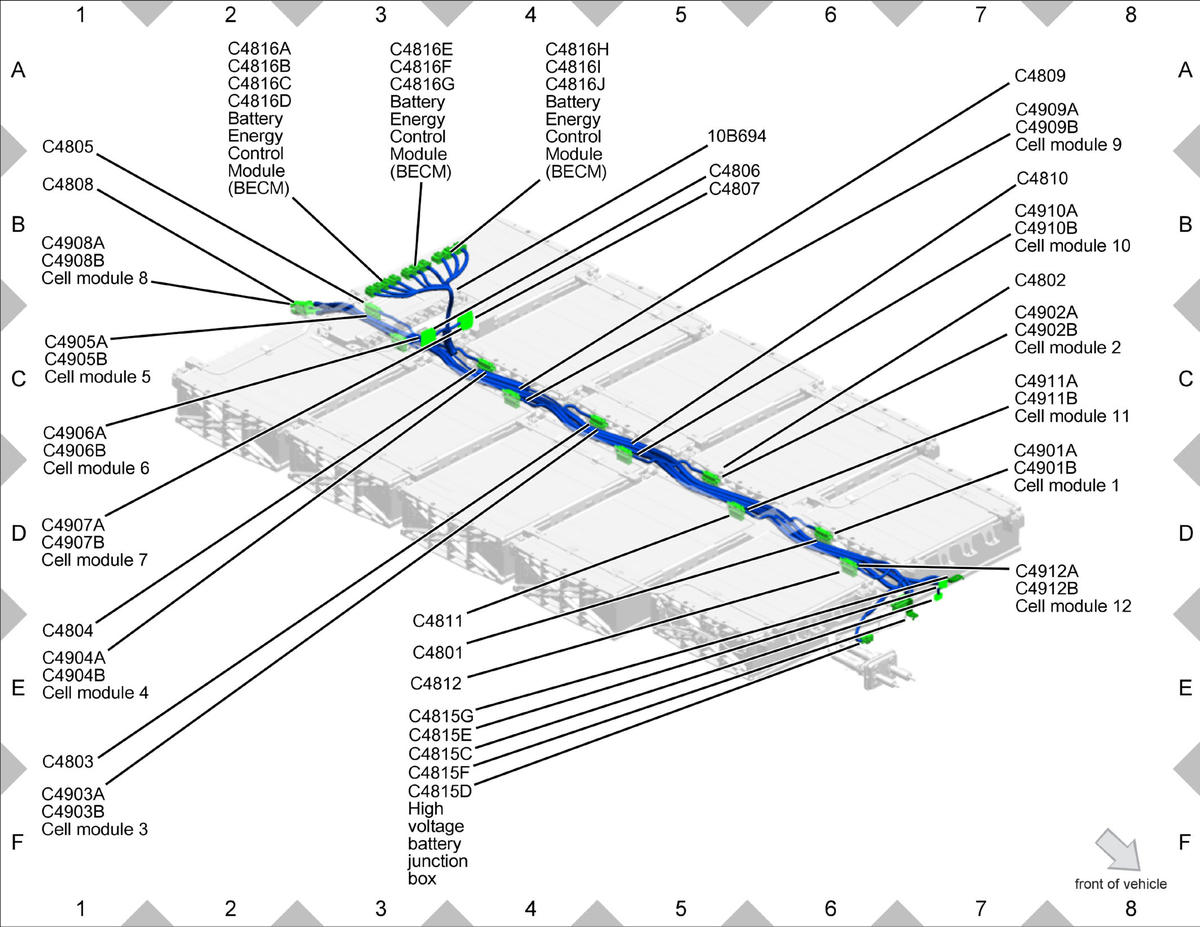

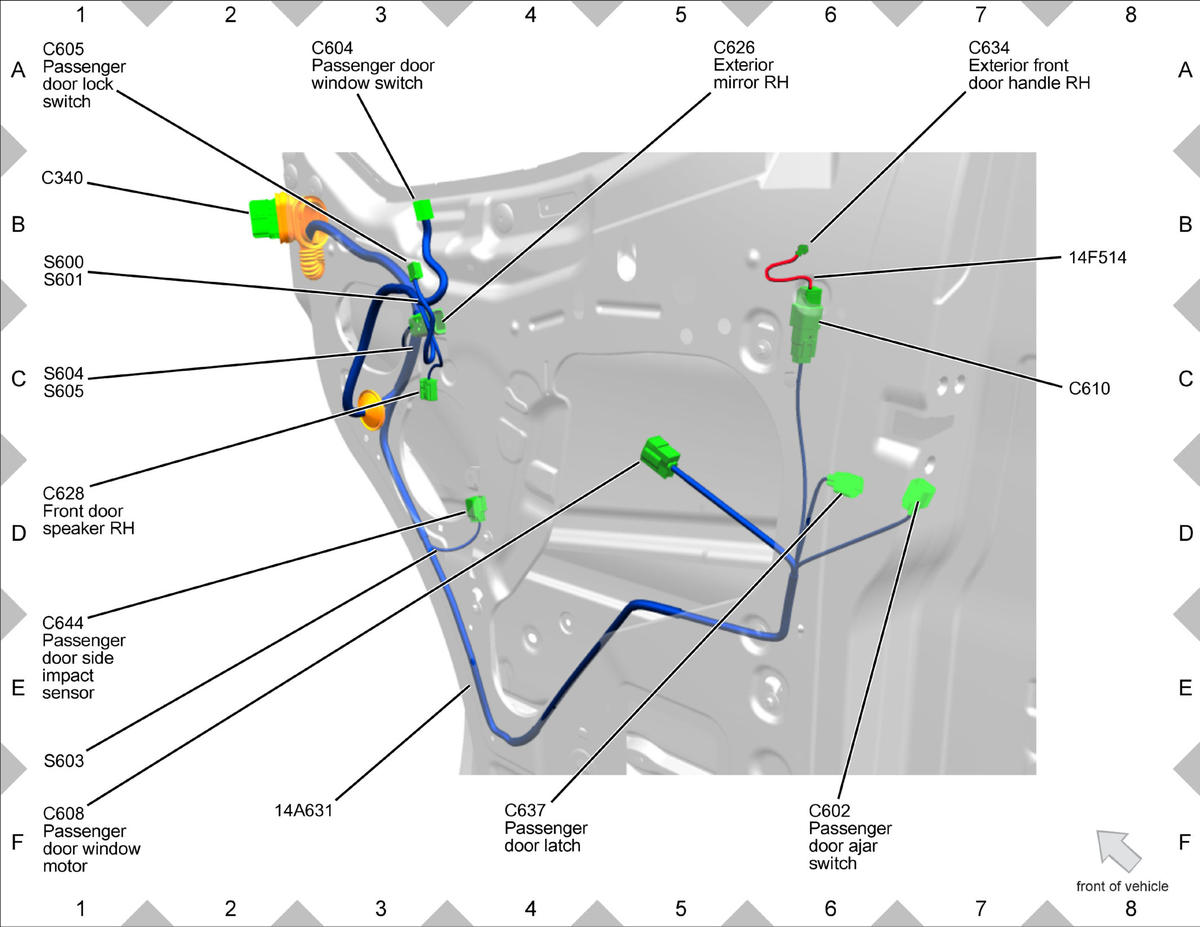

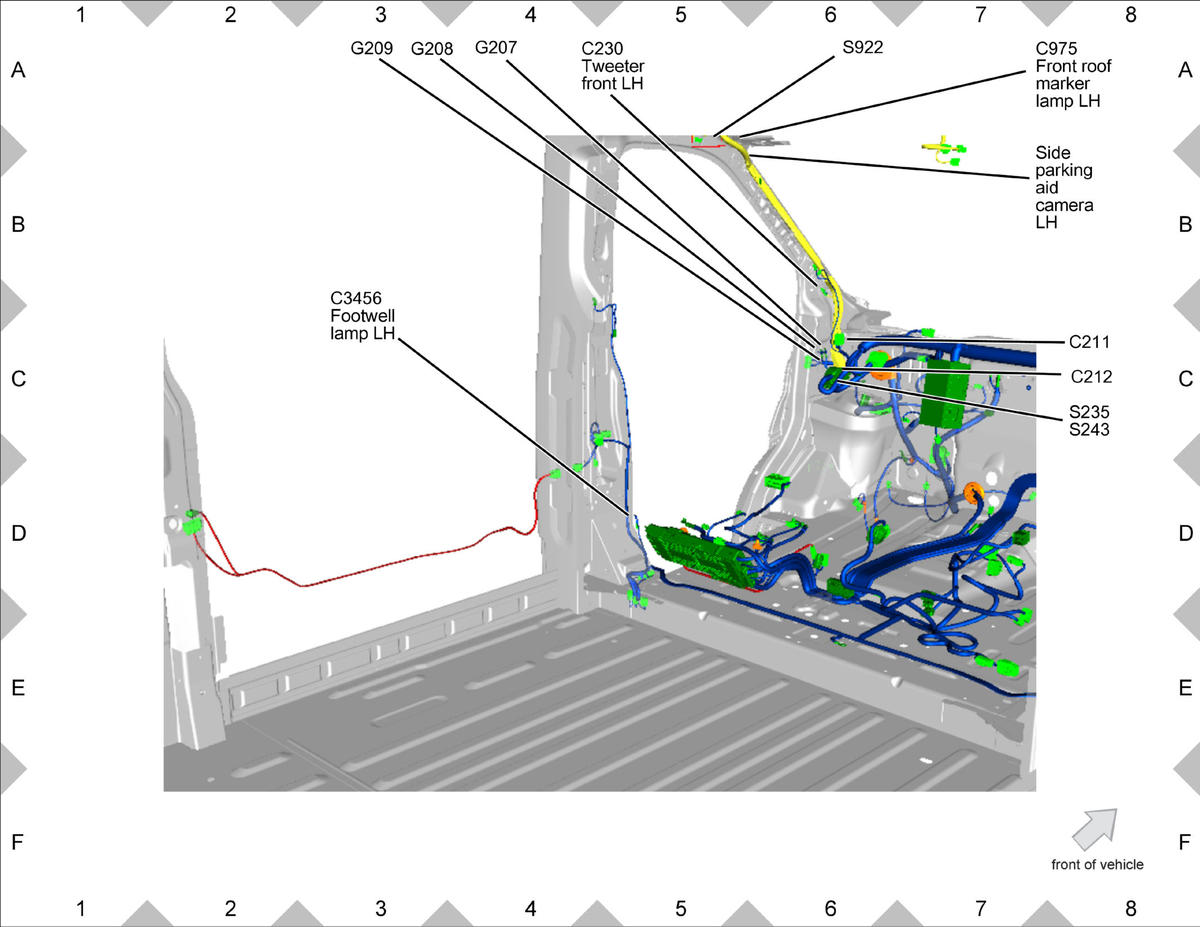

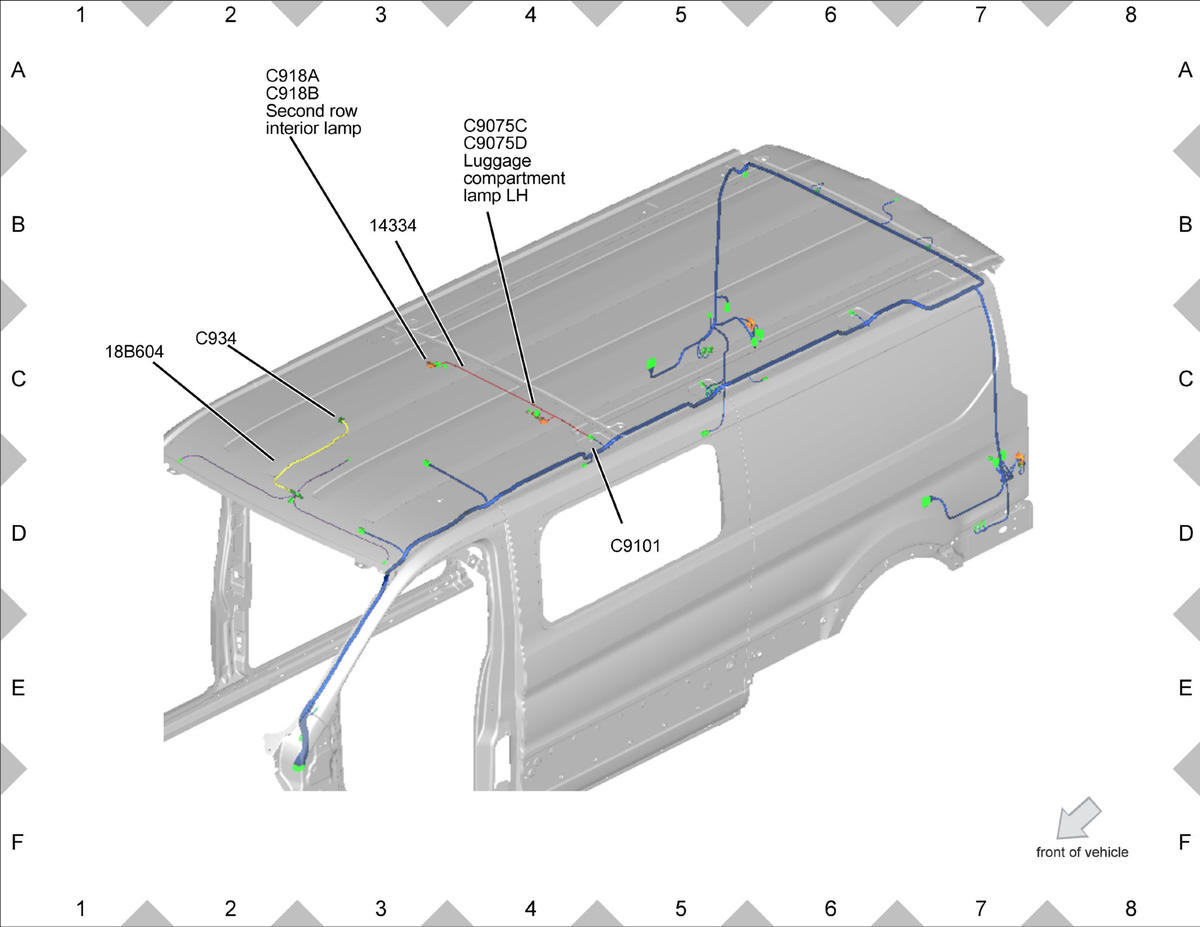

Component Location Views

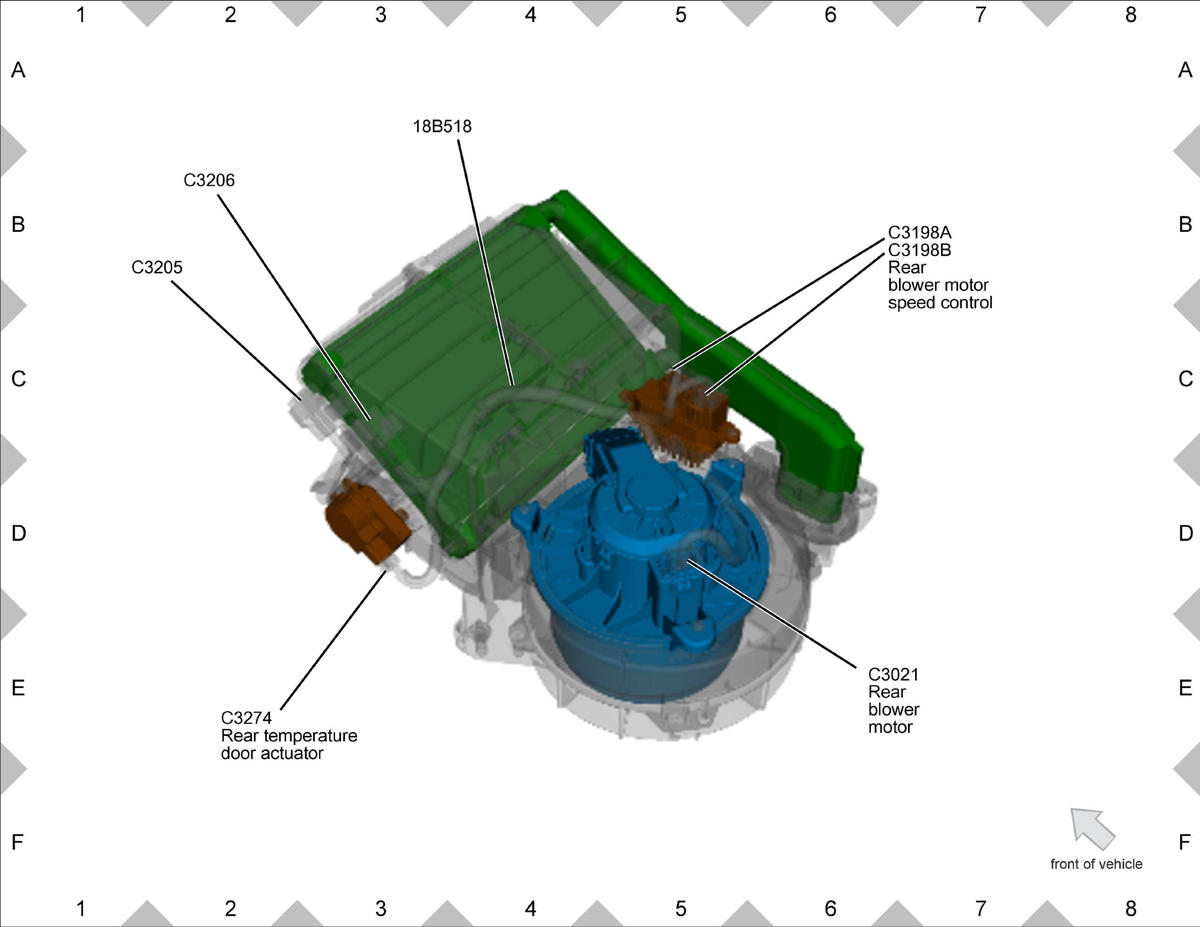

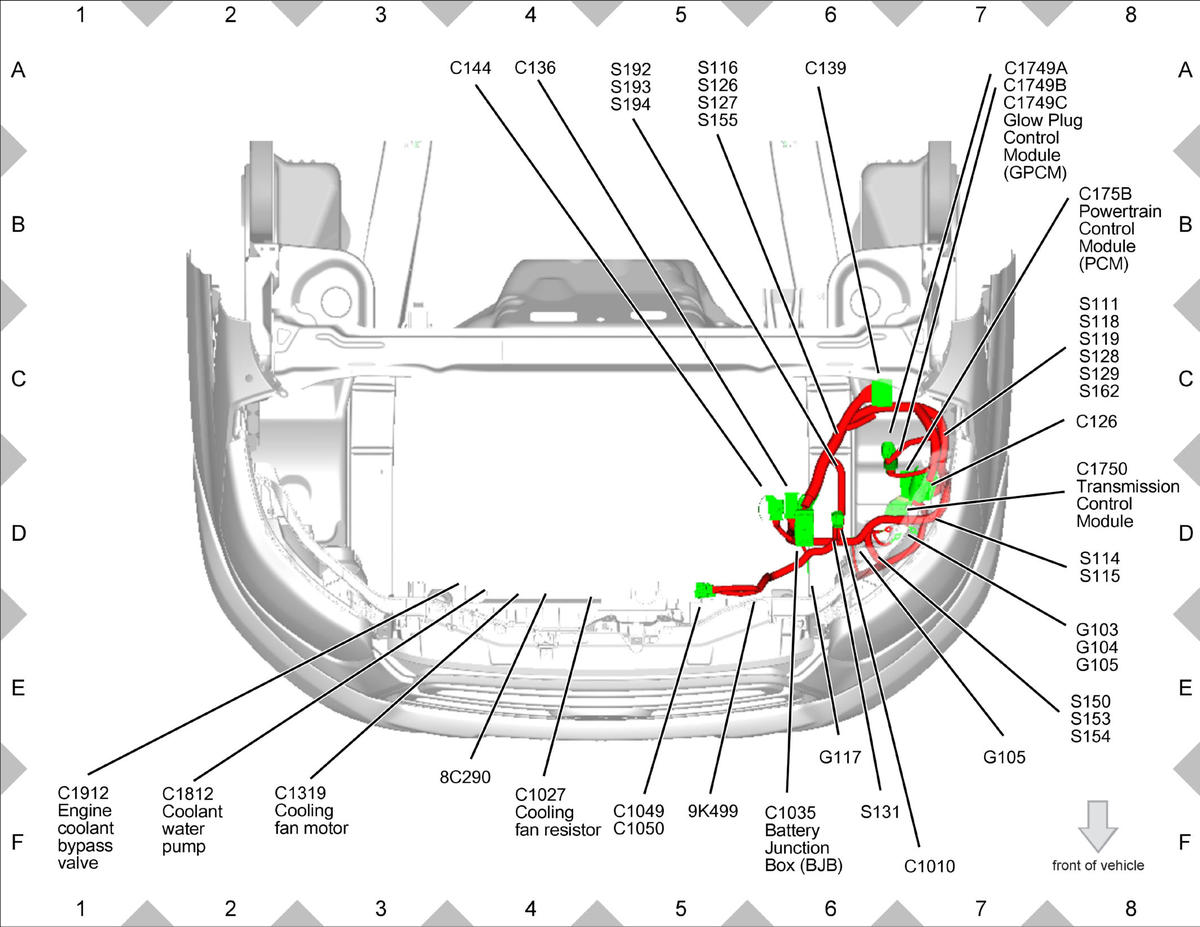

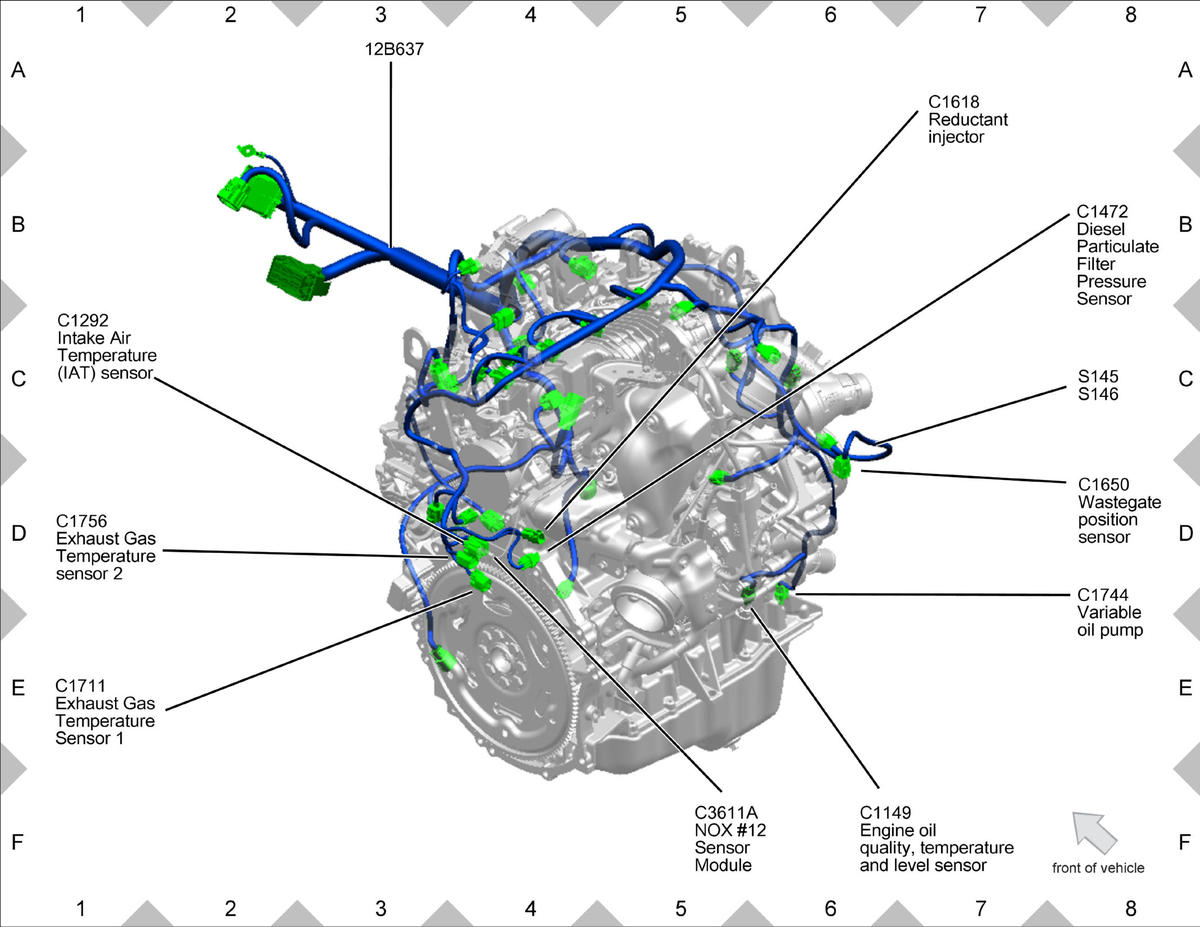

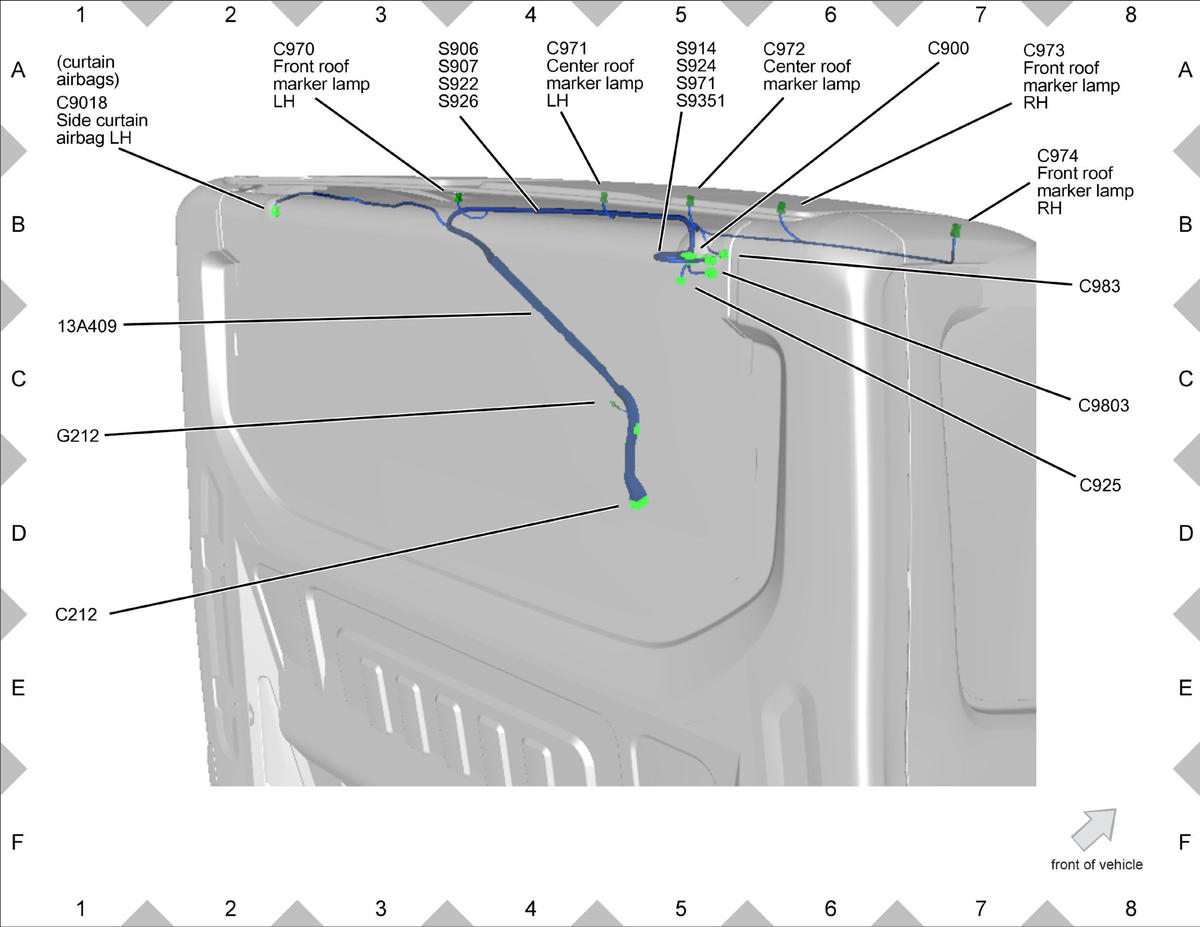

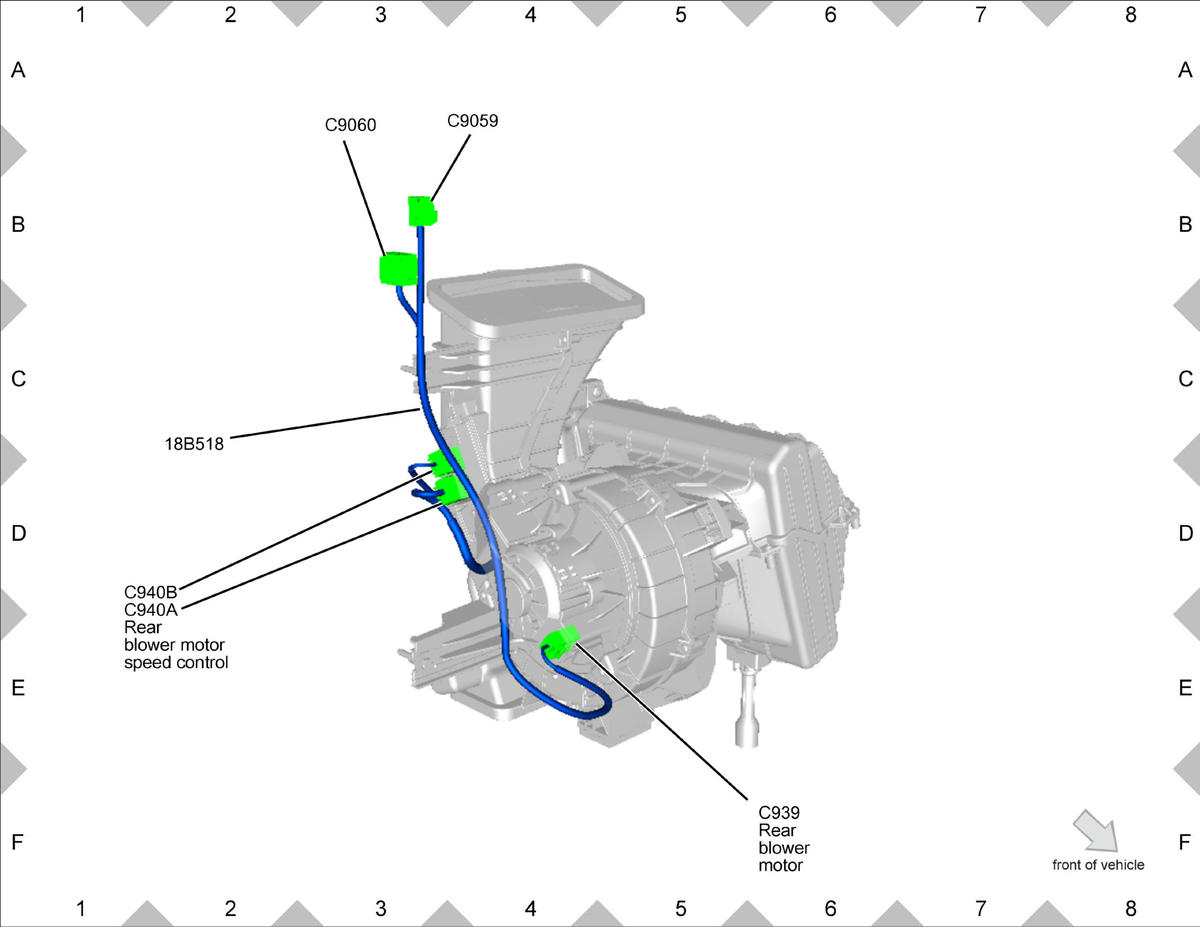

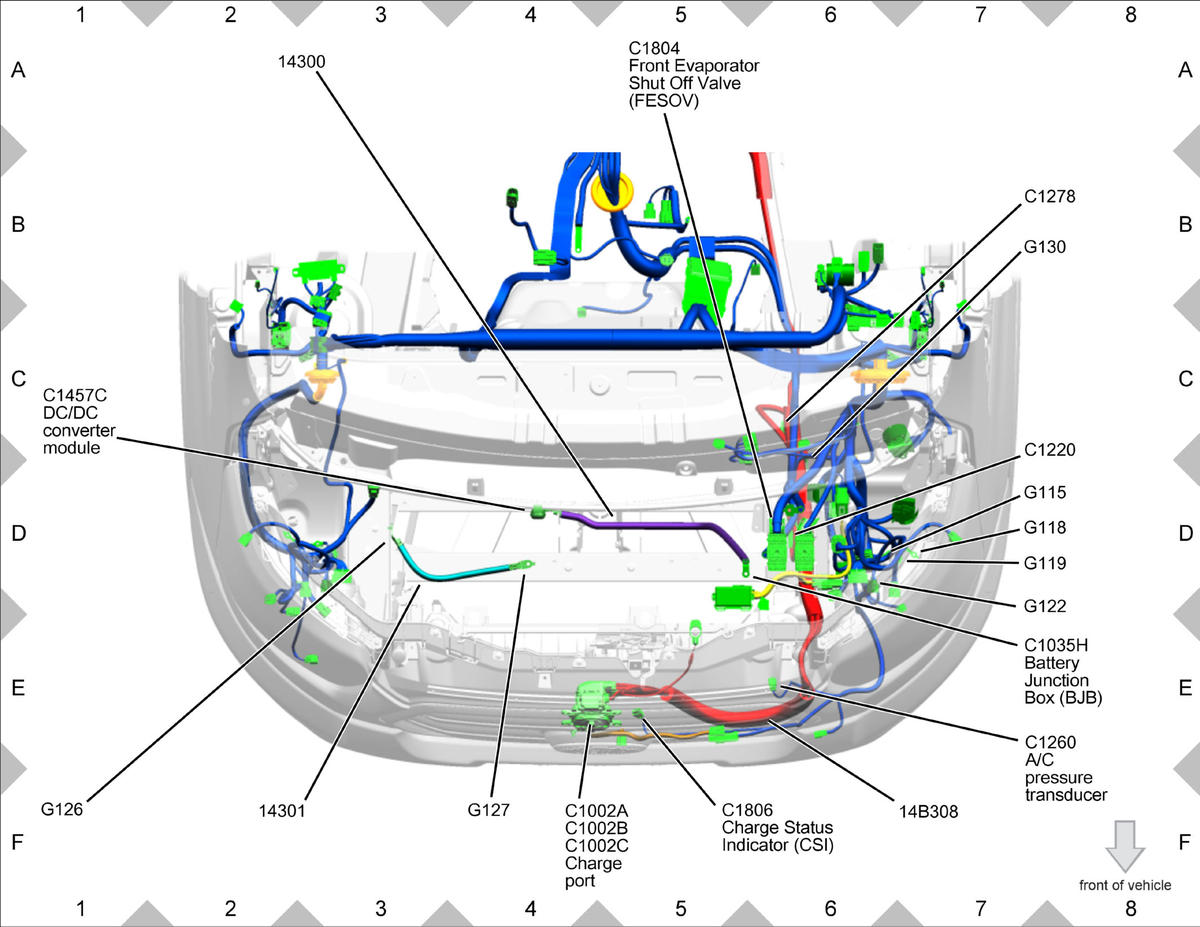

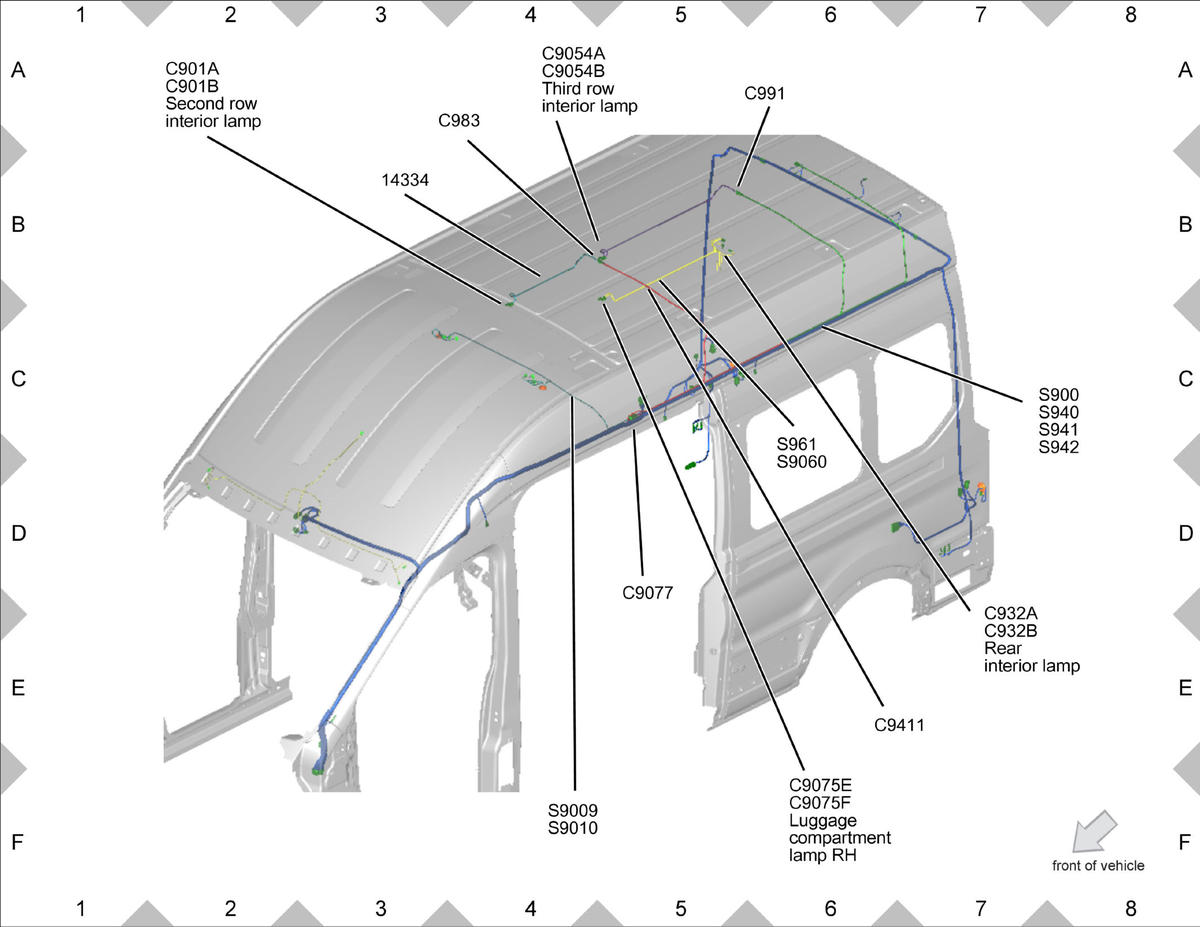

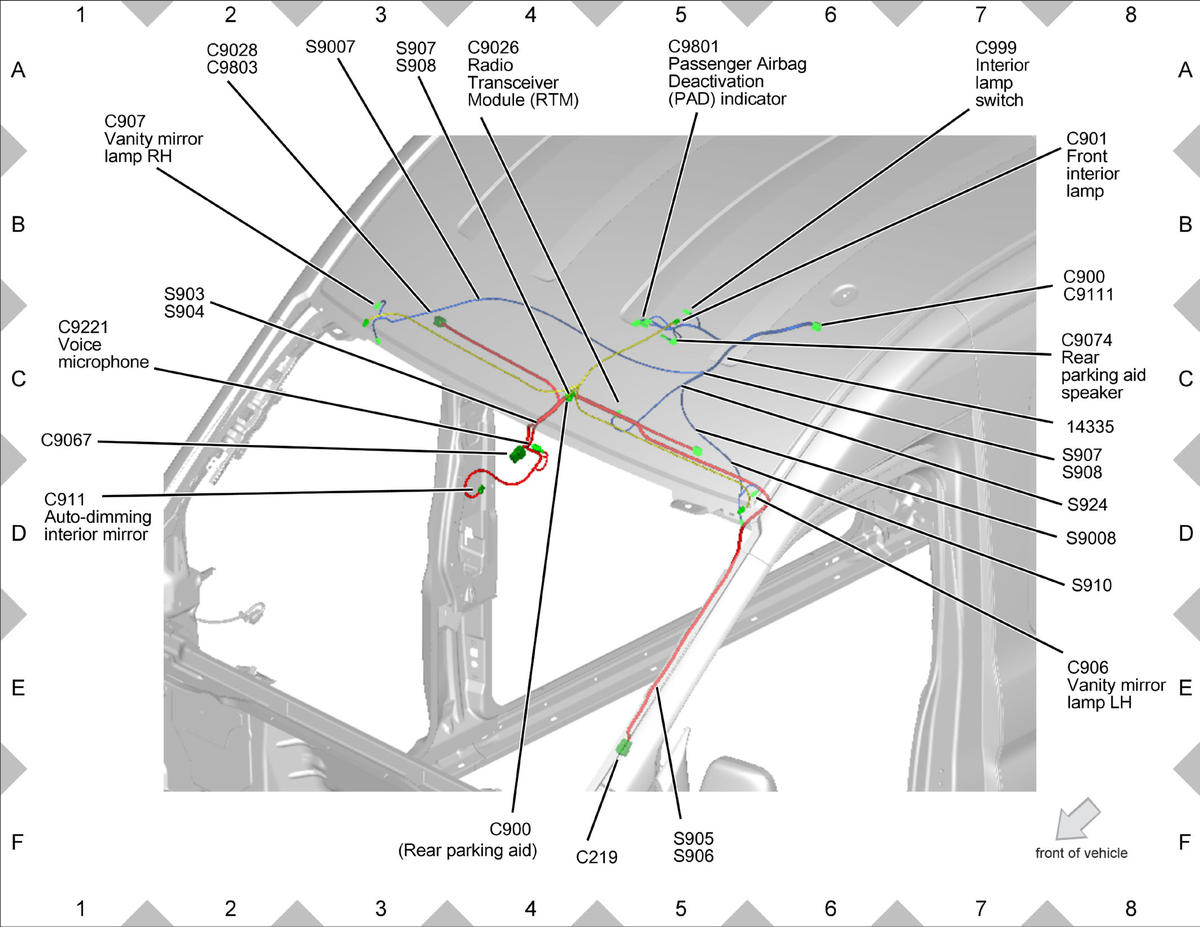

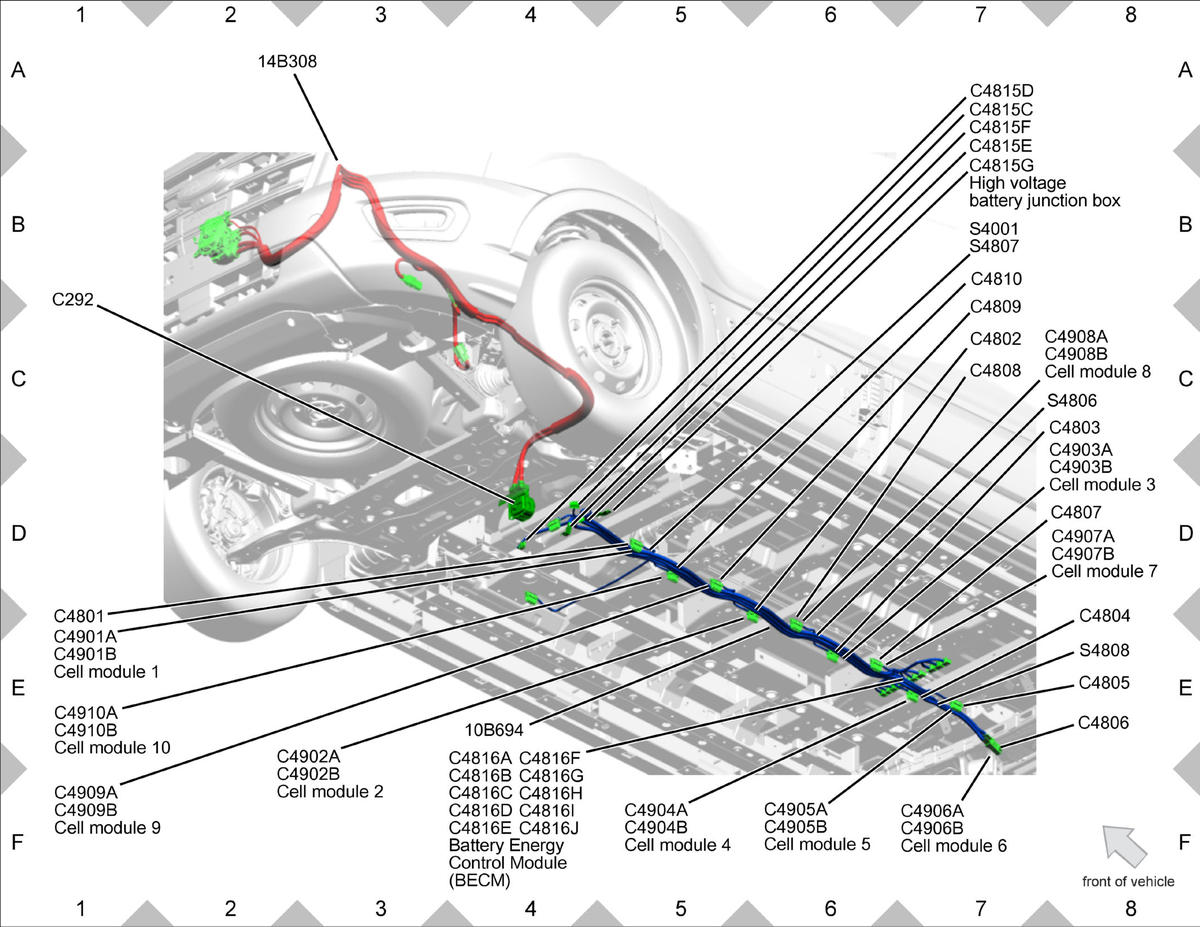

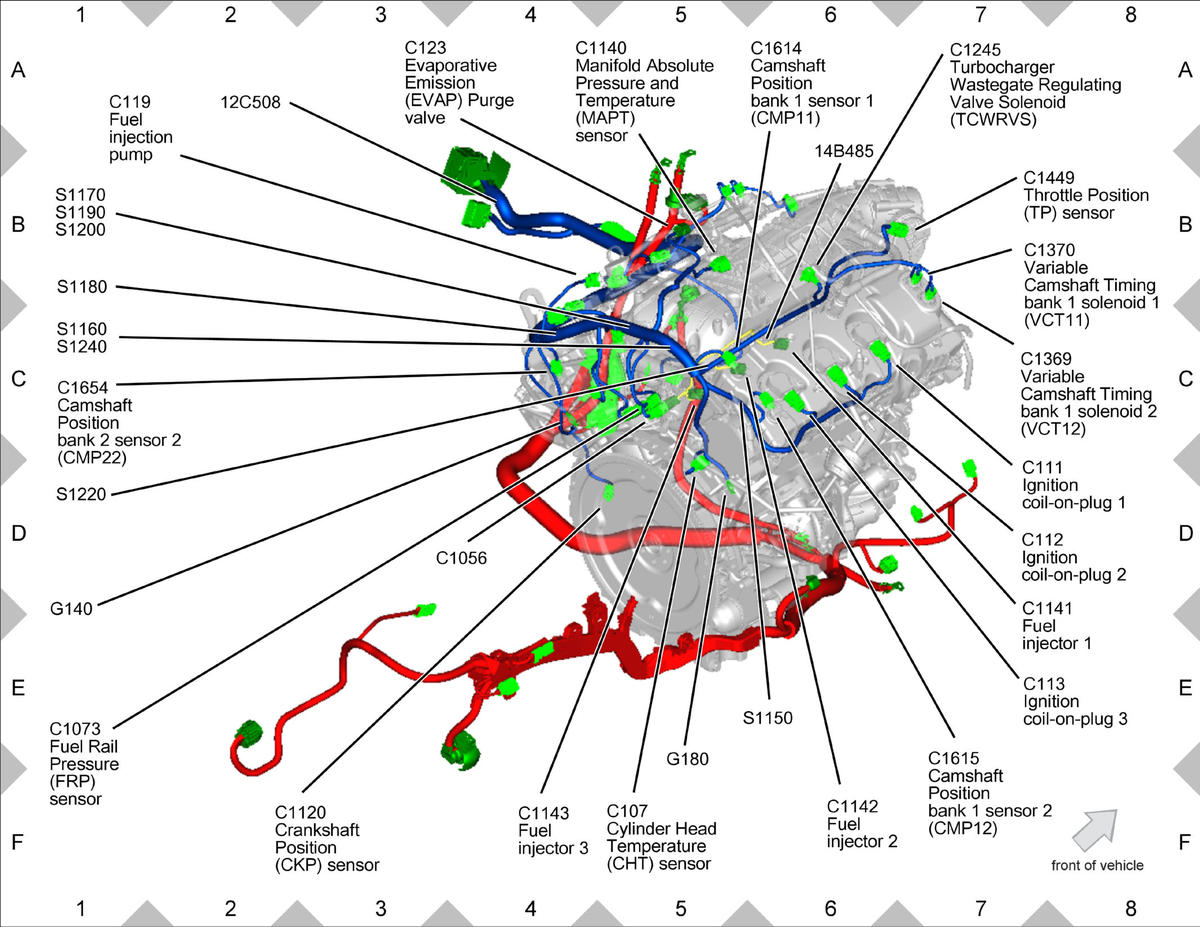

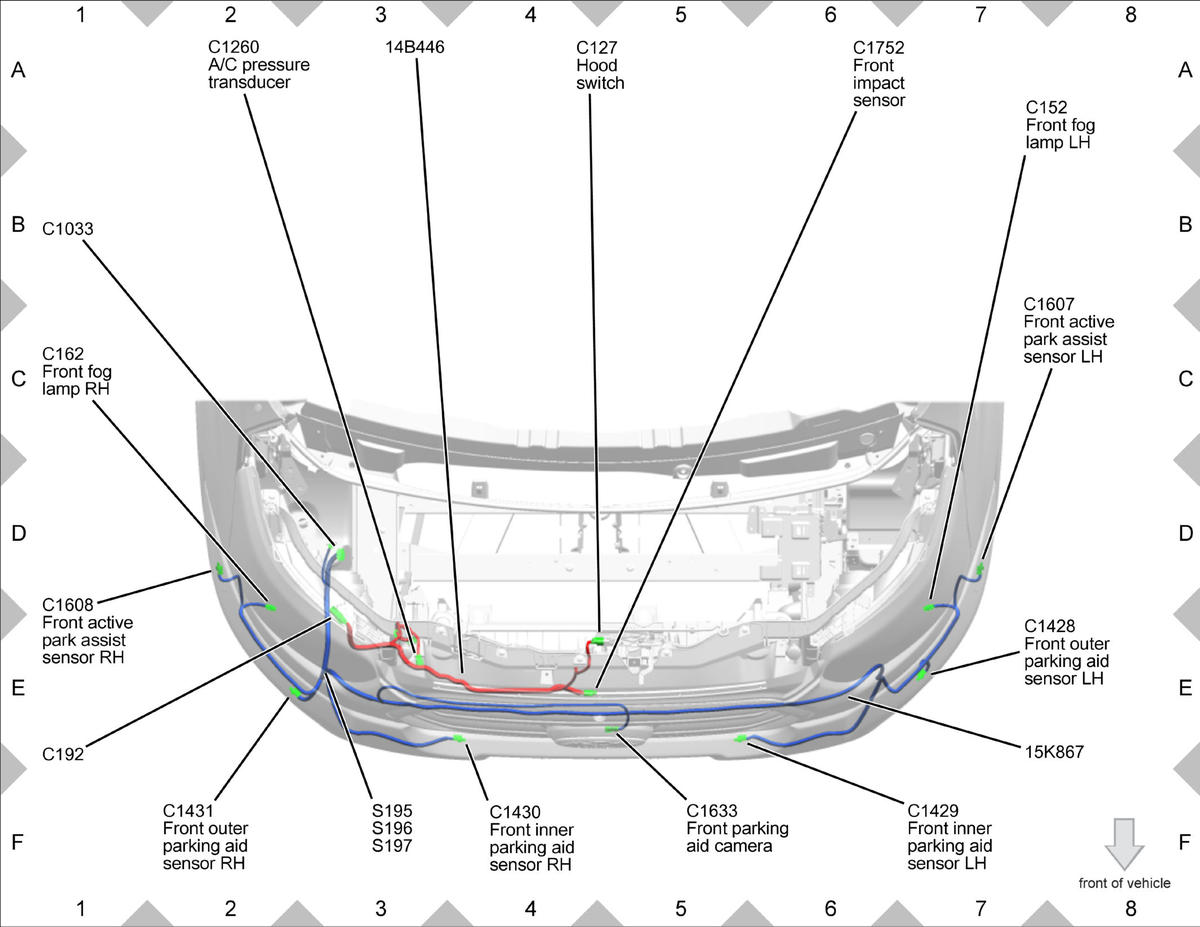

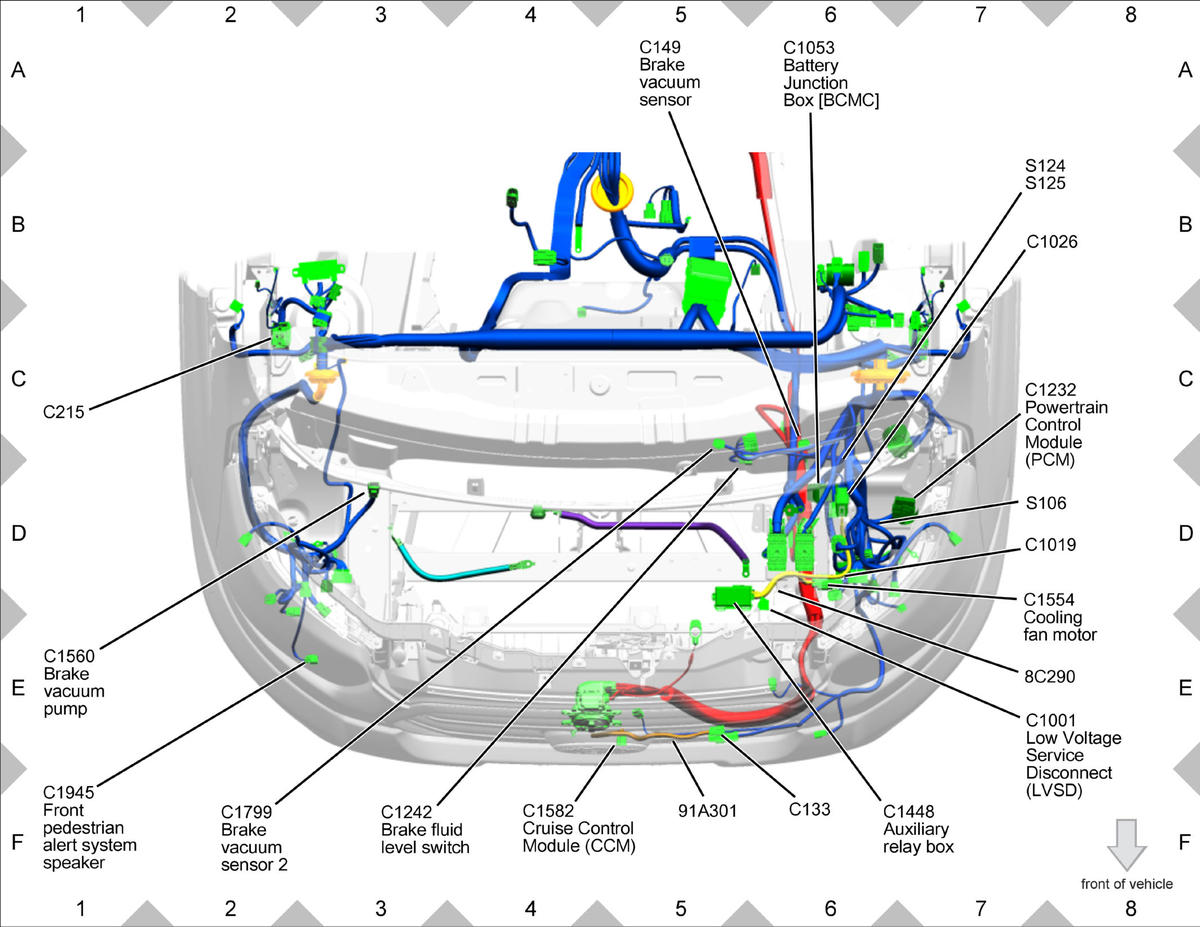

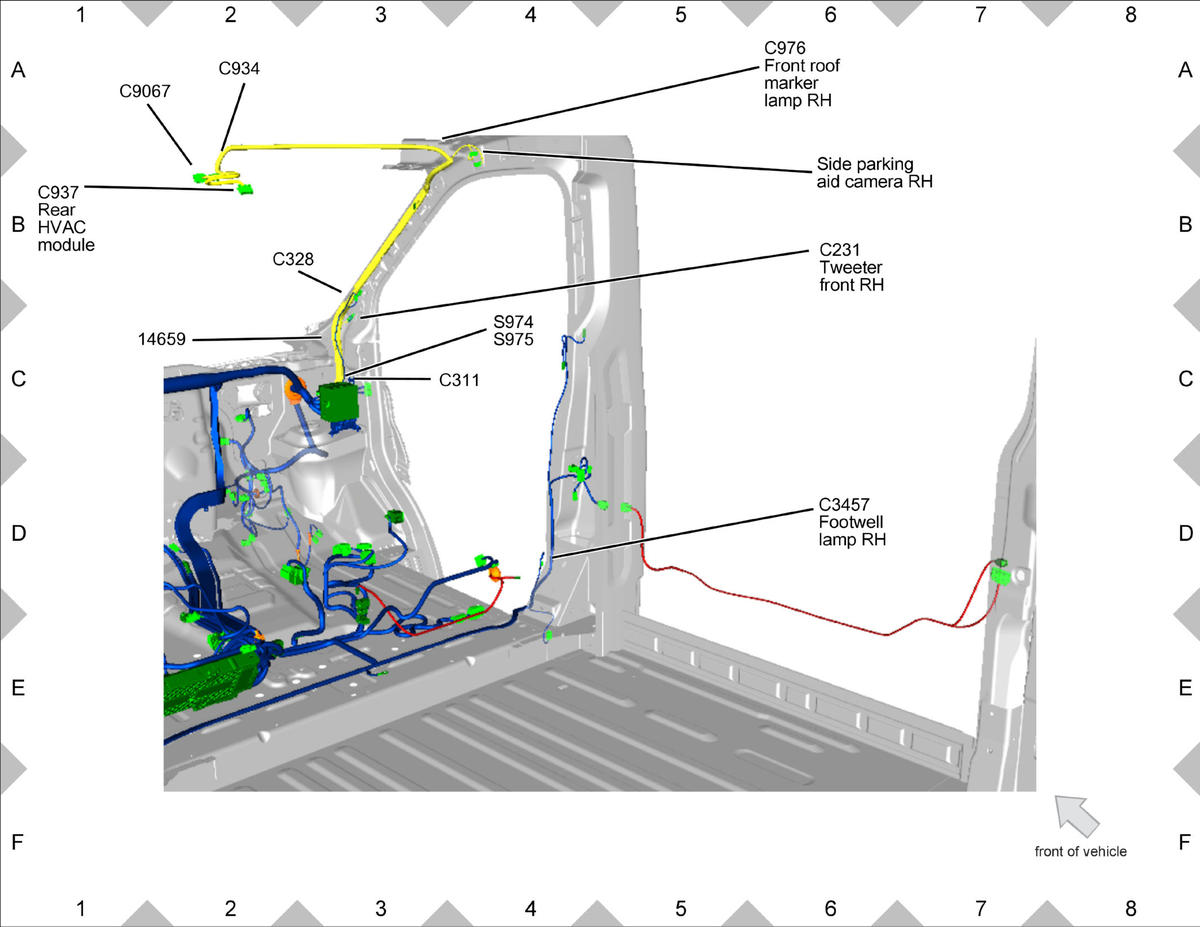

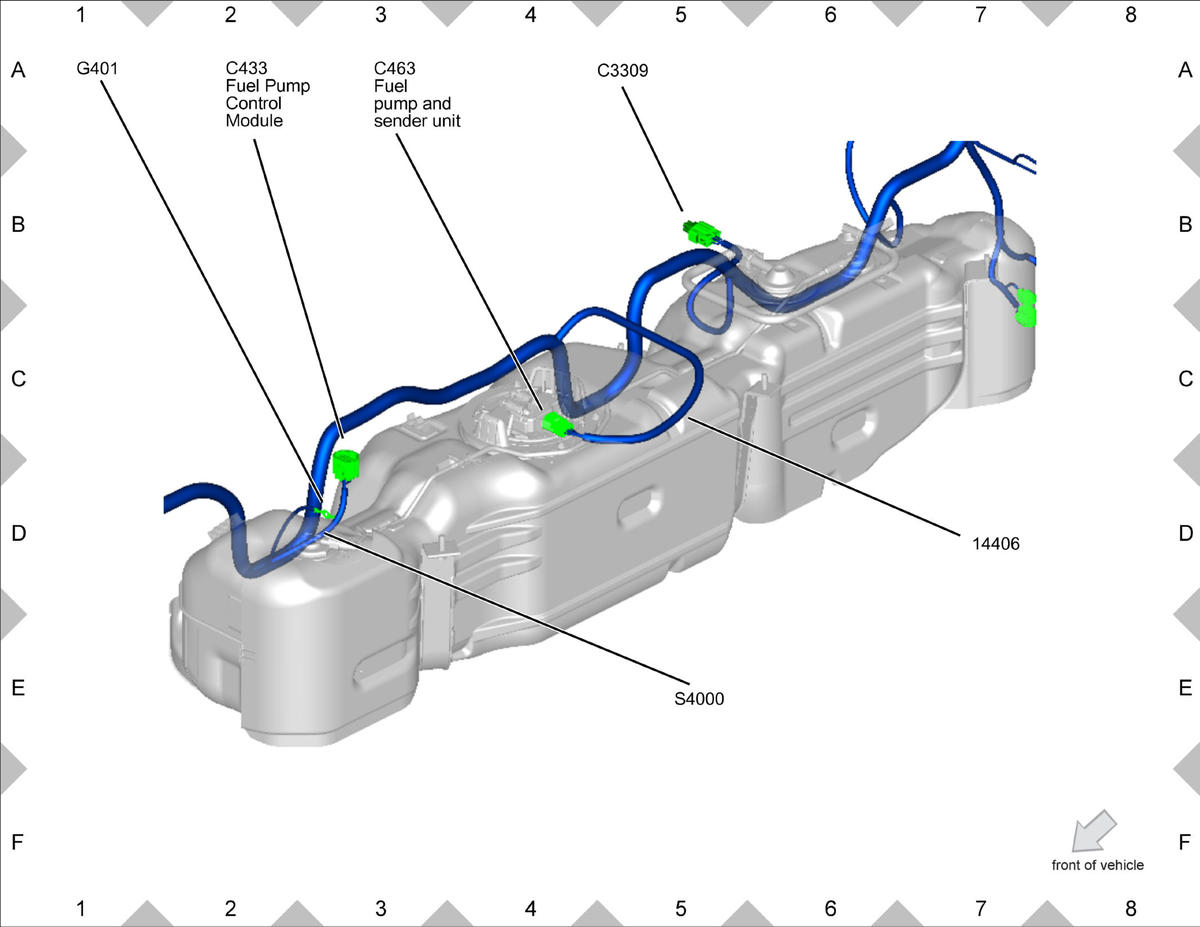

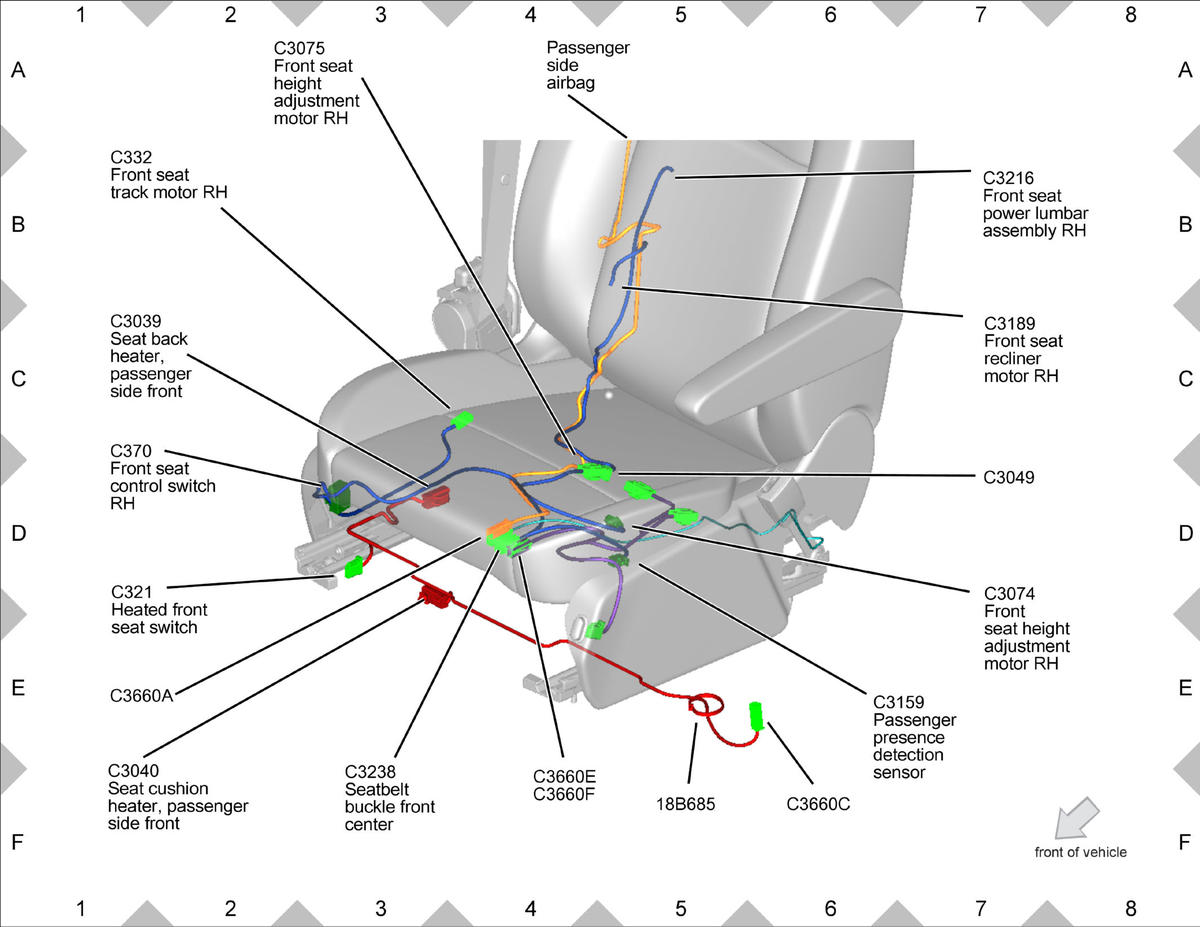

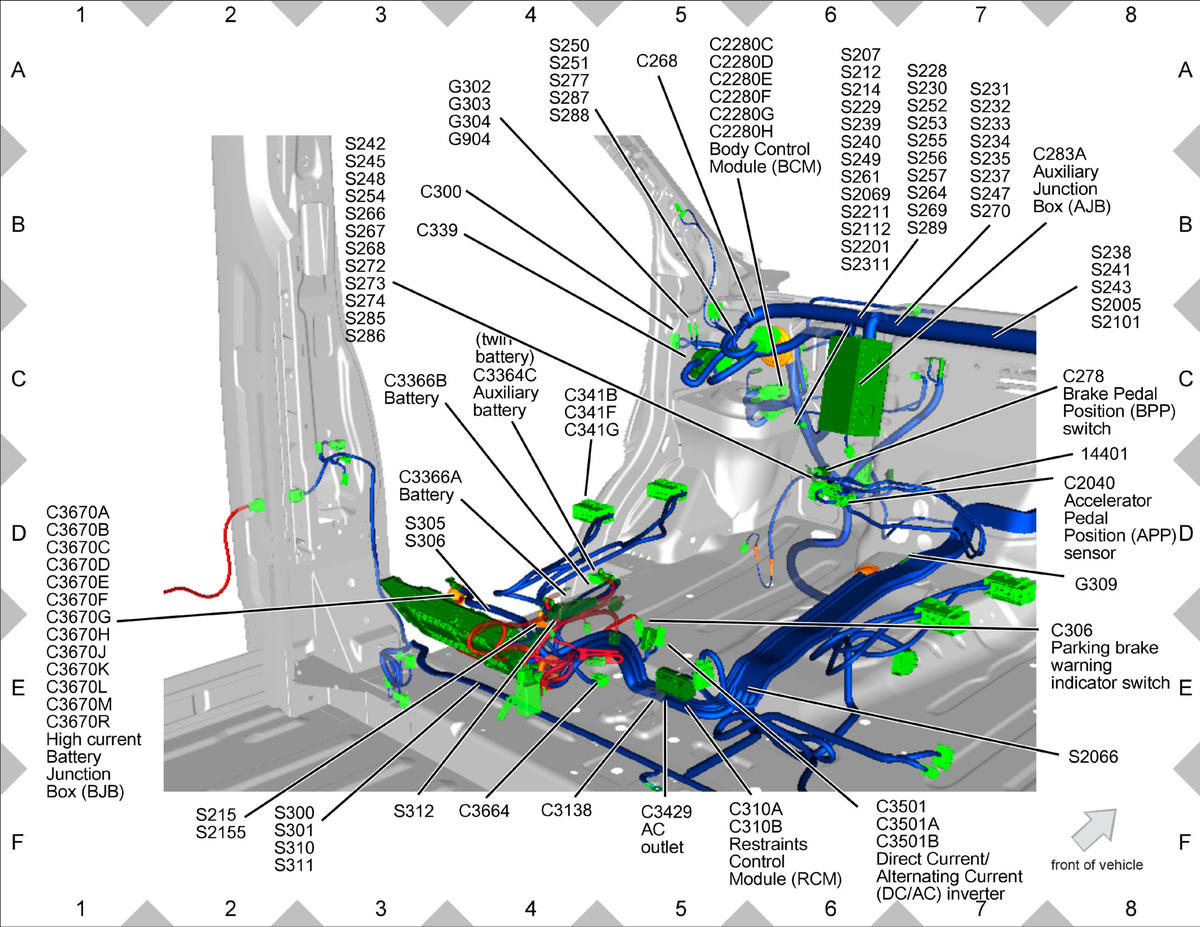

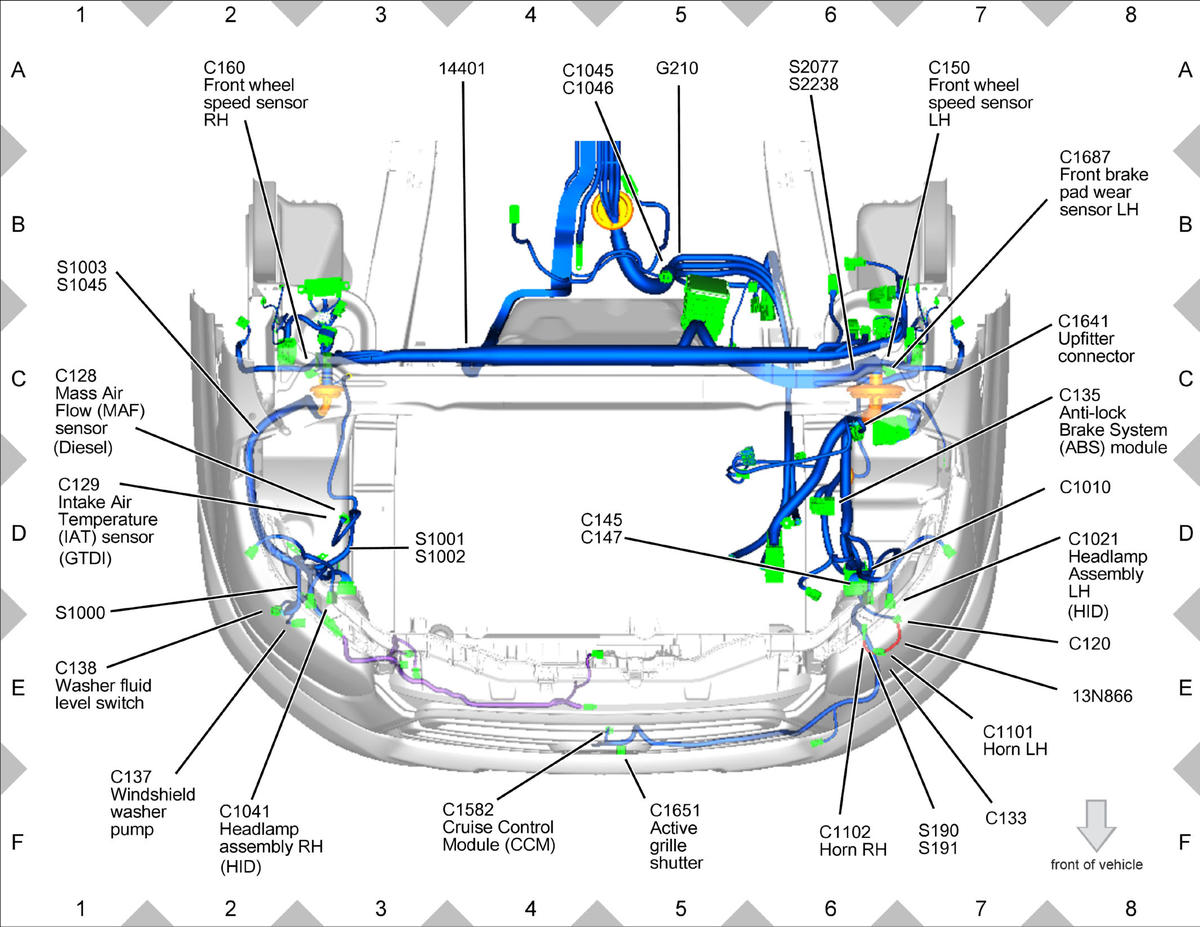

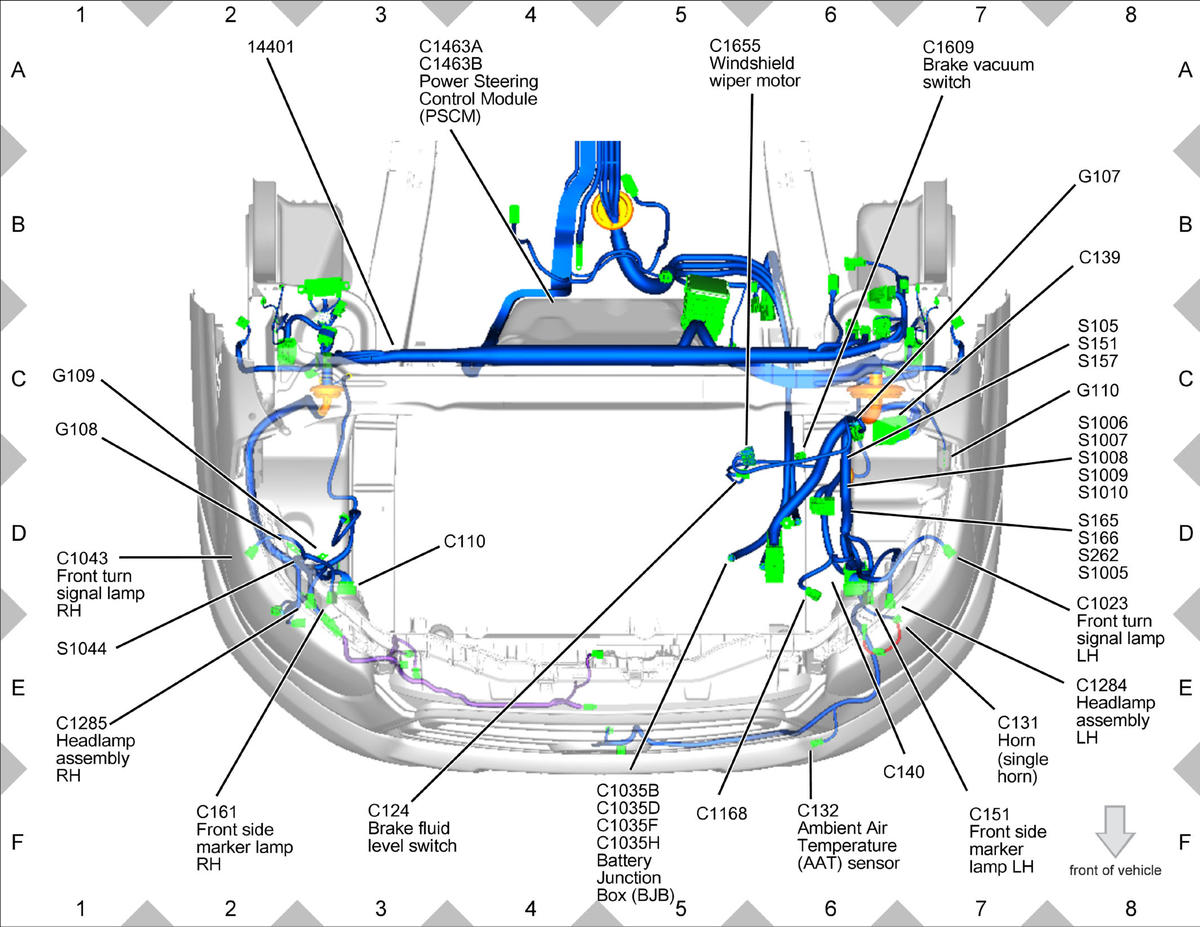

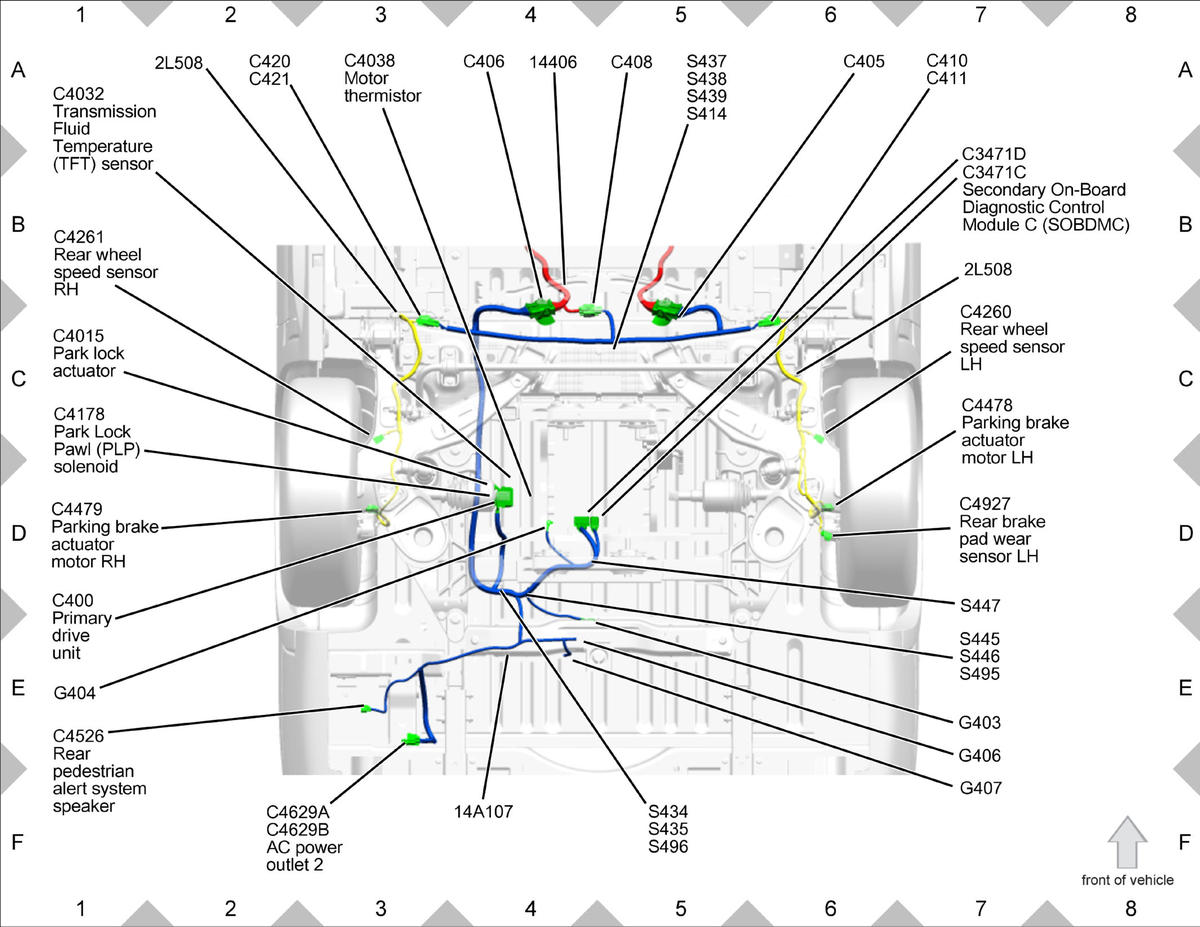

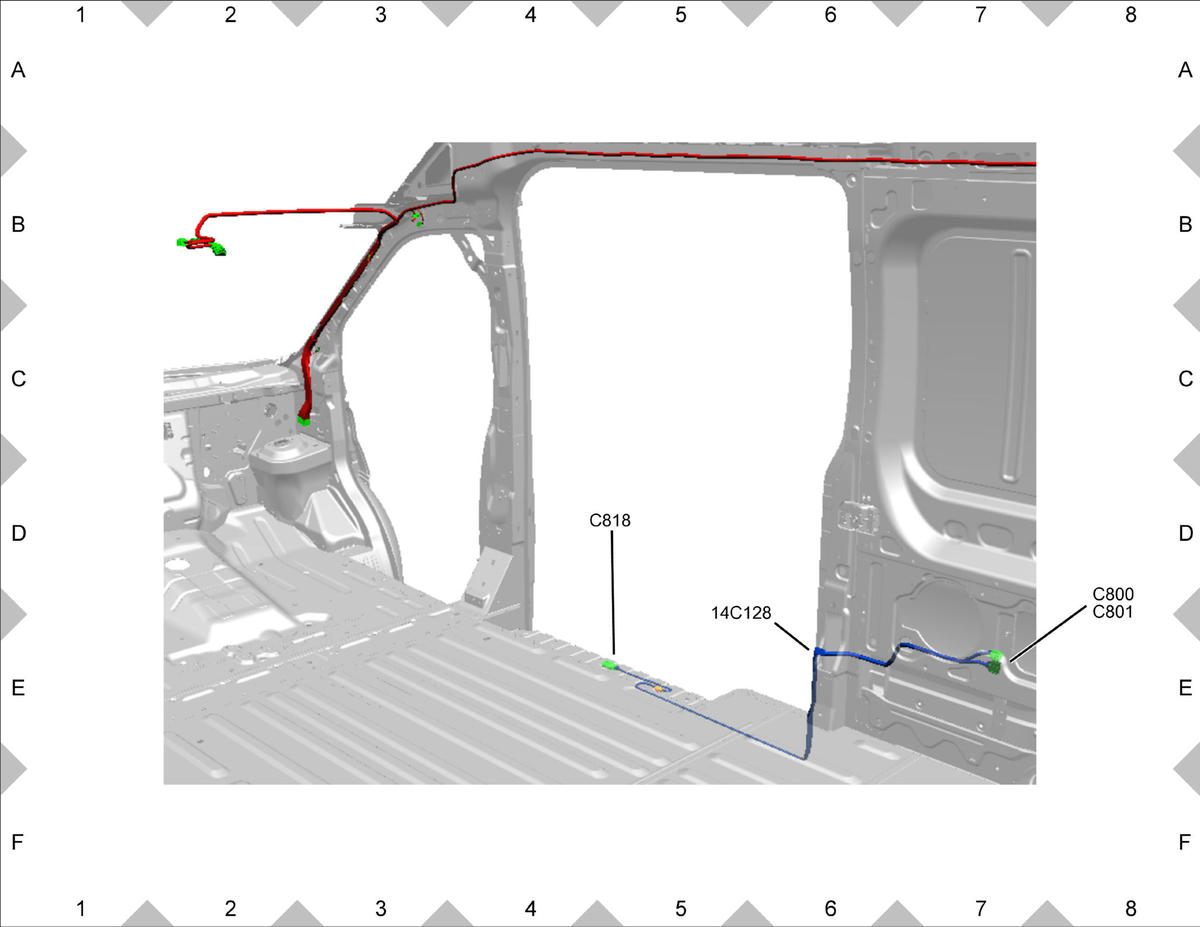

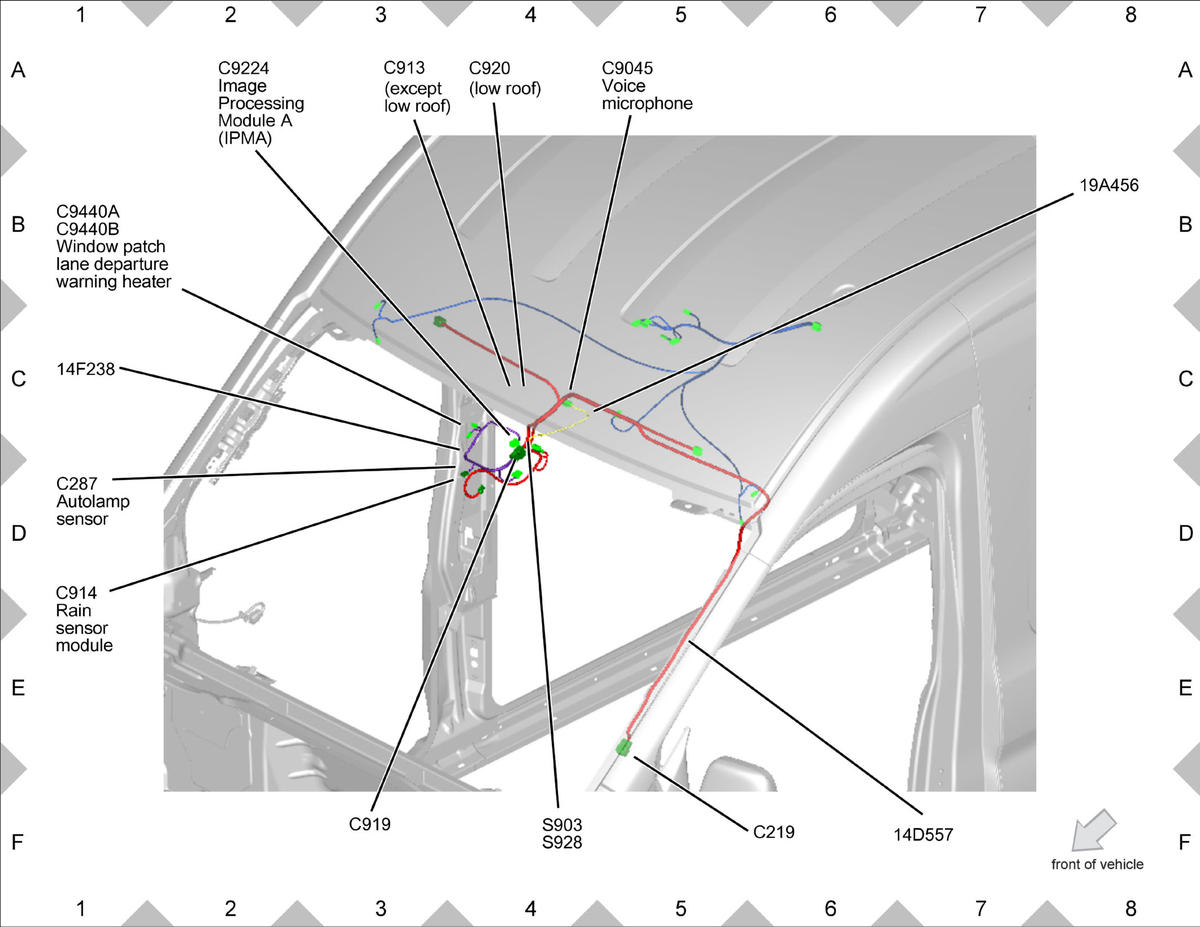

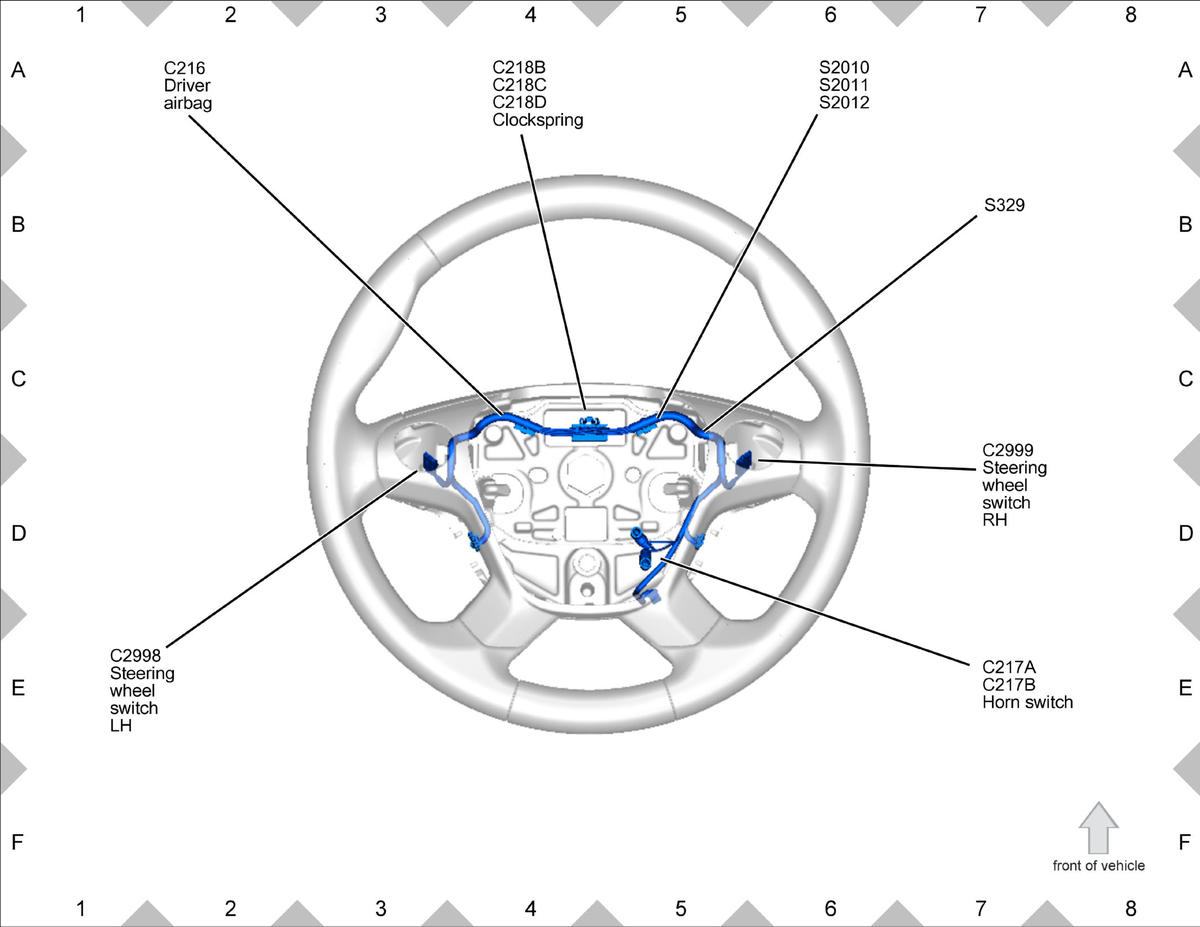

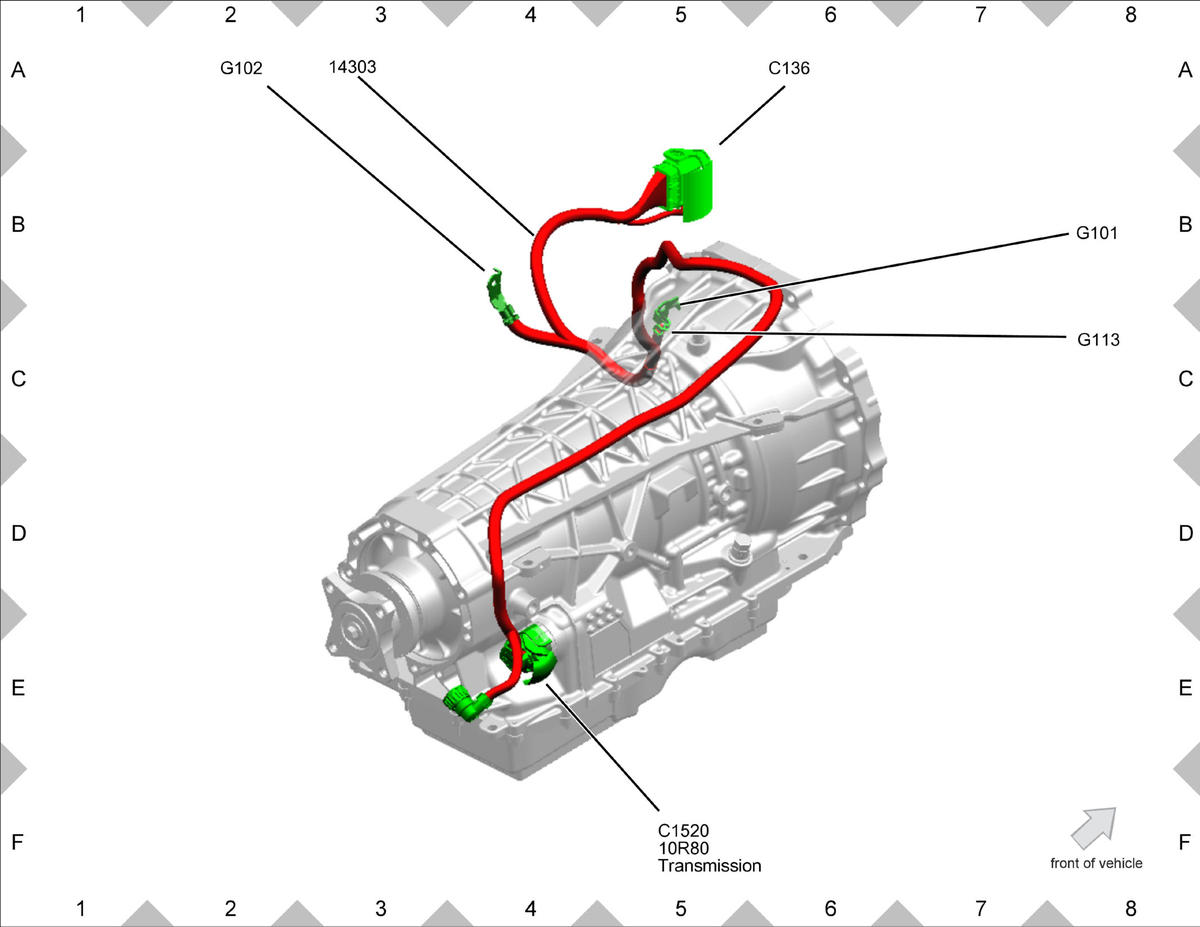

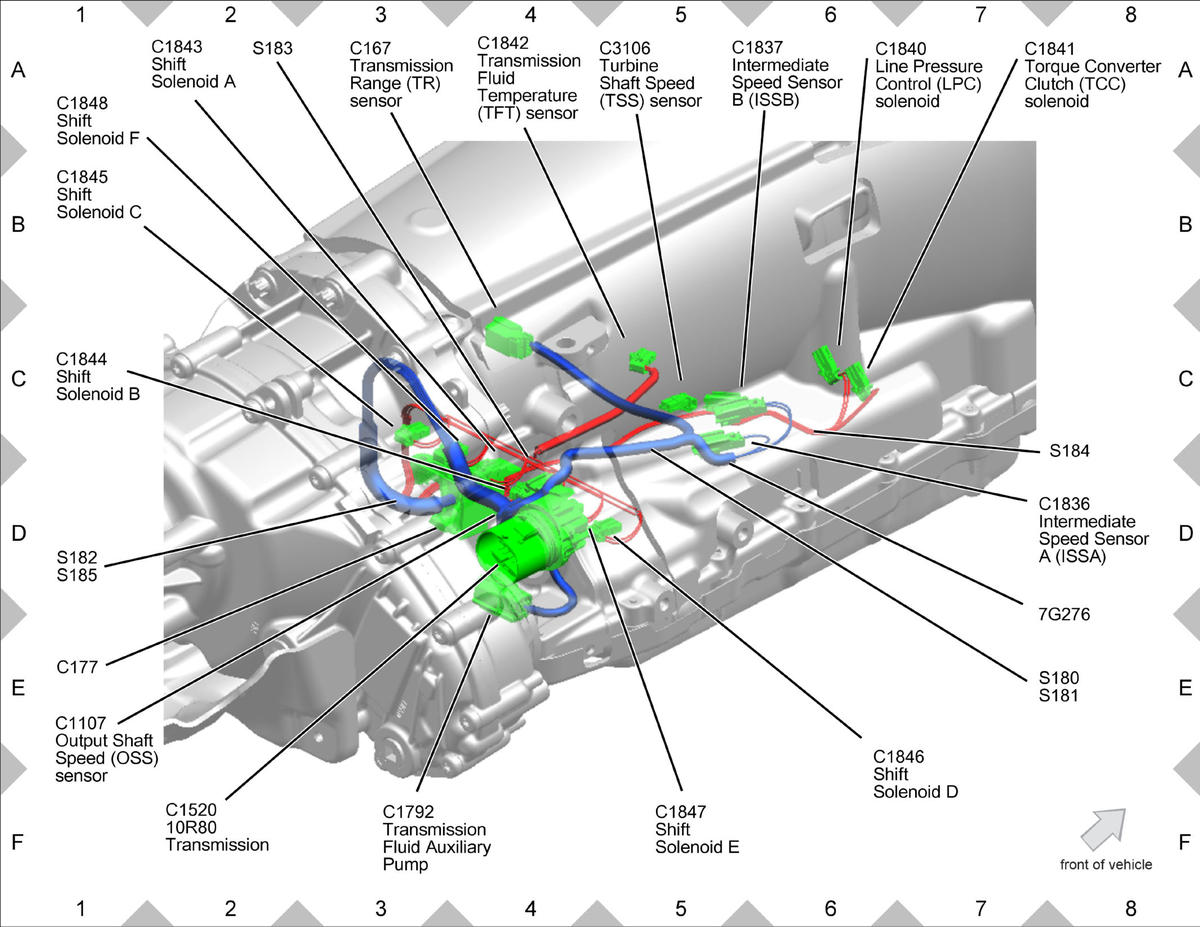

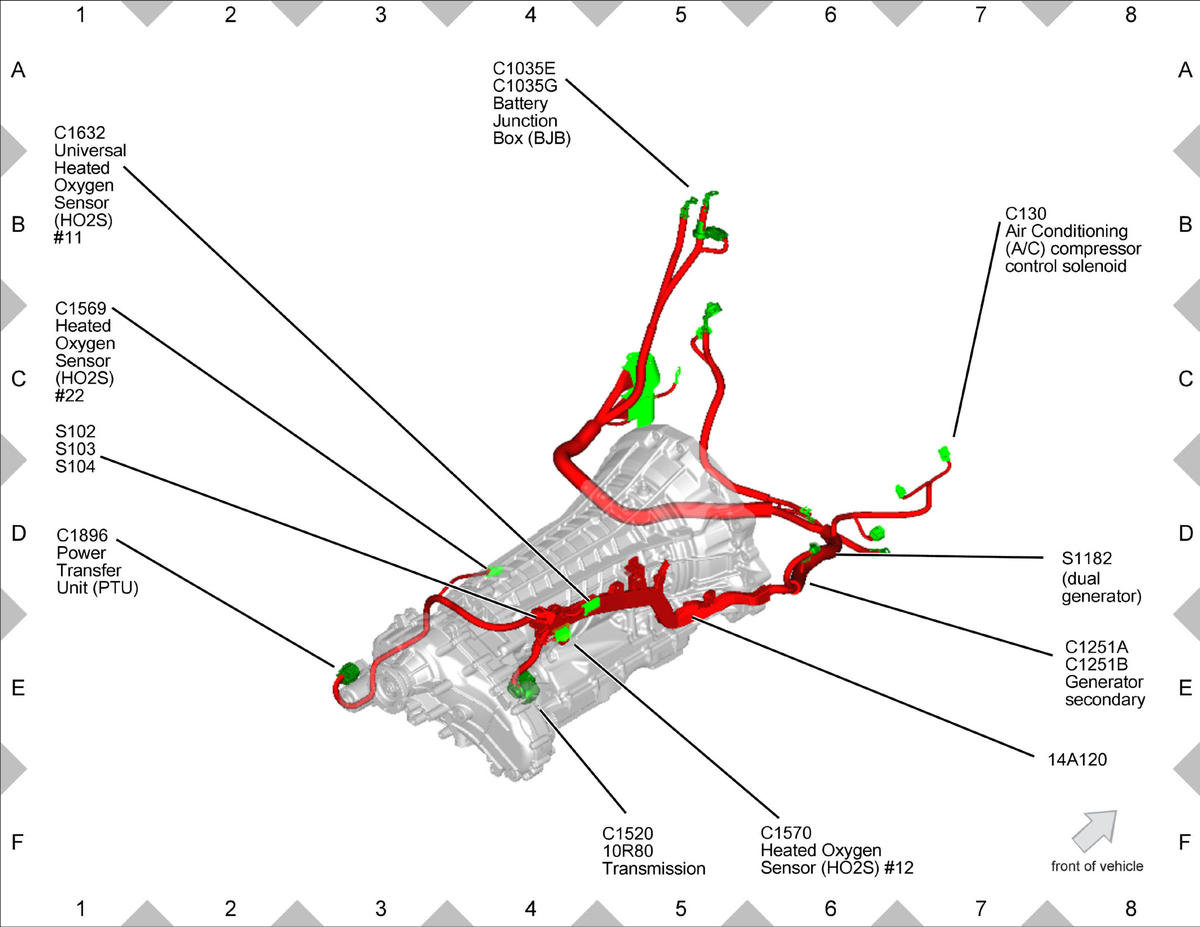

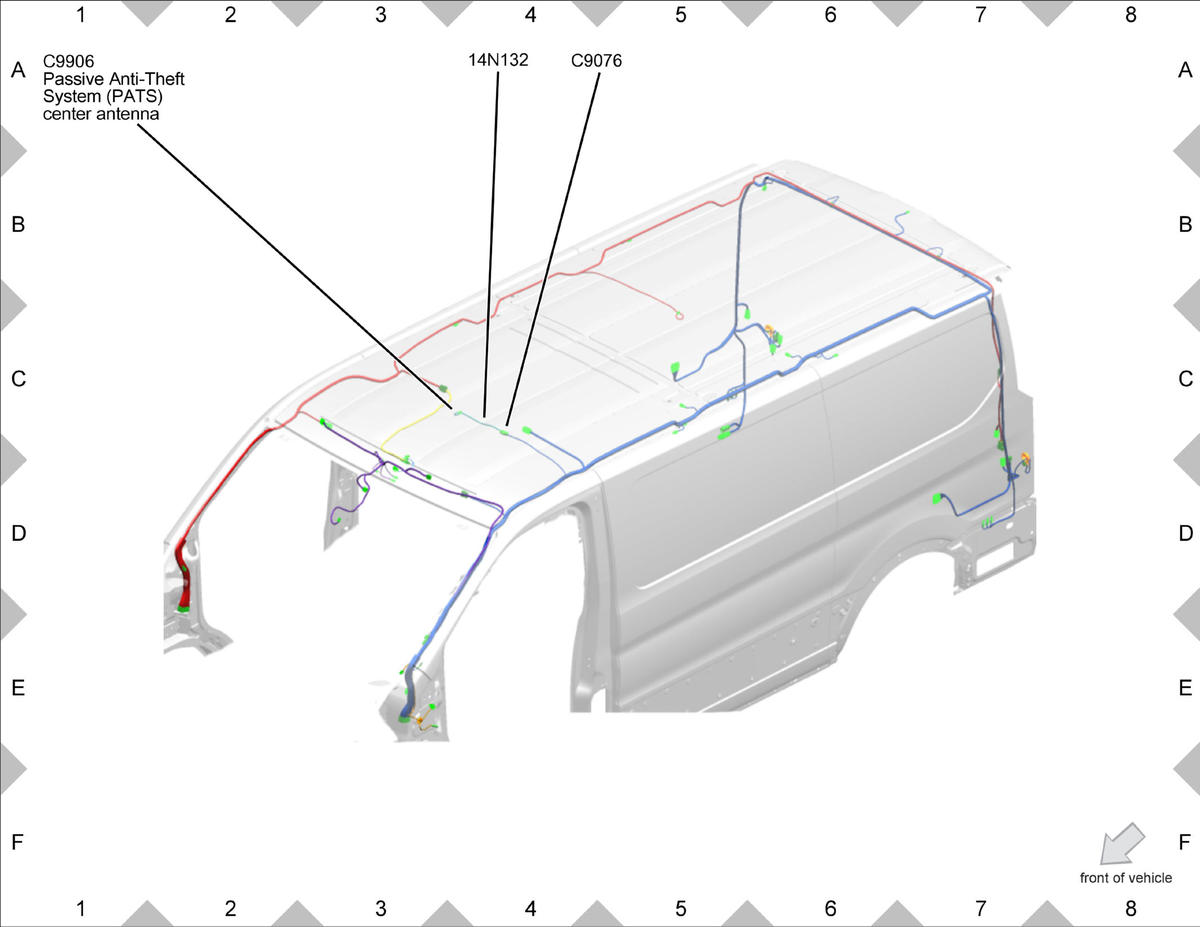

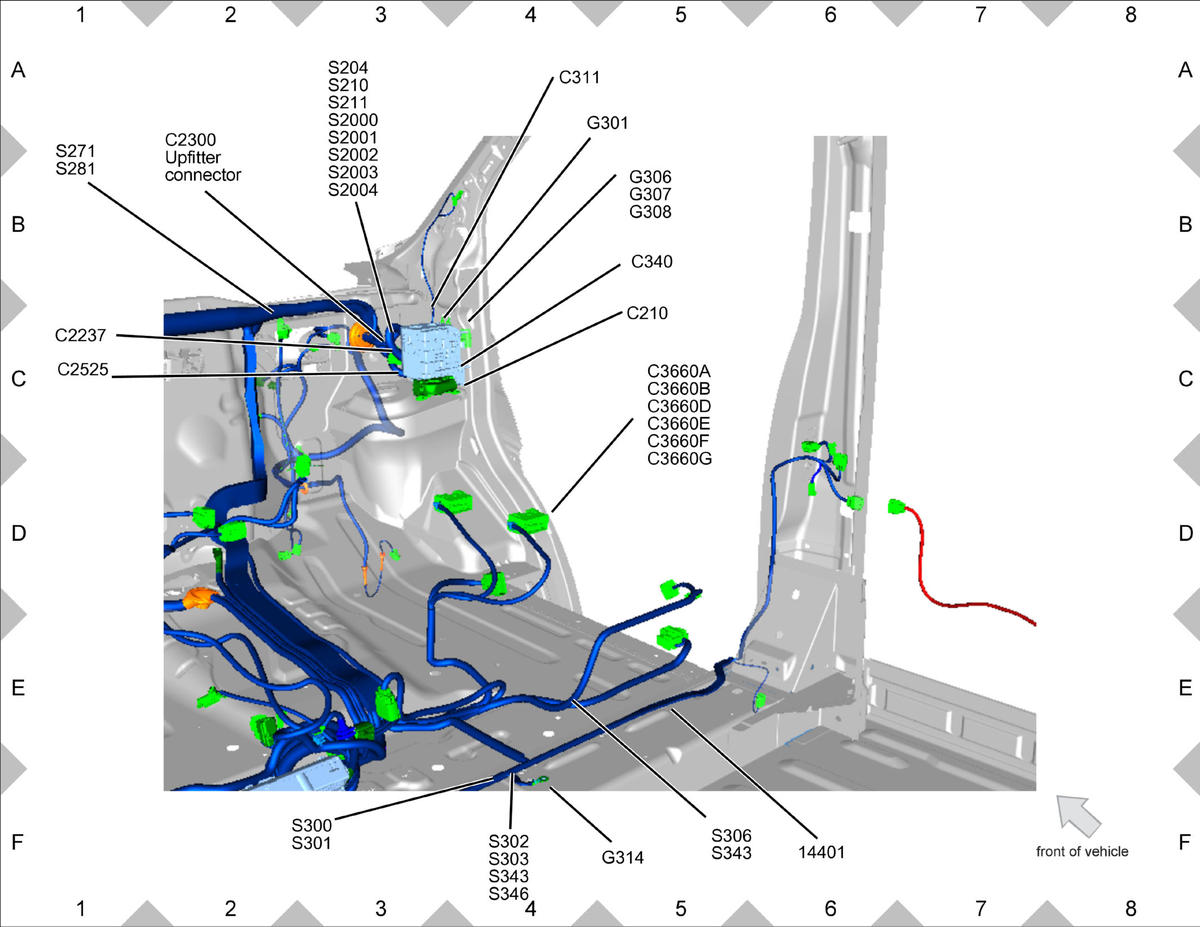

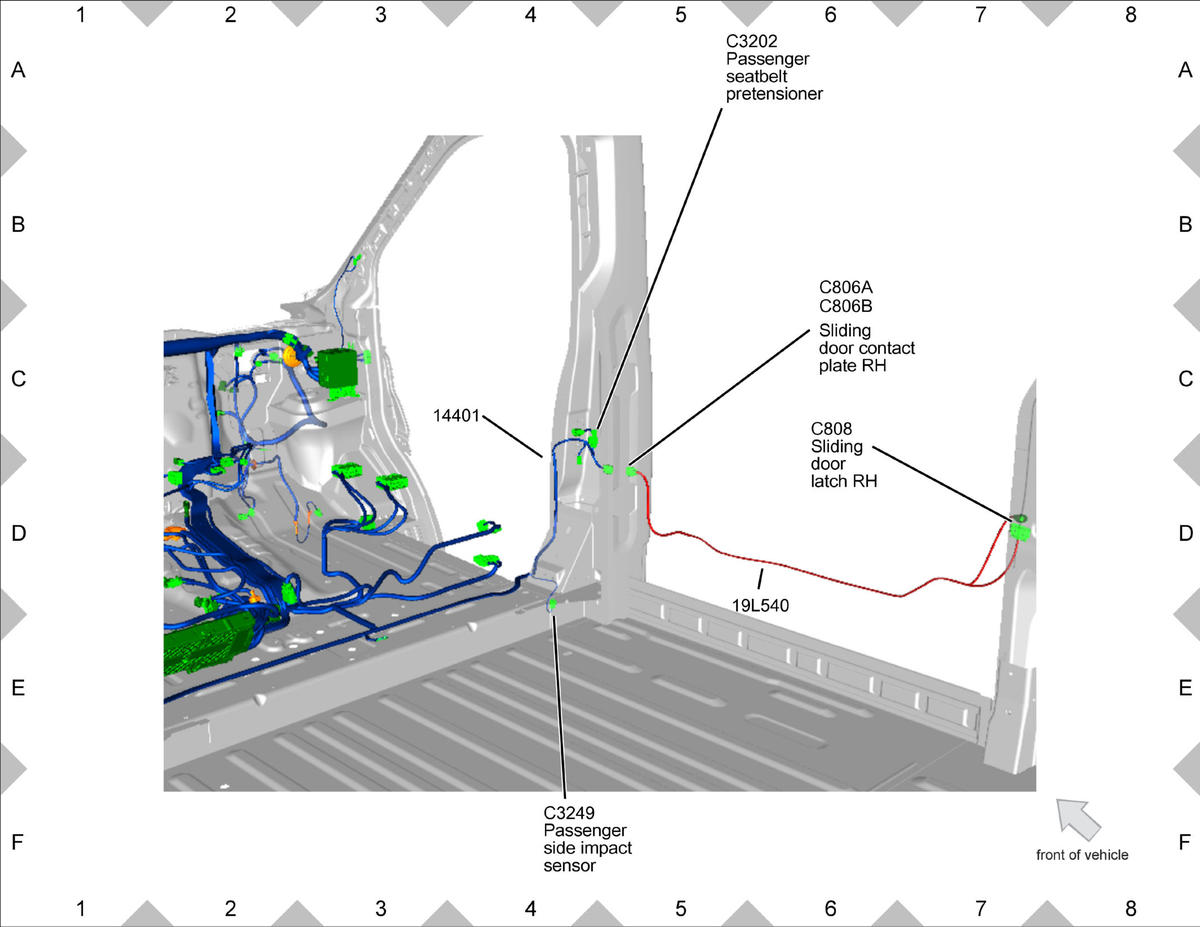

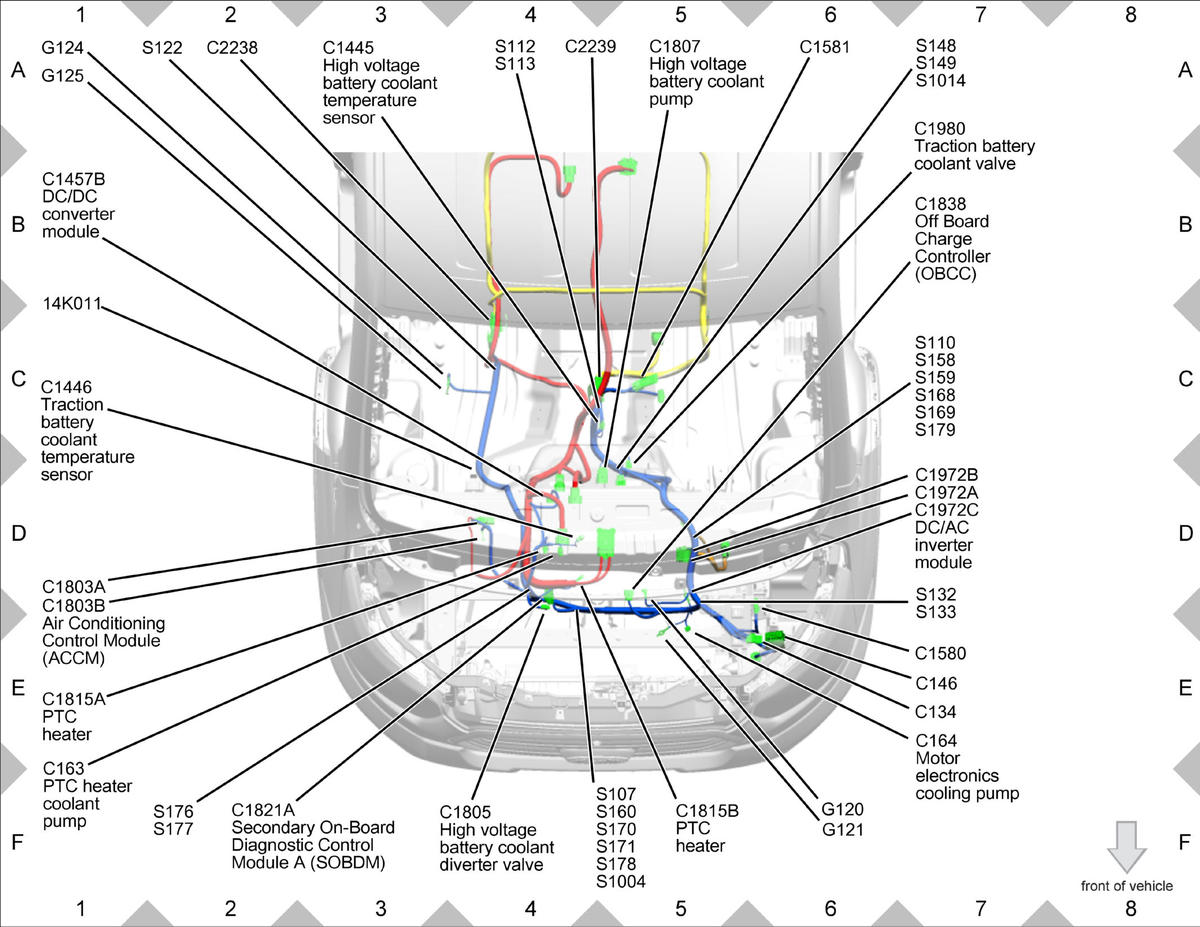

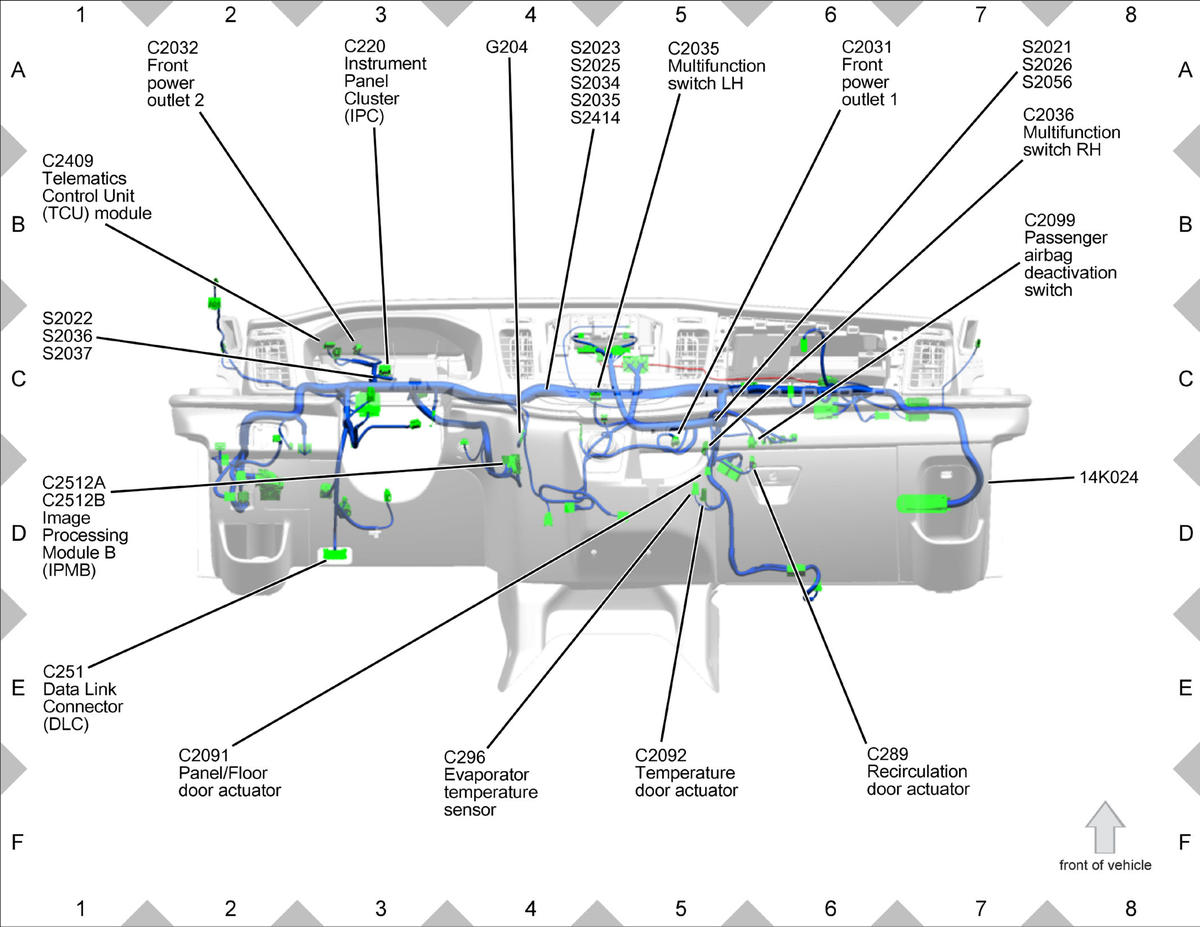

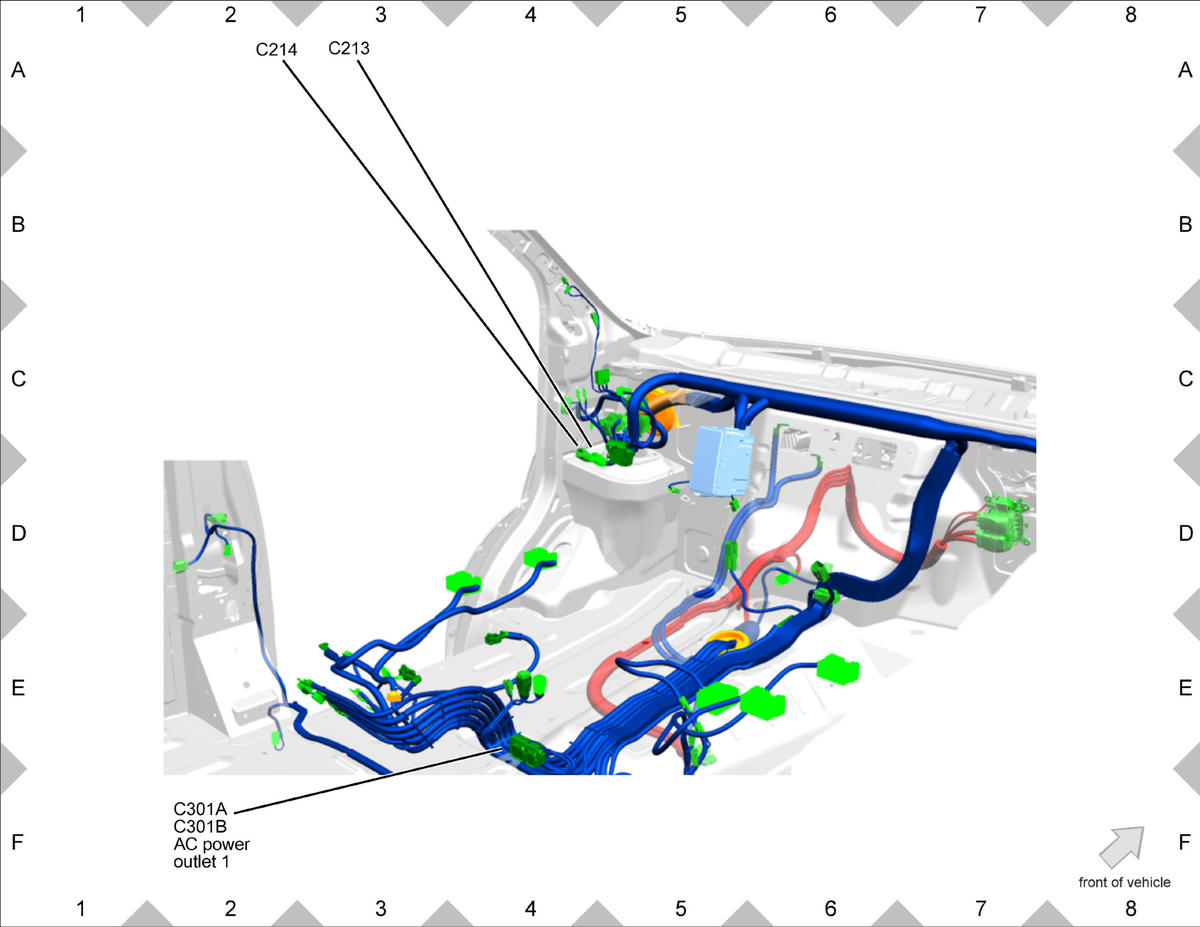

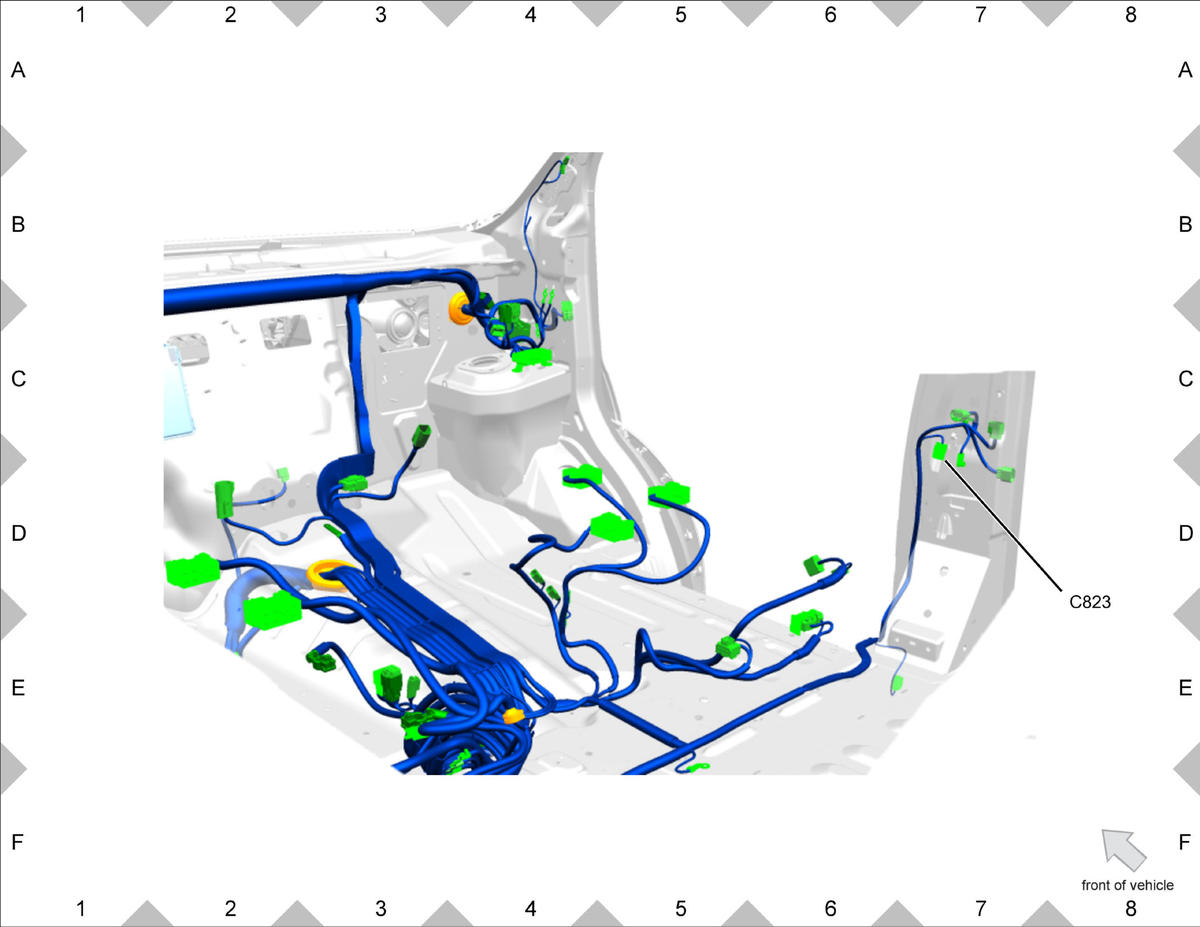

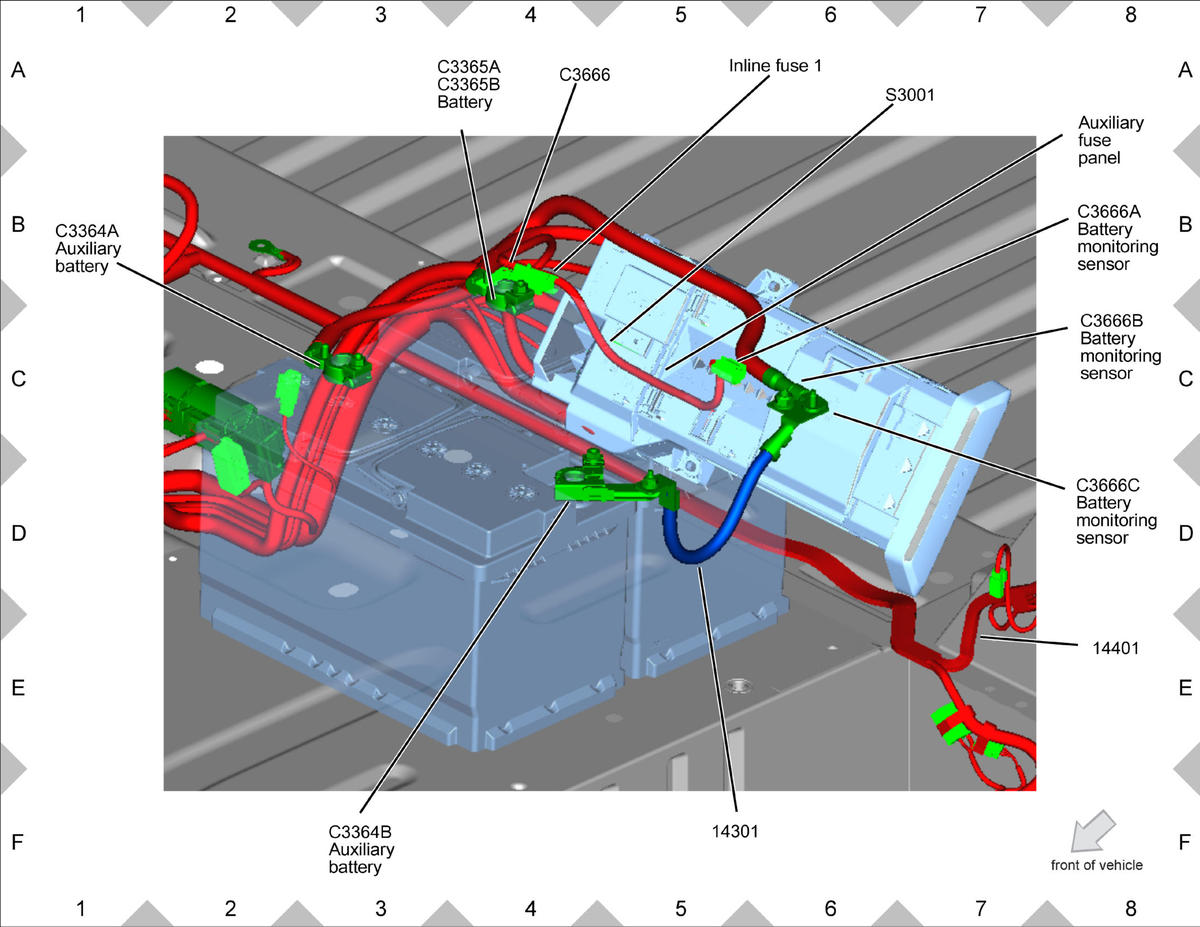

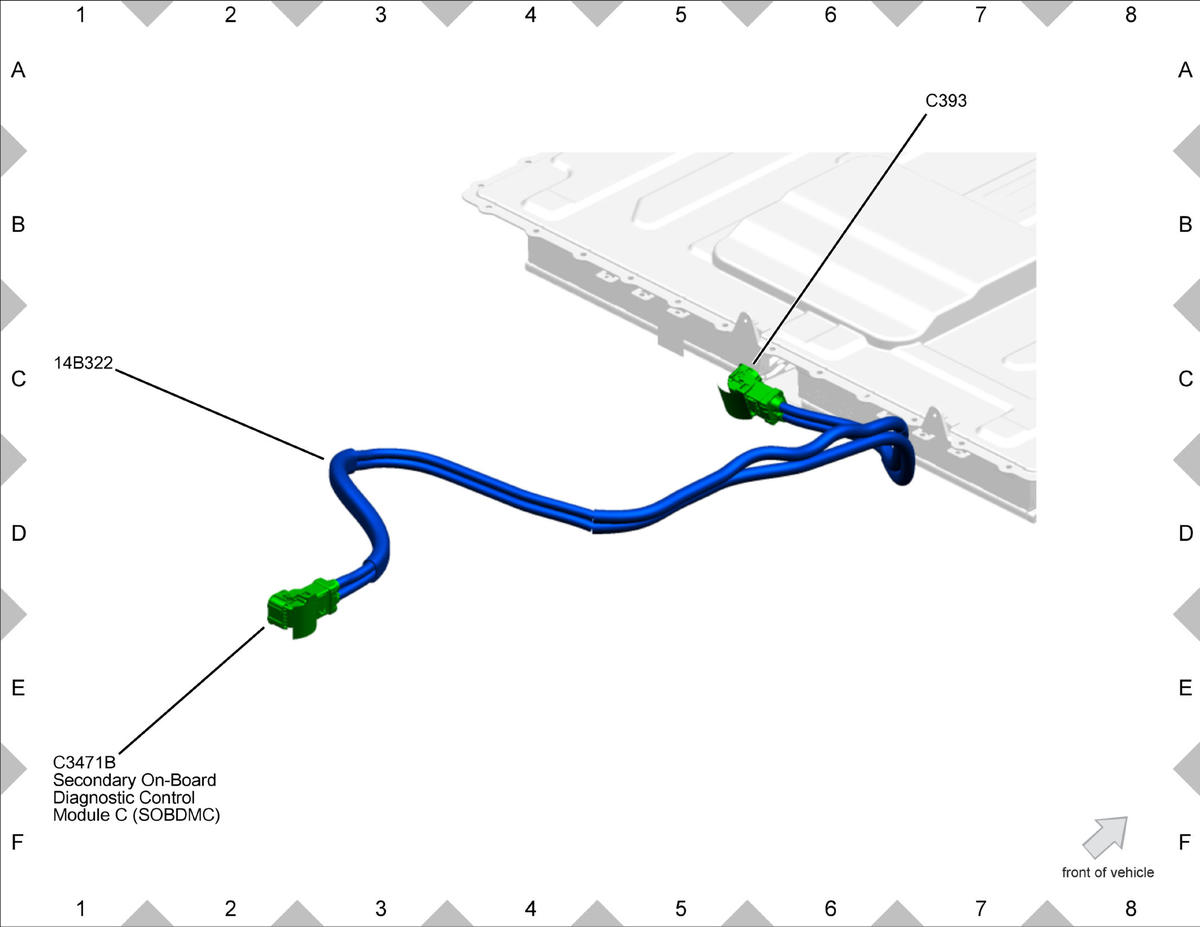

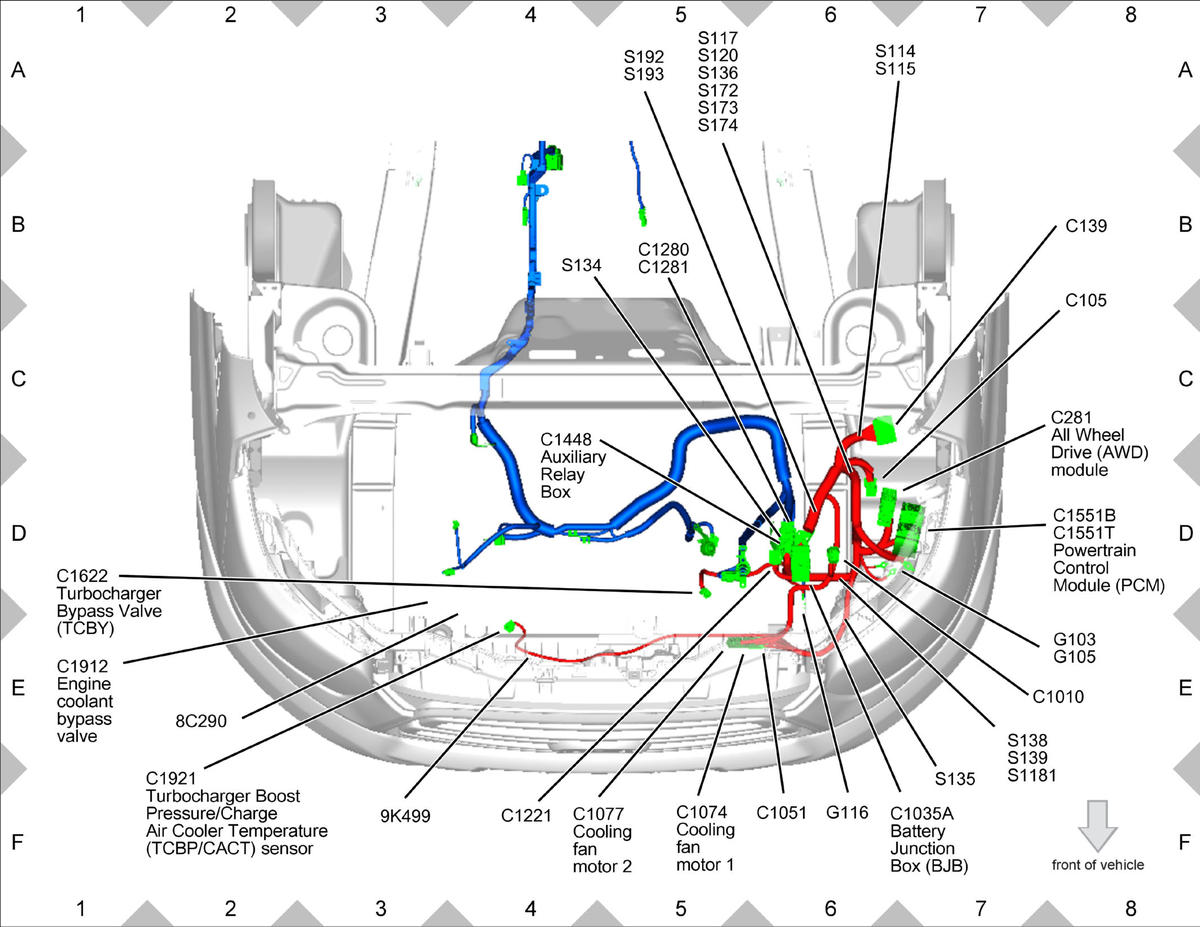

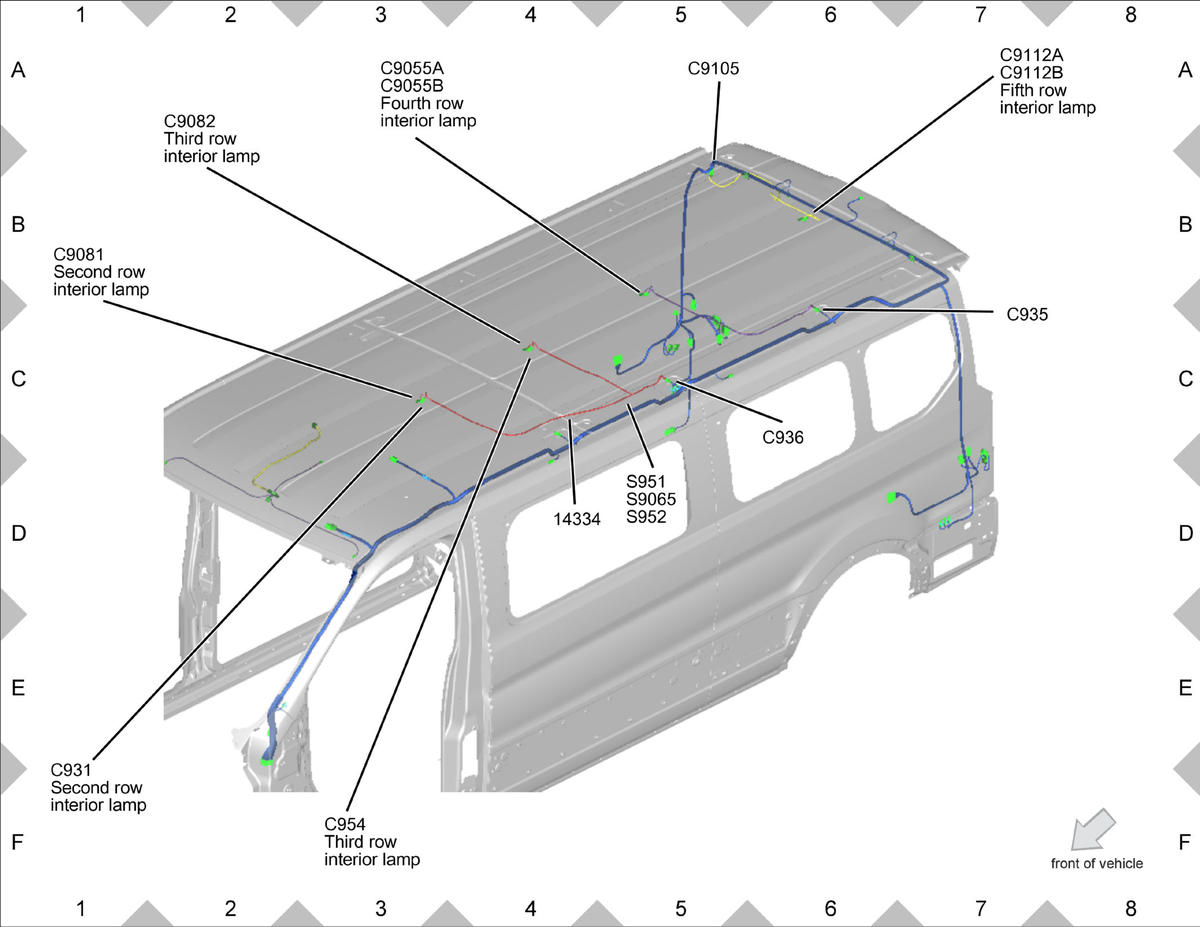

Component Location Views
