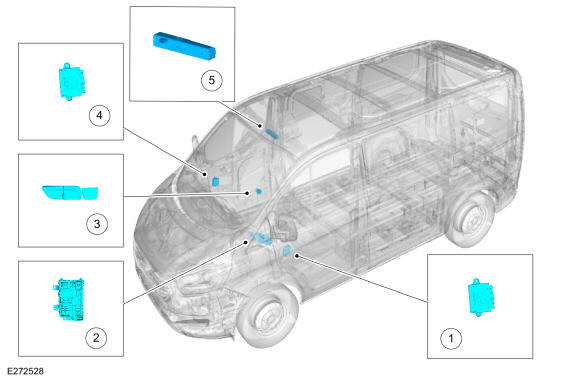

Module Controlled Functions - Component Location
Module Controlled Functions - Component Location
Courtesy of FORD MOTOR COMPANY
Item
Description
1
RHD - PDM, LHD - DDM
2
BCM
3
Auxiliary Switches
4
RHD - DDM, LHD - PDM
5
RTM
Courtesy of FORD MOTOR COMPANY
