Front Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the wheel and tire. Refer to: Wheel and Tire .

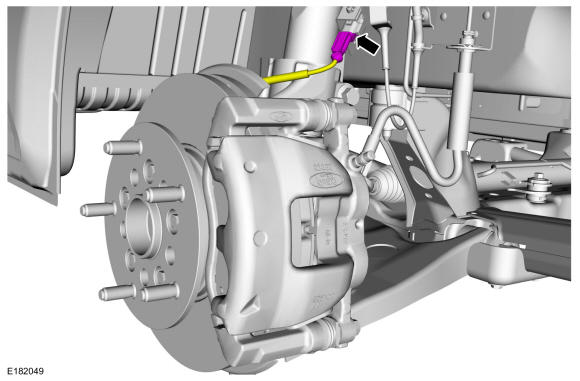

2. Disconnect the electrical connector.

   Courtesy of FORD MOTOR COMPANY

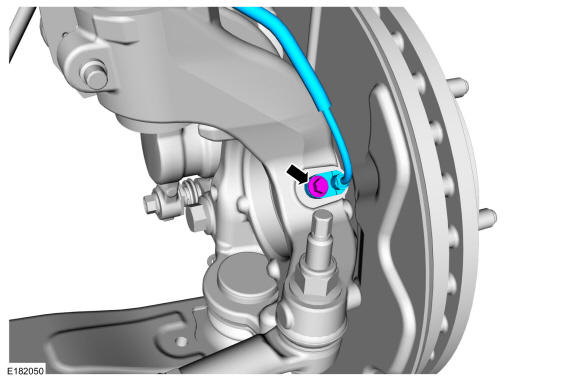

3. Using compressed air, clean the sensor housing area. Remove the bolt and the rear wheel speed sensor.

   Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
