All-Wheel Drive (AWD) Module: Removal

NOTE: Removal steps in this procedure may contain installation details.

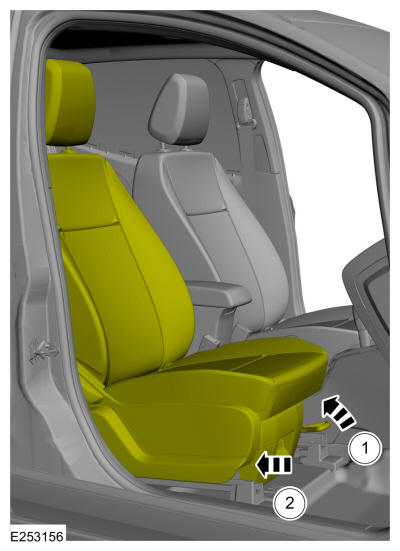

NOTE: Position aside the RH side front seat

Move the seat to back position.

Courtesy of FORD MOTOR COMPANY

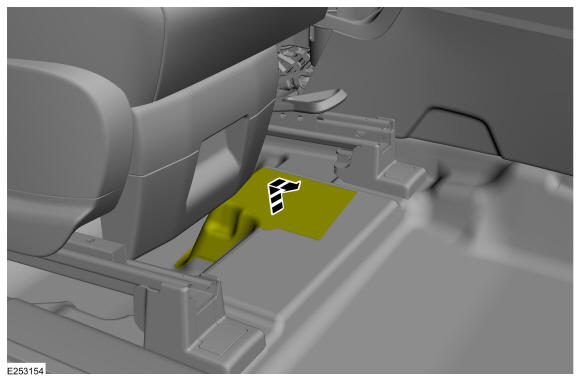

Detach the floor from the main floor and position aside.

Courtesy of FORD MOTOR COMPANY

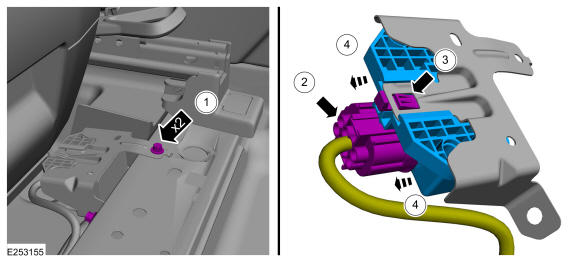

1. Remove the 2 bolts from the front floor first row seat and position aside.
  Torque: 35 lb.in (4 Nm)
2. Disconnect the AWD relay module electrical connector.
3. Lift the AWD module release tab (away from the AWD module bracket)
4. slide the AWD module to the straight and remove.

Courtesy of FORD MOTOR COMPANY
