Description And Operation
›
Ethernet Module Communications Network - Component Location
Ethernet Module Communications Network - Component Location

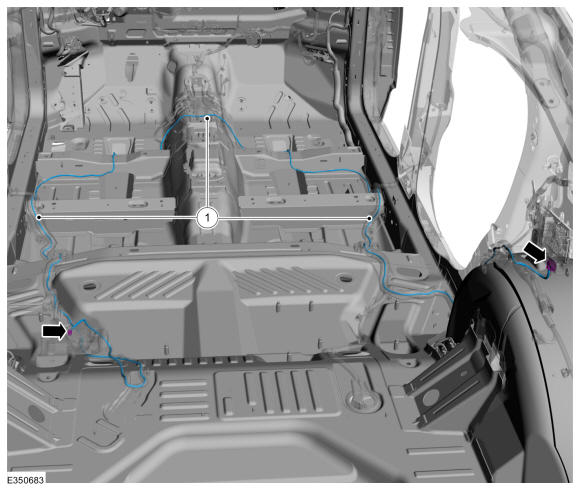

APIM Ethernet Cable
Courtesy of FORD MOTOR COMPANY
Item
Description
1
APIM Ethernet cable

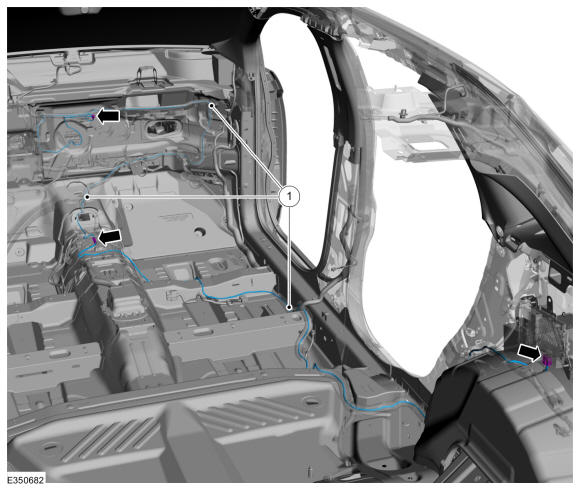

TCU Front Ethernet Cable
Courtesy of FORD MOTOR COMPANY
Item
Description
1
TCU Ethernet cable
Courtesy of FORD MOTOR COMPANY
