Front Subframe: Installation

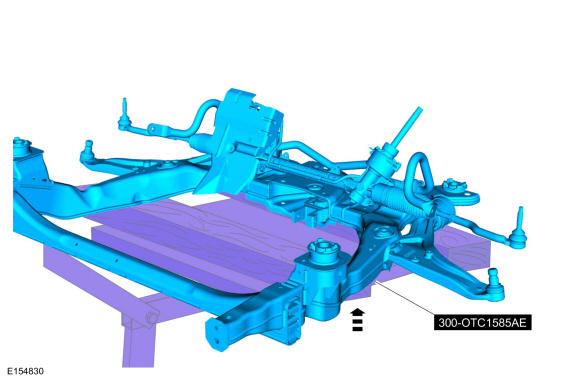

Raise the subframe assembly and position it to the vehicle. Use Special Service Tool: 300-OTC1585AE Powertrain Lift. Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY
NOTE: Align reference marks made during removal.

NOTE: Only tighten the bolts finger tight at this stage.

Install the new forward subframe bolts.

Courtesy of FORD MOTOR COMPANY
1. NOTE: Only tighten the bolts finger tight at this stage.

  Install the subframe brackets and the bolts.
2. NOTE: Only tighten the bolts finger tight at this stage.

  Install the new rearward subframe bolts.
Courtesy of FORD MOTOR COMPANY

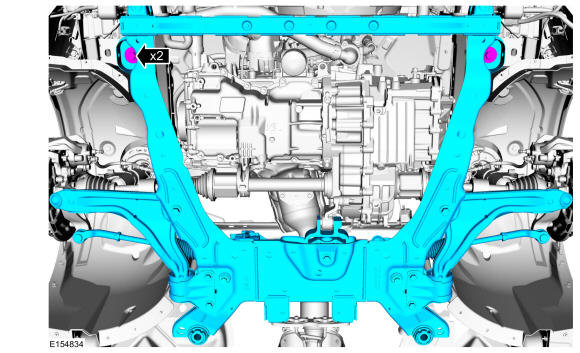

NOTE: While tightening the subframe bolts, make sure the front subframe does not move.

Tighten the new forward subframe bolts.

Torque: 173 lb.ft (235 Nm)

Courtesy of FORD MOTOR COMPANY

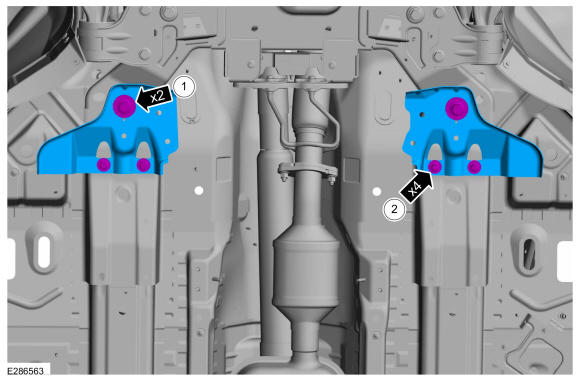

NOTE: While tightening the subframe bolts, make sure the front subframe does not move.
1. Tighten the new rearward subframe bolts.
  Torque: Stage 1: 76 lb.ft (103 Nm) Stage 2: 270°
2. Tighten the subframe bracket bolts.
  Torque: 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY

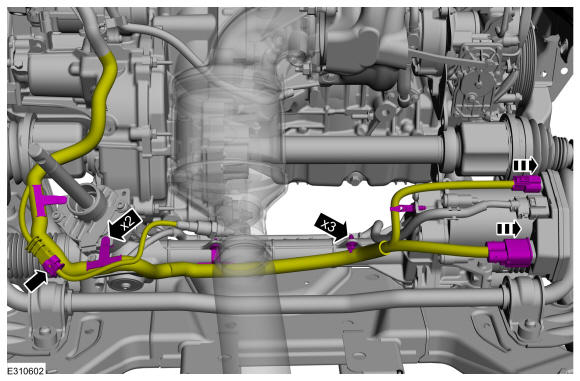

NOTE: 2.0L EcoBoost.
- Clip the harness and connect the EPAS electrical connectors.
- Connect the catalyst monitor sensor connector.
Courtesy of FORD MOTOR COMPANY
NOTE: 2.7L EcoBoost.

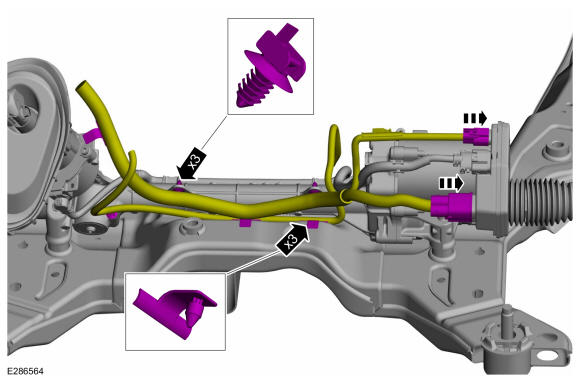

Clip the harness and connect the EPAS electrical connectors.

Courtesy of FORD MOTOR COMPANY

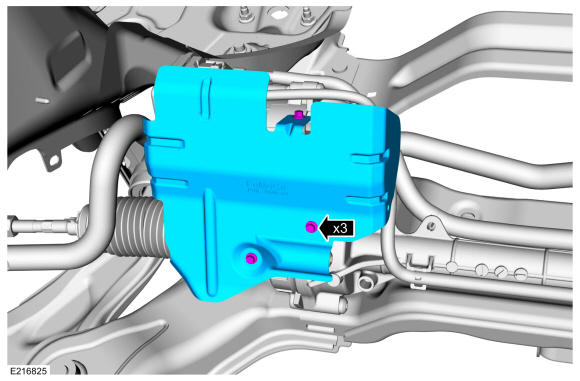

If equipped Position the steering gear heat shield and install the retainers.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the body harness pushpin to the front of the subframe.

Courtesy of FORD MOTOR COMPANY
NOTE: 2.0L EcoBoost.

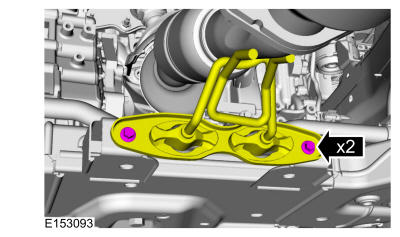

Install the exhaust support bracket and the retainers.

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

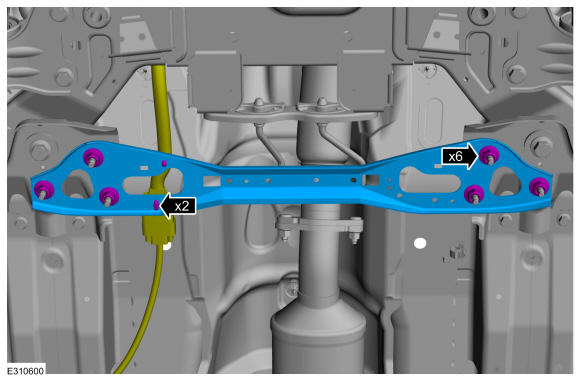

NOTE: 2.0L EcoBoost vehicle shown, others similar.
- Install the front crossmember brace and the retainers.
  Torque: 30 lb.ft (40 Nm)
- Attach the wiring harness retainers.
Courtesy of FORD MOTOR COMPANY

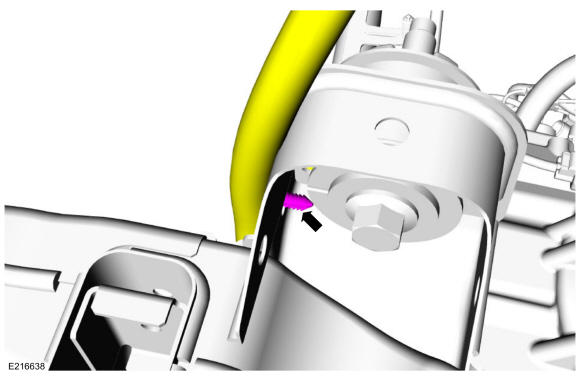

NOTE: 2.0L EcoBoost.

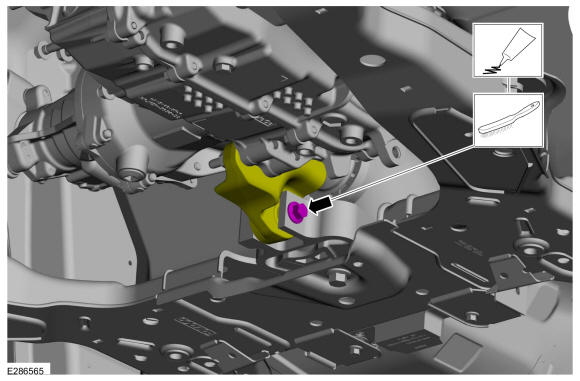

Clean, apply adhesive and install the roll restrictor bolt.

Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: 2.7L EcoBoost.

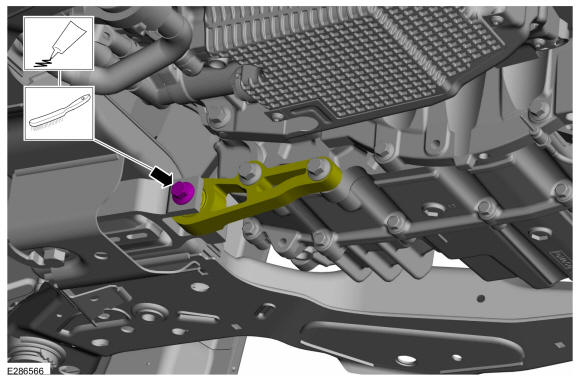

Clean, apply adhesive and install the roll restrictor bolt.

Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: 2.7L EcoBoost.

Install the exhaust flexible pipe. Refer to: Exhaust Flexible Pipe .

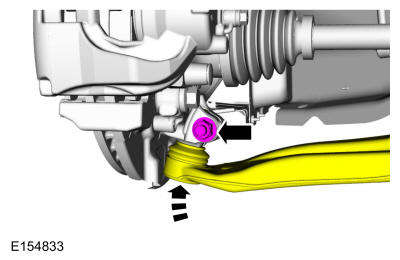

On both sides. Position the ball joint into the wheel knuckle and install the new ball joint pinch bolt and nut.
Torque: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY

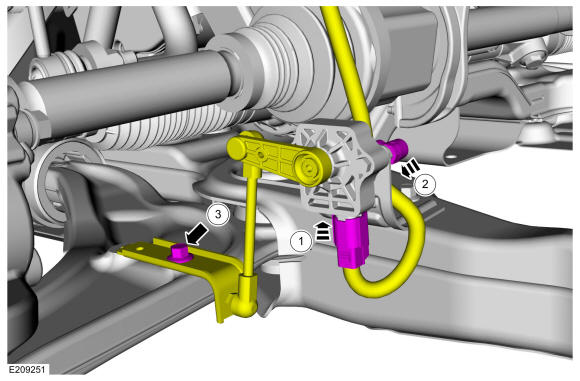

NOTE: The front suspension height sensor must be disconnected from the lower control arm prior to servicing suspension components or damage to the suspension height sensor and/or the vehicle dynamic suspension system may occur. The sensor will need to be recalibrated after reassembly.

If equipped
1. Connect the front height sensor electrical connector.
2. Position the front height sensor wire harness and clip the harness to the front height sensor.
3. Position the front height sensor arm bracket and install the front height sensor arm bracket bolt.
  Torque: 177 lb.in (20 Nm)
Courtesy of FORD MOTOR COMPANY
Calibrate the suspension height sensor. Connect the scan tool and carry out the Ride Height Calibration routine, following the scan tool directions.
To install, reverse the removal procedure.
Install the wheels and tires. Refer to: Wheel and Tire .
Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
Check and if necessary adjust front toe. Refer to: Front Toe Adjustment . Refer to: Front Toe Adjustment - Vehicles With: Active Steering .
