Power Distribution

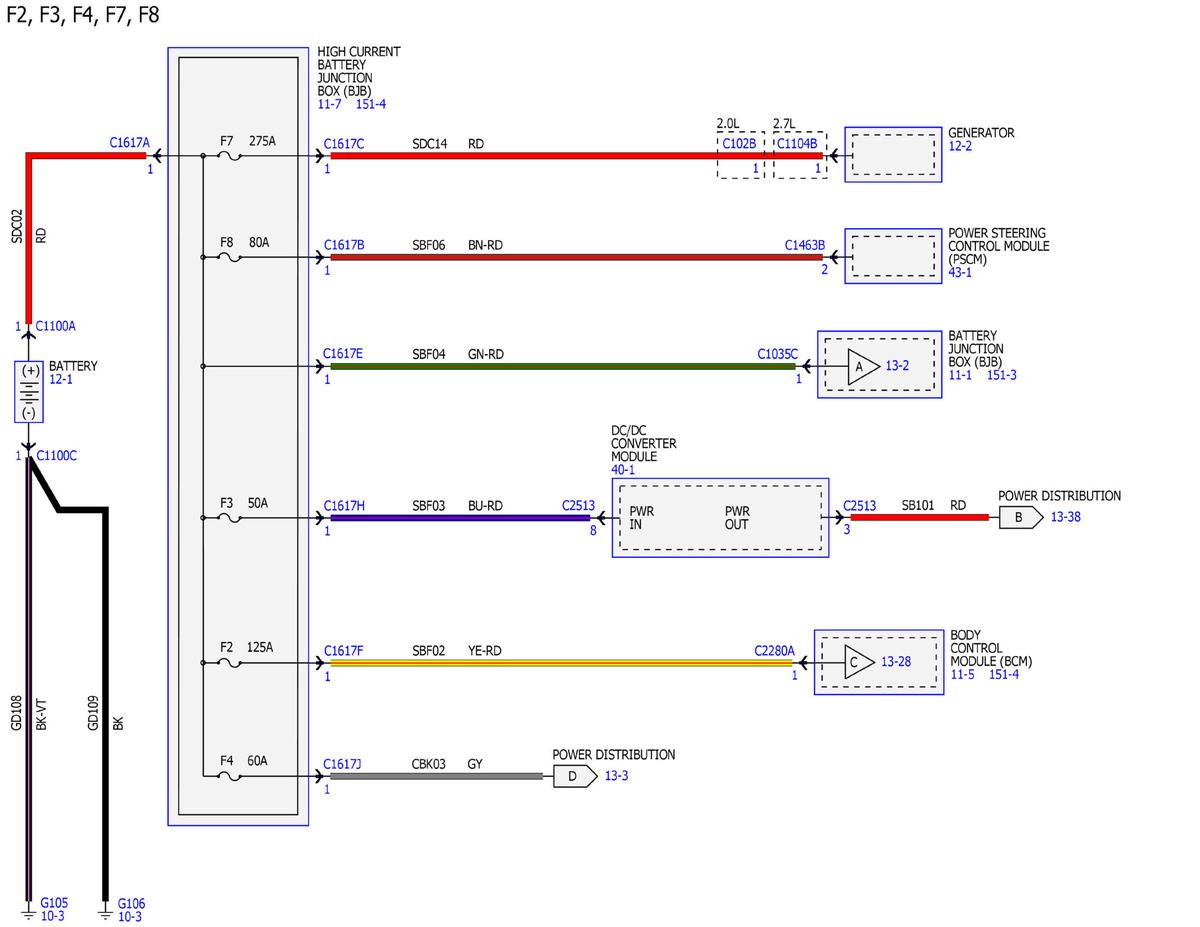

Fig 1: Power Distribution Wiring Diagram (1 Of 47)

GFDWR163766

Courtesy of FORD MOTOR COMPANY

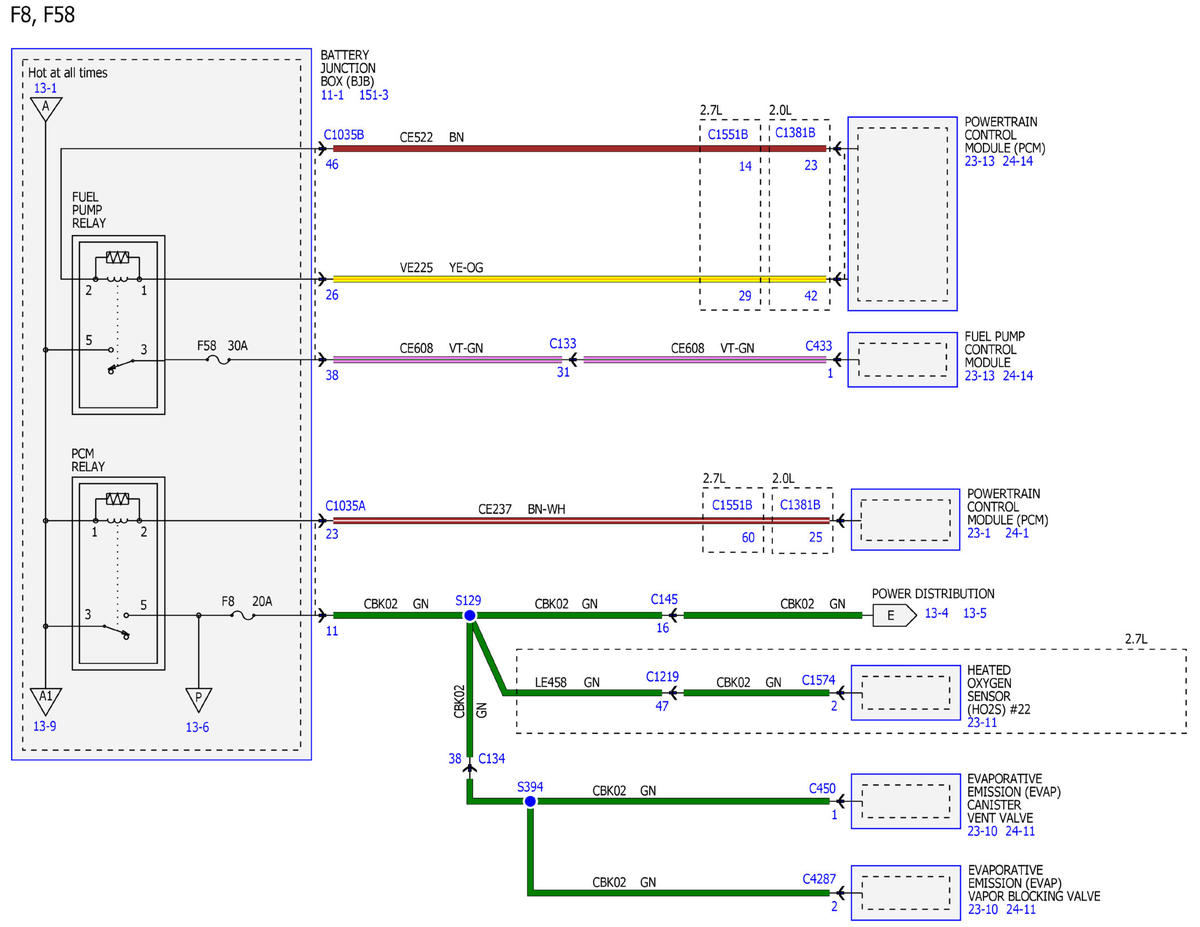

Fig 2: Power Distribution Wiring Diagram (2 Of 47)

GFDWR163777

Courtesy of FORD MOTOR COMPANY

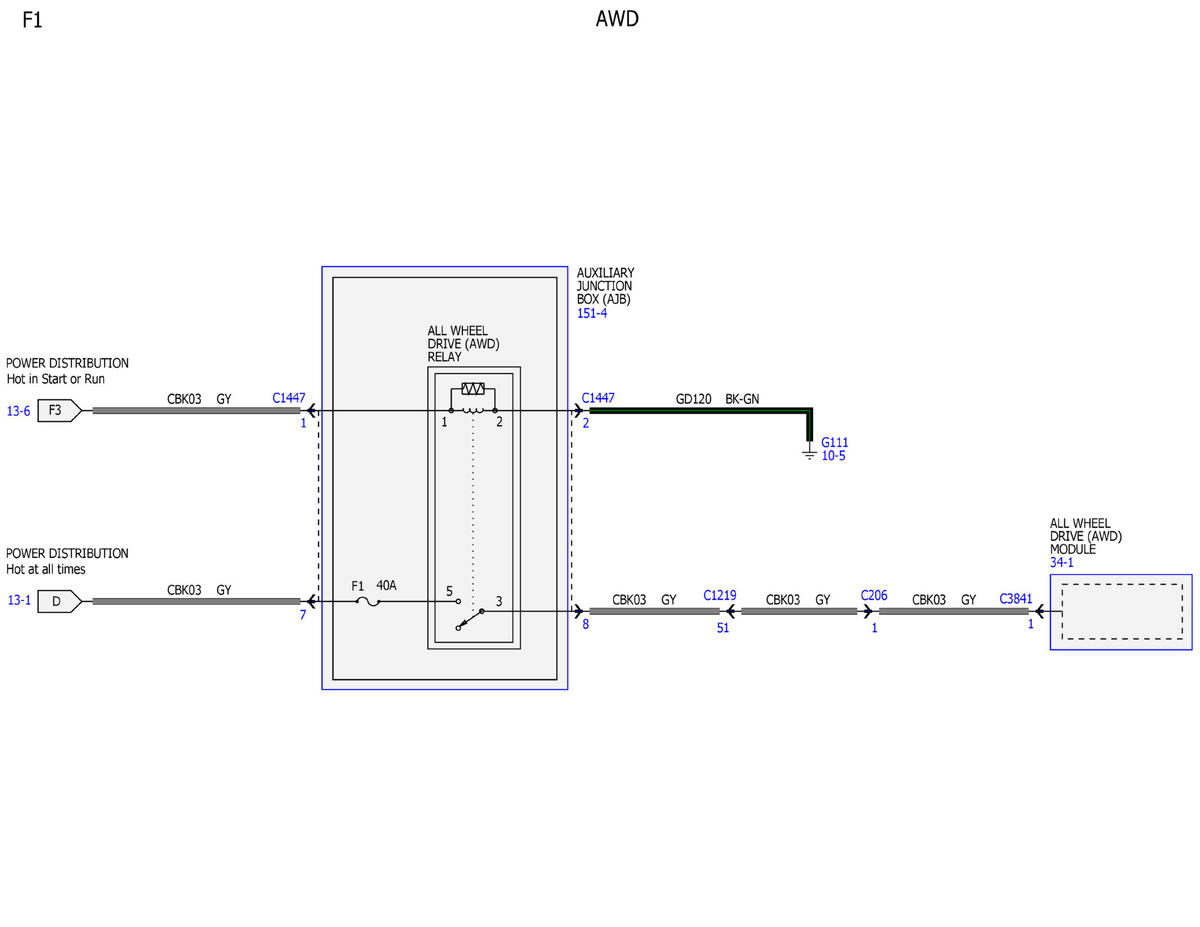

Fig 3: Power Distribution Wiring Diagram (3 Of 47)

GFDWR163788

Courtesy of FORD MOTOR COMPANY

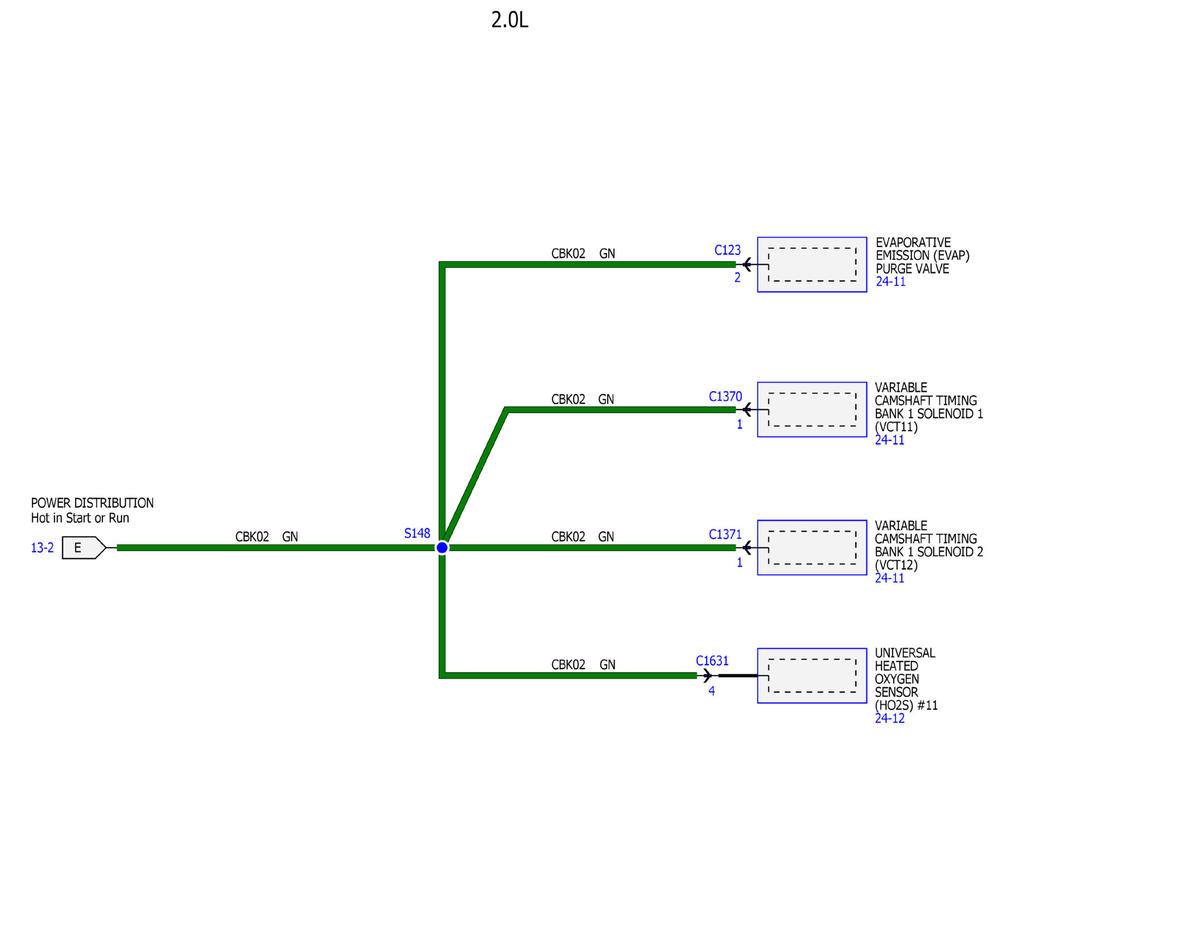

Fig 4: Power Distribution Wiring Diagram (4 Of 47)

GFDWR163799

Courtesy of FORD MOTOR COMPANY

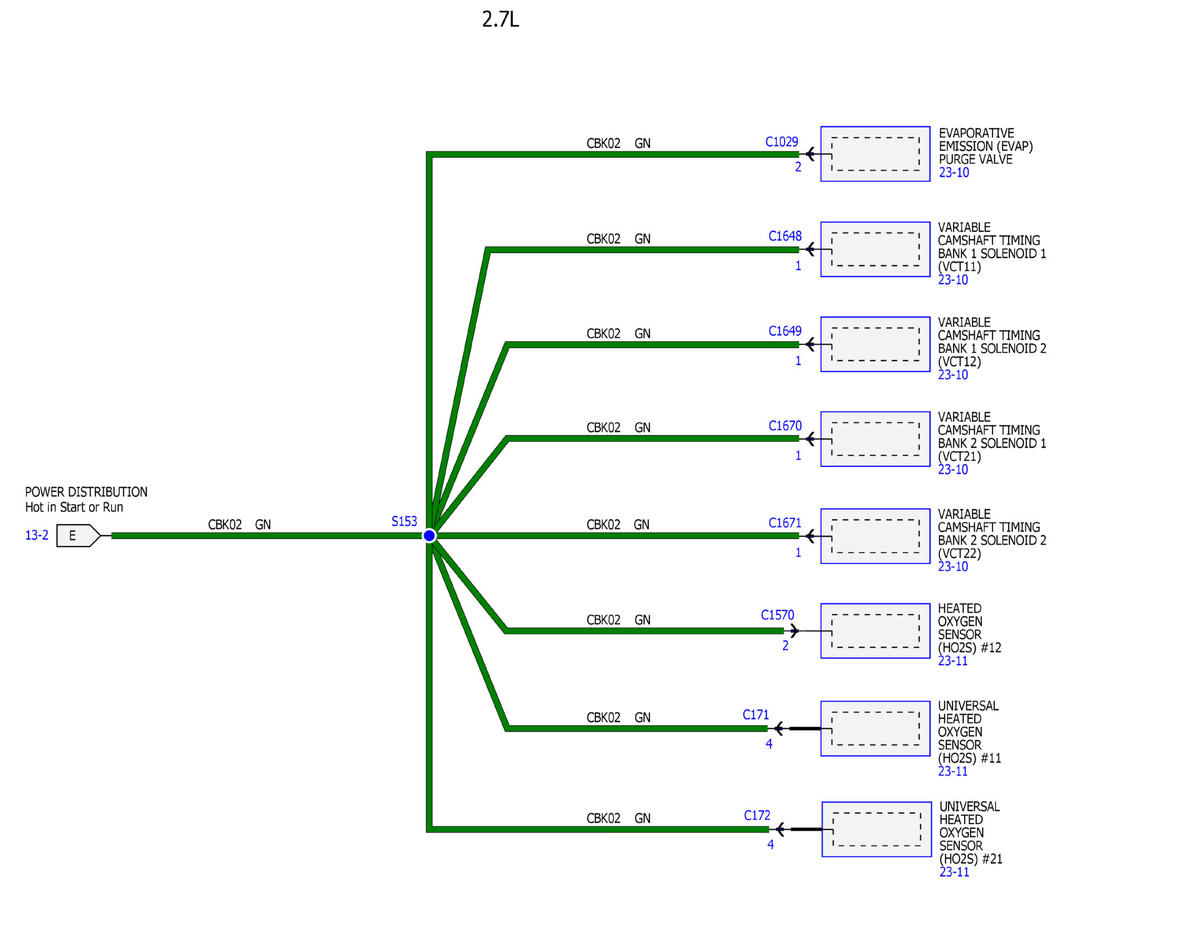

Fig 5: Power Distribution Wiring Diagram (5 Of 47)

GFDWR163808

Courtesy of FORD MOTOR COMPANY

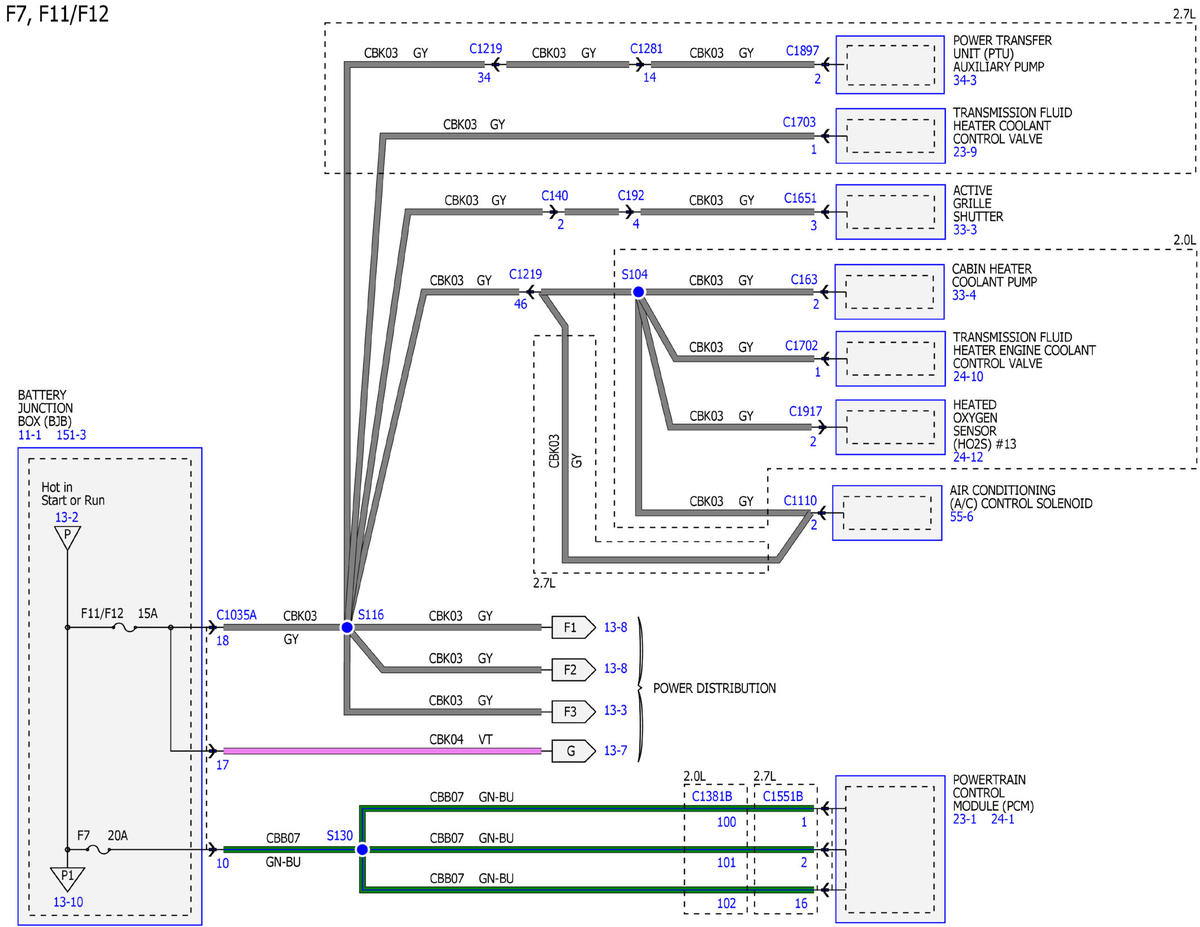

Fig 6: Power Distribution Wiring Diagram (6 Of 47)

GFDWR163809

Courtesy of FORD MOTOR COMPANY

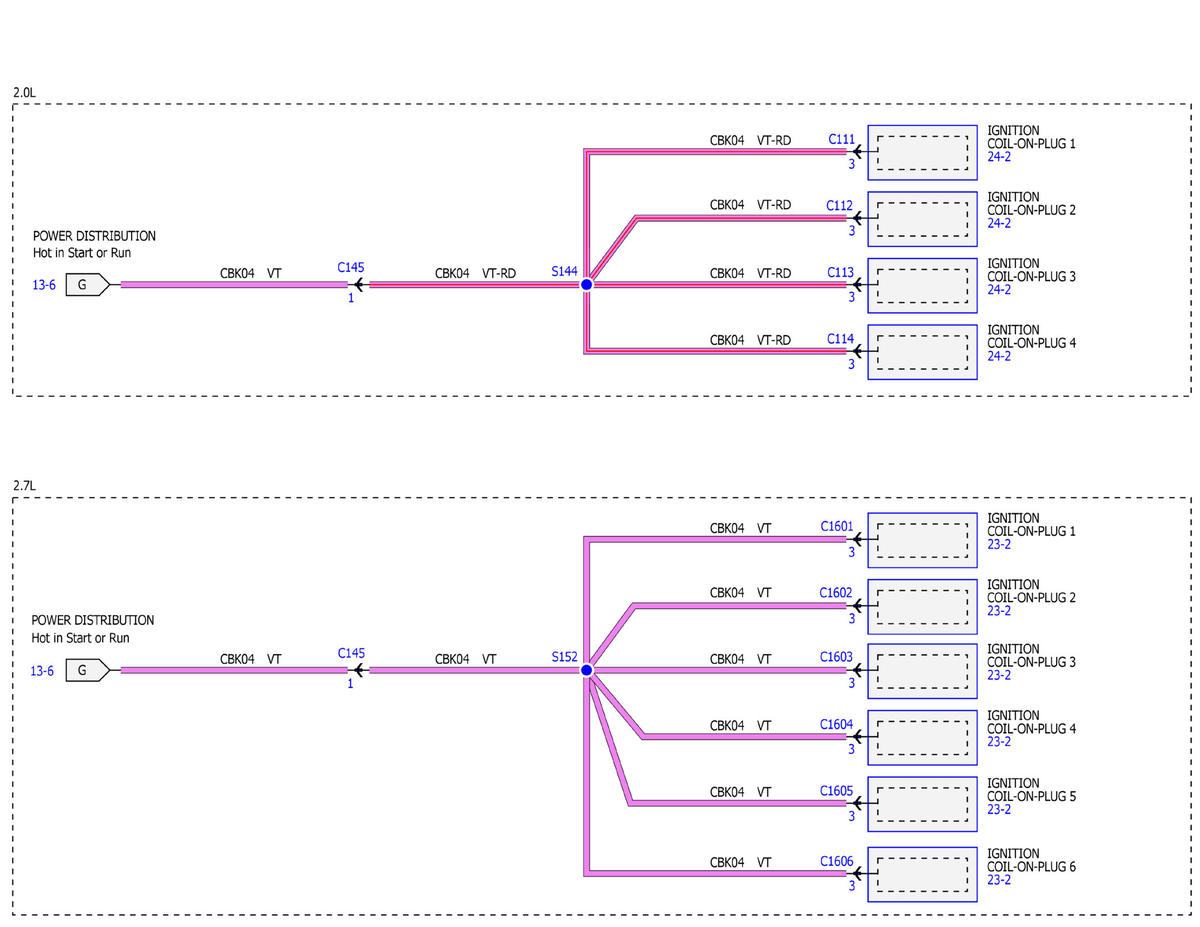

Fig 7: Power Distribution Wiring Diagram (7 Of 47)

GFDWR163810

Courtesy of FORD MOTOR COMPANY

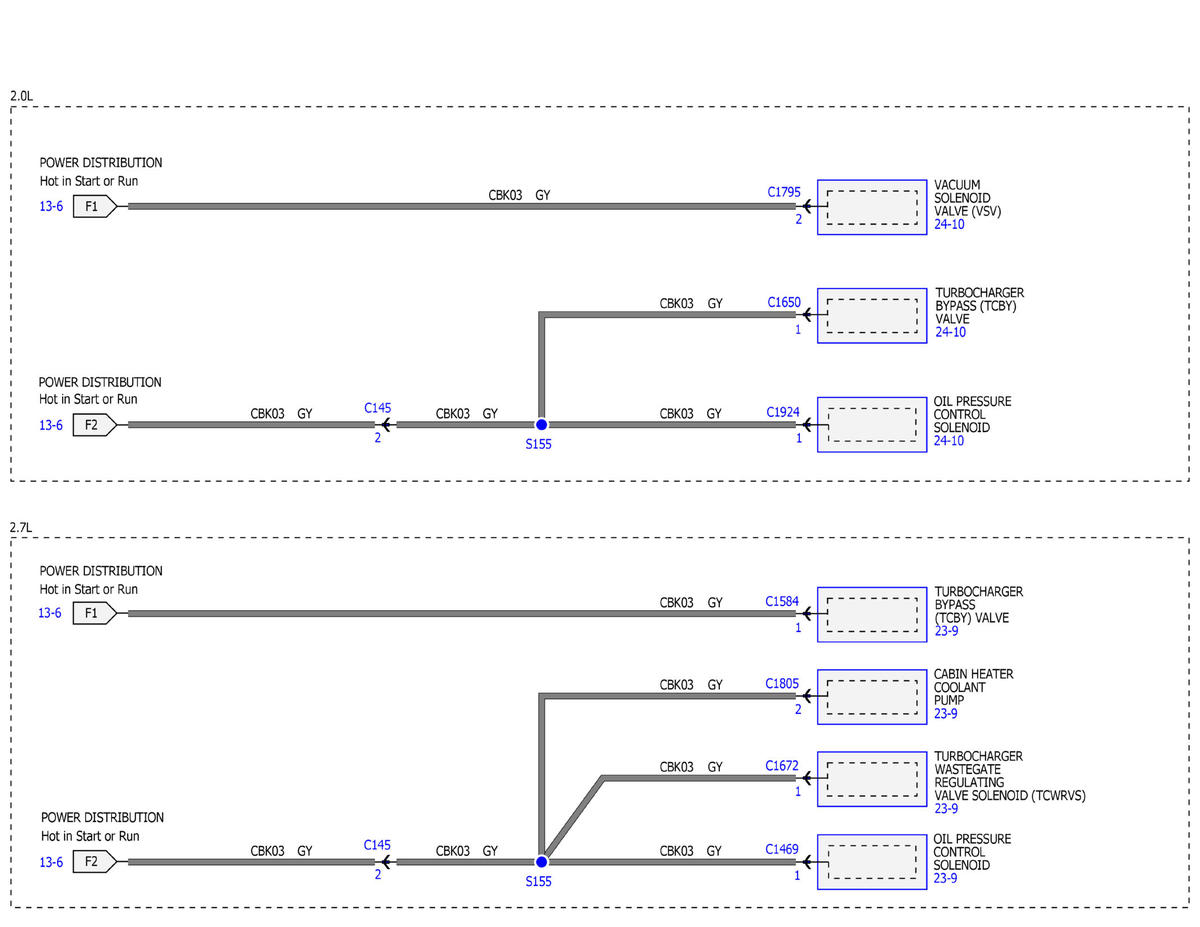

Fig 8: Power Distribution Wiring Diagram (8 Of 47)

GFDWR163811

Courtesy of FORD MOTOR COMPANY

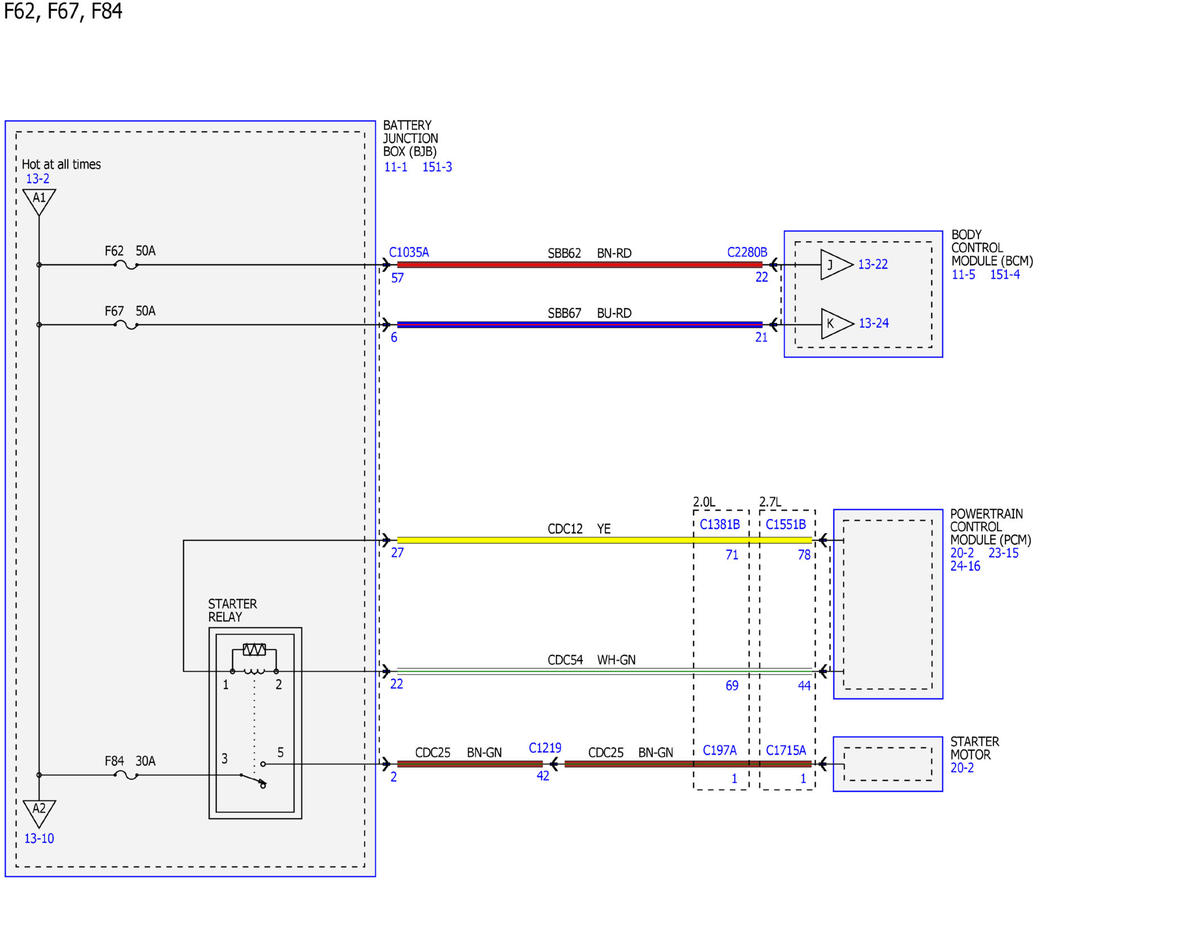

Fig 9: Power Distribution Wiring Diagram (9 Of 47)

GFDWR163812

Courtesy of FORD MOTOR COMPANY

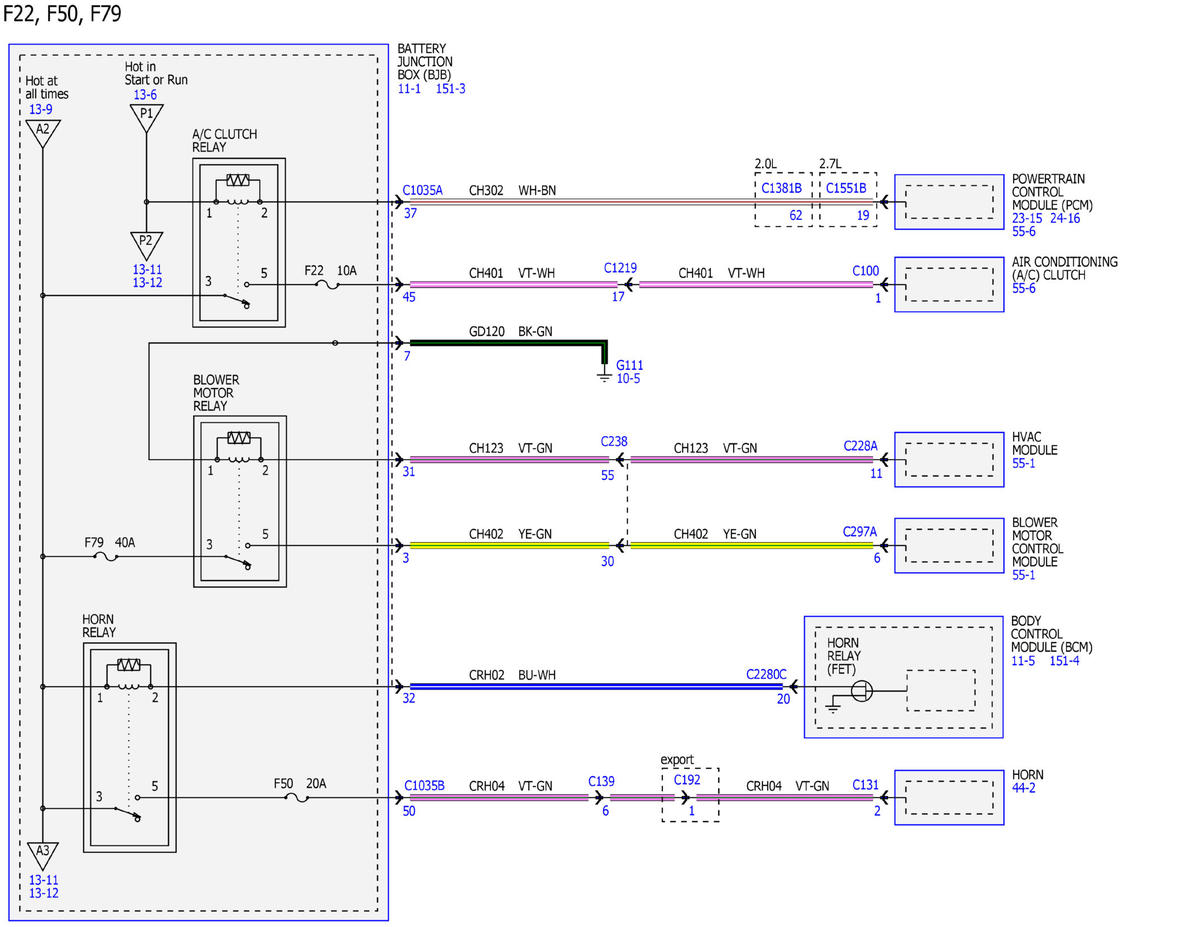

Fig 10: Power Distribution Wiring Diagram (10 Of 47)

GFDWR163767

Courtesy of FORD MOTOR COMPANY

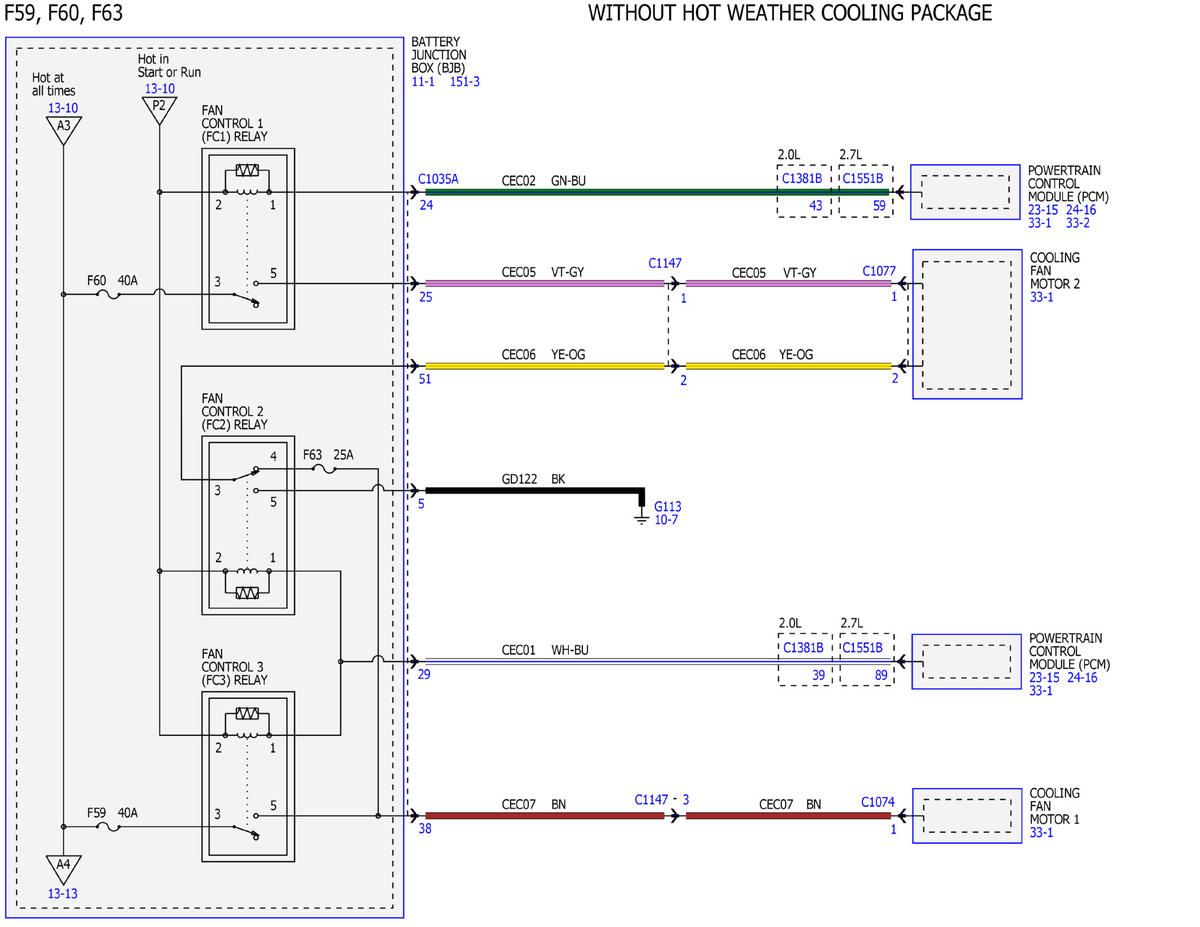

Fig 11: Power Distribution Wiring Diagram (11 Of 47)

GFDWR163768

Courtesy of FORD MOTOR COMPANY

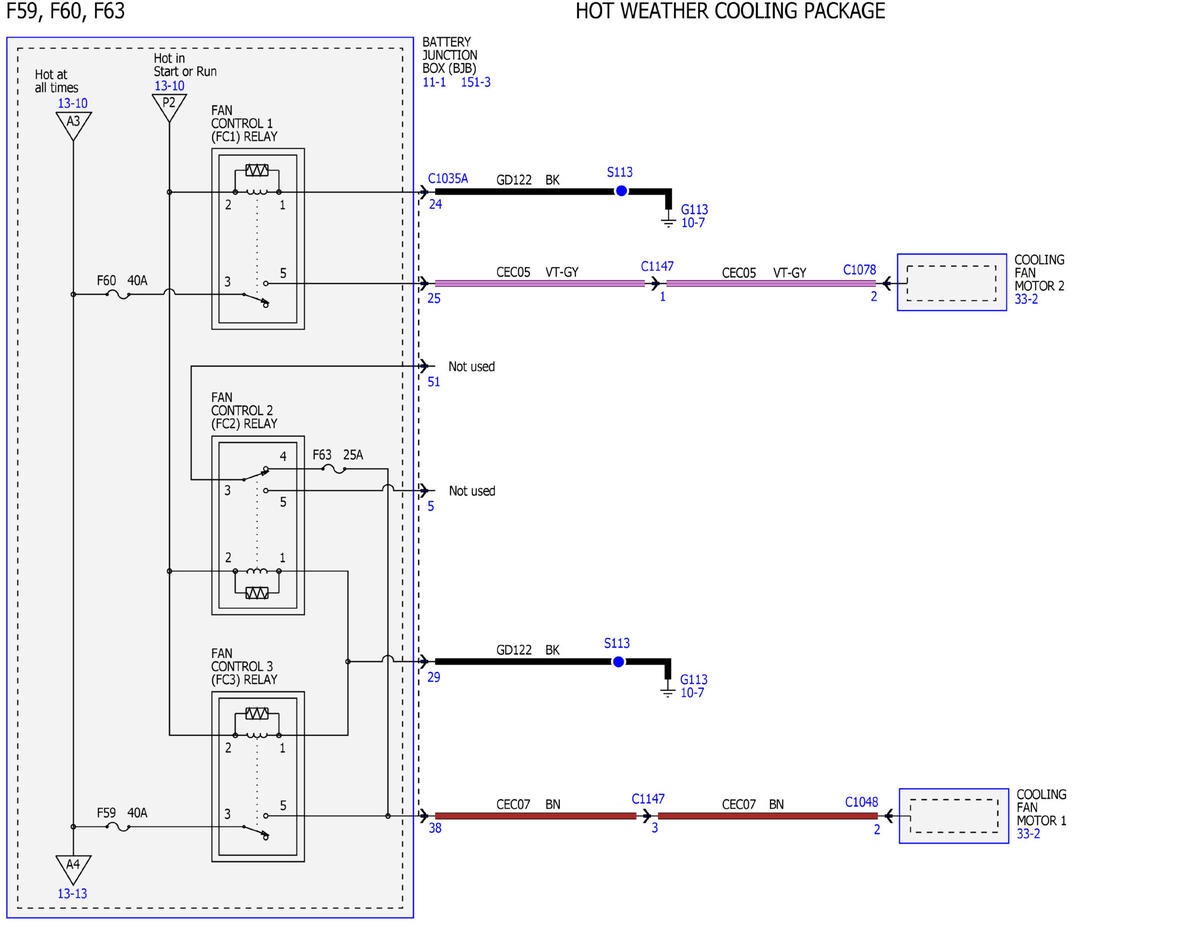

Fig 12: Power Distribution Wiring Diagram (12 Of 47)

GFDWR163769

Courtesy of FORD MOTOR COMPANY

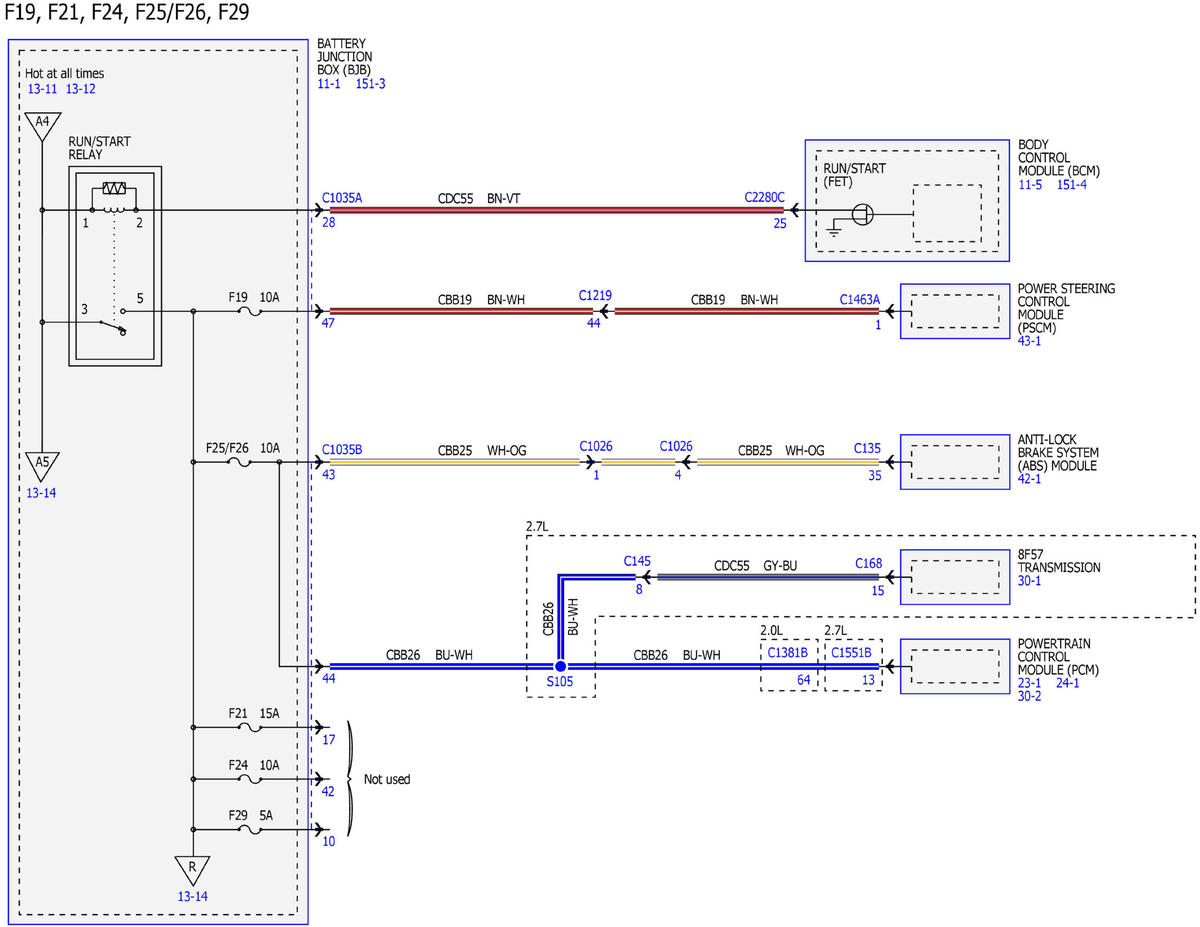

Fig 13: Power Distribution Wiring Diagram (13 Of 47)

GFDWR163770

Courtesy of FORD MOTOR COMPANY

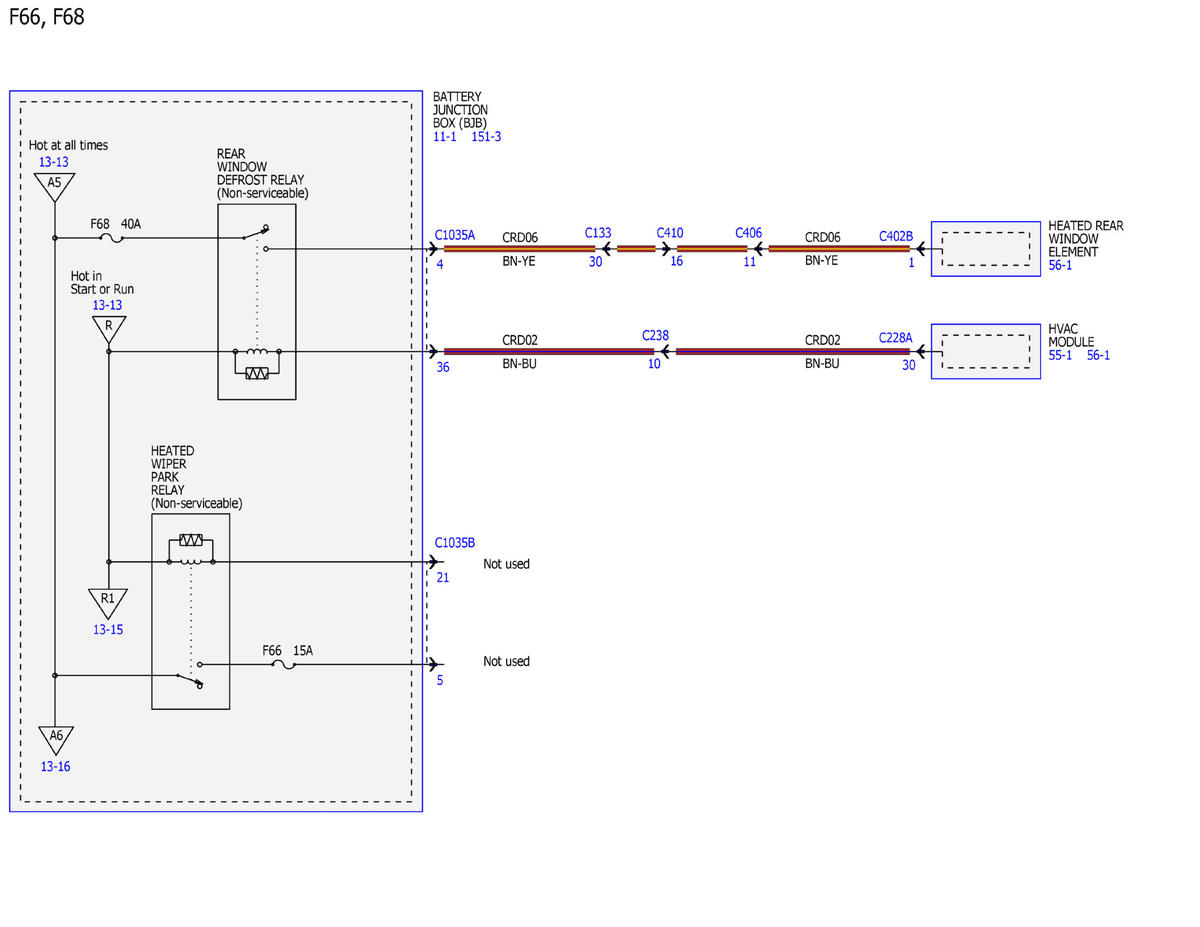

Fig 14: Power Distribution Wiring Diagram (14 Of 47)

GFDWR163771

Courtesy of FORD MOTOR COMPANY

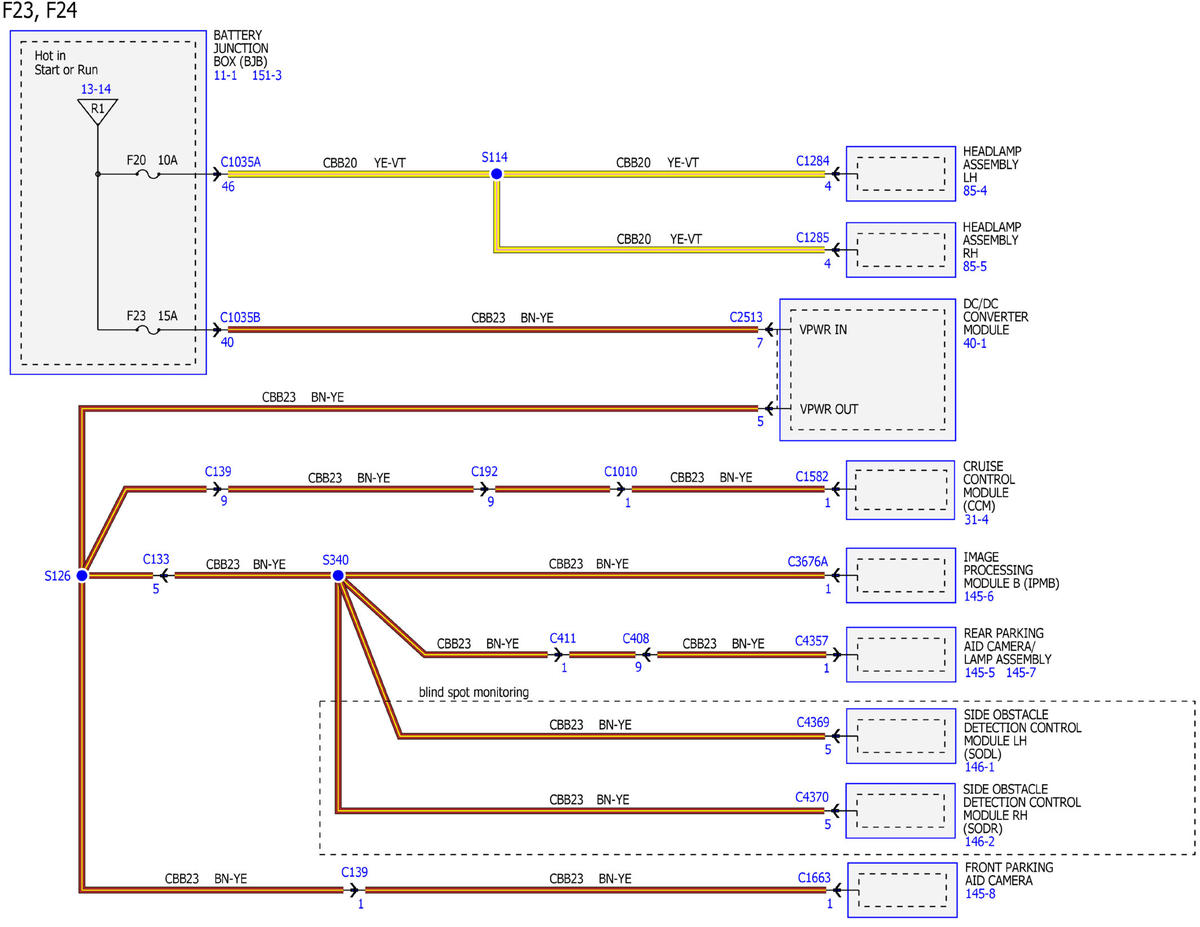

Fig 15: Power Distribution Wiring Diagram (15 Of 47)

GFDWR163772

Courtesy of FORD MOTOR COMPANY

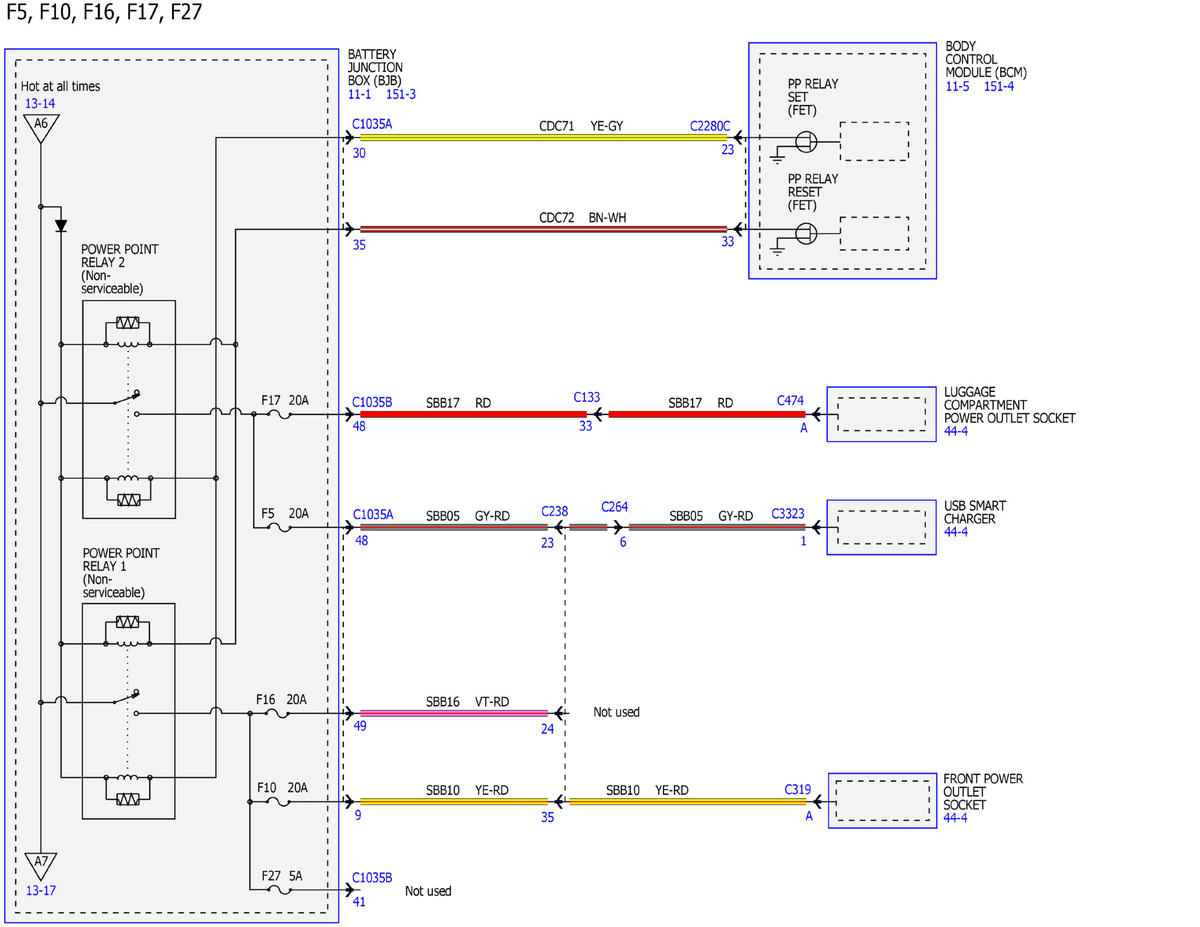

Fig 16: Power Distribution Wiring Diagram (16 Of 47)

GFDWR163773

Courtesy of FORD MOTOR COMPANY

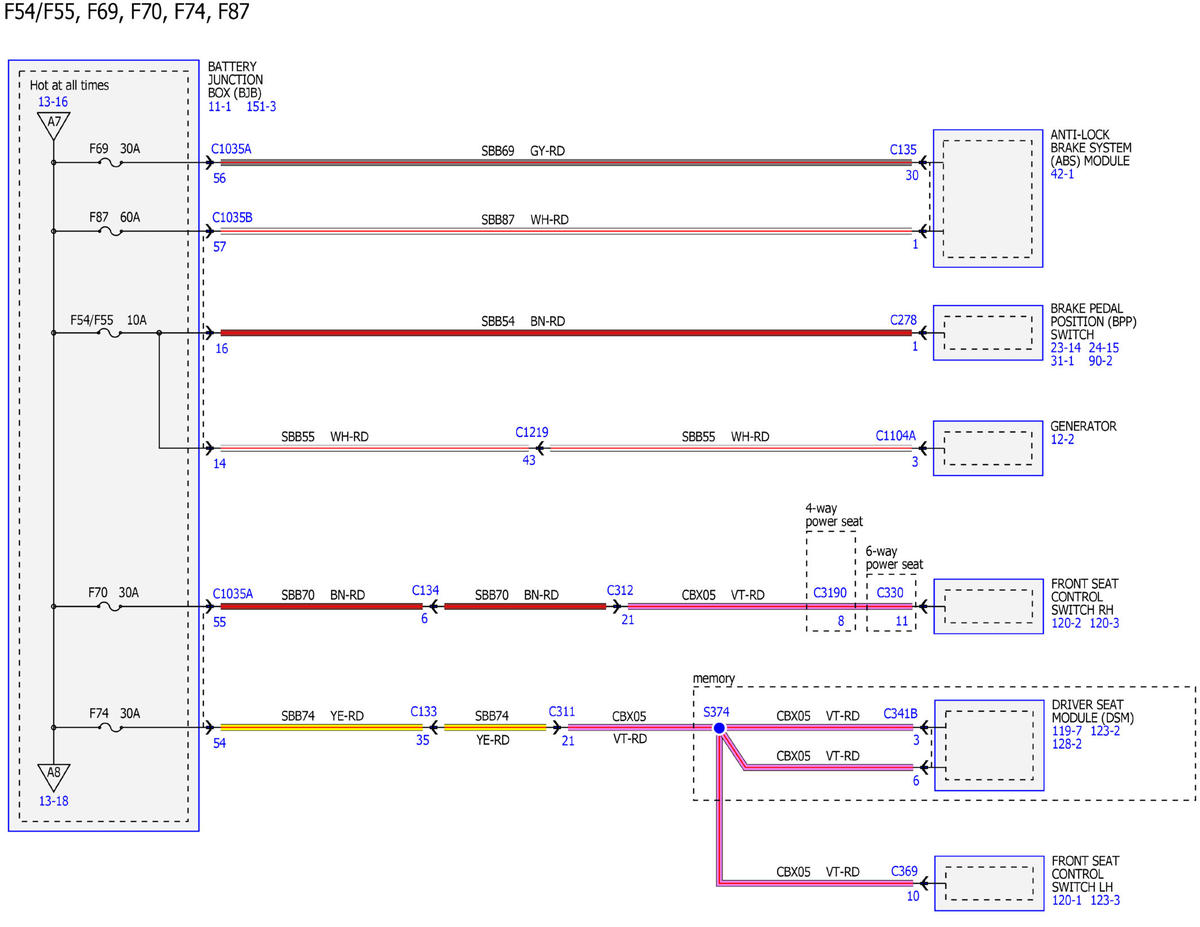

Fig 17: Power Distribution Wiring Diagram (17 Of 47)

GFDWR163774

Courtesy of FORD MOTOR COMPANY

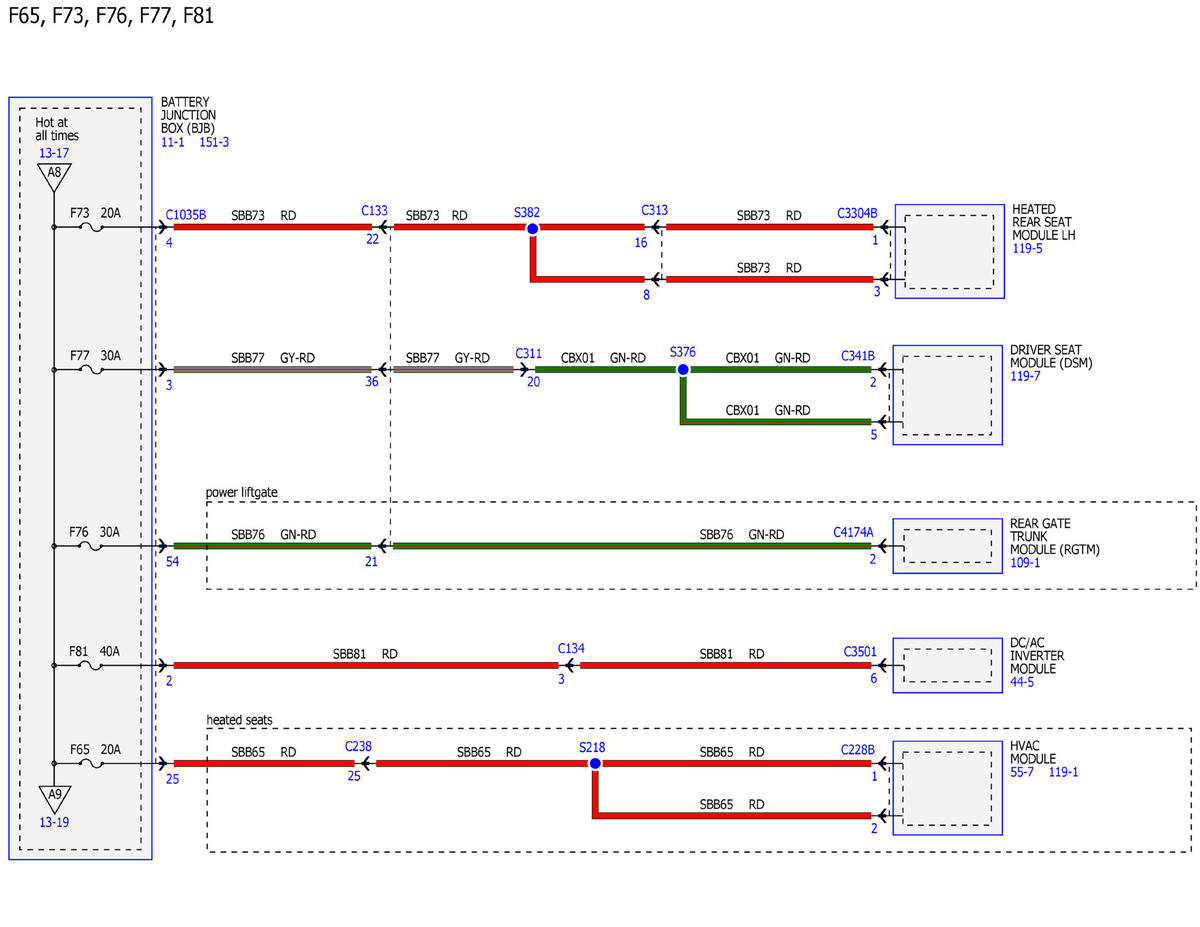

Fig 18: Power Distribution Wiring Diagram (18 Of 47)

GFDWR163775

Courtesy of FORD MOTOR COMPANY

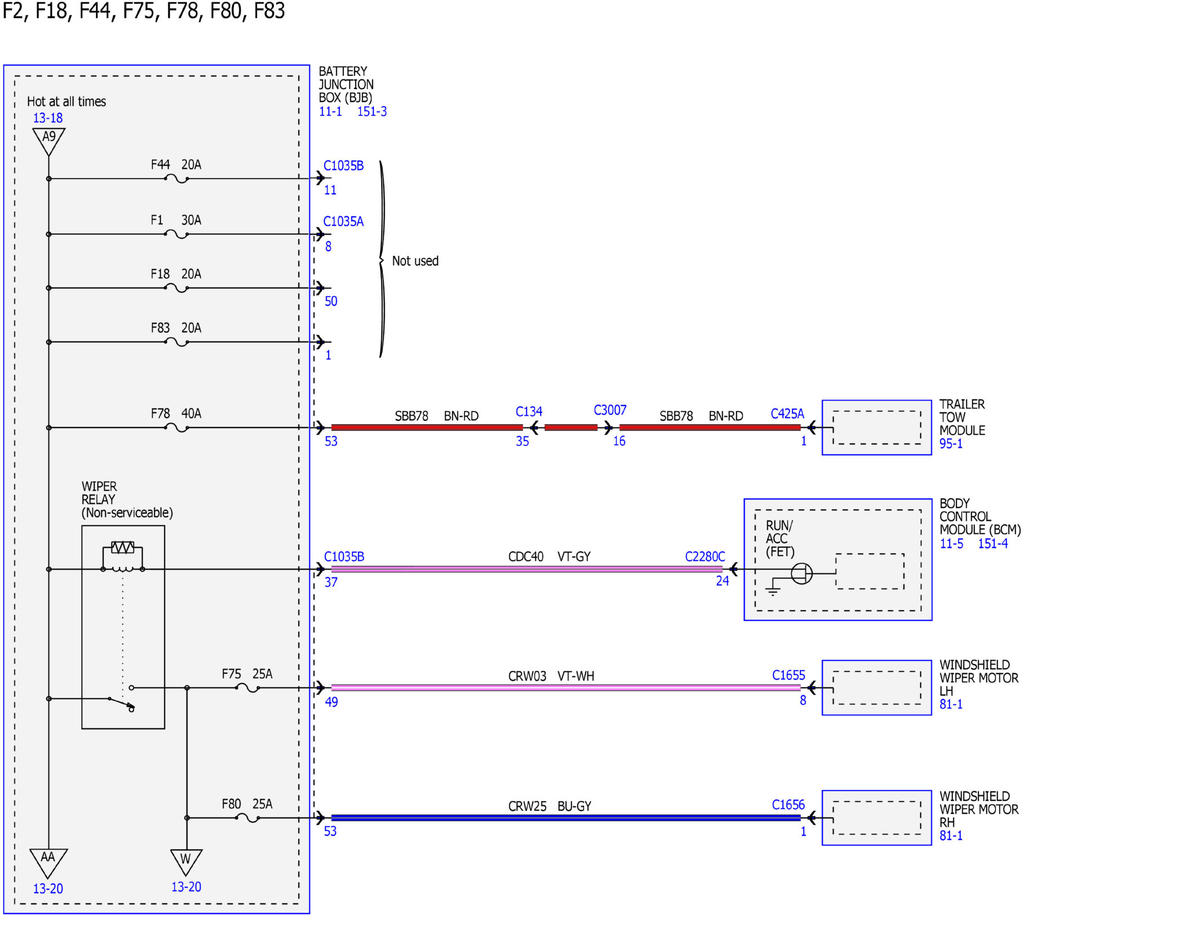

Fig 19: Power Distribution Wiring Diagram (19 Of 47)

GFDWR163776

Courtesy of FORD MOTOR COMPANY

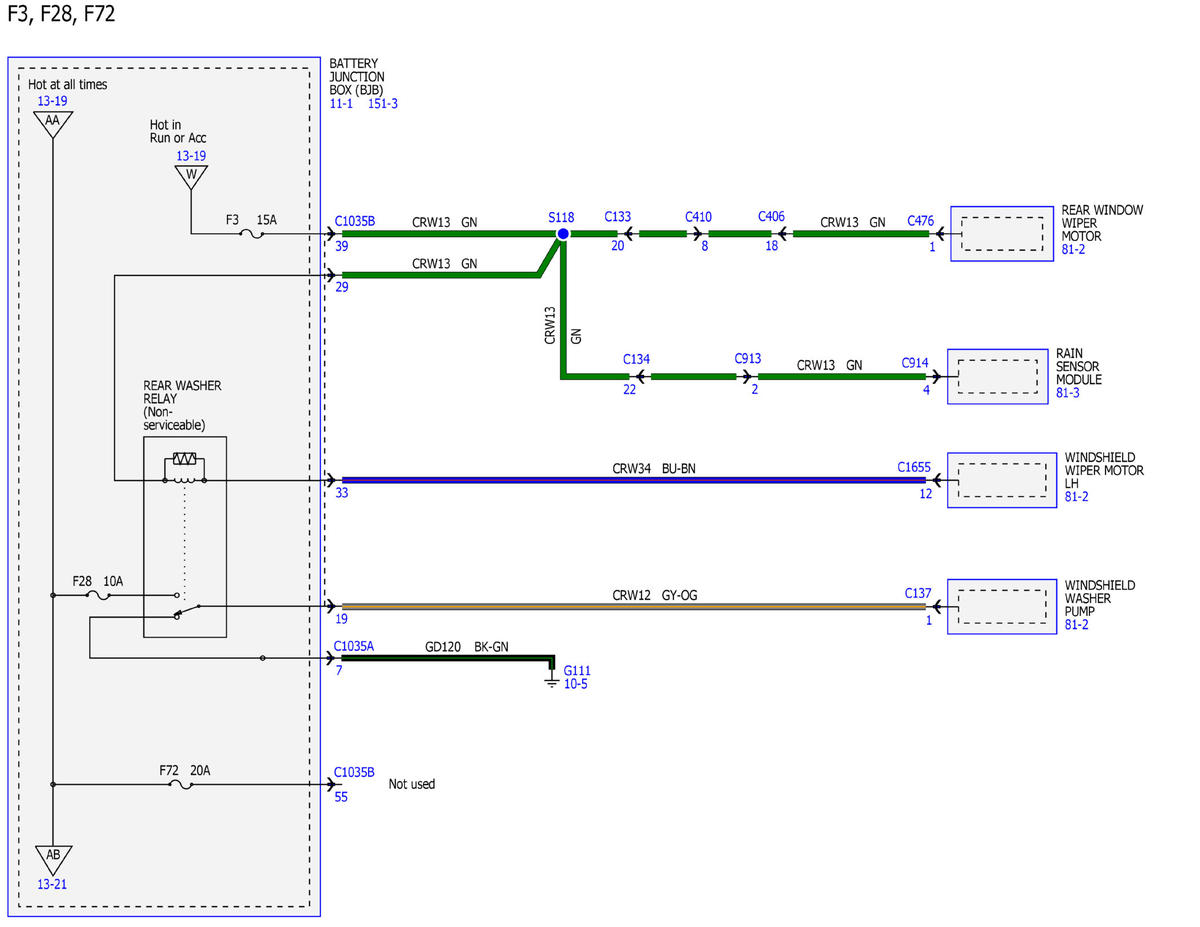

Fig 20: Power Distribution Wiring Diagram (20 Of 47)

GFDWR163778

Courtesy of FORD MOTOR COMPANY

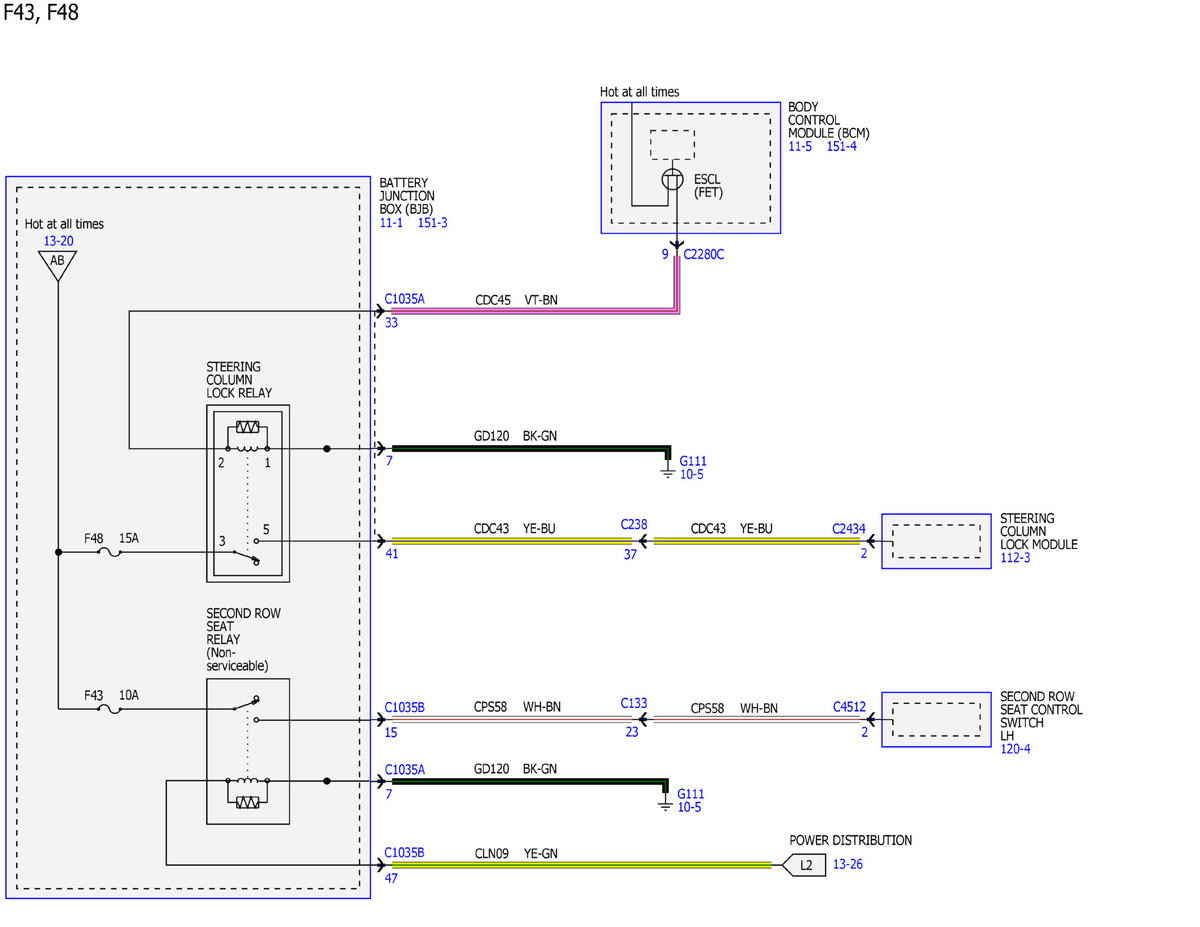

Fig 21: Power Distribution Wiring Diagram (21 Of 47)

GFDWR163779

Courtesy of FORD MOTOR COMPANY

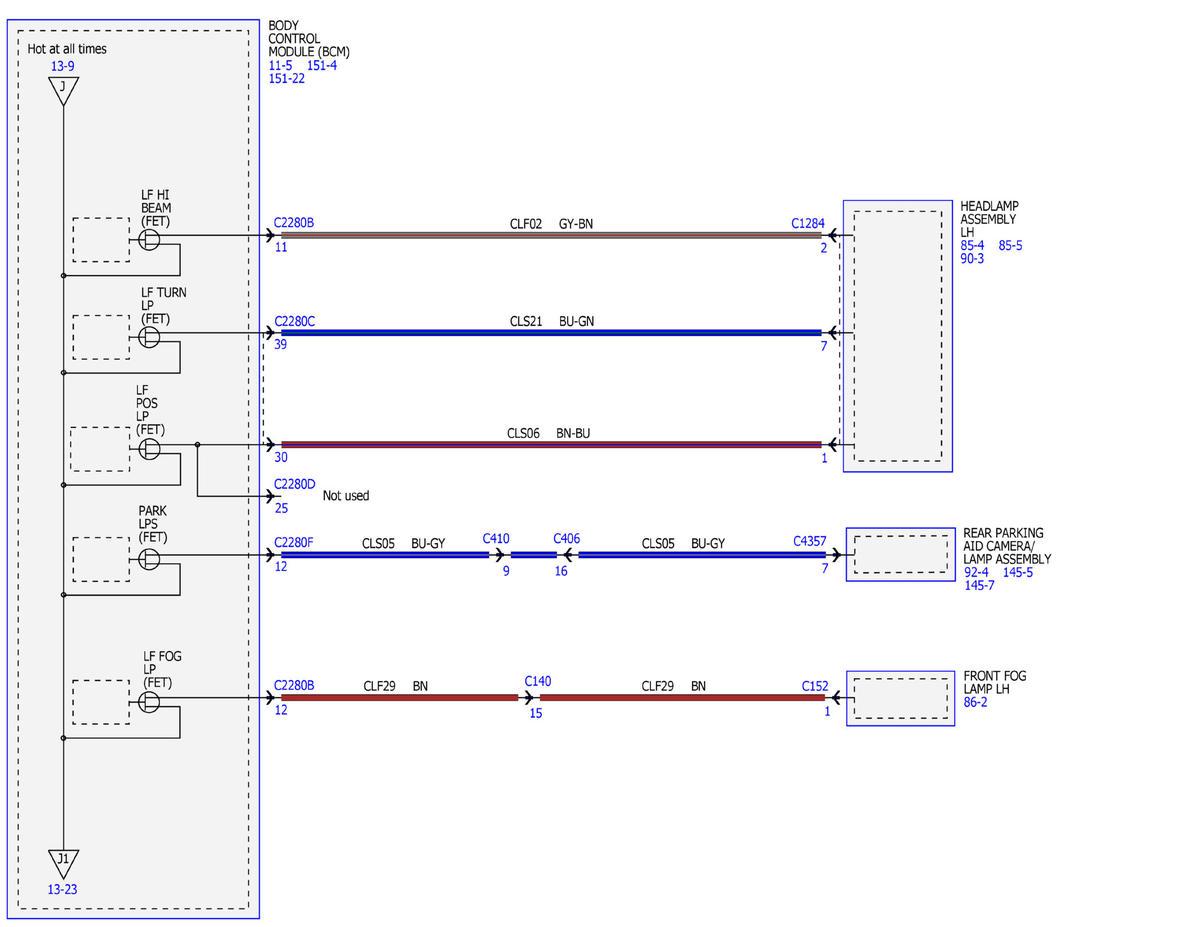

Fig 22: Power Distribution Wiring Diagram (22 Of 47)

GFDWR163780

Courtesy of FORD MOTOR COMPANY

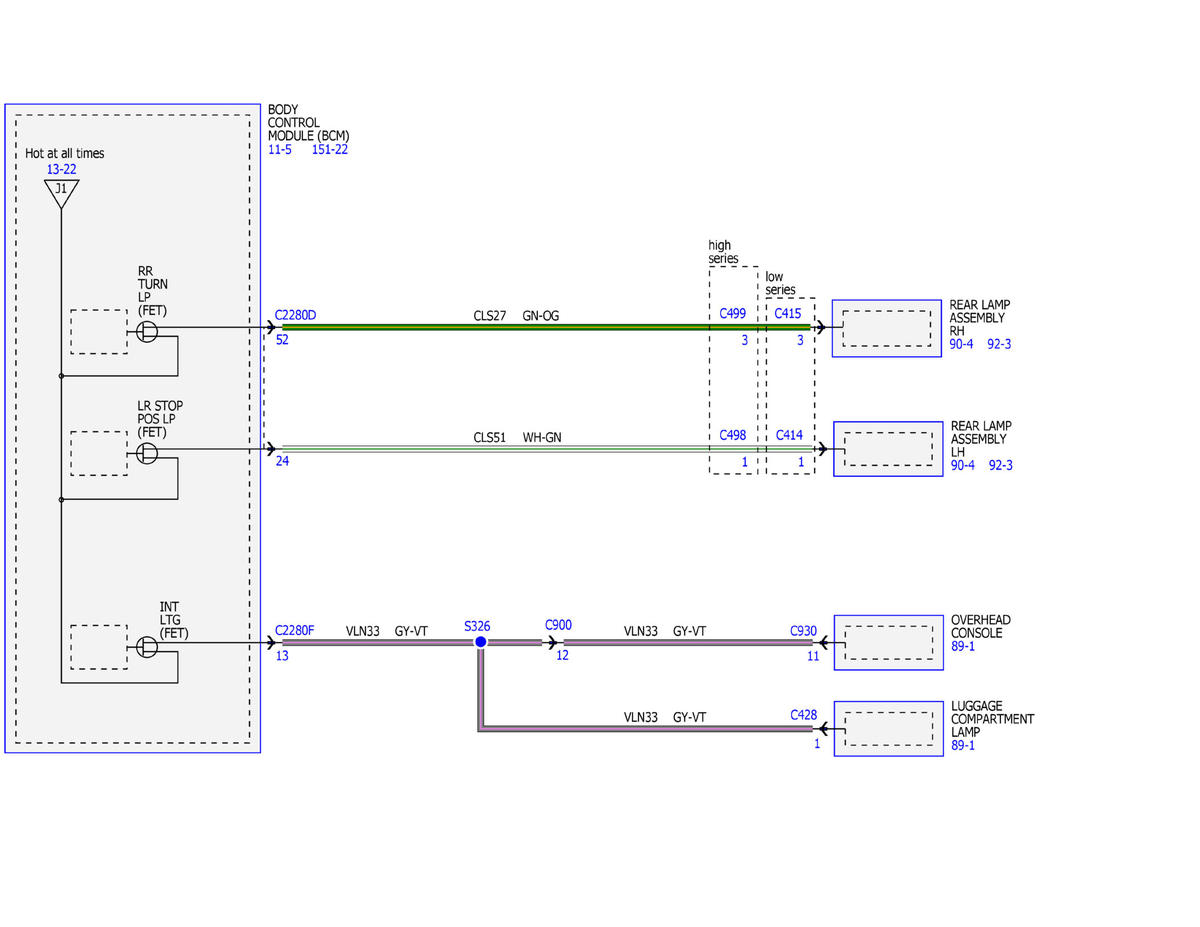

Fig 23: Power Distribution Wiring Diagram (23 Of 47)

GFDWR163781

Courtesy of FORD MOTOR COMPANY

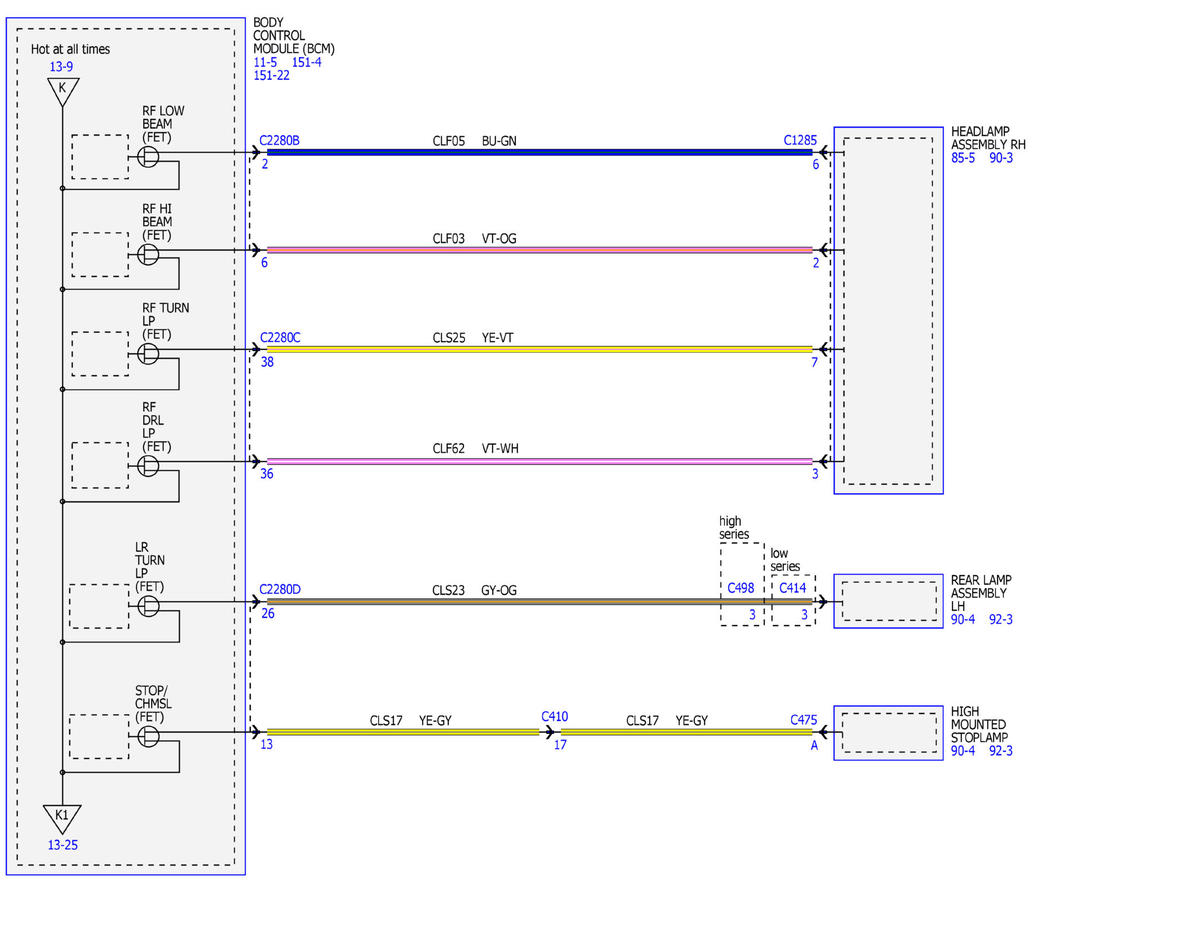

Fig 24: Power Distribution Wiring Diagram (24 Of 47)

GFDWR163782

Courtesy of FORD MOTOR COMPANY

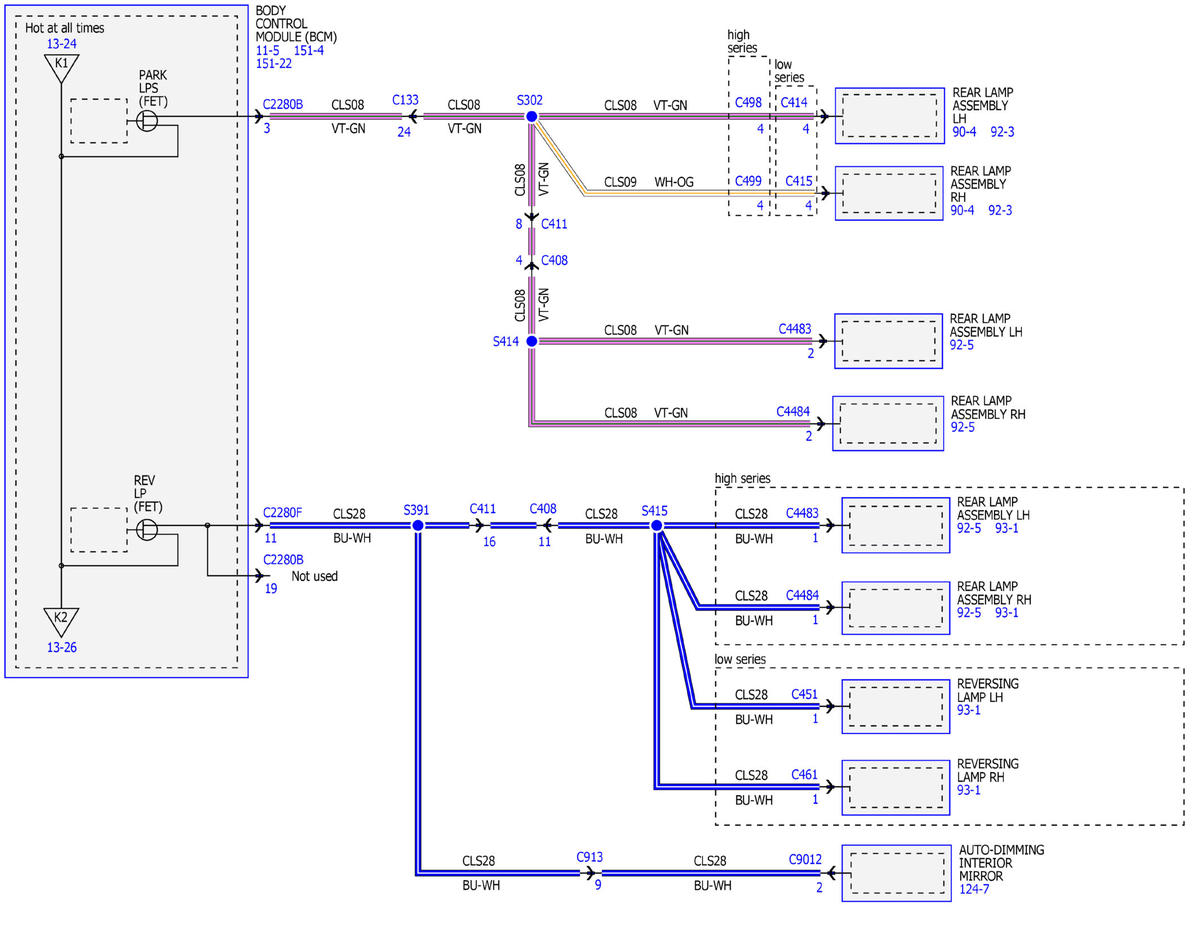

Fig 25: Power Distribution Wiring Diagram (25 Of 47)

GFDWR163783

Courtesy of FORD MOTOR COMPANY

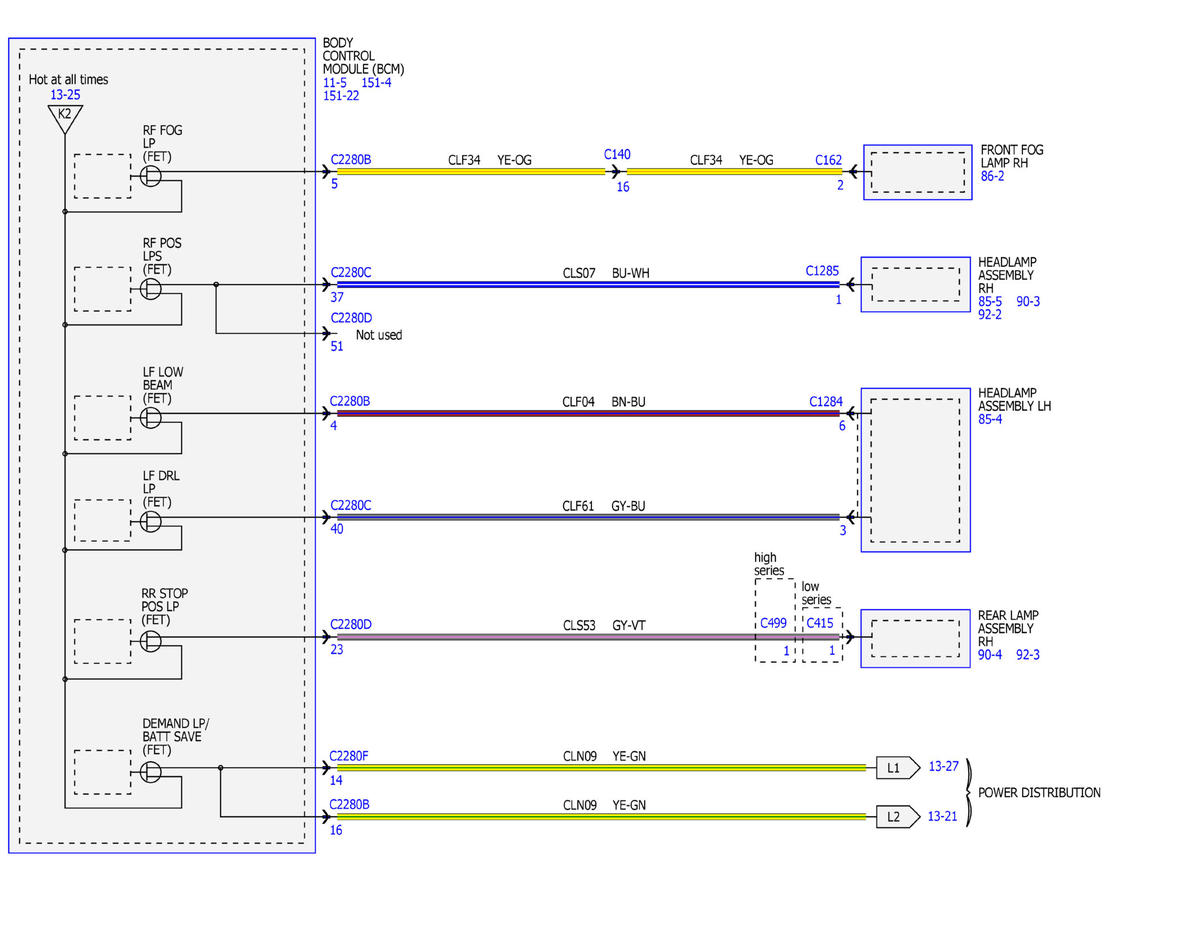

Fig 26: Power Distribution Wiring Diagram (26 Of 47)

GFDWR163784

Courtesy of FORD MOTOR COMPANY

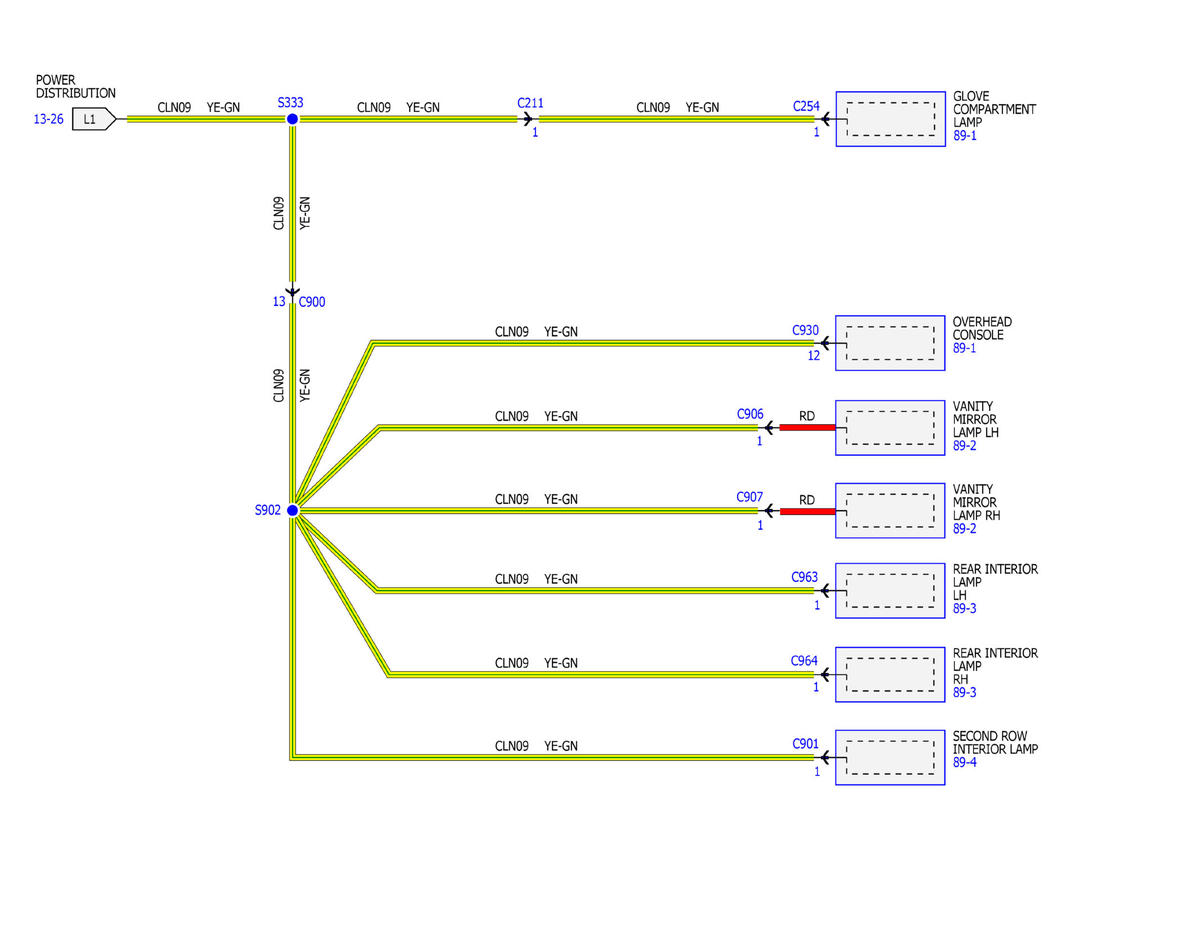

Fig 27: Power Distribution Wiring Diagram (27 Of 47)

GFDWR163785

Courtesy of FORD MOTOR COMPANY

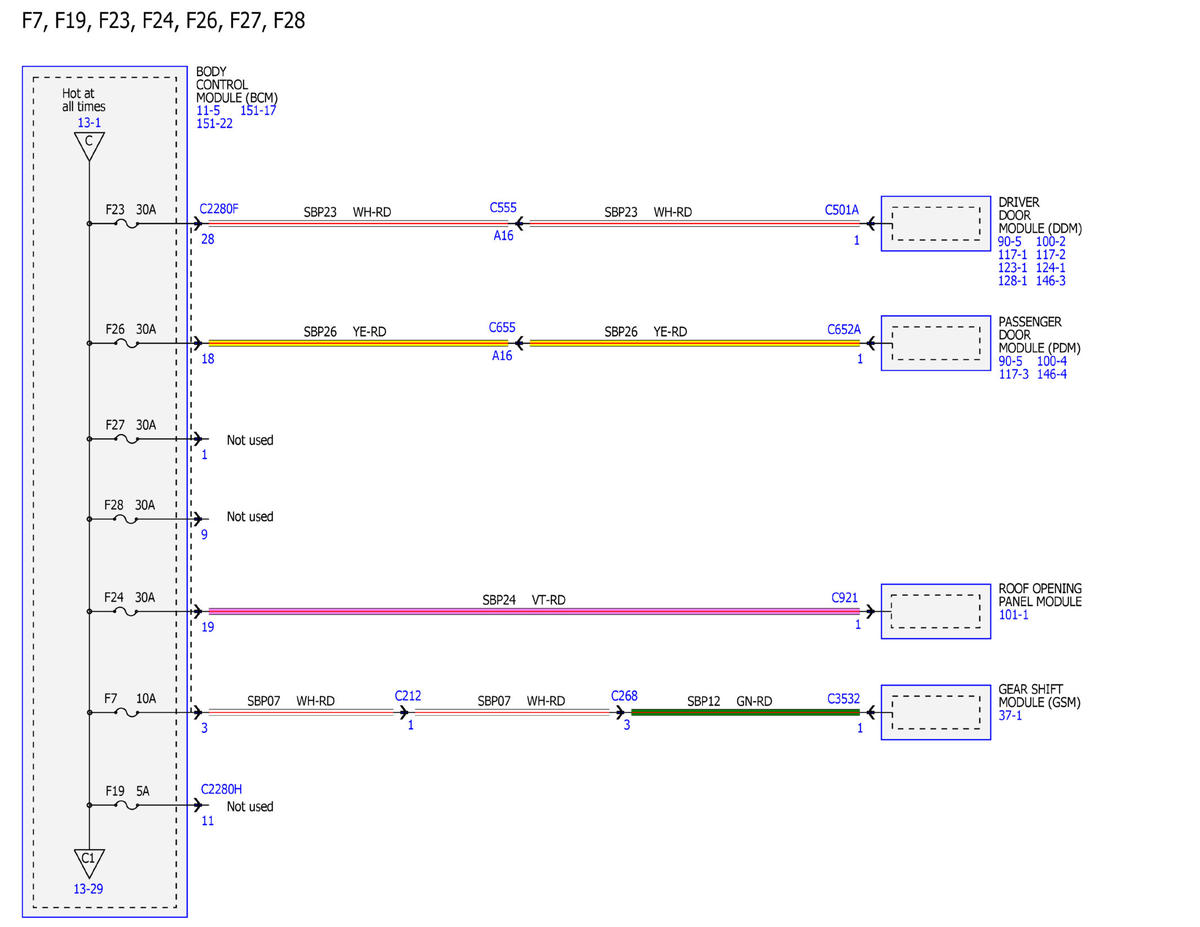

Fig 28: Power Distribution Wiring Diagram (28 Of 47)

GFDWR163786

Courtesy of FORD MOTOR COMPANY

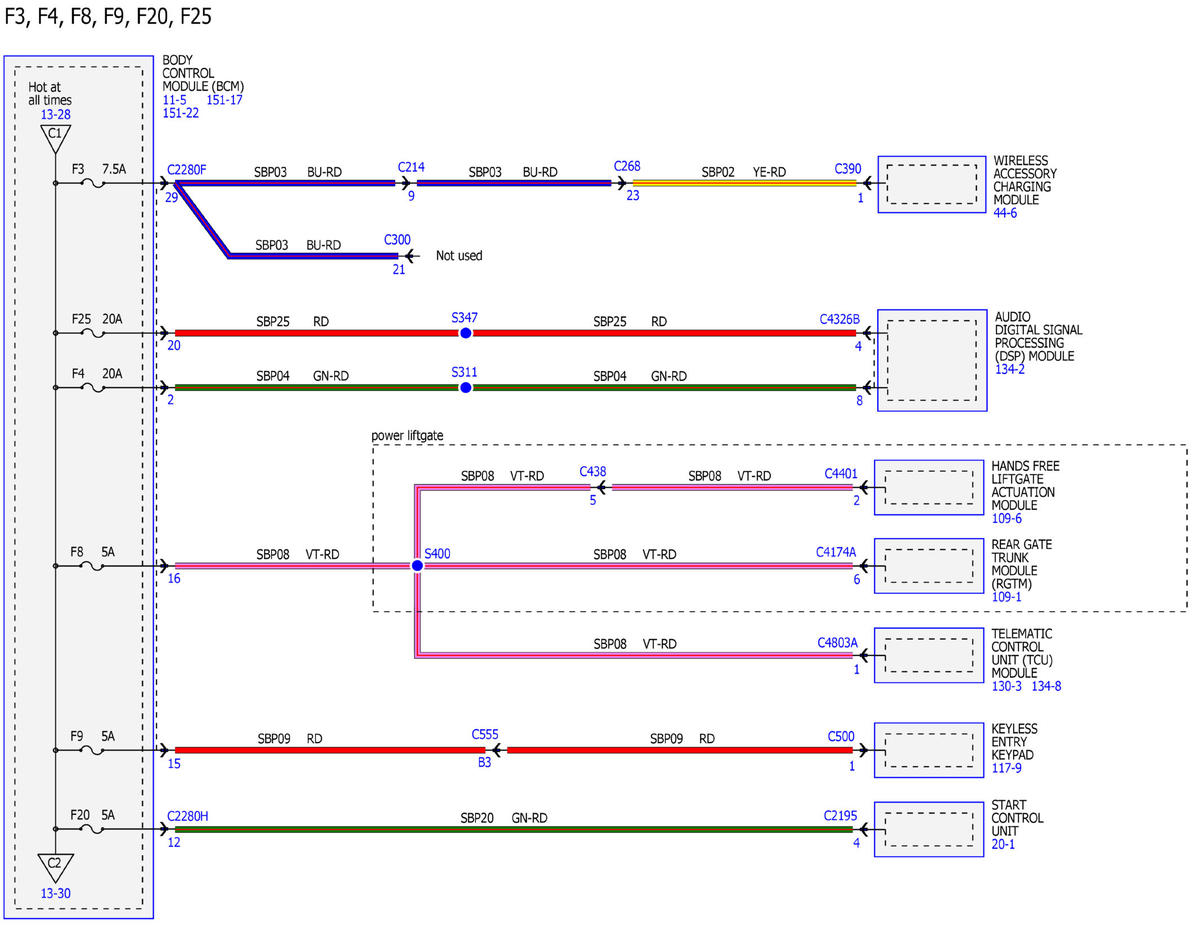

Fig 29: Power Distribution Wiring Diagram (29 Of 47)

GFDWR163787

Courtesy of FORD MOTOR COMPANY

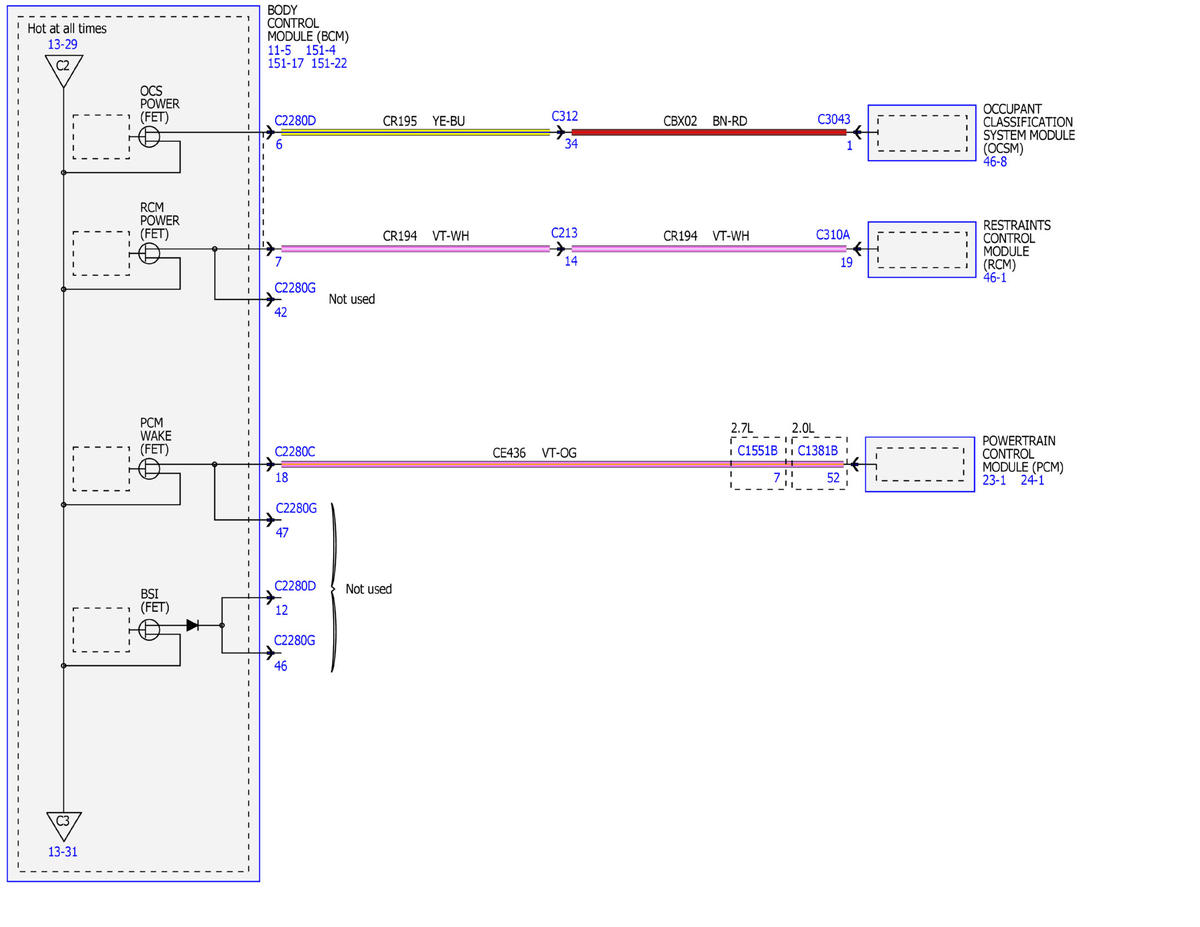

Fig 30: Power Distribution Wiring Diagram (30 Of 47)

GFDWR163789

Courtesy of FORD MOTOR COMPANY

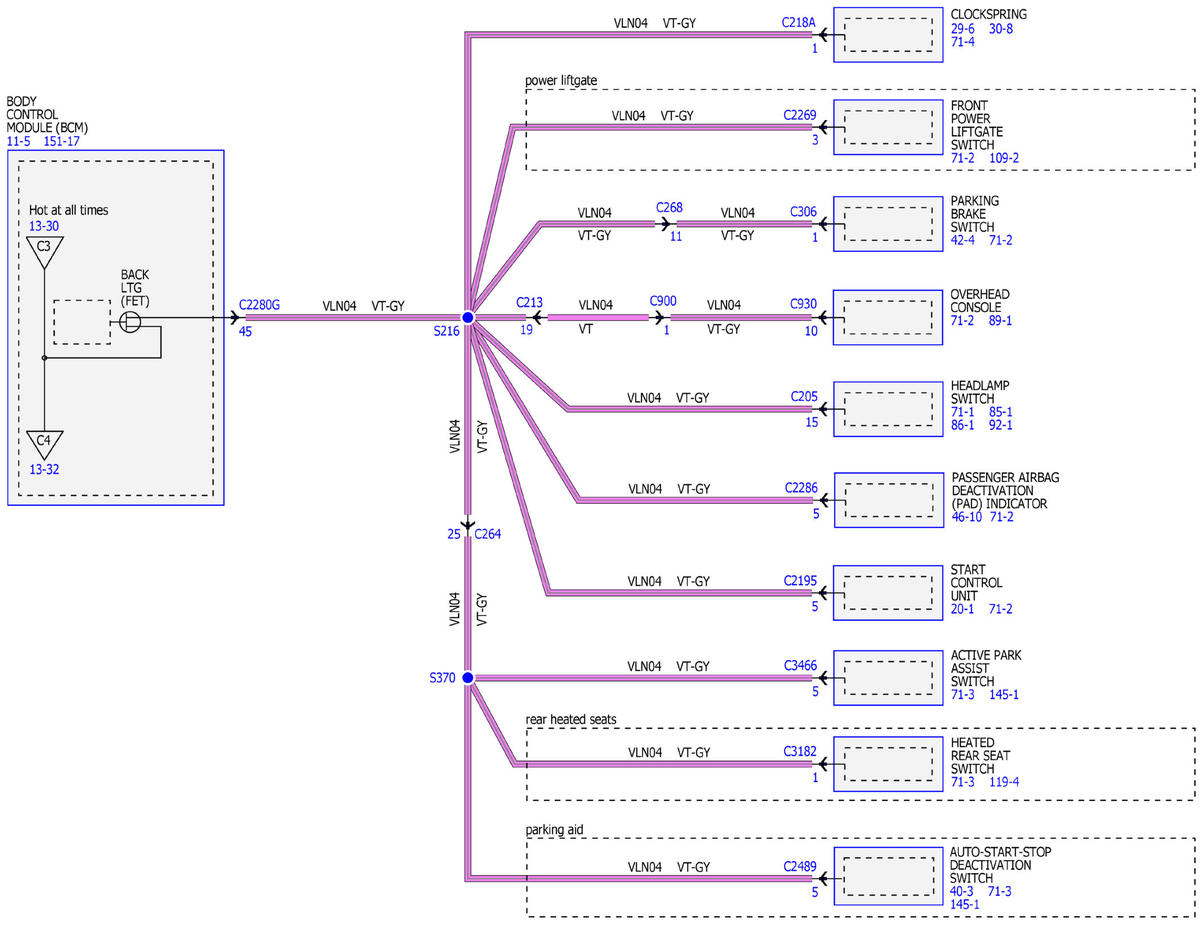

Fig 31: Power Distribution Wiring Diagram (31 Of 47)

GFDWR163790

Courtesy of FORD MOTOR COMPANY

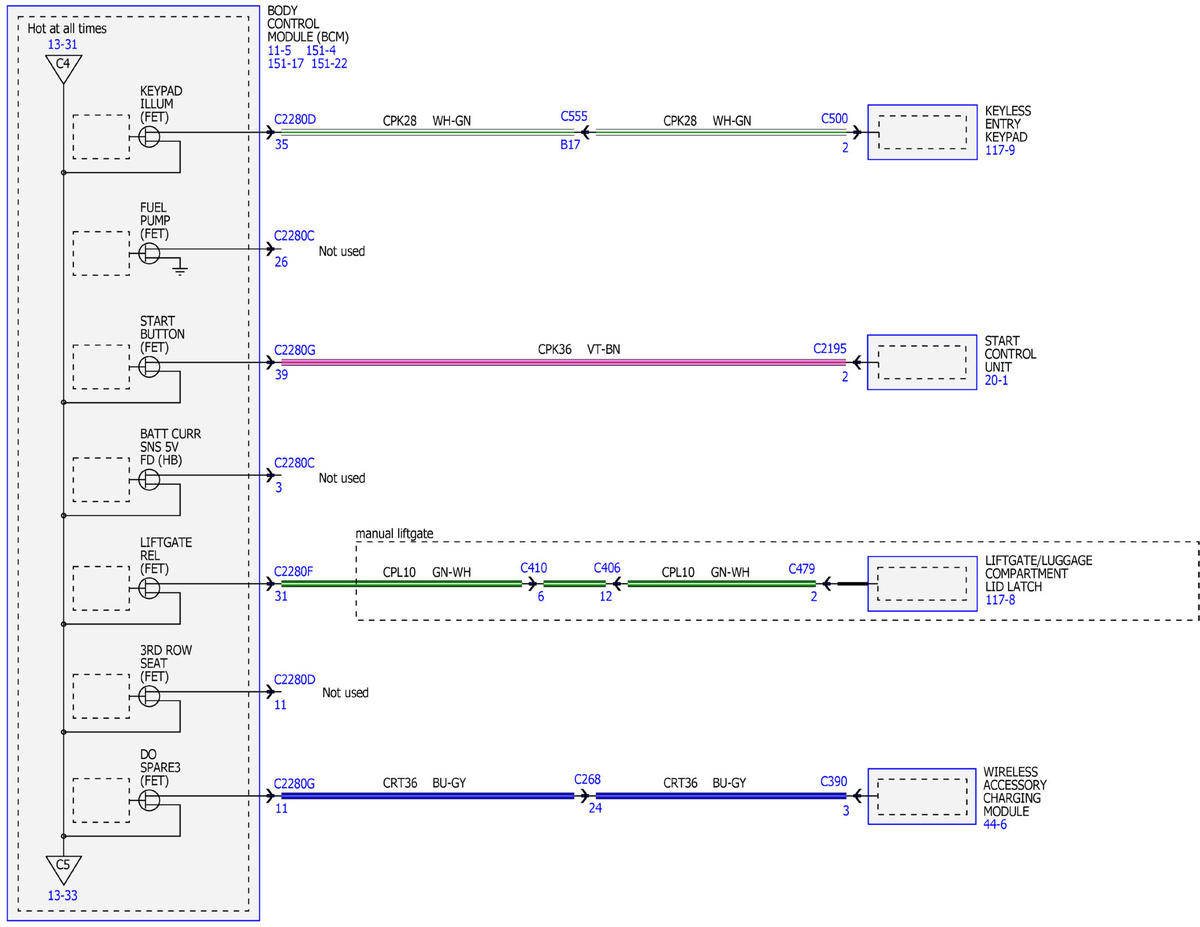

Fig 32: Power Distribution Wiring Diagram (32 Of 47)

GFDWR163791

Courtesy of FORD MOTOR COMPANY

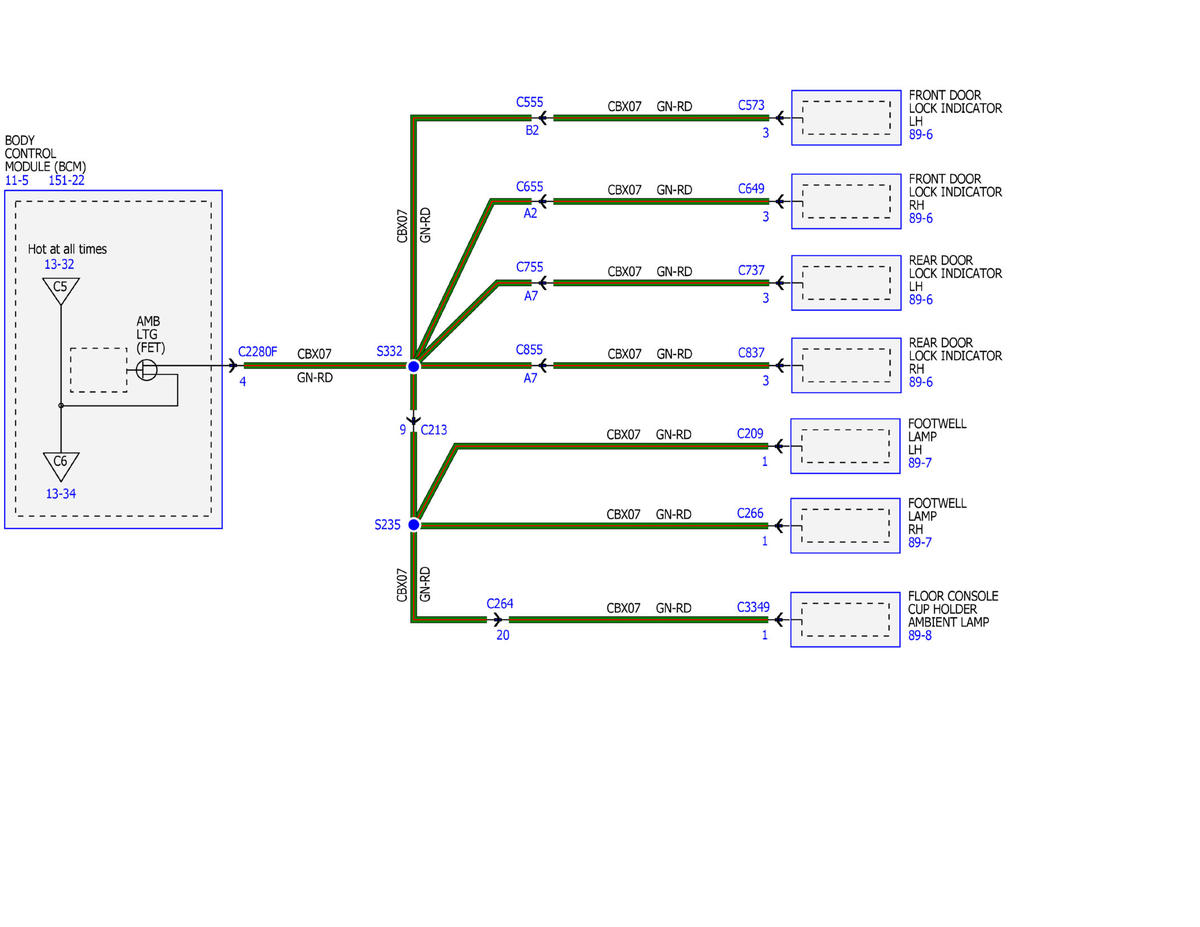

Fig 33: Power Distribution Wiring Diagram (33 Of 47)

GFDWR163792

Courtesy of FORD MOTOR COMPANY

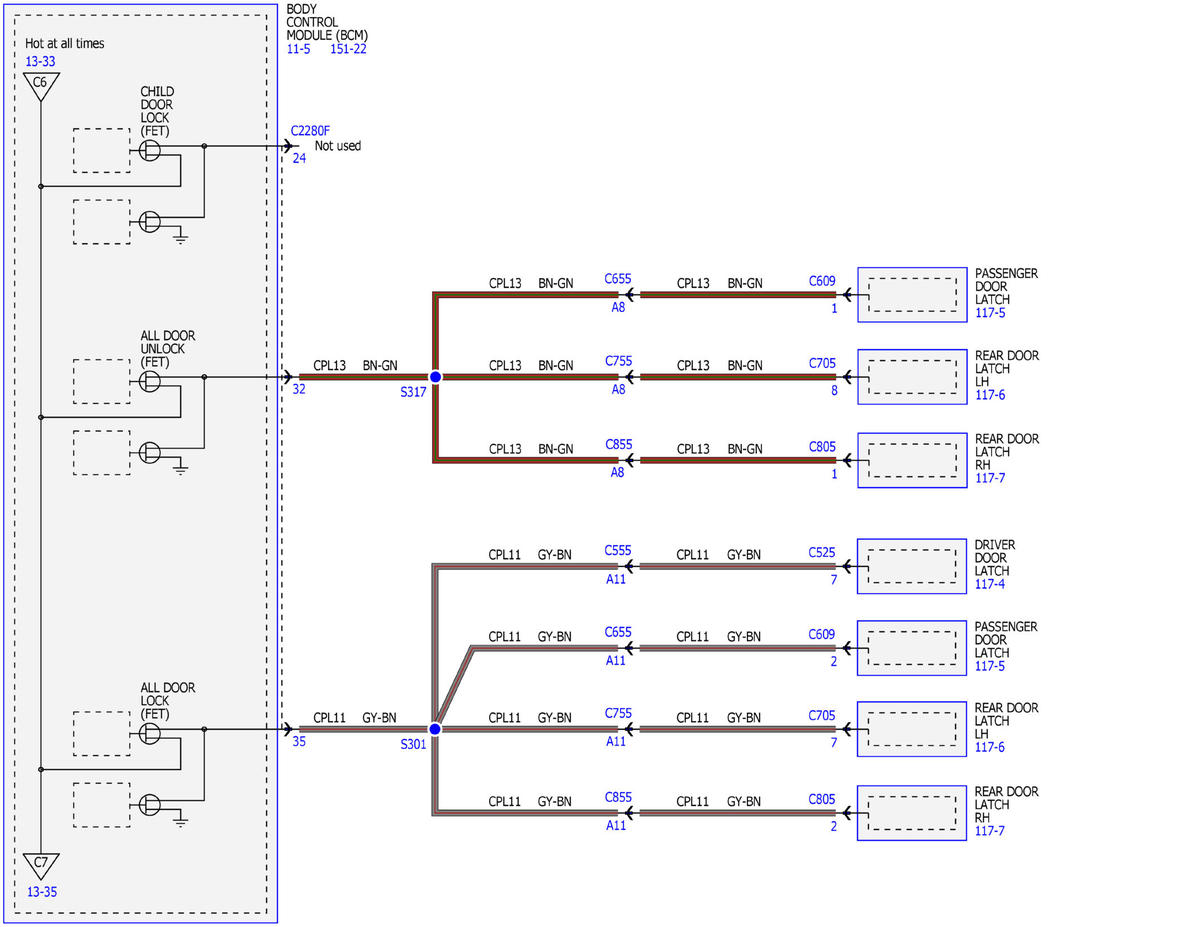

Fig 34: Power Distribution Wiring Diagram (34 Of 47)

GFDWR163793

Courtesy of FORD MOTOR COMPANY

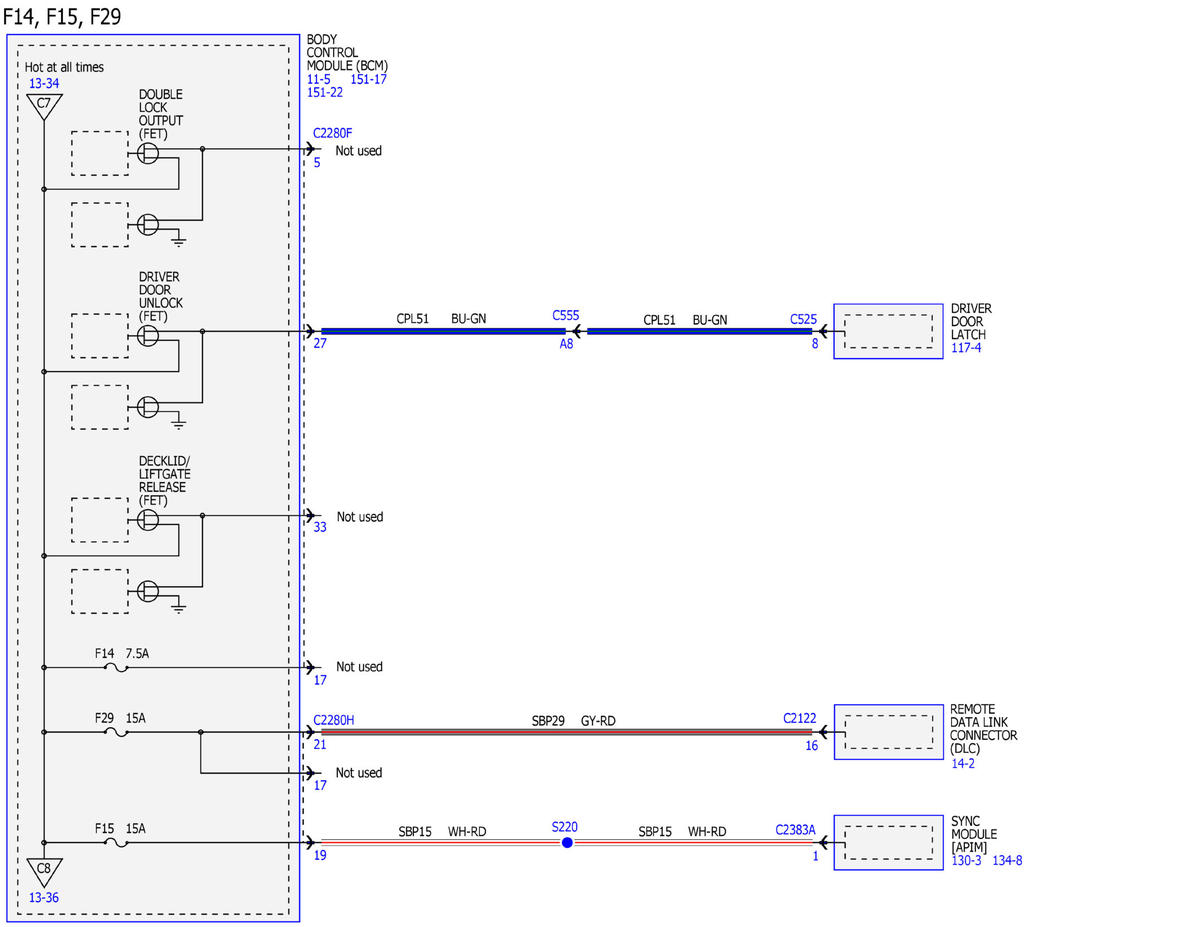

Fig 35: Power Distribution Wiring Diagram (35 Of 47)

GFDWR163794

Courtesy of FORD MOTOR COMPANY

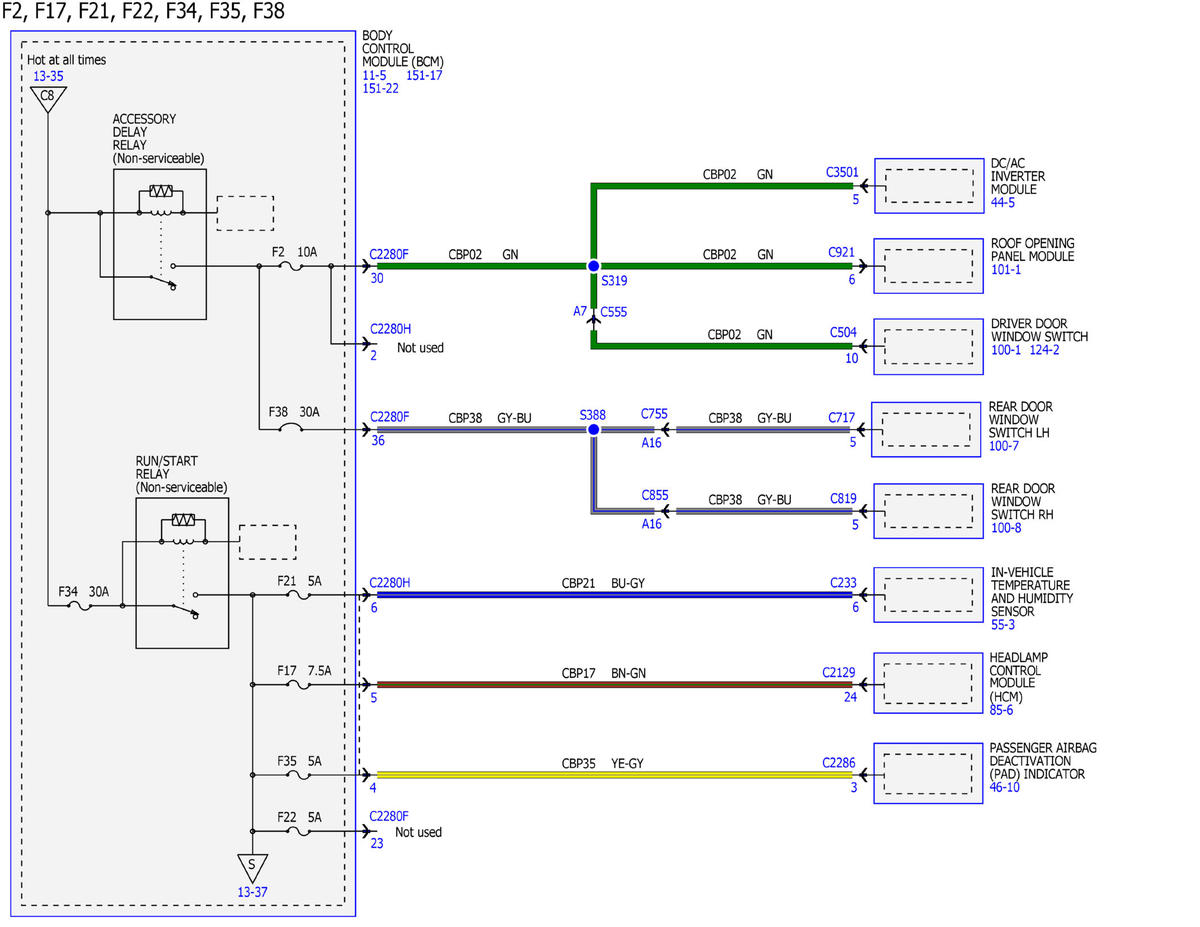

Fig 36: Power Distribution Wiring Diagram (36 Of 47)

GFDWR163795

Courtesy of FORD MOTOR COMPANY

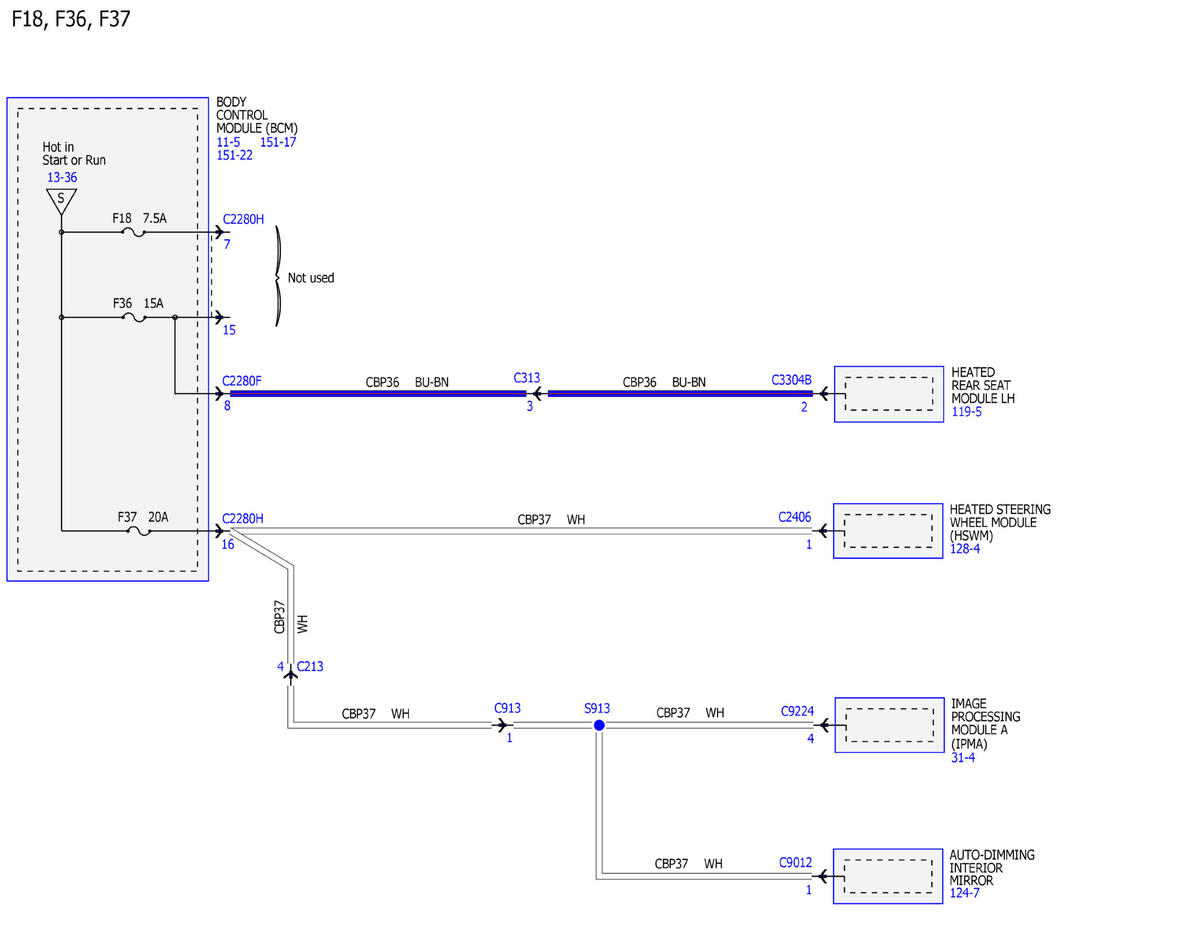

Fig 37: Power Distribution Wiring Diagram (37 Of 47)

GFDWR163796

Courtesy of FORD MOTOR COMPANY

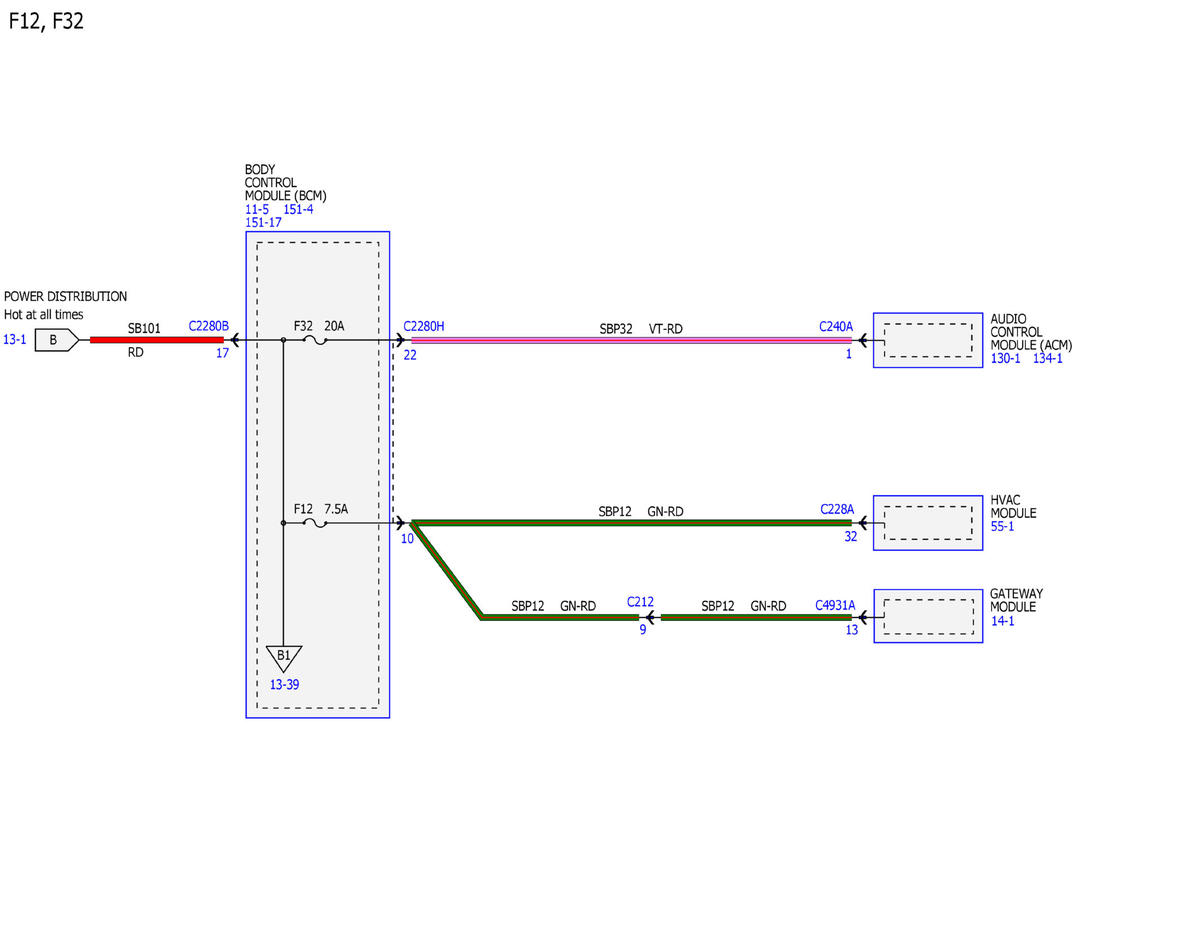

Fig 38: Power Distribution Wiring Diagram (38 Of 47)

GFDWR163797

Courtesy of FORD MOTOR COMPANY

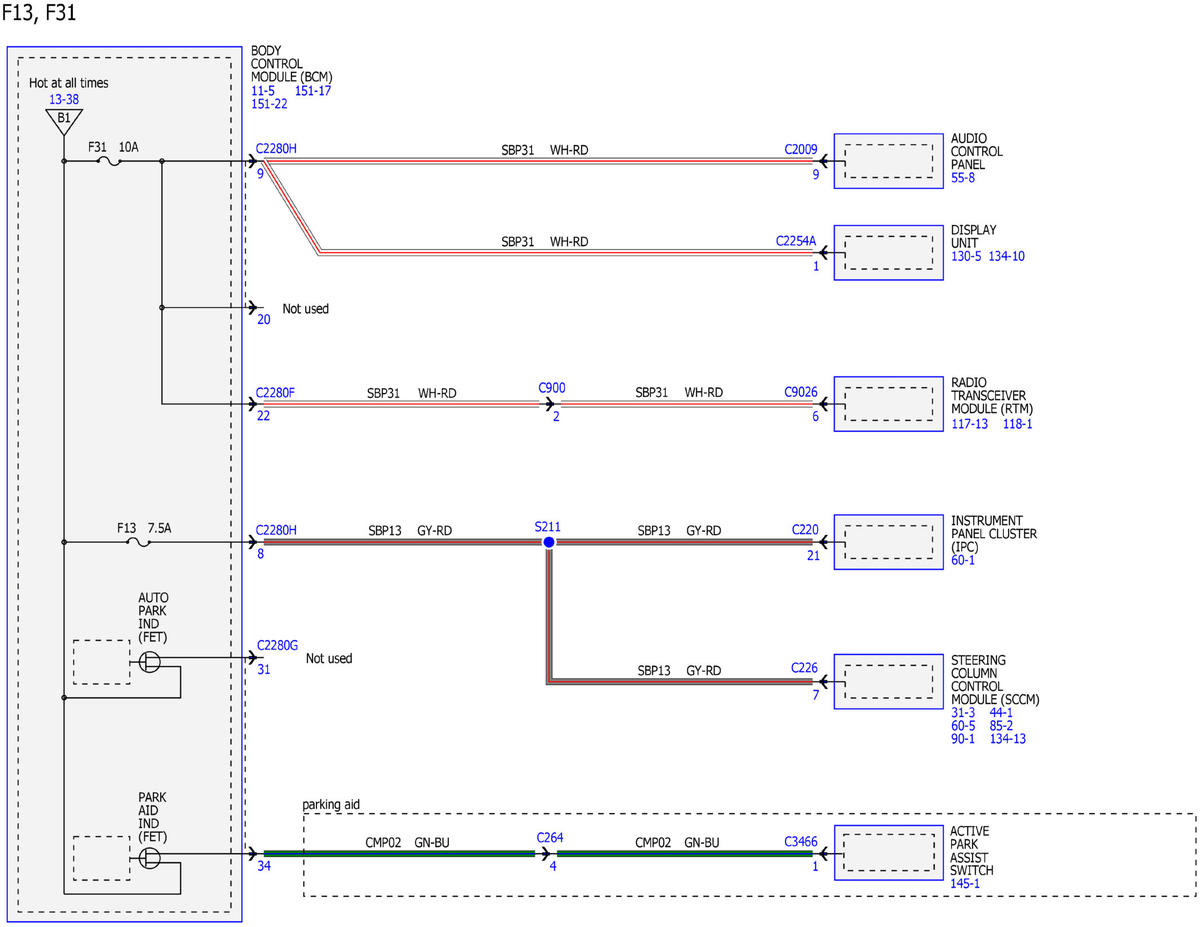

Fig 39: Power Distribution Wiring Diagram (39 Of 47)

GFDWR163798

Courtesy of FORD MOTOR COMPANY

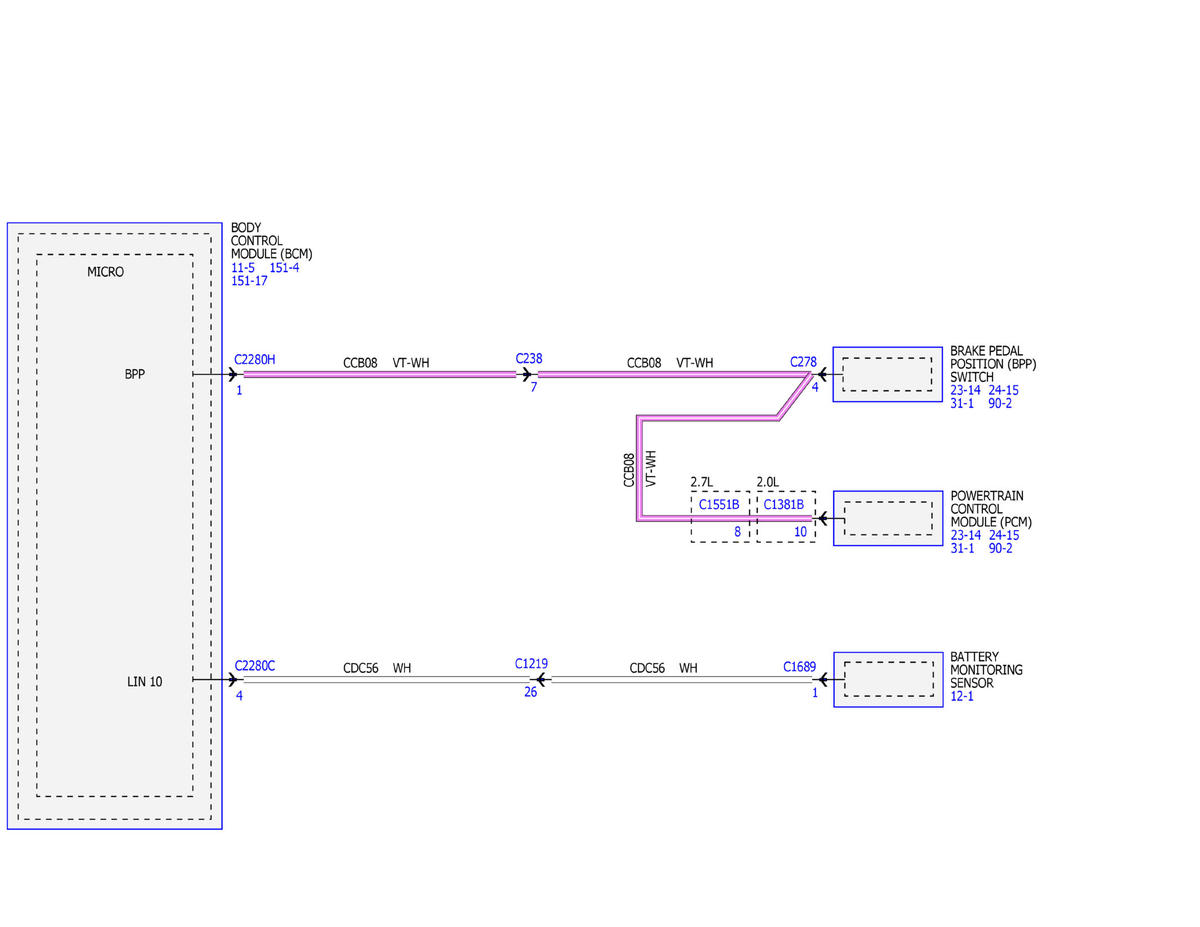

Fig 40: Power Distribution Wiring Diagram (40 Of 47)

GFDWR163800

Courtesy of FORD MOTOR COMPANY

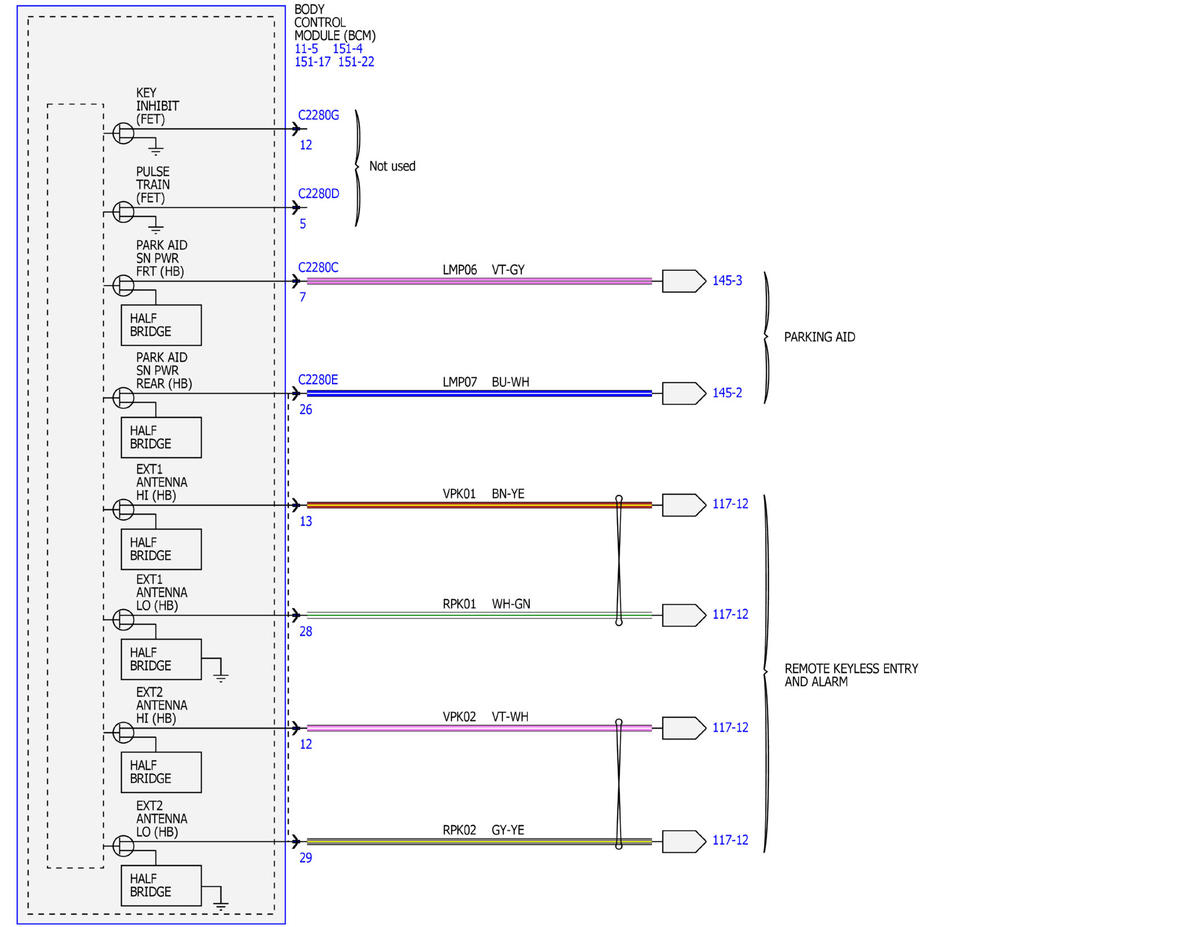

Fig 41: Power Distribution Wiring Diagram (41 Of 47)

GFDWR163801

Courtesy of FORD MOTOR COMPANY

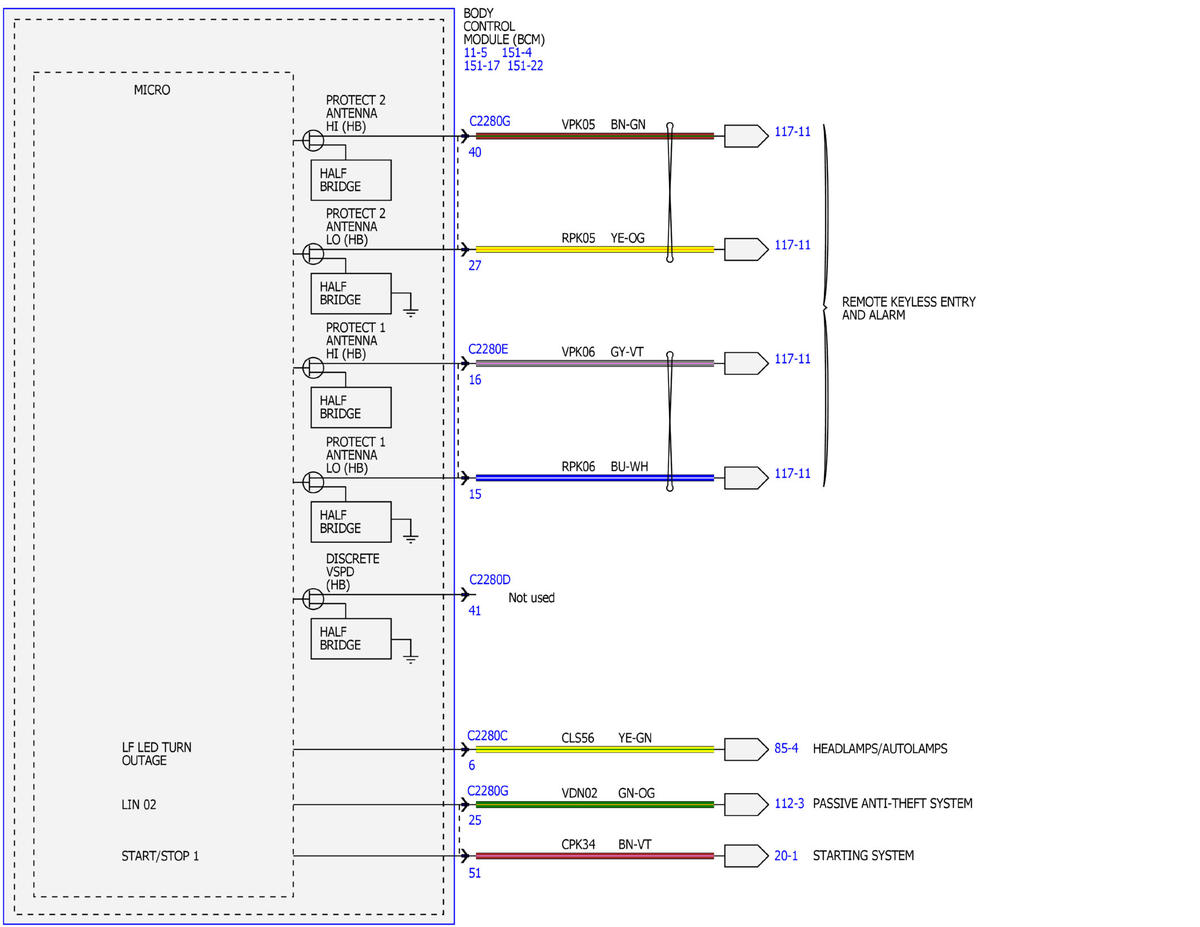

Fig 42: Power Distribution Wiring Diagram (42 Of 47)

GFDWR163802

Courtesy of FORD MOTOR COMPANY

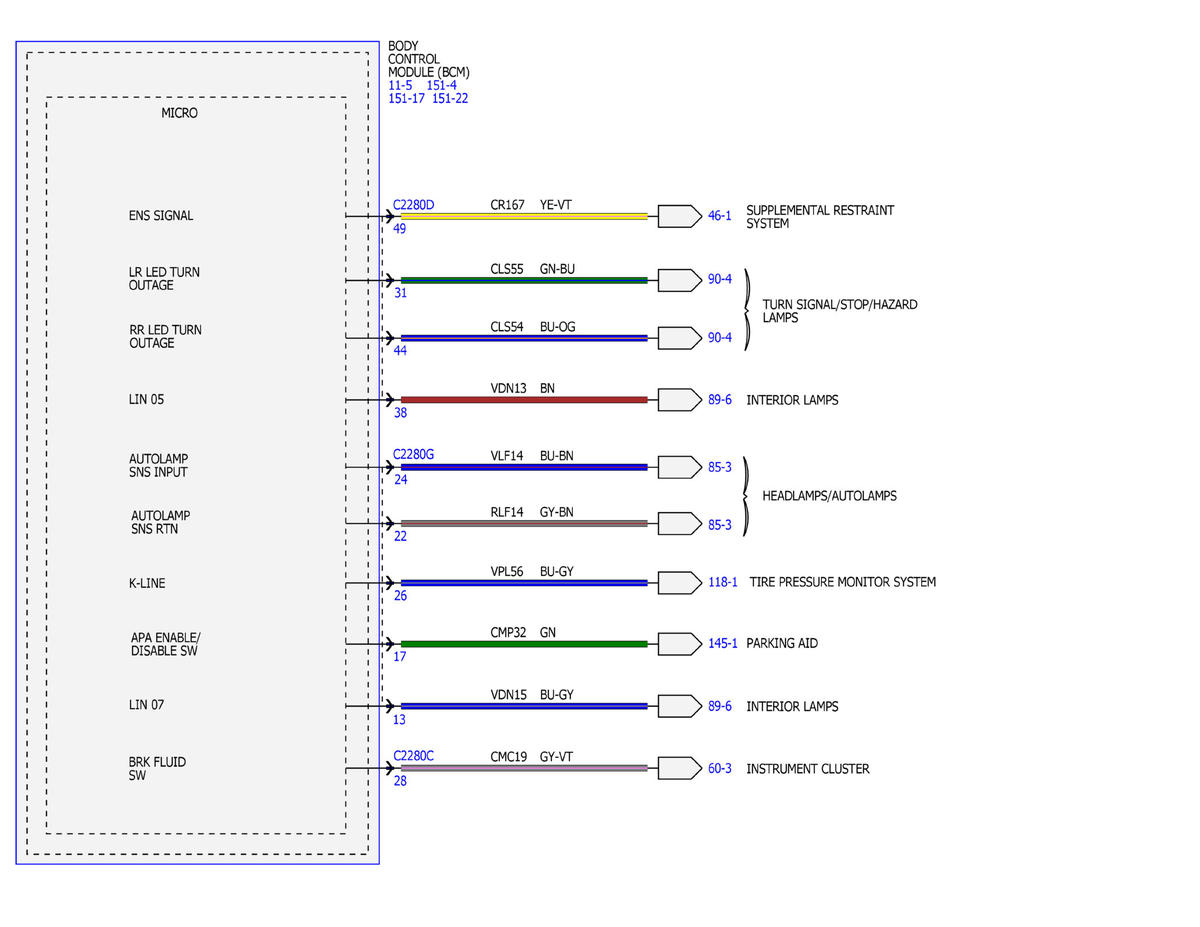

Fig 43: Power Distribution Wiring Diagram (43 Of 47)

GFDWR163803

Courtesy of FORD MOTOR COMPANY

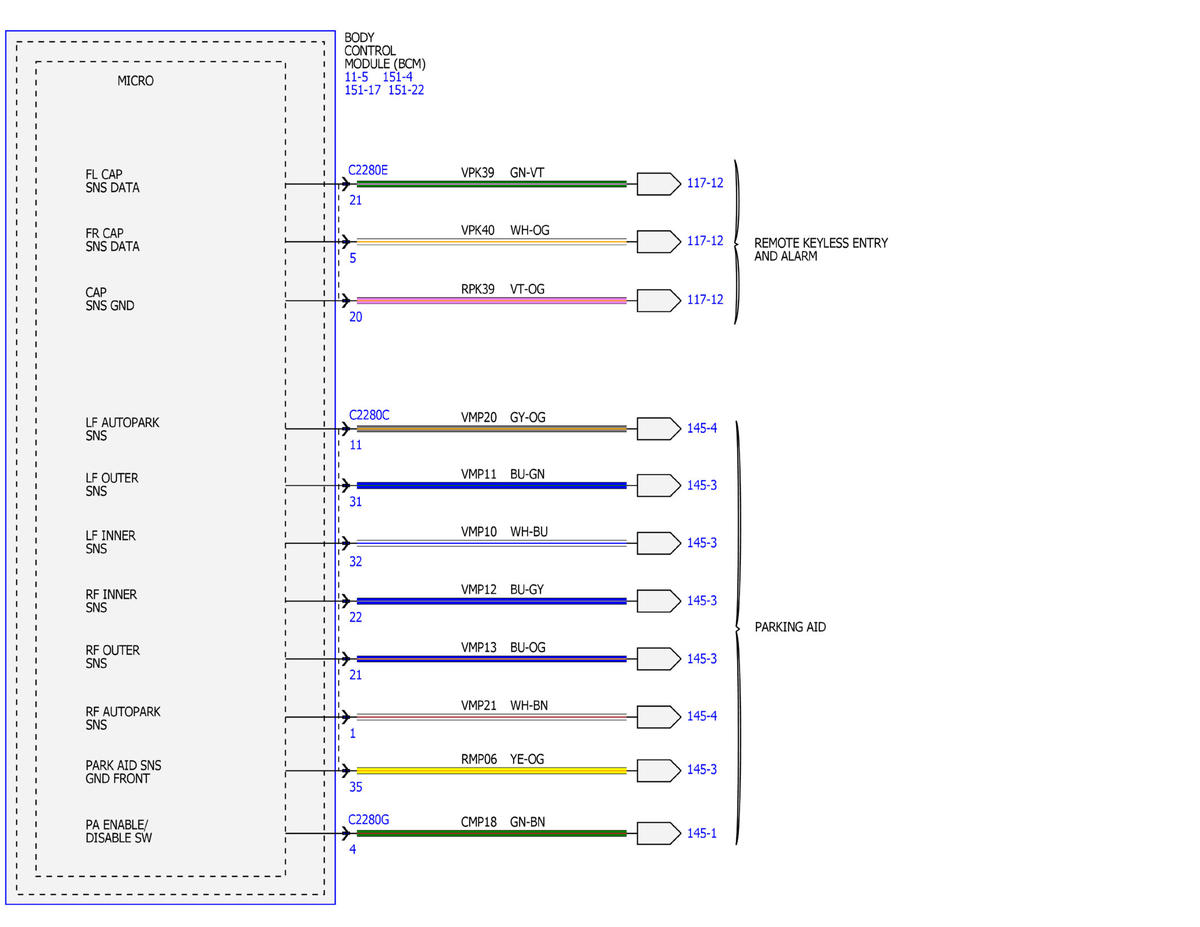

Fig 44: Power Distribution Wiring Diagram (44 Of 47)

GFDWR163804

Courtesy of FORD MOTOR COMPANY

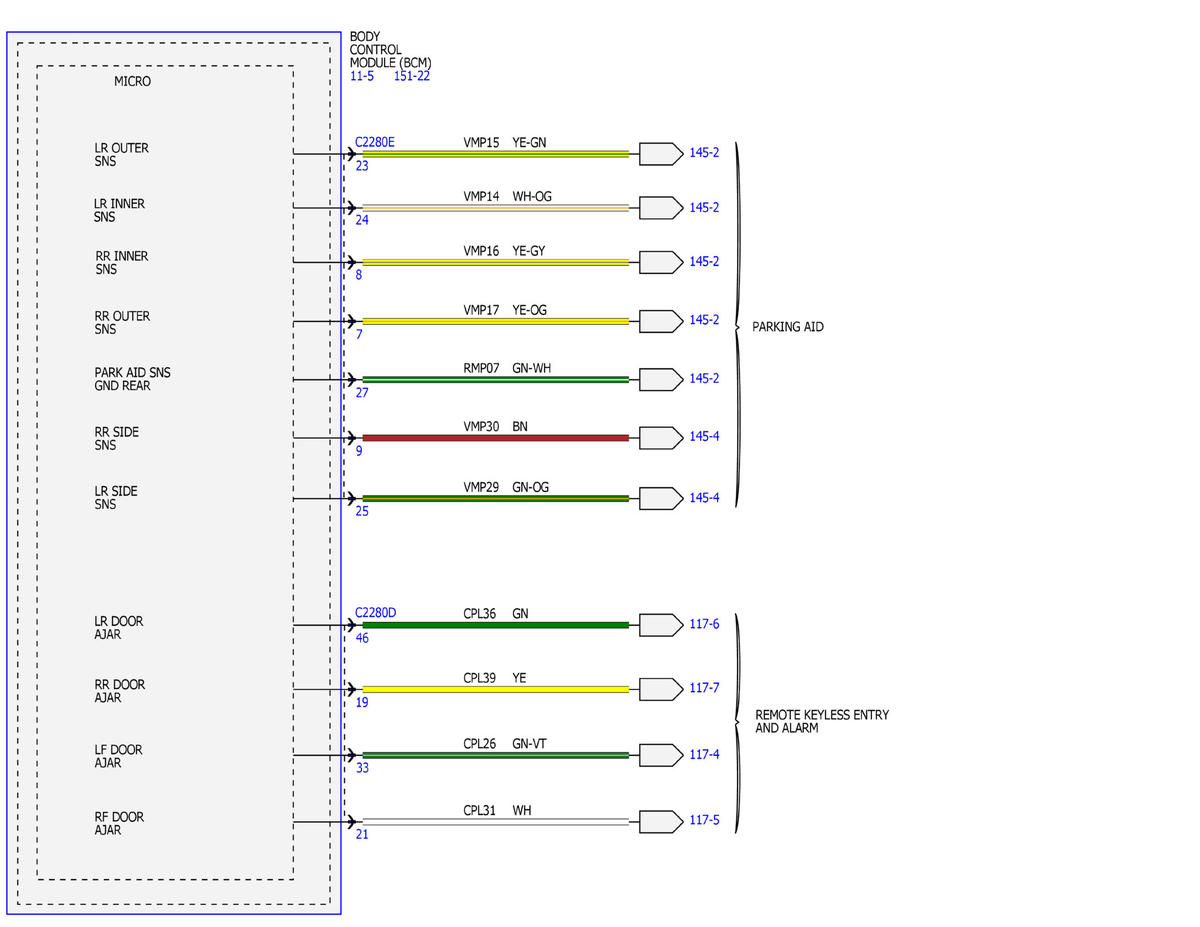

Fig 45: Power Distribution Wiring Diagram (45 Of 47)

GFDWR163805

Courtesy of FORD MOTOR COMPANY

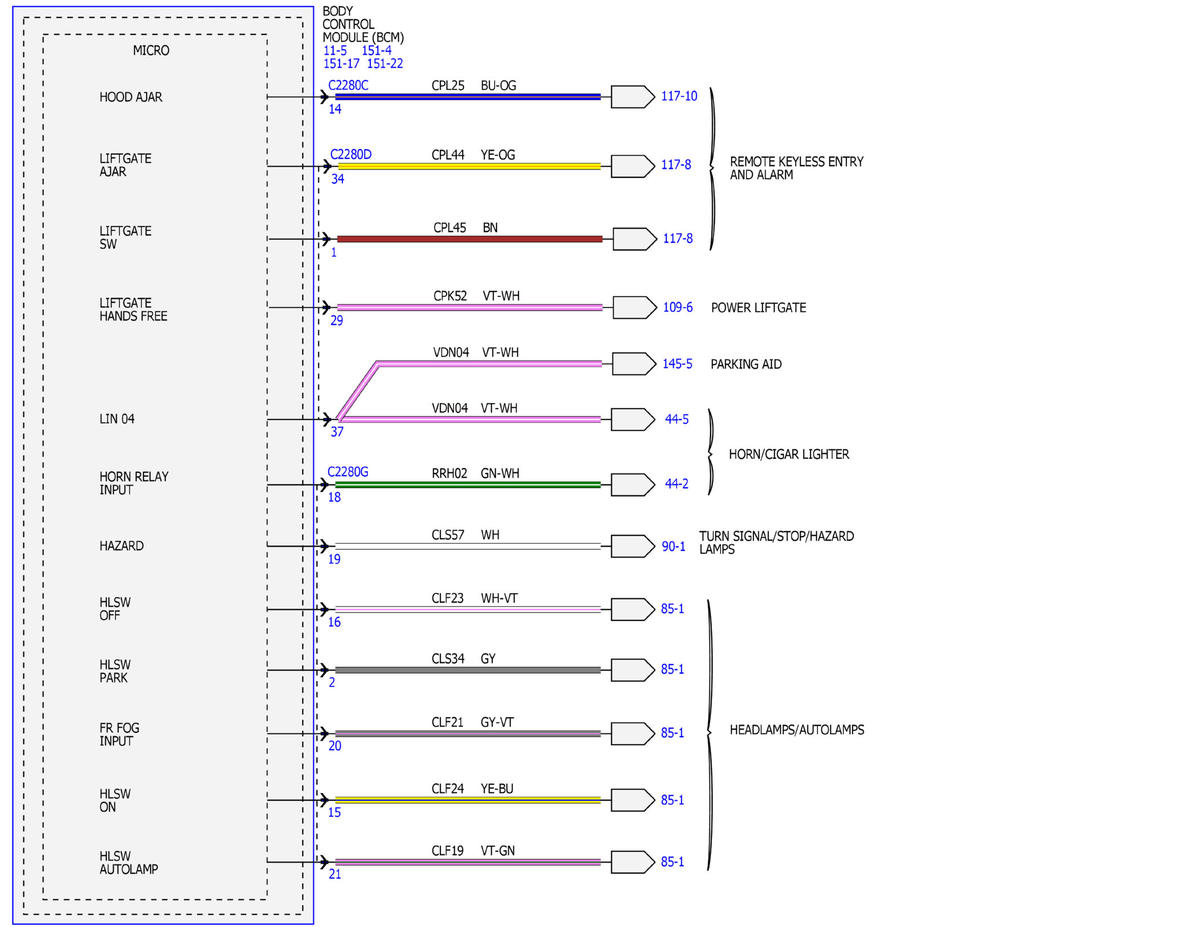

Fig 46: Power Distribution Wiring Diagram (46 Of 47)

GFDWR163806

Courtesy of FORD MOTOR COMPANY

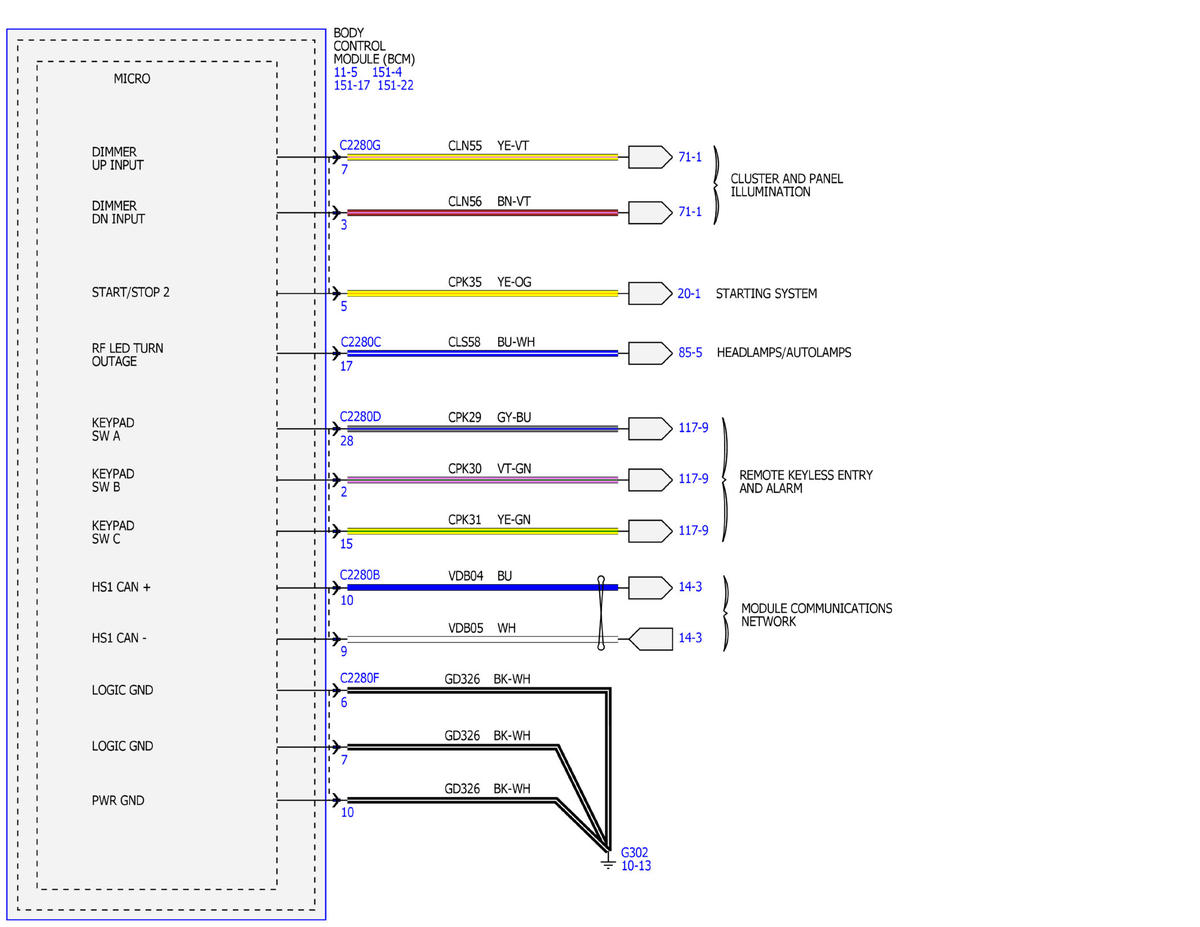

Fig 47: Power Distribution Wiring Diagram (47 Of 47)

GFDWR163807

Courtesy of FORD MOTOR COMPANY
