OEM Electrical Wiring Diagram Introduction: Introduction

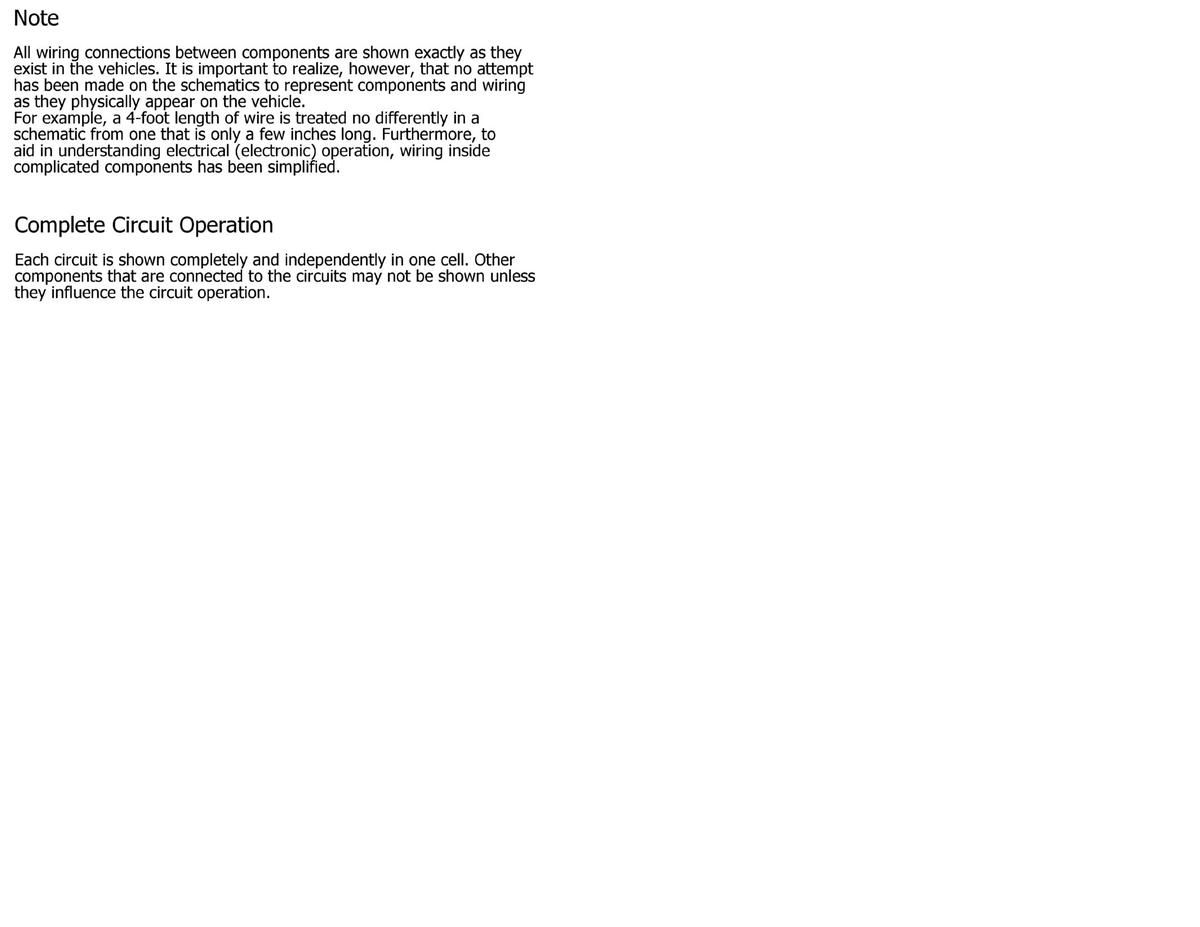

GFDWR163563Courtesy of FORD MOTOR COMPANY

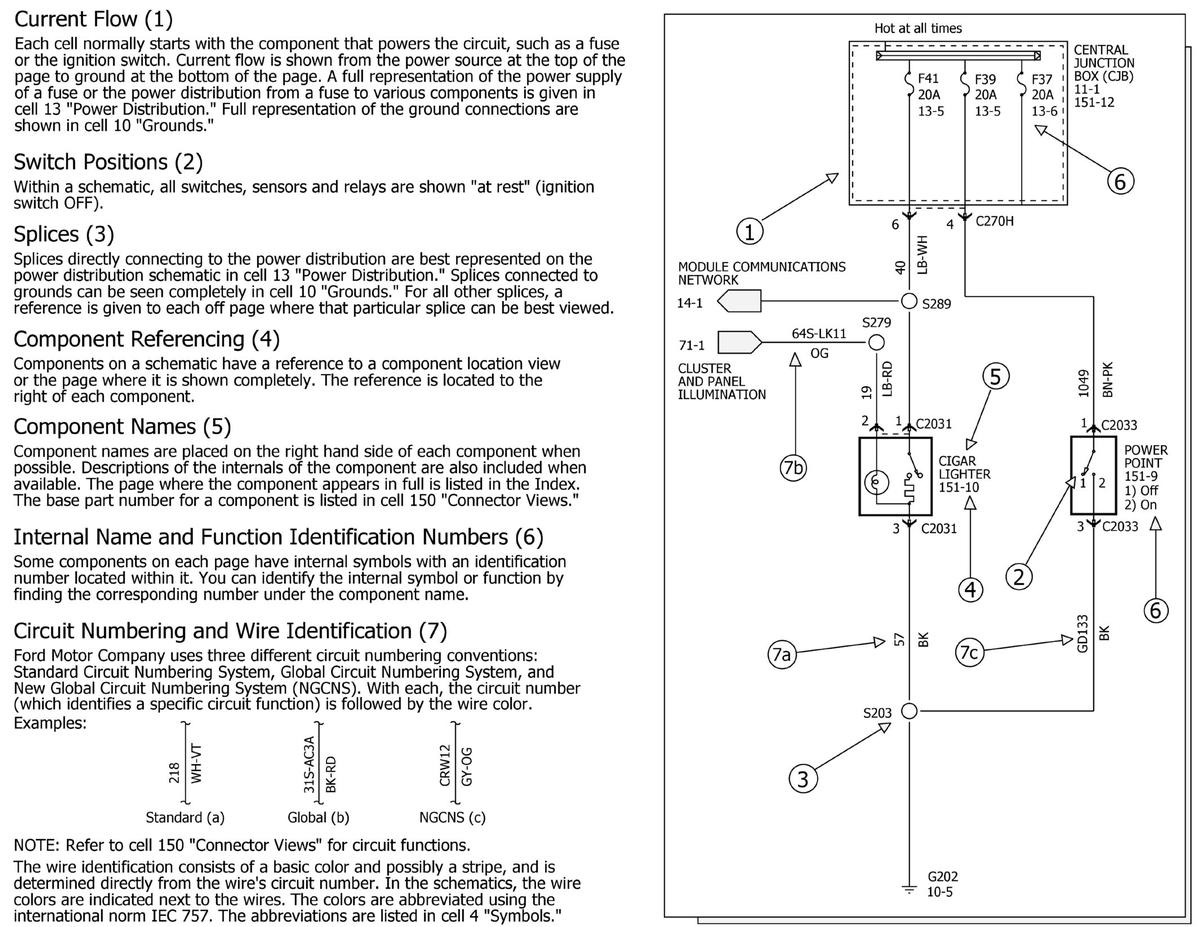

GFDWR163564Courtesy of FORD MOTOR COMPANY

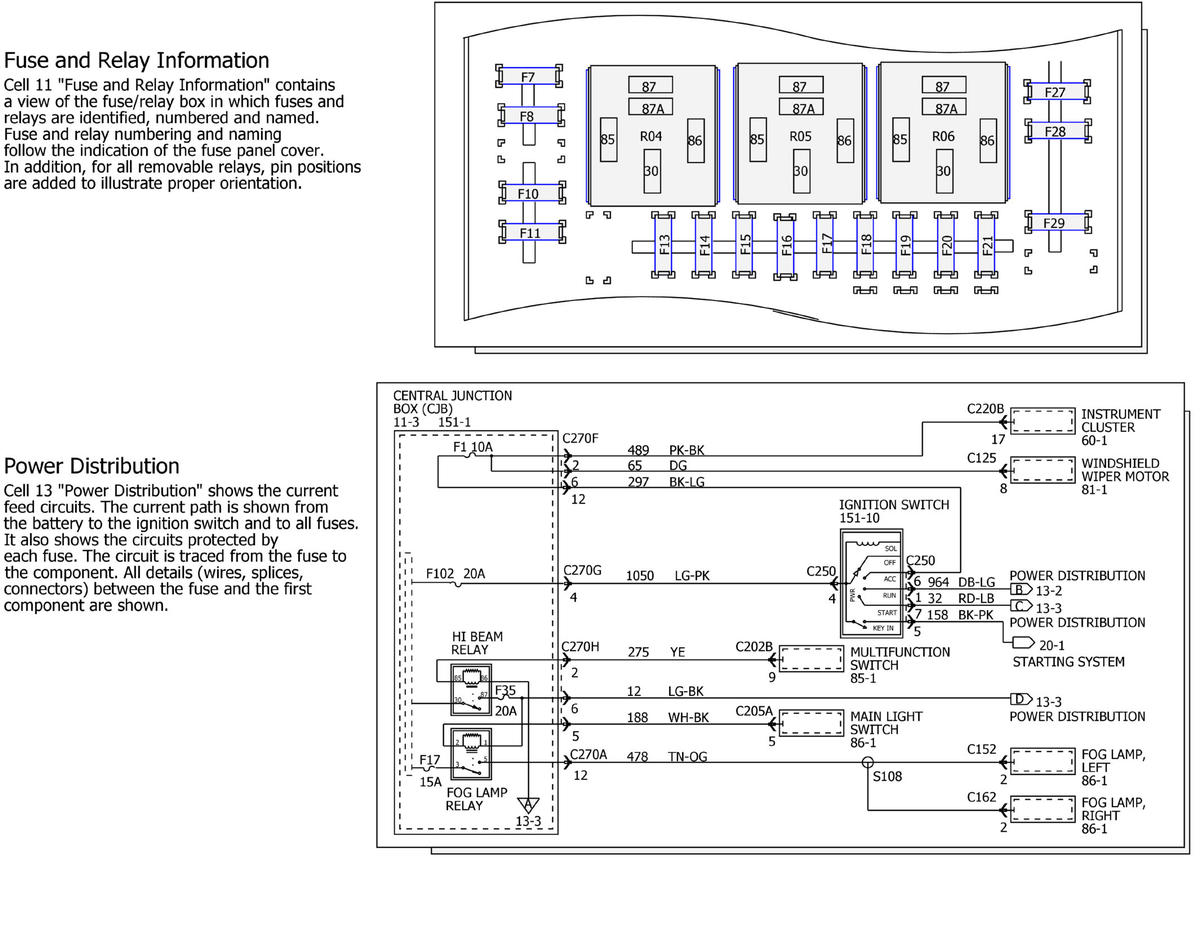

GFDWR163565Courtesy of FORD MOTOR COMPANY

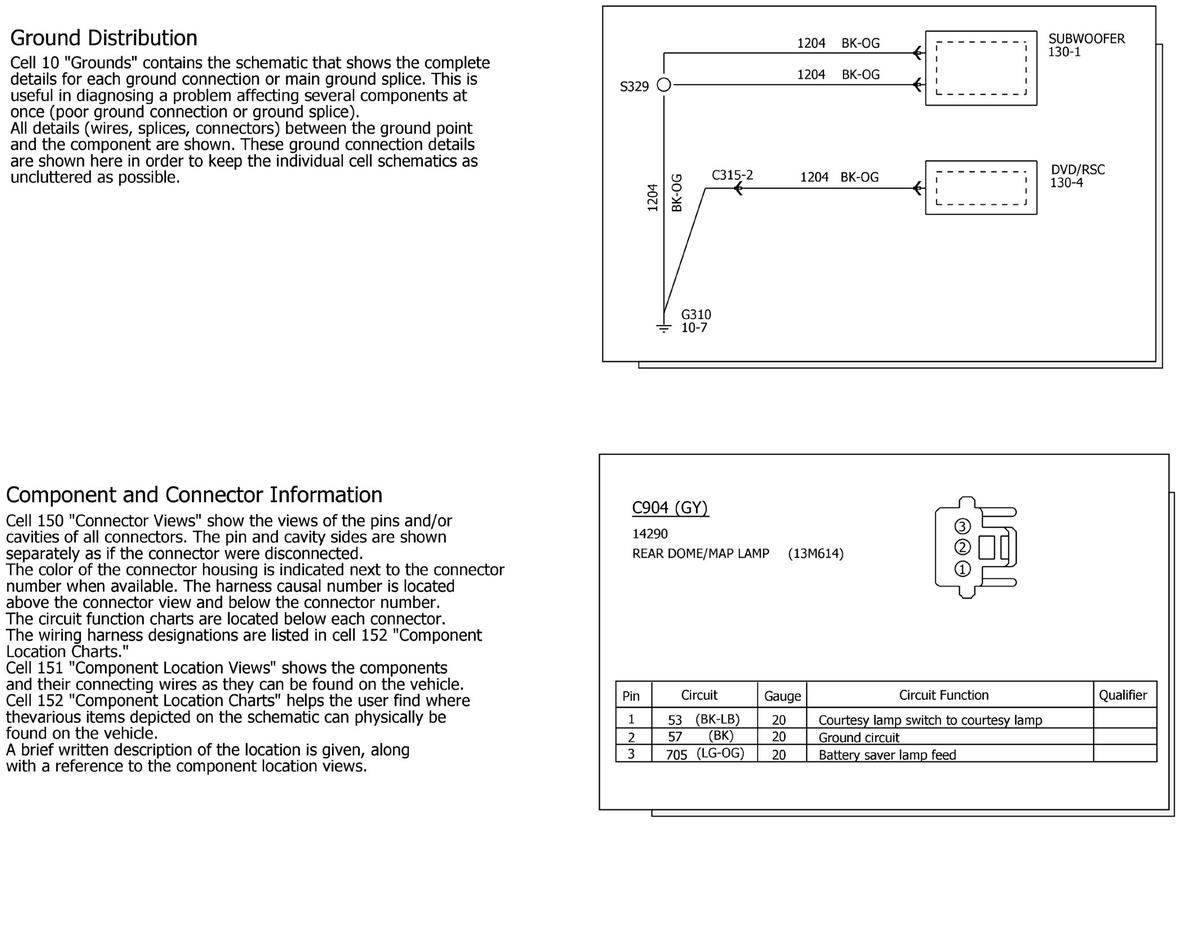

GFDWR163566Courtesy of FORD MOTOR COMPANY

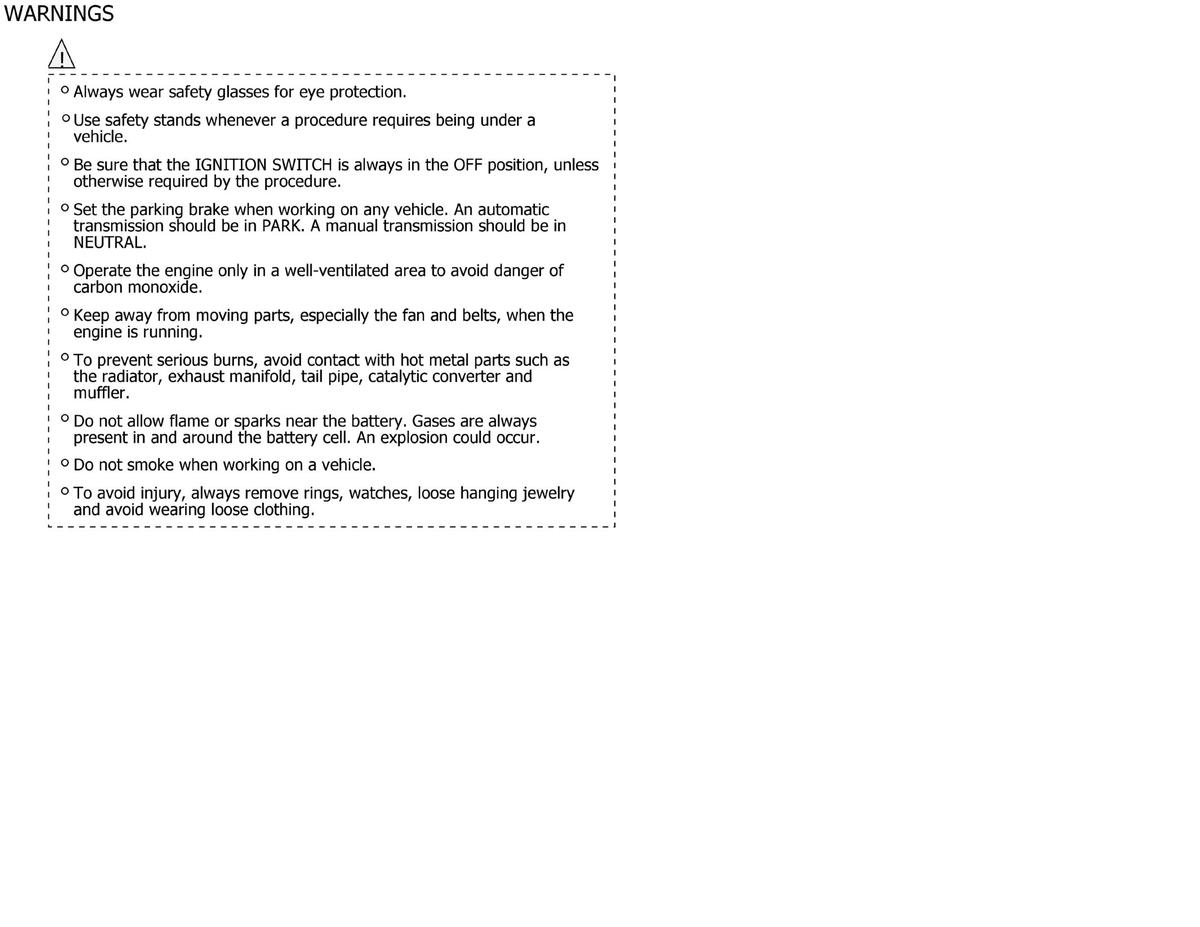

GFDWR163567Courtesy of FORD MOTOR COMPANY
